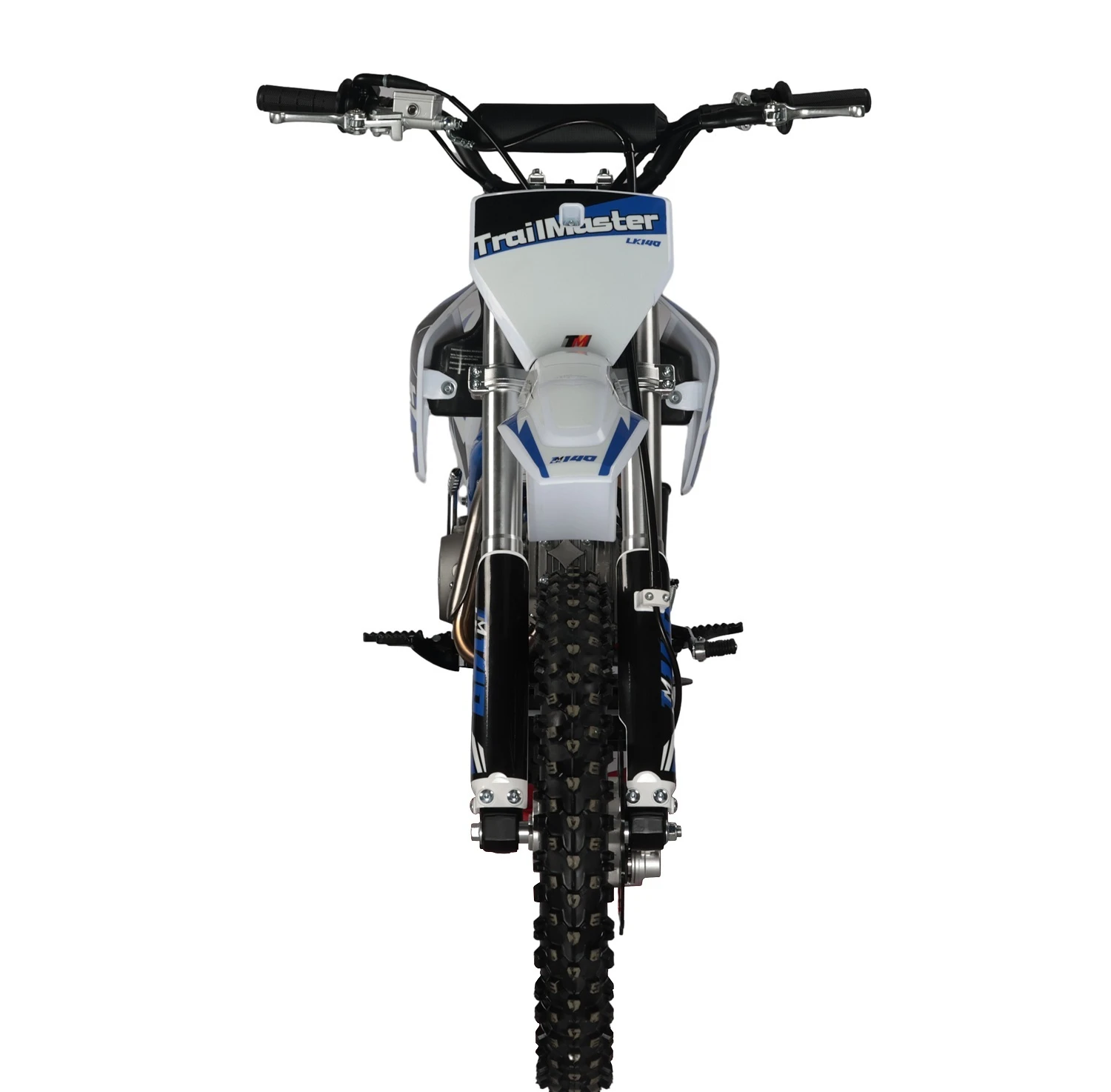

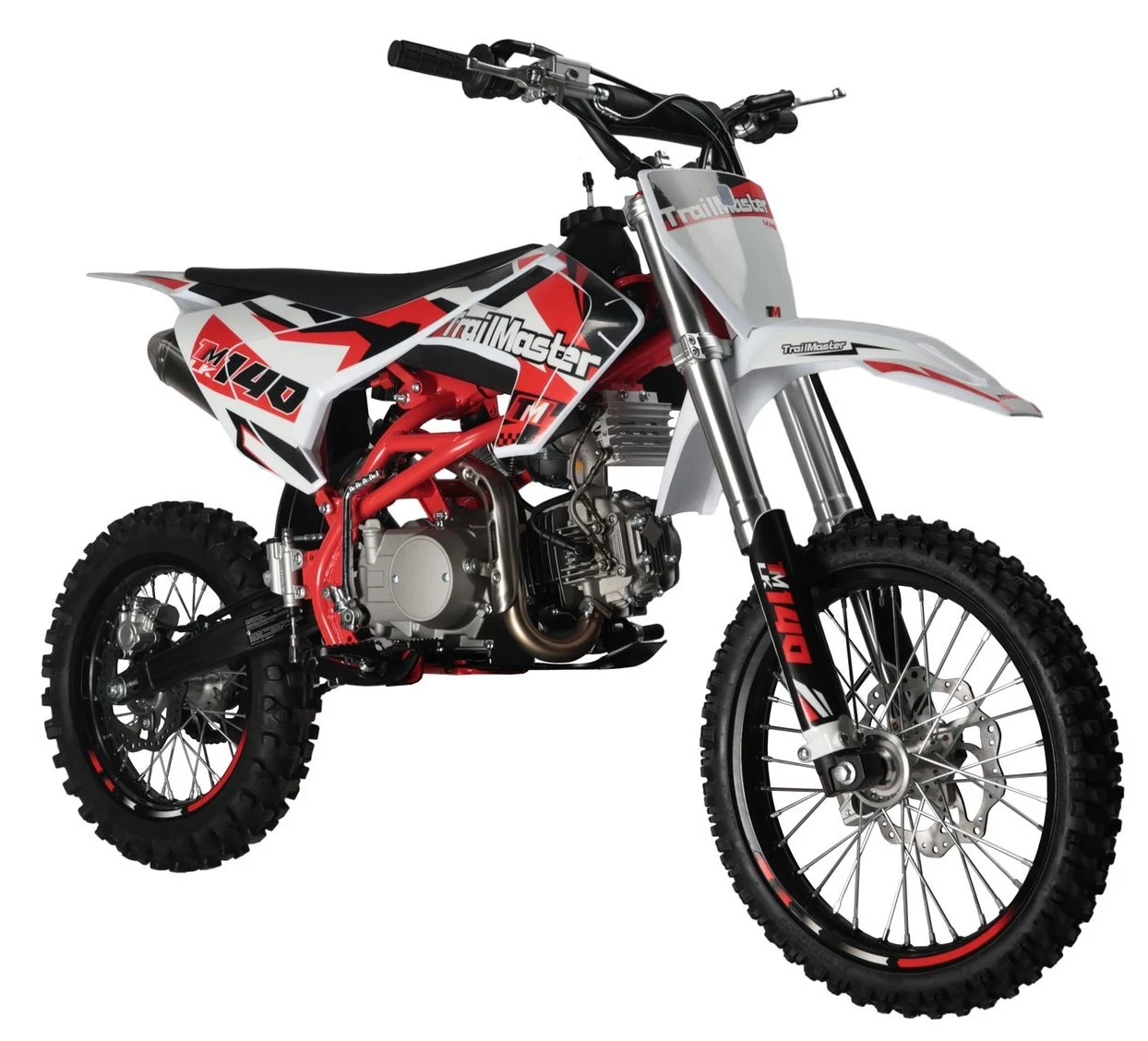

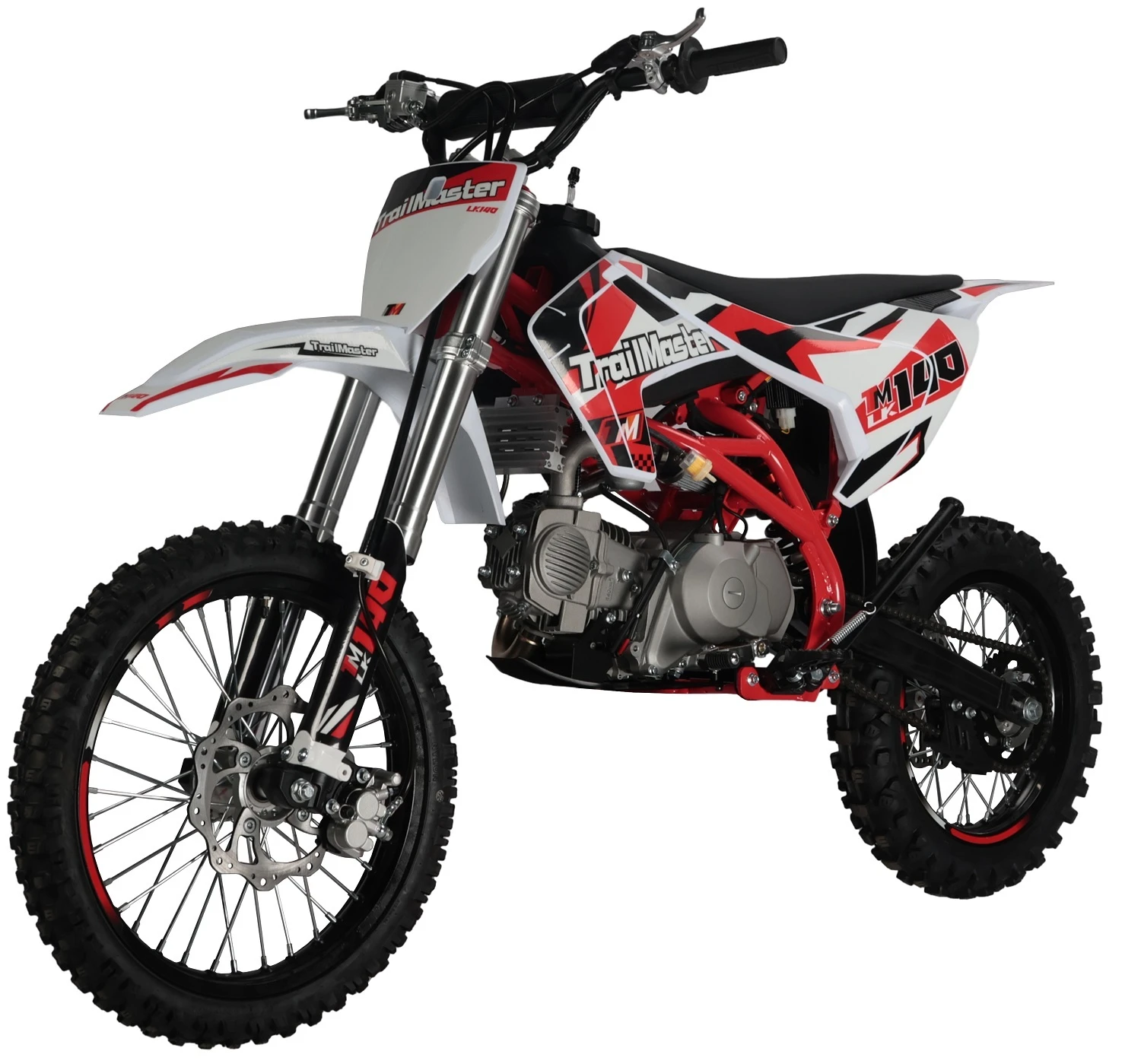

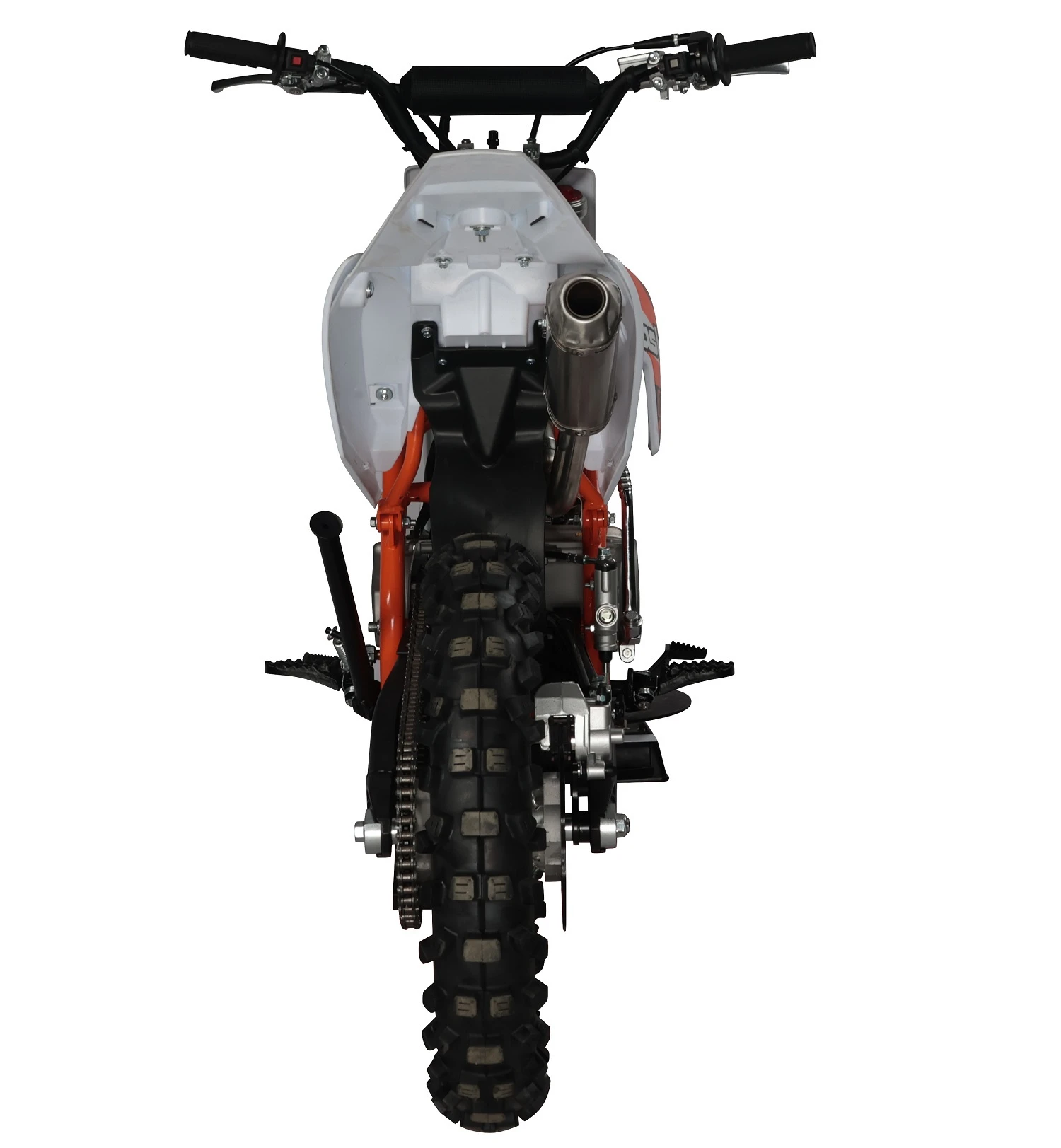

TrailMaster Pro Series Dirt Bike TM LK140 4 stroke motor Zhongshen 140 motor
The TrailMaster Pro Series Dirt Bike TM LK140 boasts a potent Zhongshen 140cc 4-stroke motor, providing robust performance. Its Nitrogen air gas rear shock absorber with aluminum linkage ensures smooth handling, complemented by the durability of alloy rims and hubs. Elevate your off-road adventures with this powerful and well-equipped dirt bike.
The TrailMaster Pro Series Dirt Bike TM LK140 features quality front and rear disc brakes for enhanced safety. Powered by a 140CC engine, it utilizes a four-gear, non-circulate gear shift type with a chain drive transmission. With a maximum power output of 6.8/7500 (1±1.5%), this dirt bike offers a thrilling and reliable off-road riding experience.

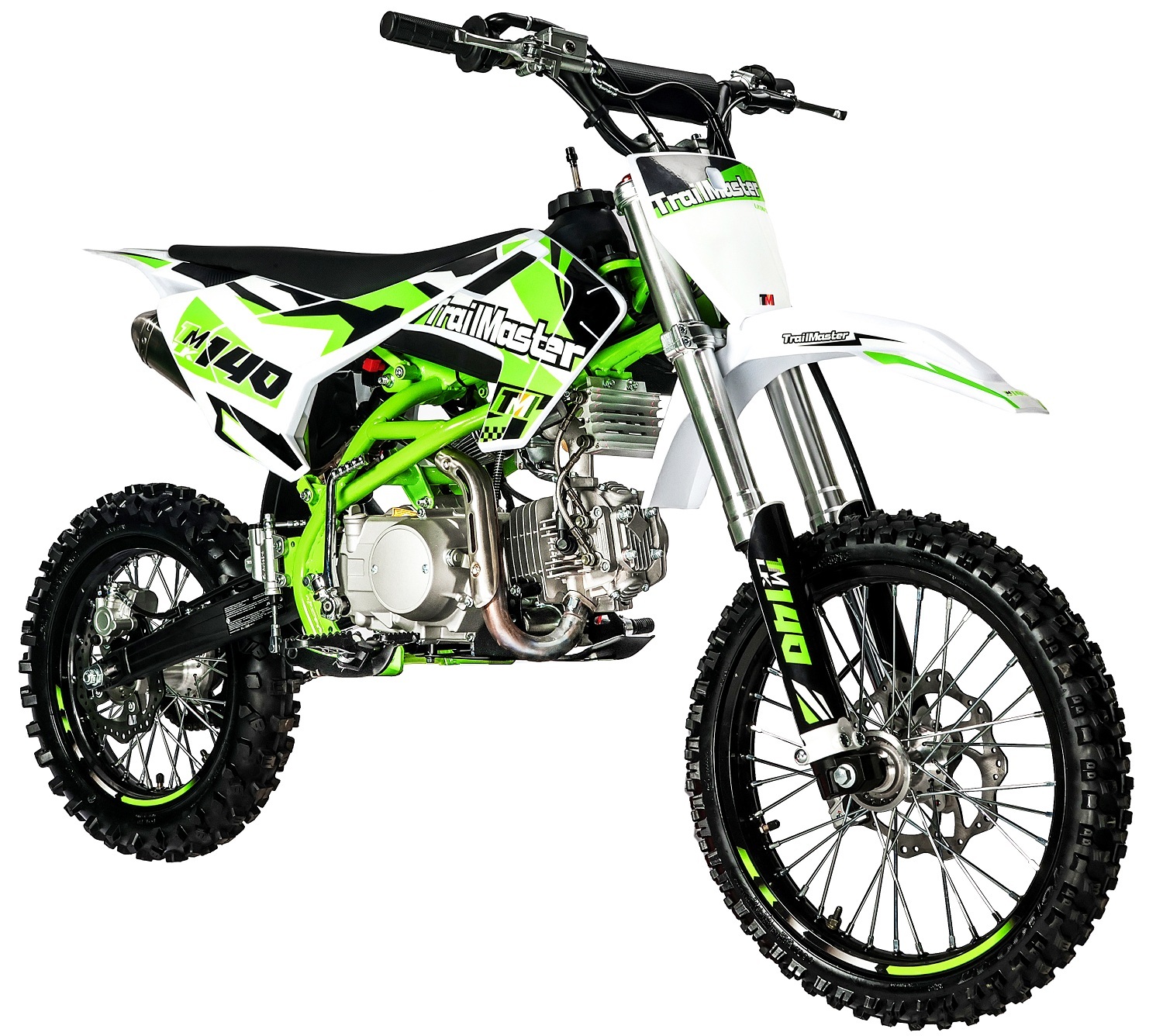

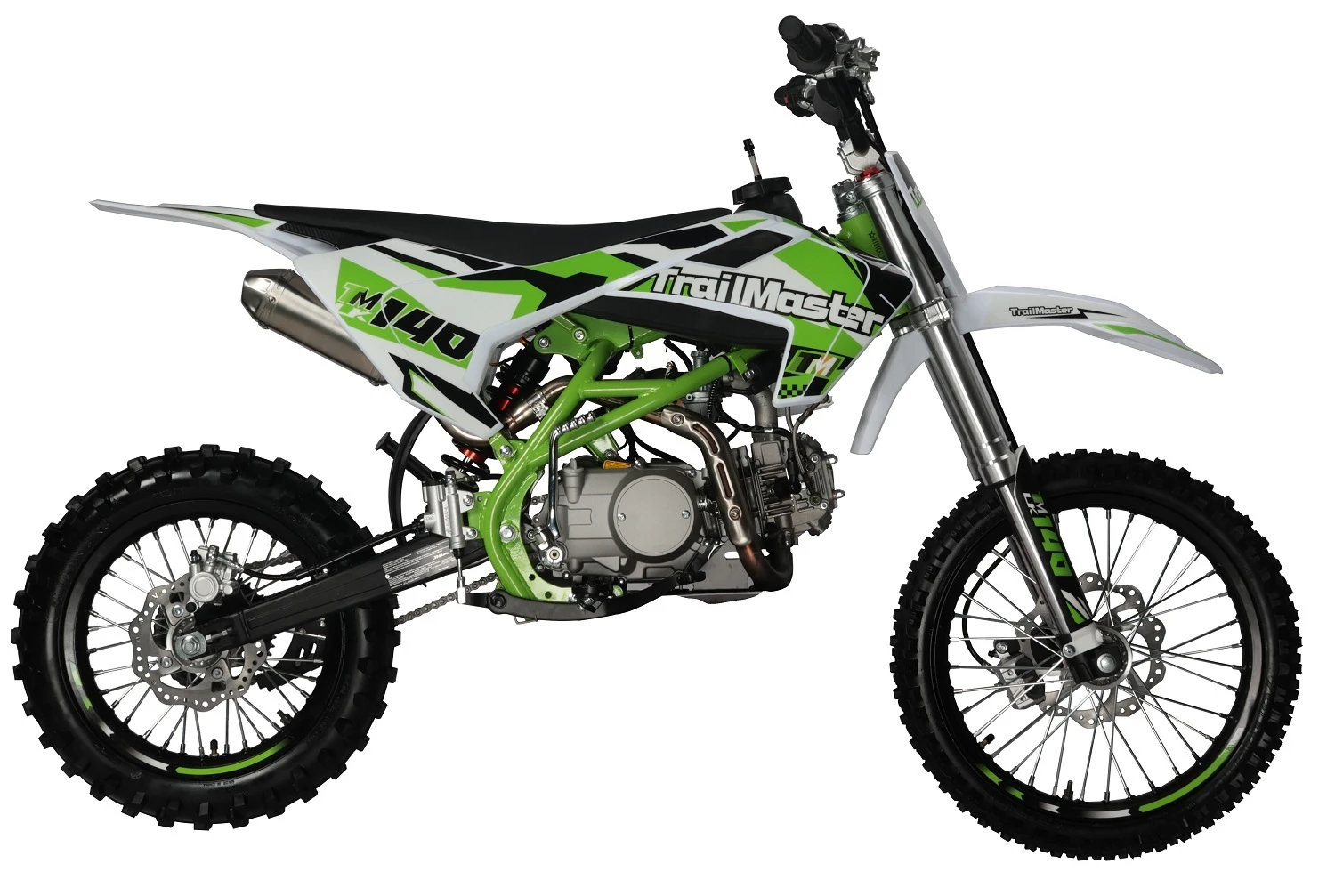

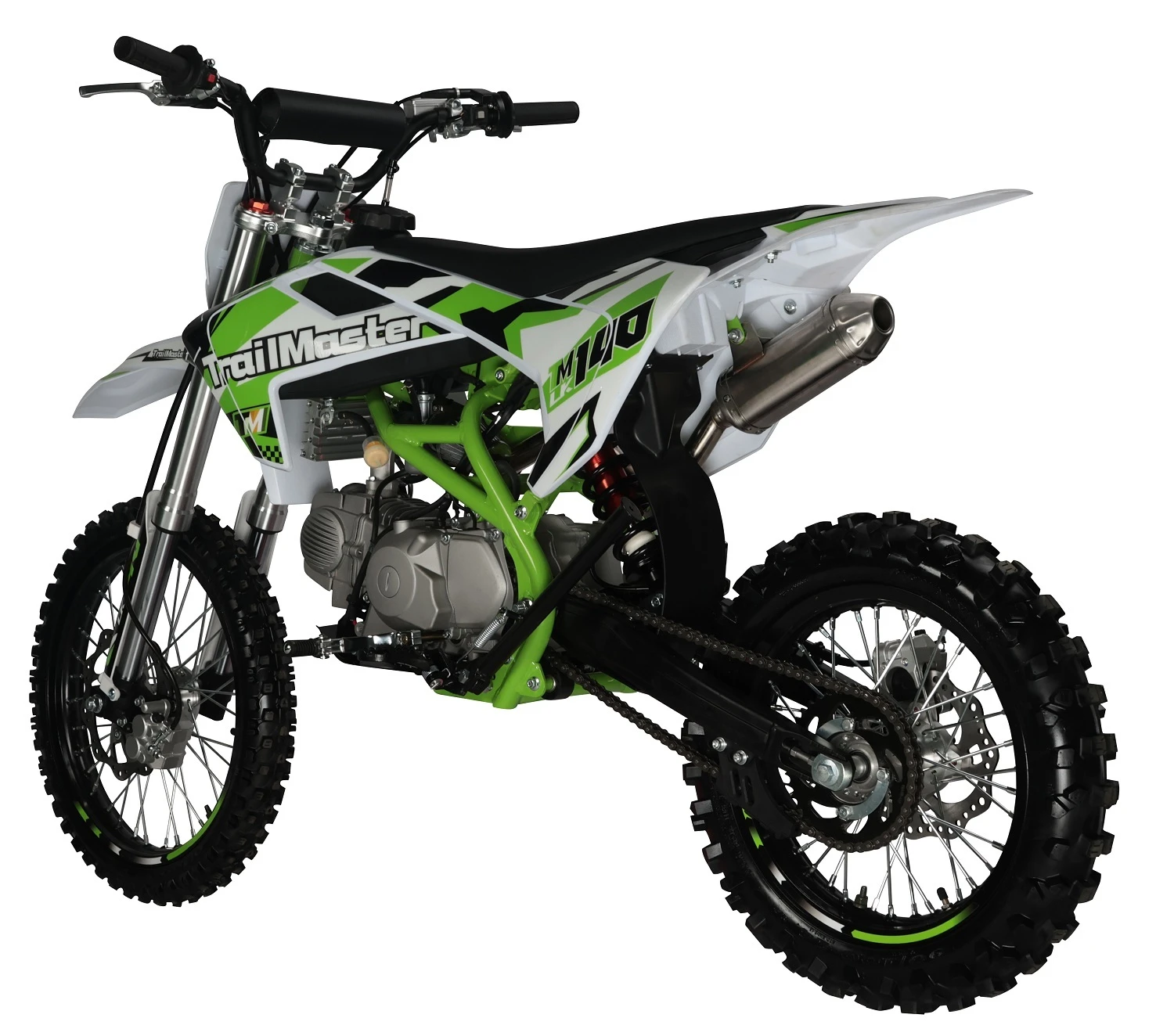

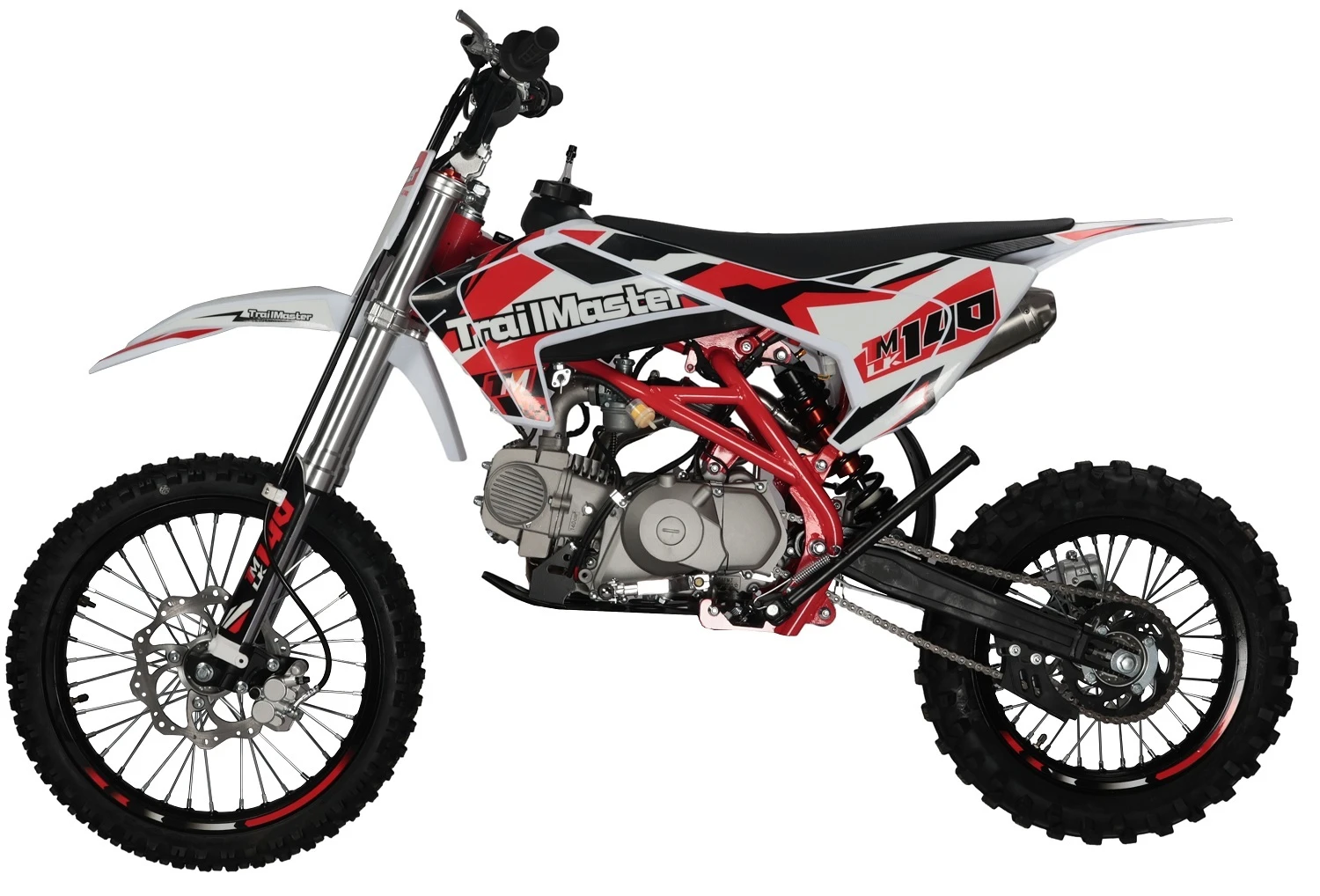

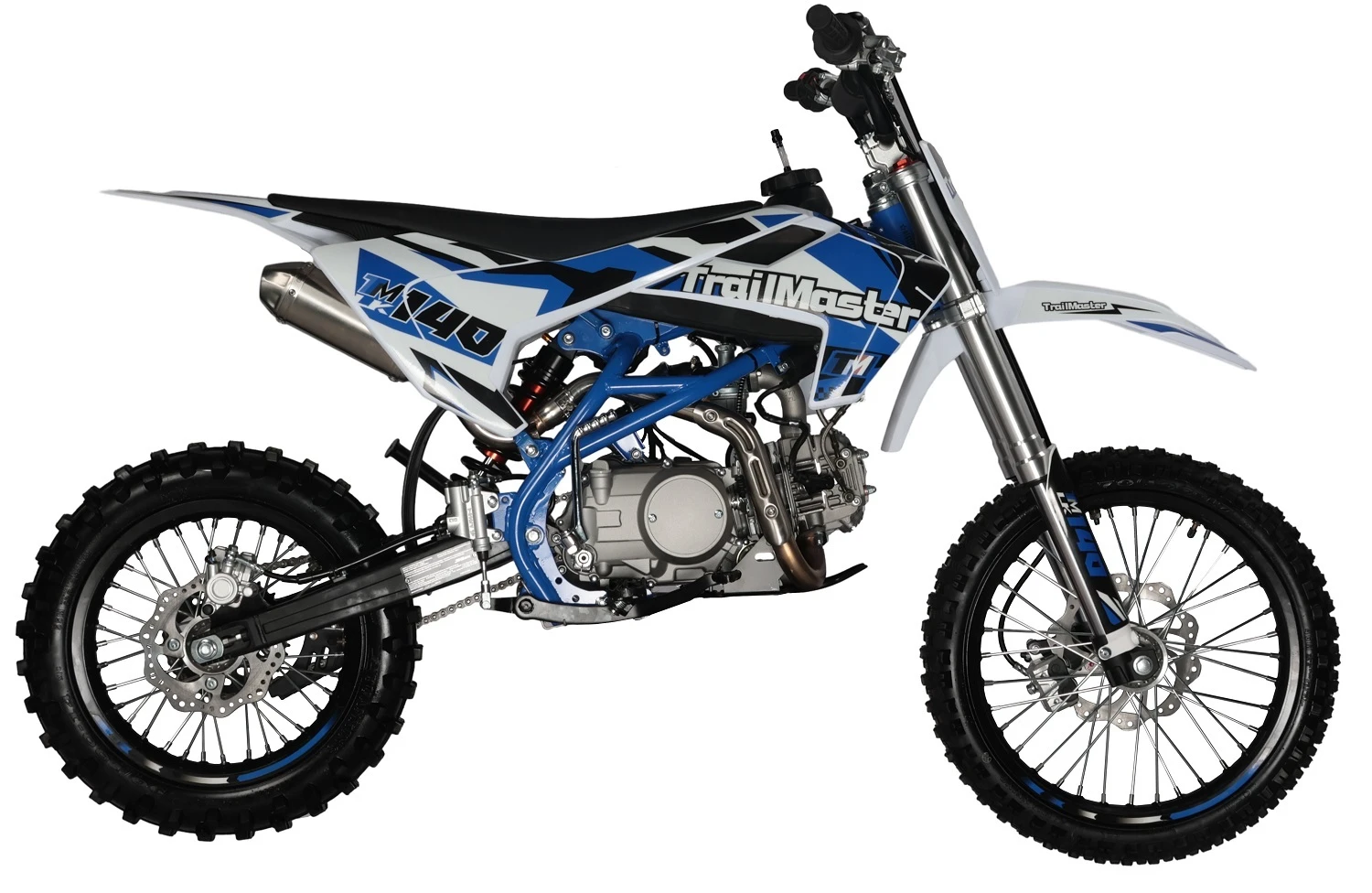

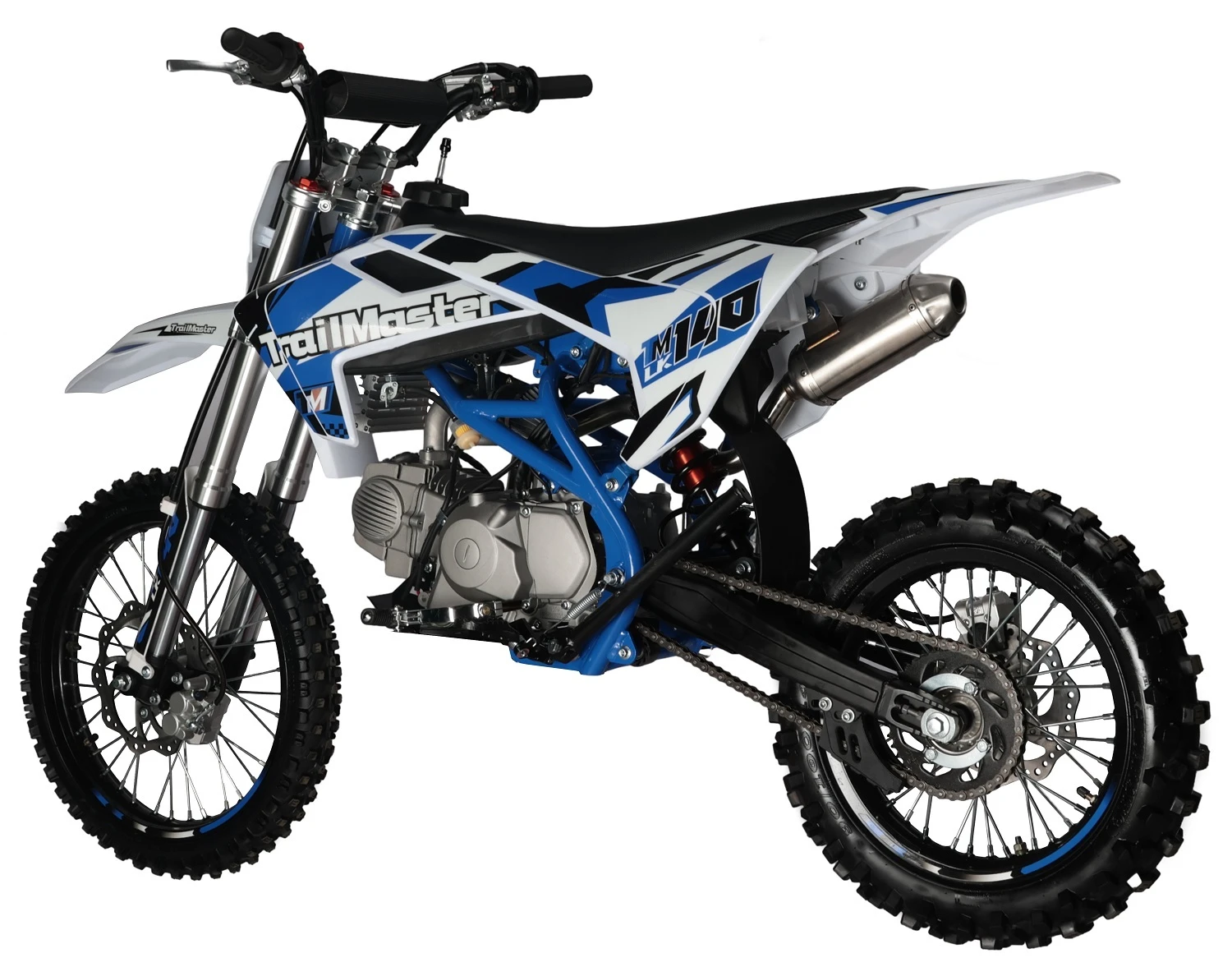

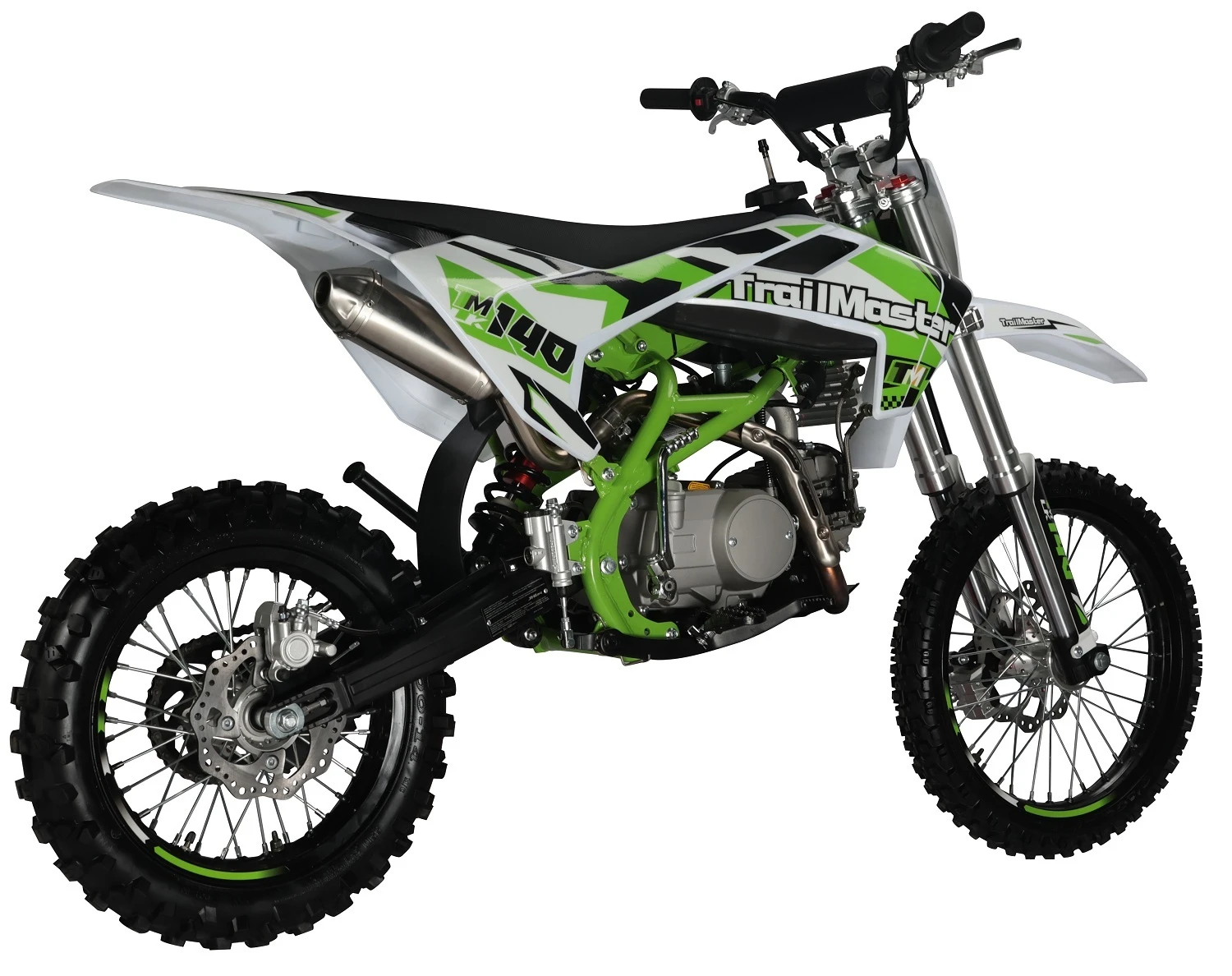

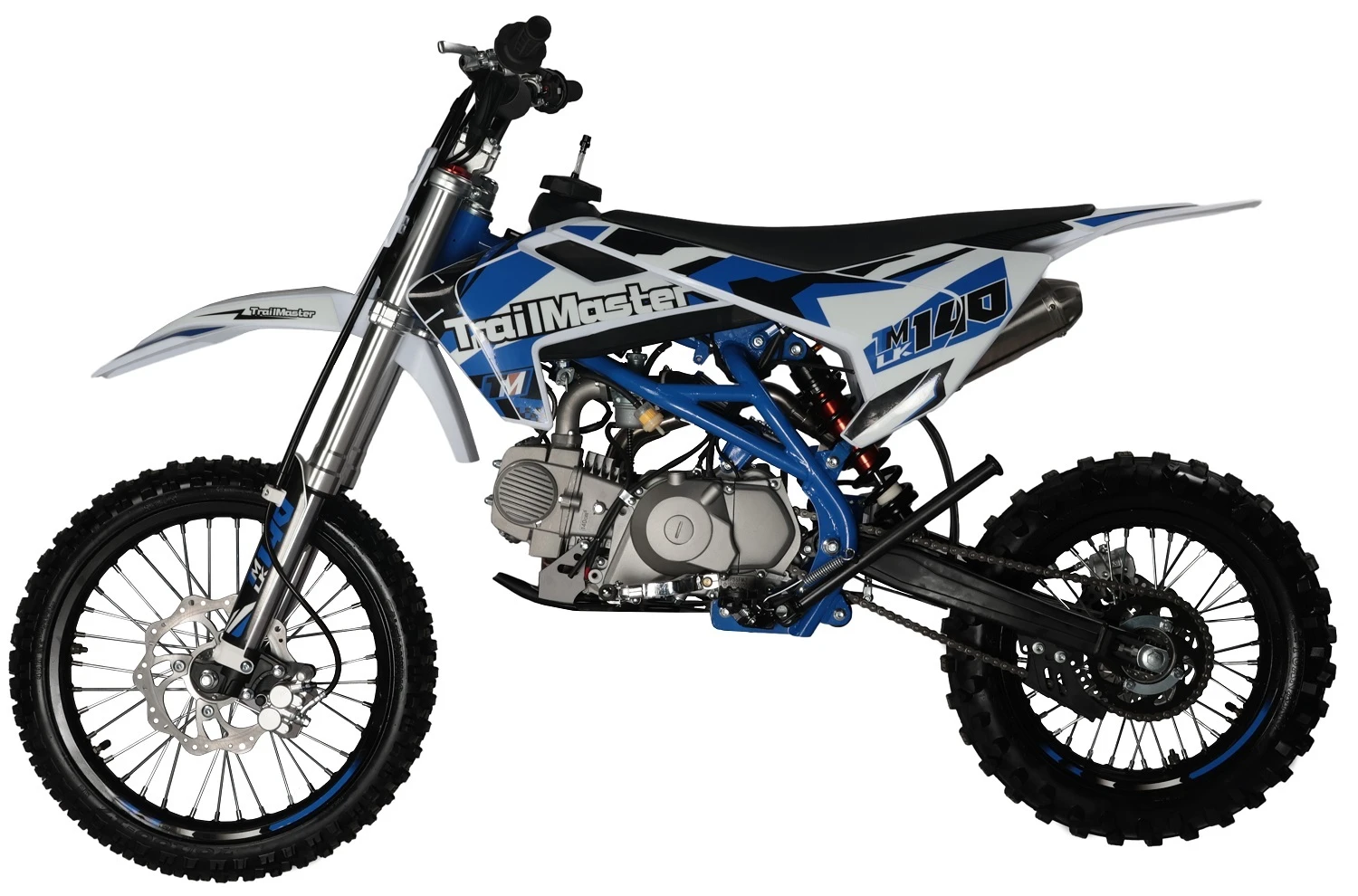

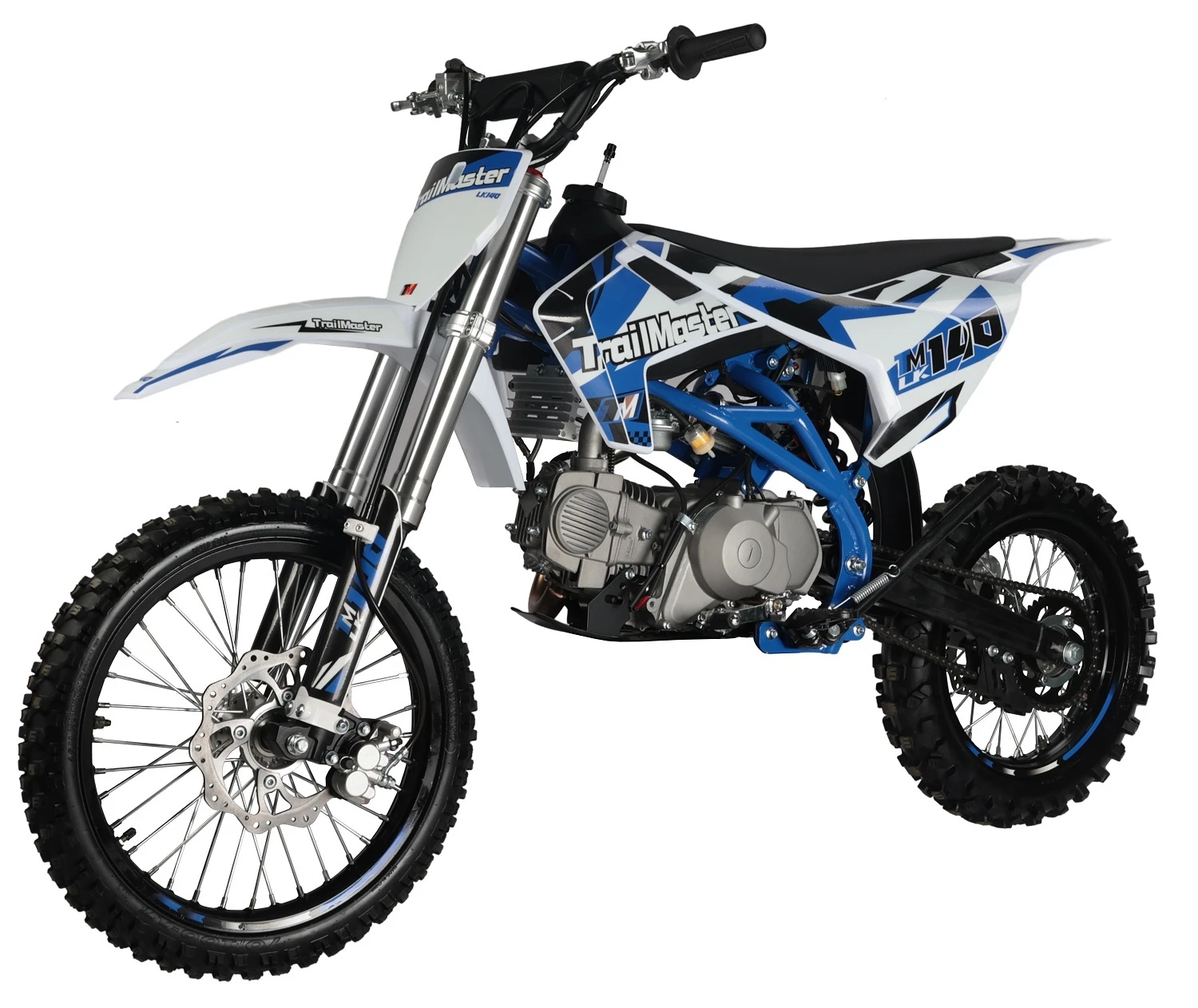

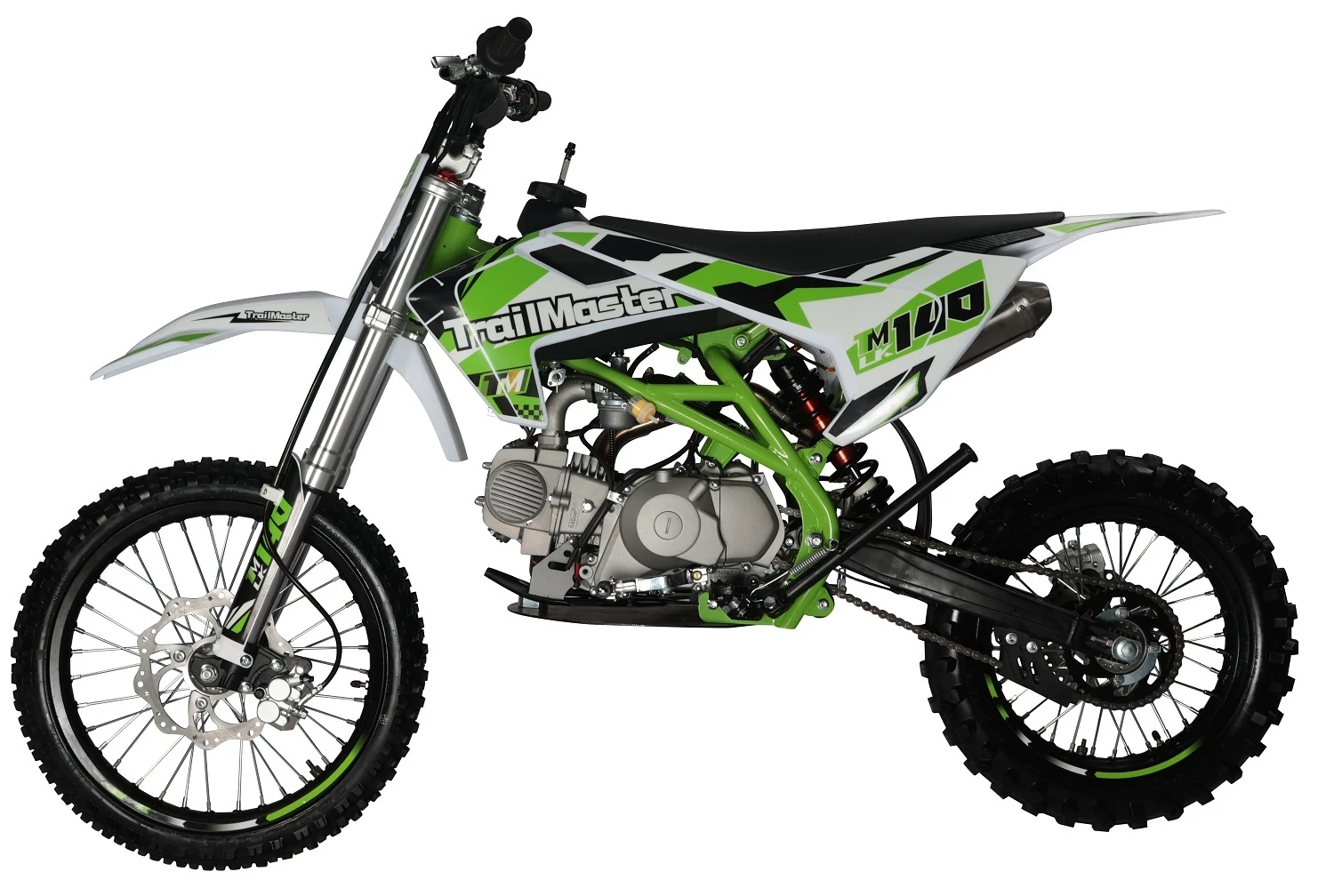

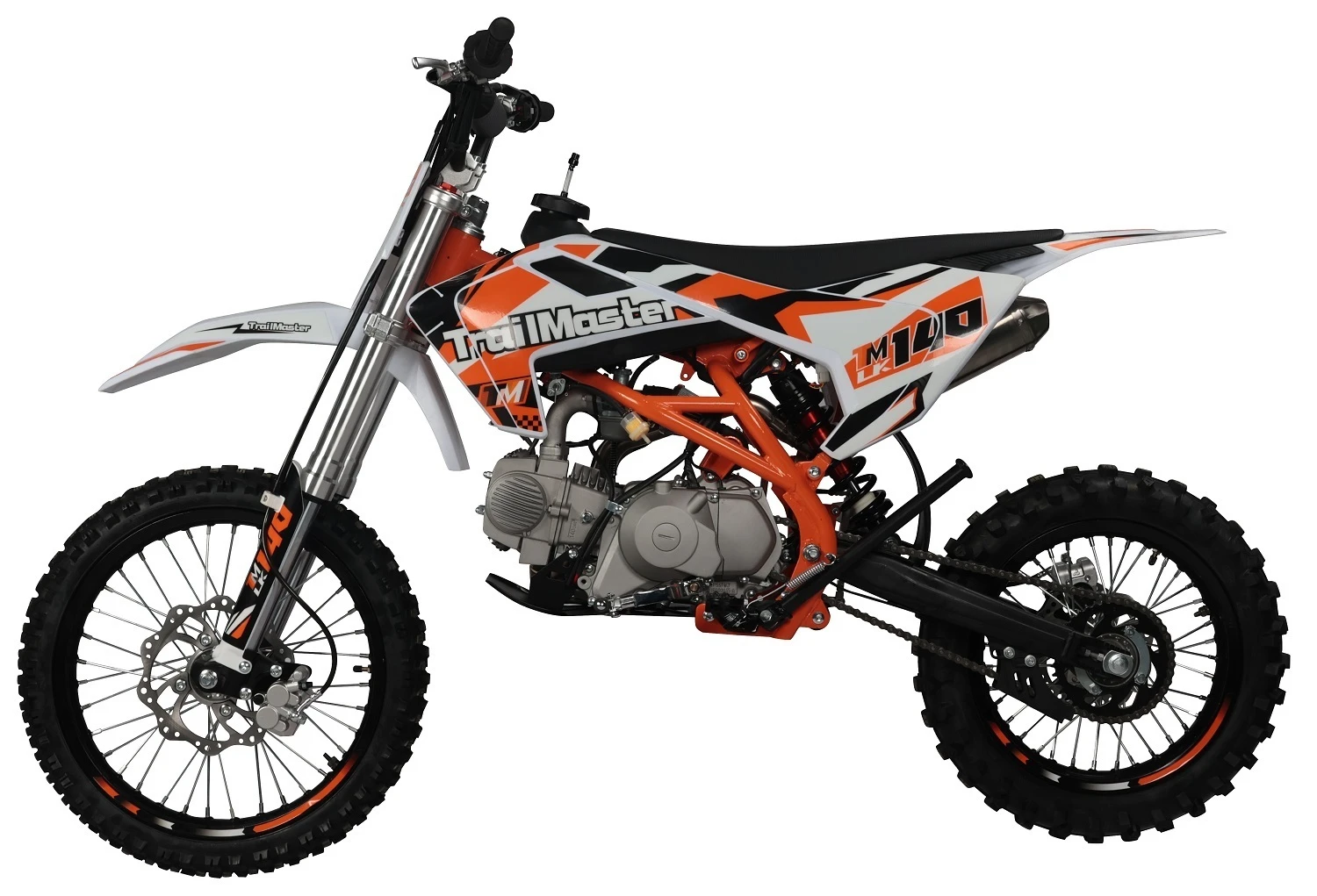

Colors are in Red, blue, green and orange.

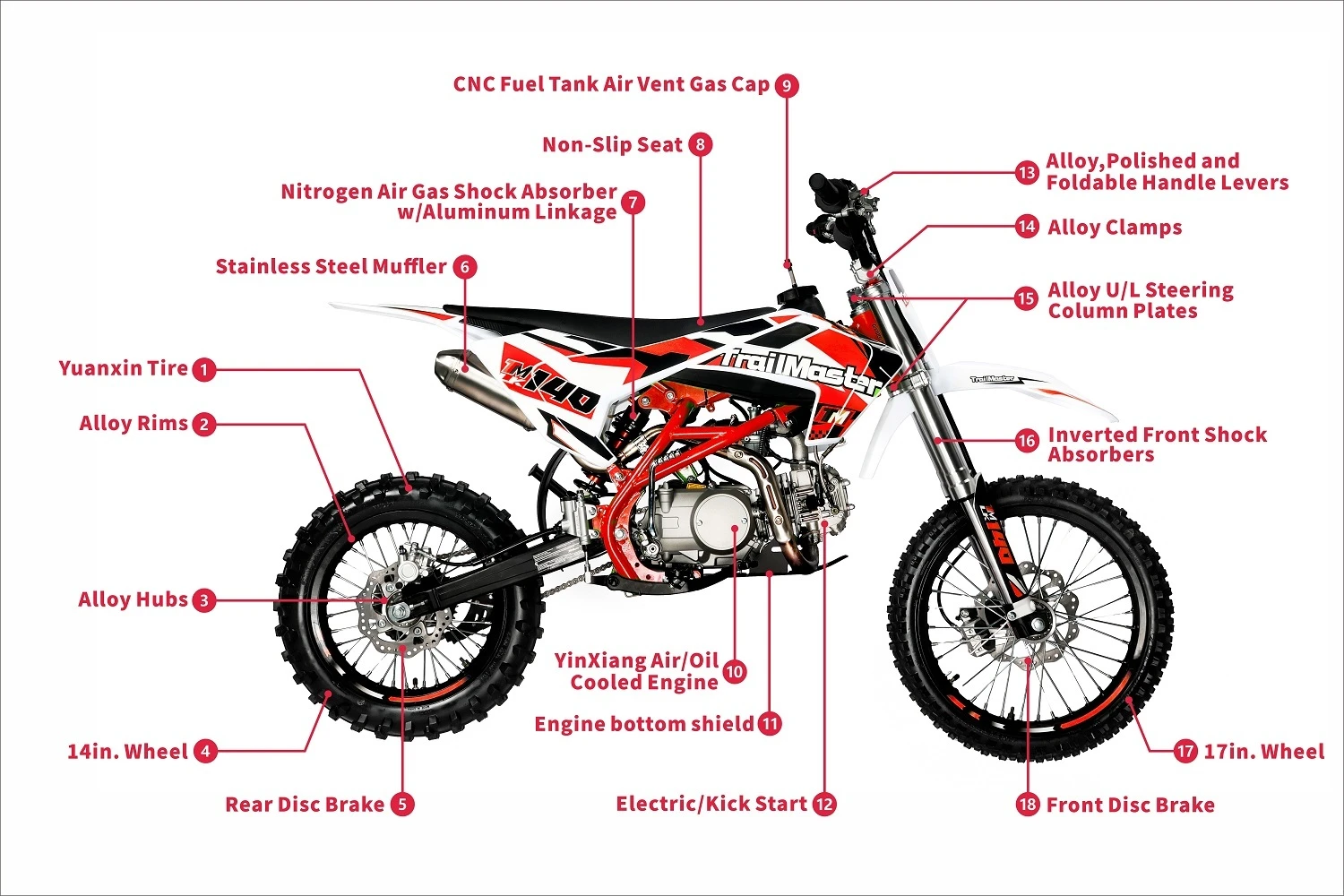

- With both electric and kick start
- Famous brand name engine
- Inverted front shock absorber;

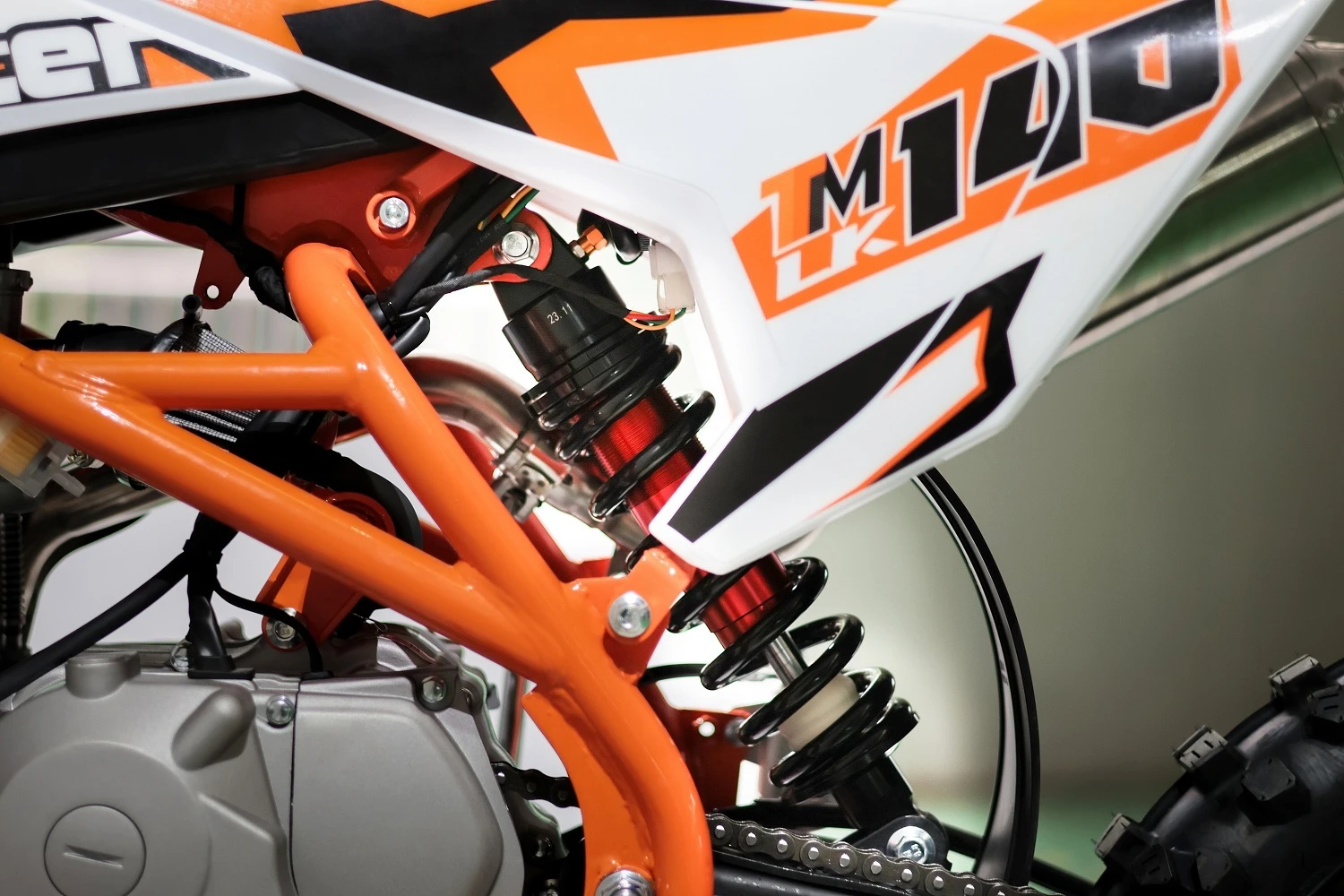

- Nitrogen air gas rear shock absorber w/aluminum linkage

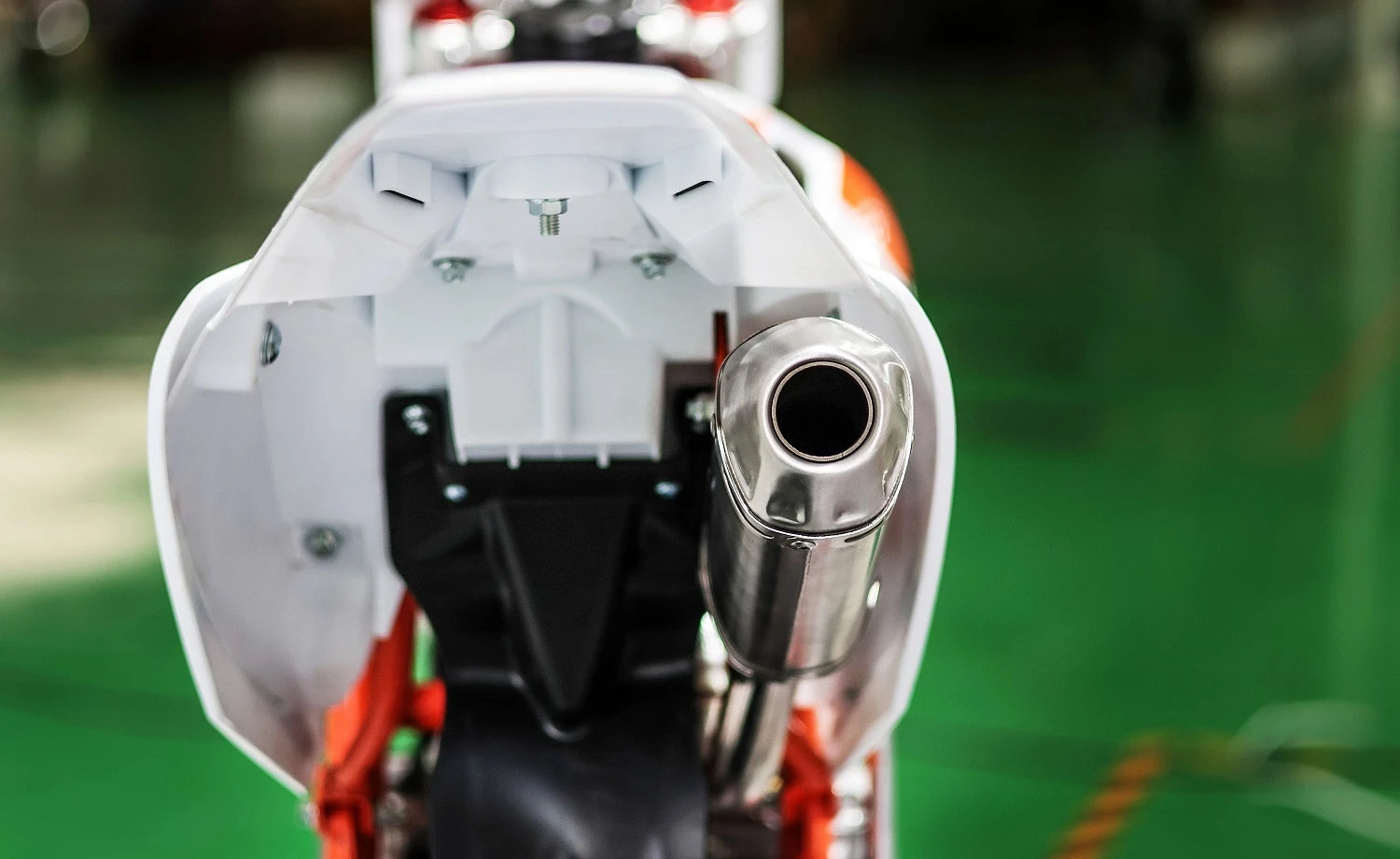

- Performance stainless steel muffler

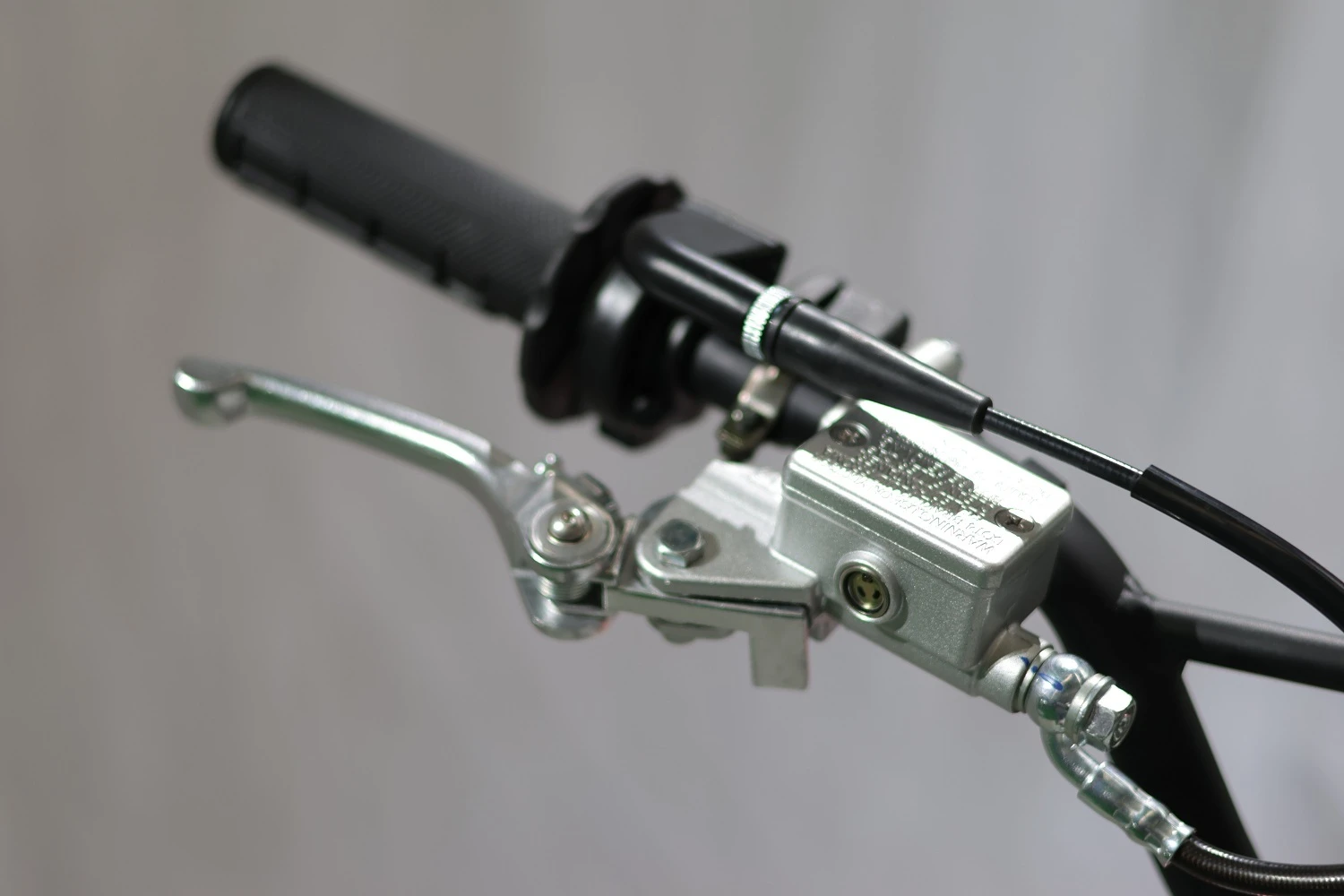

- Alloy foldable handle levers
- Alloy rims and hubs

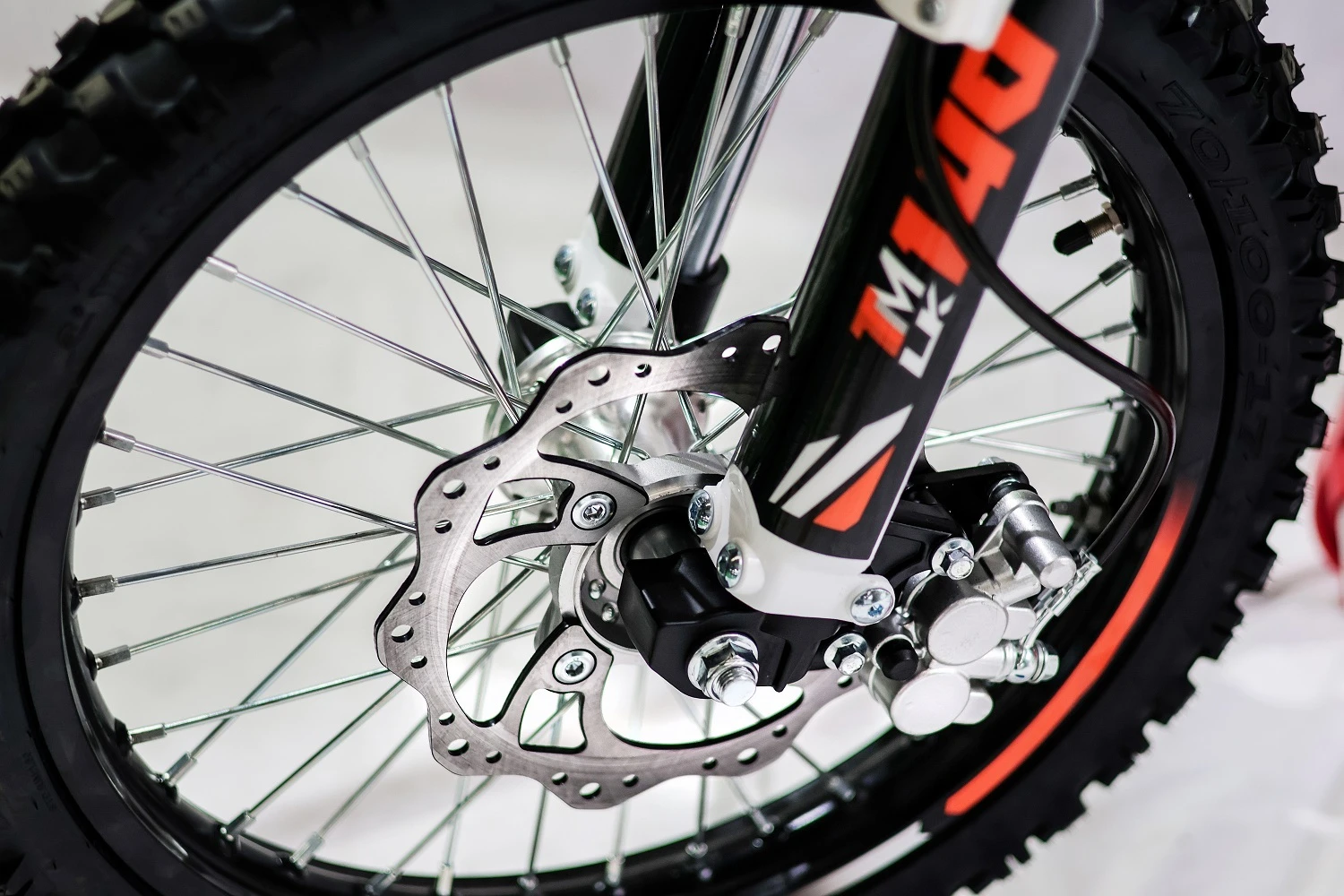

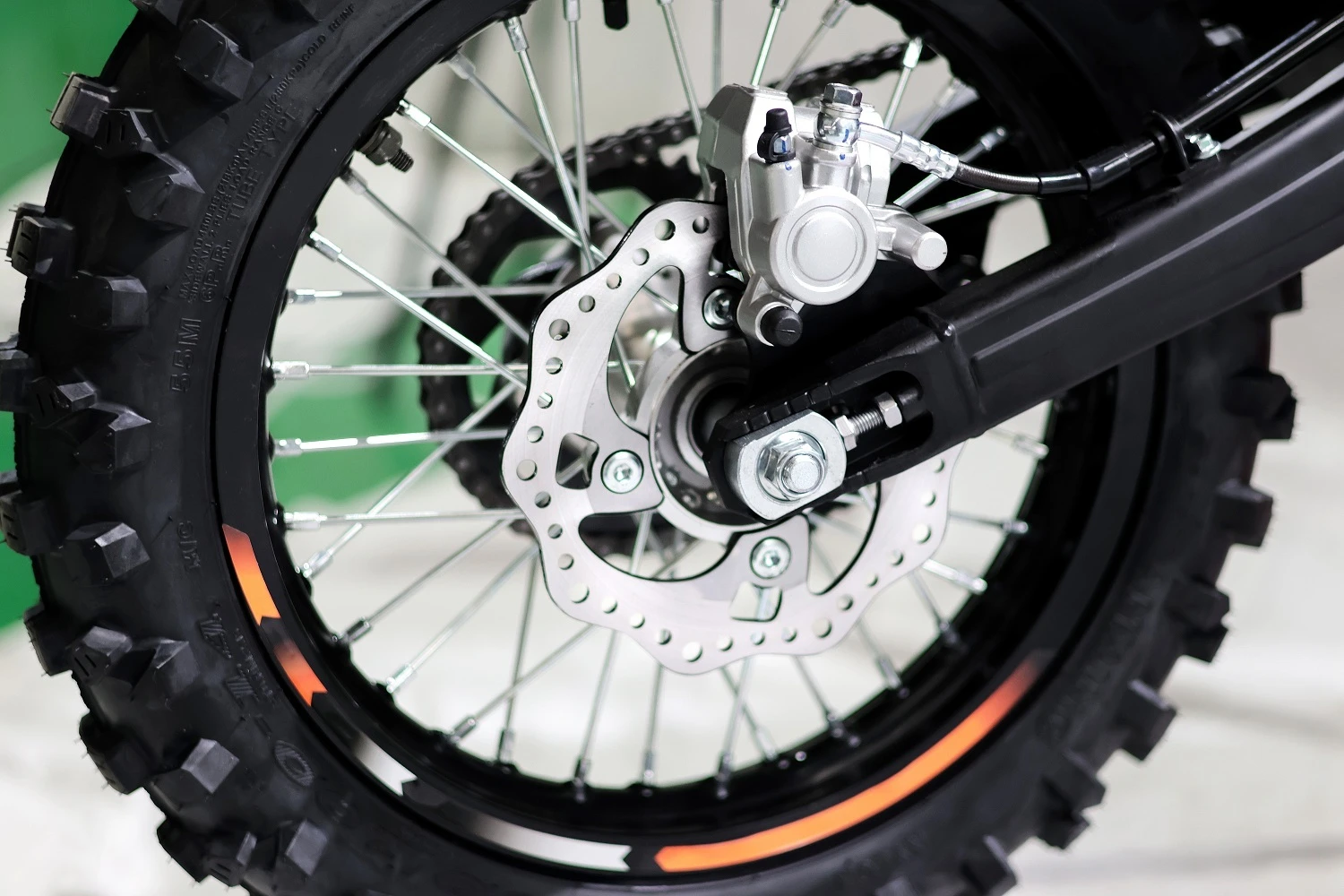

- Quality front and rear disc brakes
How To Assemble
TECHNICAL SPECS
Engine System
Engine Type: Yinxiang 140cc,Single cylinder, four stroke , air-cooling /Oil-cooling
Displacement: 140 ml
Max Power: 6.8/7500 (1±1.5%)
Max Torque: 9.7/5500（1±1.5%）
Compression Ratio: 8.8:1
Shift Type: Four gear, non-circulate gear
Start Type: Electric / Kick Start
Ignition: CDI
Min. Fuel Consumpetion: ≤367g/kw.h
Minimum turning radius: 1900 mm
Lubricant Type #: SF15W/40
Transmission: Chain Drive
Size Data
Overall Size (L x W x H): 1780×740×1100 mm /69.42 x 28.86 x 42.9 Inch
Wheel Base: 1210mm / 47.67 Inch
Seat Height: 835mm / 32.89 Inch
Ground Clearance: 340mm / 13.26 Inch
Fuel Capacity: 6 L / 1.56 Gal.
Wheels: Alloy 17/ 14 Rims, Alloy Hubs
Tires: YUANXING FT: 70/100-17 - RR: 90/100-14
Frame/Suspension/Brake system
Frame: High quality Steel Frame
Front Fork: Inverted , non-Adjustable
Rear Shock: Alloy U&D connector,non-Adjustable
Upper and Lower Connecting Board: Alloy
Handle: Alloy and Foldable
Front Brake: Disc
Rear Brake: Disc
Exhaust: Stainless
Packing and Loading
Packing Size: 1370*440*660 mm / 53.43*17.16*25.74 Inch
N.W/LBS: 78 KGS / 171.6 LBS
G.W/LBS: 103 KGS / 226.6 LBS
| Arlington Powersports present TrailMaster JHL Pro Series TM MK125, TM MK125s, TM SX125, TM-SX150, TM MX250, TM MX250 Pro, TM LX250, TM LX300, TM LX300 Pro | ||||||||
| Model | max.weight | Wheel Base | Seat height | Engine size | Starting | Transmission | Tires Front |
Rear |
| TM MK125 | 149.6LB | 45.31'' | 29.55'' | 125cc | Kick Start | Chain Drive | 60/100 -14 | 80/100 -12 |
| TM MK125s | 149.6LB | 45.31'' | 29.55'' | 125cc | Electric / Kick Start | Chain Drive | 60/100 -14 | 80/100 -12 |
| TM SX125 | 189.2LB | 49.25'' | 32.70'' | 125cc | Electric / Kick Start | Chain Drive | 70/100-19 | 90/100-16 |
| TM SX150 | 189.2LB | 49.25'' | 32.70'' | 140cc | Electric / Kick Start | Chain Drive | 70/100-19 | 90/100-16 |
| TM MX250 | 266.2LB | 54.96 '' | 35.46'' | 223cc | Electric / Kick Start | Chain Drive | 80/100-21 | 110/100-18 |
| TM MX250 Pro | 266.2LB | 54.96'' | 35.46'' | 250cc | Electric / Kick Start | Chain Drive | 80/100-21 | 110/100-18 |
| TM LX250 | 266.2LB | 59.1'' | 37.43'' | 250cc | Electric / Kick Start | Chain Drive | Cordial tyre 21"/18" | Cordial tyre 21"/18" |
| TM LX300 | 266.2LB | 59.1'' | 37.43'' | 283cc | Electric / Kick Start | Chain Drive | Cordial tire 21"/18" | Cordial tire 21"/18" |
| TM LX300 Pro | 266.2LB | 59.1'' | 37.43'' | 283cc | Electric / Kick Start | Chain Drive | Cordial tire 21"/18" | Cordial tire 21"/18" |
| Arlington Powersports present TrailMaster Dirt Bike TM series TM10, TM11, TM15, TM21, TM22, TM23, TM24, TM27, TM29, TM31, TM36, TM38 | ||||||||
| Model | max.weight | Wheel Base | Seat height | Engine size | Starting | Transmission | Tires Front |
Rear |
| TM10 | 150LB | 39.37'' | 24.41'' | 110cc | Kick Start | Automatic Clutch ,N-1-2-3-4 | 2.5x10 | 2.5x10 |
| TM11 | 150LB | 39.37'' | 24.41'' | 110cc | Electric | Automatic clutch, One gear | 2.5x10 | 2.5x10 |
| TM15 | 150LB | 40'' | 24.4'' | 110cc | Kick & Electric Start | Automatic Clutch ,N-1-2-3-4 | 2.75x12 | 3x10 |
| TM21 | 170LB | 41.54'' | 29.13'' | 125cc | Kick Start | Automatic Clutch ,N-1-2-3-4 | 60/100-14 | 80/100-12 |
| TM22 | 170LB | 41.54'' | 29.13'' | 125cc | Kick Start | Manual Clutch, N-1-2-3-4 | 60/100-14 | 80/100-12 |
| TM23 | 170LB | 41.54'' | 29.13'' | 125cc | Kick & Electric Start | Automatic Clutch ,N-1-2-3-4 | 60/100-14 | 80/100-12 |
| TM24 | 170LB | 42.3'' | 32.7'' | 125cc | Kick Start | Manual Clutch, N-1-2-3-4 | 70/100-17 | 90/100-14 |
| TM27 | 200LB | 49.8'' | 33.5'' | 125cc | Kick Start | Manual Clutch, N-1-2-3-4 | 70/100-17 | 90/100-14 |
| TM29 | 200LB | 49.8'' | 33.5'' | 125cc | Kick & Electric Start | Manual Clutch, N-1-2-3-5 | 70/100-17 | 90/100-14 |
| TM31 | 280lbs | 53.1" | 34" | 250cc | Electric & Kick Start | Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears |
70/100-19 | 90/100-16 |
| TM33 | 300lbs | 59" | 37" | 223cc | Electric & Kick Start |
Manual Wet Multi-Plate, 5gears |
80/100-21 |
110/100-18 |
| TM36 | 300lbs | 59" | 37" | 300cc | Electric & Kick Start |
Manual Wet Multi-Plate, Constant-mesh, two-stage transmission, 5-Gears |
80/100-21 |
110/100-18 |
| TM38 | 300lbs | 59" | 37" | 300cc | Electric & Kick Start |
Wet multi disc clutch, International Gear Pattern,6-Speed | ||
