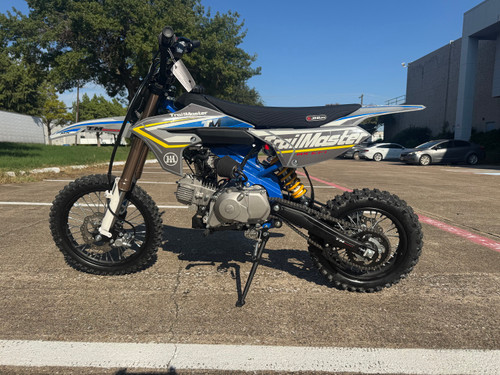

TM MK110ES TrailMaster Pro Series EFI Dirt Bike – 110cc Engine
The TrailMaster JHL Pro Series EFI Dirt Bike TM MK110ES is designed for riders seeking reliable performance, fuel efficiency, and smooth handling. Powered by a 110cc 4-stroke Bosch EFI engine, it features an automatic clutch, electric/kick start, and a strong steel frame. With inverted front forks, hydraulic disc brakes, and pro-series suspension, this dirt bike ensures safety and fun on every ride. Available now at Arlington Power Sports.com.
Product Features
- Bosch EFI
- Electric and kick start
- Famous brand name Zongshen engine
- Newly designed strong frame
- Inverted front shock absorber;
- Nitrogen air gas rear shock absorber w/aluminum linkage
- Performance stainless steel muffler
- Alloy foldable handle levers
- High quality alloy rims and hubs
- Quality front and rear disc brakes
JHL Factory Racing – MXGP China 2026
We are proud to share exciting news from our JHL factory! On September 12–13, 2026, the JHL Factory Racing team competed at MXGP China in Shanghai, racing against major international manufacturers including KTM, Honda, Yamaha, Kawasaki, and others across three racing categories.
- Podium Sweep: On September 12, the team secured 1st, 2nd, and 3rd place in the H&H 250 class using the LX250R.
- Historic Milestone: On September 13, JHL's own 350cc machine competed in an MXGP Grand Prix race, marking a historic milestone for Chinese-built motorcycles, according to JHL.
Salute to our JHL factory team!
Explore race photos and videos:
- Engine System
- Engine Type: XZ110 Single cylinder, four stroke , air-cooling
- Displacement: 107 ml
- Max Power: 107 ml
- Max Torque: 5.0/8000 (1±1.5%)
- Compression Ratio: 7.5/5500(1±1.5%)
- Shift Type: N-1-2-3-4, Four-Gear, Automatic Clutch
- Start Type: Electric / Kick Start
- Ignition: EFI
- EFI Brand: Bosch
- Min. Fuel Consumpetion: ≤367g/kw\.h
- Minimum Turning Radius: 1900 mm
- Lubricant Type#: SF15W/40
- Transmission: Chain Drive
- Size Data
- Overall Size (L x W x H): 1620*700*1100 mm / 63.82*27.58*42.9 Inch
- Wheel Base: 1150 mm / 45.31 Inch
- Seat Height: 750 mm / 29.55 Inch
- Ground Clearance: 260 mm / 10.24 Inch
- Fuel Capacity: 3.5 L / 0.92 Gal.
- Wheels: Steel Rims, High Quality Alloy Hubs
- Tires: YUANXING FT: 60/100 -14 - RR: 80/100 -12
- Frame/Suspension/Brake System
- Frame: High quality Steel Frame
- Front Fork: Inverted front shock absorbers 43/45mm
- Rear Shock: Rear none-adjustable mono shock
- Upper and Lower Connecting Board: Alloy
- Handle Lever: Foldable
- Front Brake: Disc
- Rear Brake: Disc
- Exhaust: Stainless steel muffler
- Packing and Loading
- Packing Size: 1420*440*860 mm / 55.95 *17.34*33.88 Inch
- N.W/LBS: 68 KGS / 149.6 LBS
- G.W/LBS: 97 KGS / 213.4 LBS
| Arlington Powersports present TrailMaster JHL Pro Series TM MK125, TM MK125s, TM SX125, TM-SX150, TM MX250, TM MX250 Pro, TM LX250, TM LX300, TM LX300 Pro | ||||||||
| Model | max.weight | Wheel Base | Seat height | Engine size | Starting | Transmission | Tires Front |
Rear |
| TM MK125 | 149.6LB | 45.31'' | 29.55'' | 125cc | Kick Start | Chain Drive | 60/100 -14 | 80/100 -12 |
| TM MK125s | 149.6LB | 45.31'' | 29.55'' | 125cc | Electric / Kick Start | Chain Drive | 60/100 -14 | 80/100 -12 |
| TM SX125 | 189.2LB | 49.25'' | 32.70'' | 125cc | Electric / Kick Start | Chain Drive | 70/100-19 | 90/100-16 |
| TM SX150 | 189.2LB | 49.25'' | 32.70'' | 140cc | Electric / Kick Start | Chain Drive | 70/100-19 | 90/100-16 |
| TM MX250 | 266.2LB | 54.96 '' | 35.46'' | 223cc | Electric / Kick Start | Chain Drive | 80/100-21 | 110/100-18 |
| TM MX250 Pro | 266.2LB | 54.96'' | 35.46'' | 250cc | Electric / Kick Start | Chain Drive | 80/100-21 | 110/100-18 |
| TM LX250 | 266.2LB | 59.1'' | 37.43'' | 250cc | Electric / Kick Start | Chain Drive | Cordial tyre 21"/18" | Cordial tyre 21"/18" |
| TM LX300 | 266.2LB | 59.1'' | 37.43'' | 283cc | Electric / Kick Start | Chain Drive | Cordial tire 21"/18" | Cordial tire 21"/18" |
| TM LX300 Pro | 266.2LB | 59.1'' | 37.43'' | 283cc | Electric / Kick Start | Chain Drive | Cordial tire 21"/18" | Cordial tire 21"/18" |
| Arlington Powersports present TrailMaster Dirt Bike TM series TM10, TM11, TM15, TM21, TM22, TM23, TM24, TM27, TM29, TM31, TM36, TM38 | ||||||||
| Model | max.weight | Wheel Base | Seat height | Engine size | Starting | Transmission | Tires Front |
Rear |
| TM10 | 150LB | 39.37'' | 24.41'' | 110cc | Kick Start | Automatic Clutch ,N-1-2-3-4 | 2.5x10 | 2.5x10 |
| TM11 | 150LB | 39.37'' | 24.41'' | 110cc | Electric | Automatic clutch, One gear | 2.5x10 | 2.5x10 |
| TM15 | 150LB | 40'' | 24.4'' | 110cc | Kick & Electric Start | Automatic Clutch ,N-1-2-3-4 | 2.75x12 | 3x10 |
| TM22 | 170LB | 41.54'' | 29.13'' | 125cc | Kick Start | Manual Clutch, N-1-2-3-4 | 60/100-14 | 80/100-12 |
| TM23 | 170LB | 41.54'' | 29.13'' | 125cc | Kick & Electric Start | Automatic Clutch ,N-1-2-3-4 | 60/100-14 | 80/100-12 |
| TM24 | 170LB | 42.3'' | 32.7'' | 125cc | Kick Start | Manual Clutch, N-1-2-3-4 | 70/100-17 | 90/100-14 |
| TM29 | 200LB | 49.8'' | 33.5'' | 125cc | Kick & Electric Start | Manual Clutch, N-1-2-3-5 | 70/100-17 | 90/100-14 |
| TM31 | 280lbs | 53.1" | 34" | 250cc | Electric & Kick Start | Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears |
70/100-19 | 90/100-16 |
| TM33 | 300lbs | 59" | 37" | 223cc | Electric & Kick Start |
Manual Wet Multi-Plate, 5gears |
80/100-21 |
110/100-18 |
| TM36 | 300lbs | 59" | 37" | 300cc | Electric & Kick Start |
Manual Wet Multi-Plate, Constant-mesh, two-stage transmission, 5-Gears |
80/100-21 |
110/100-18 |
| TM38 | 300lbs | 59" | 37" | 300cc | Electric & Kick Start |
Wet multi disc clutch, International Gear Pattern,6-Speed | ||
