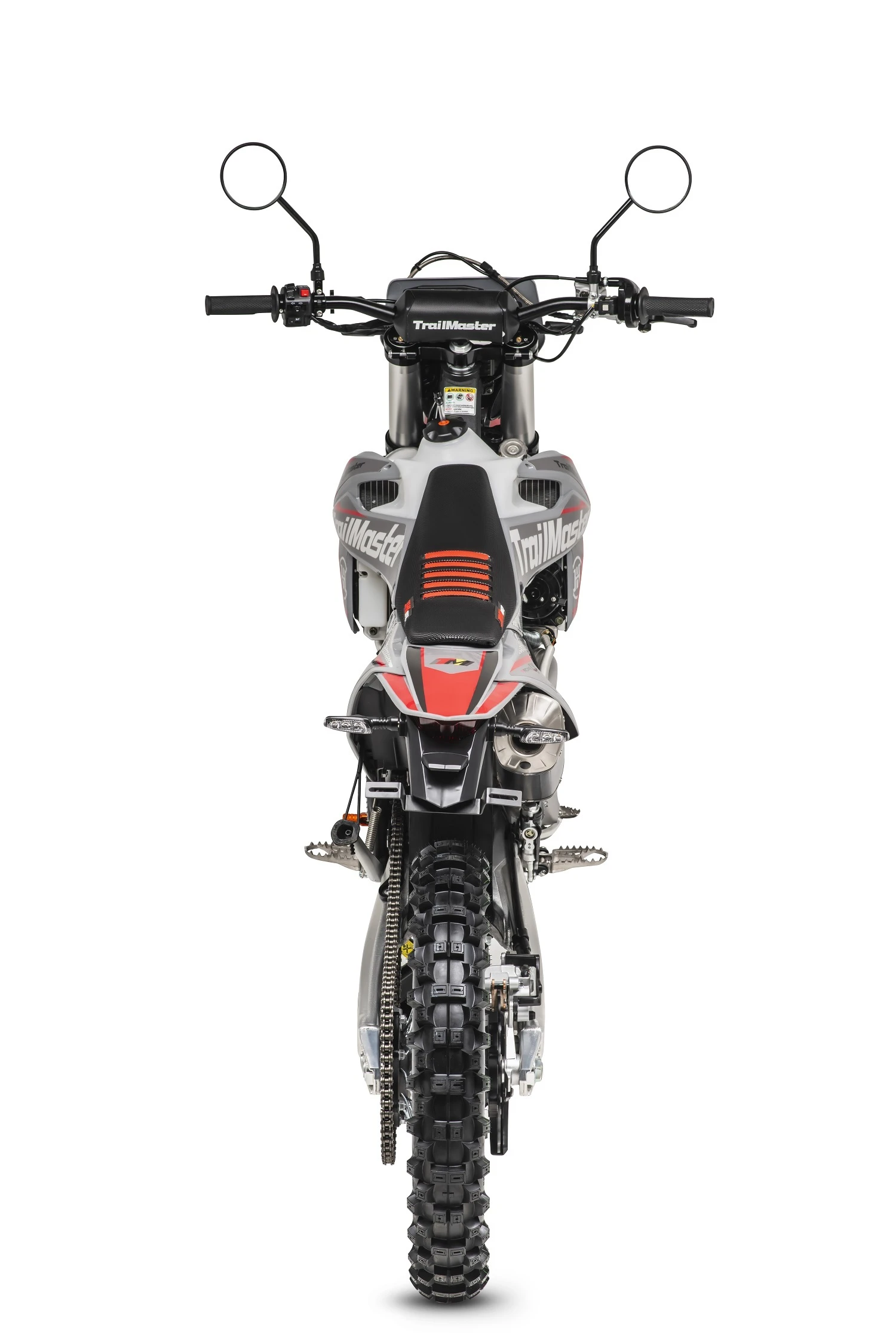

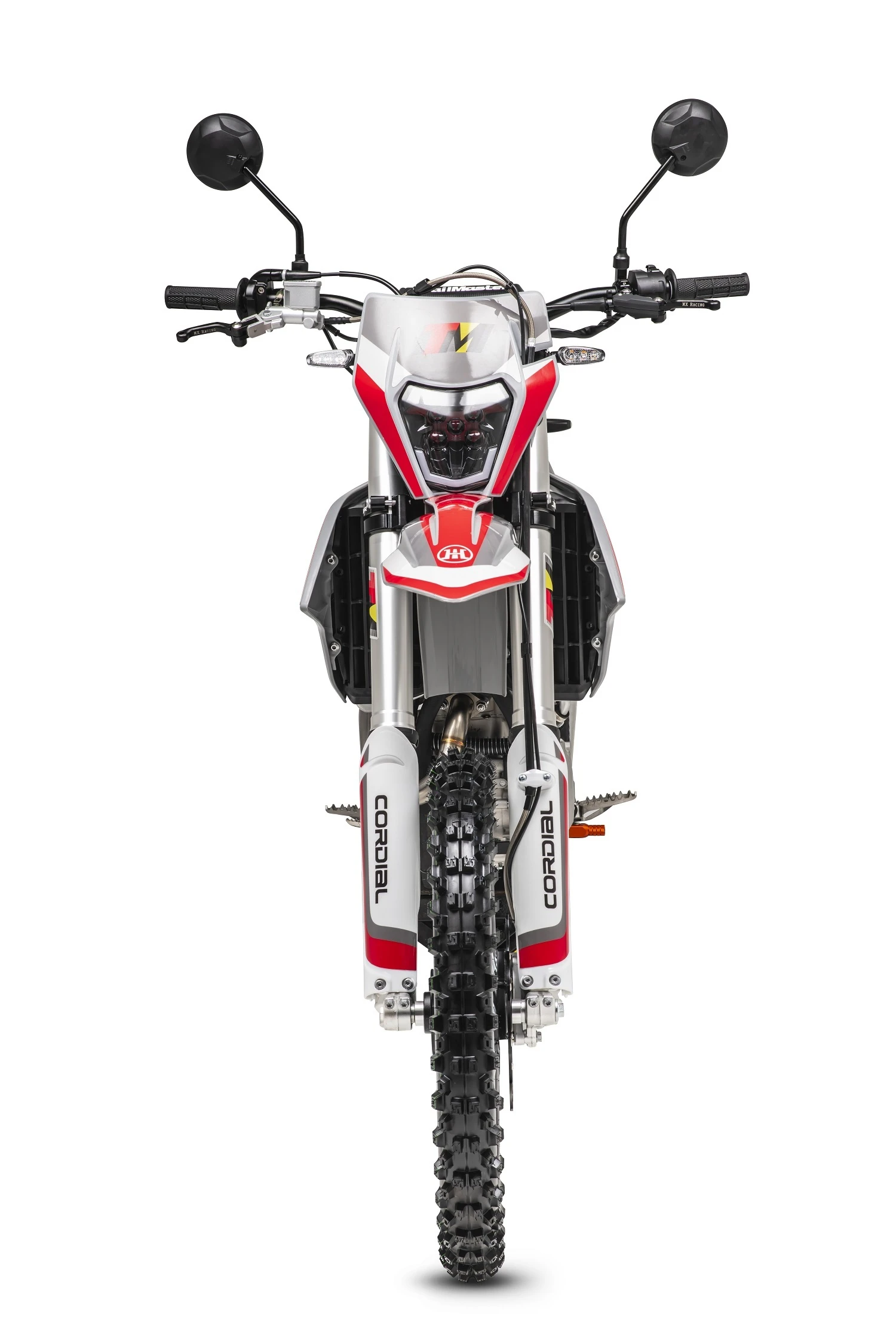

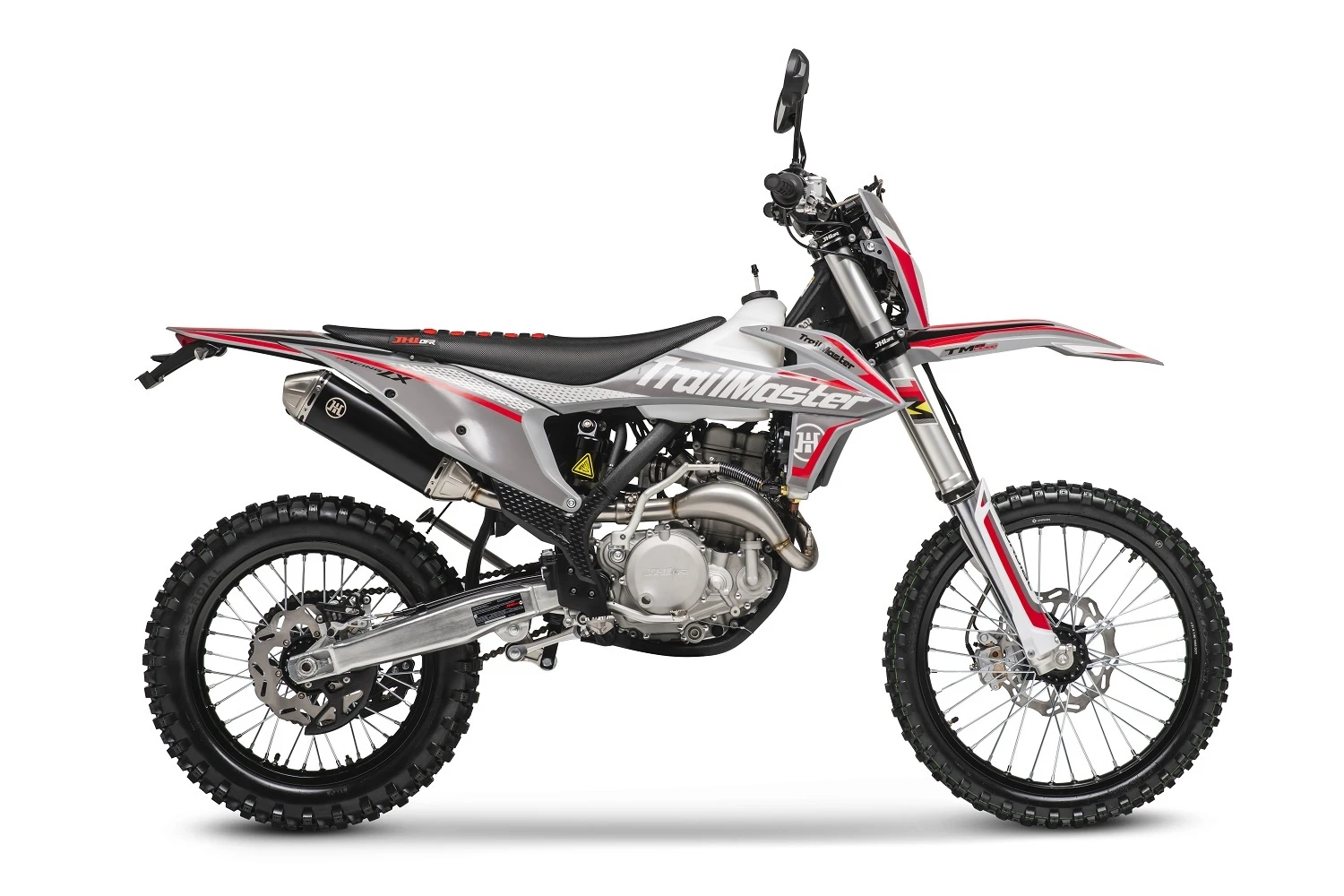

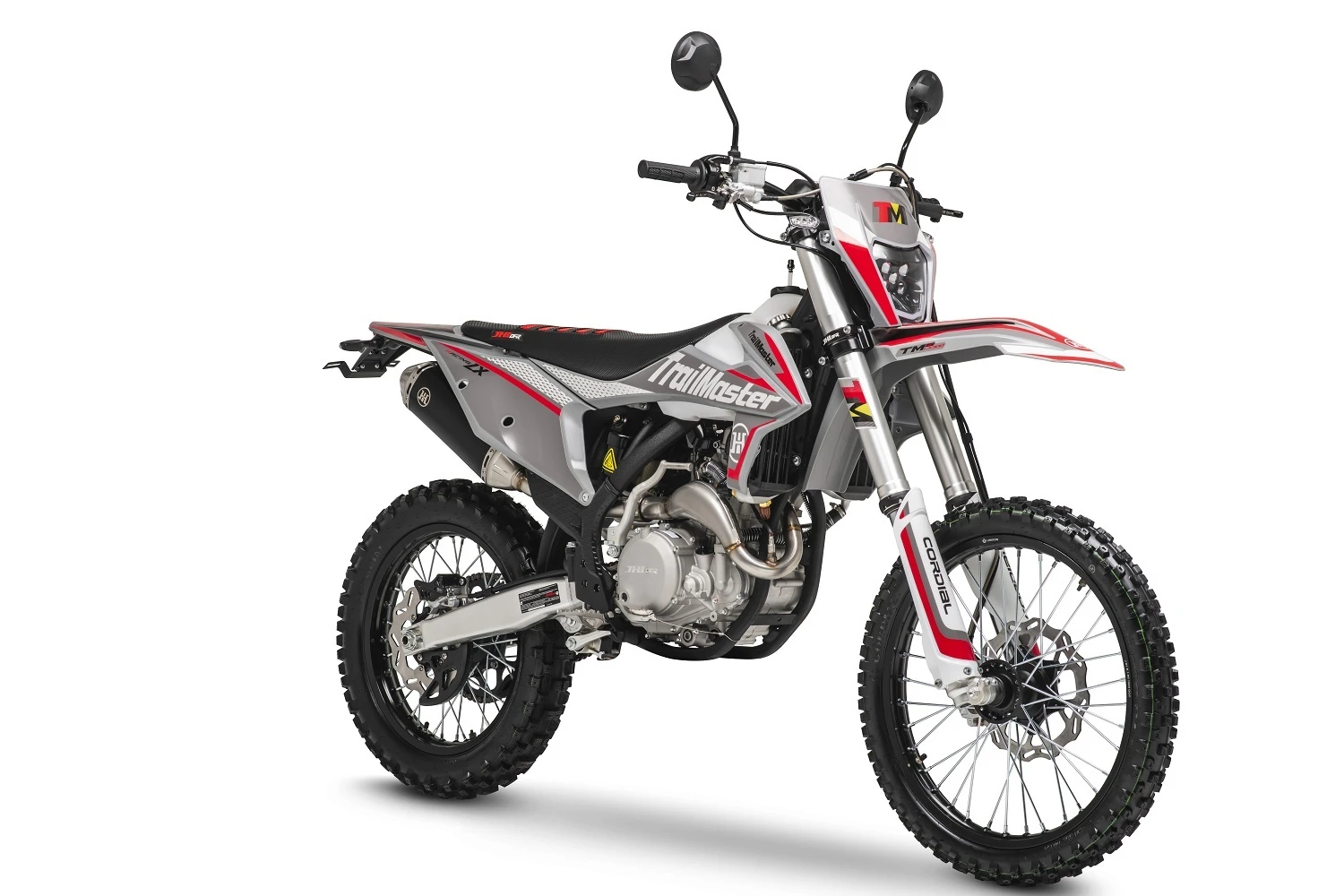

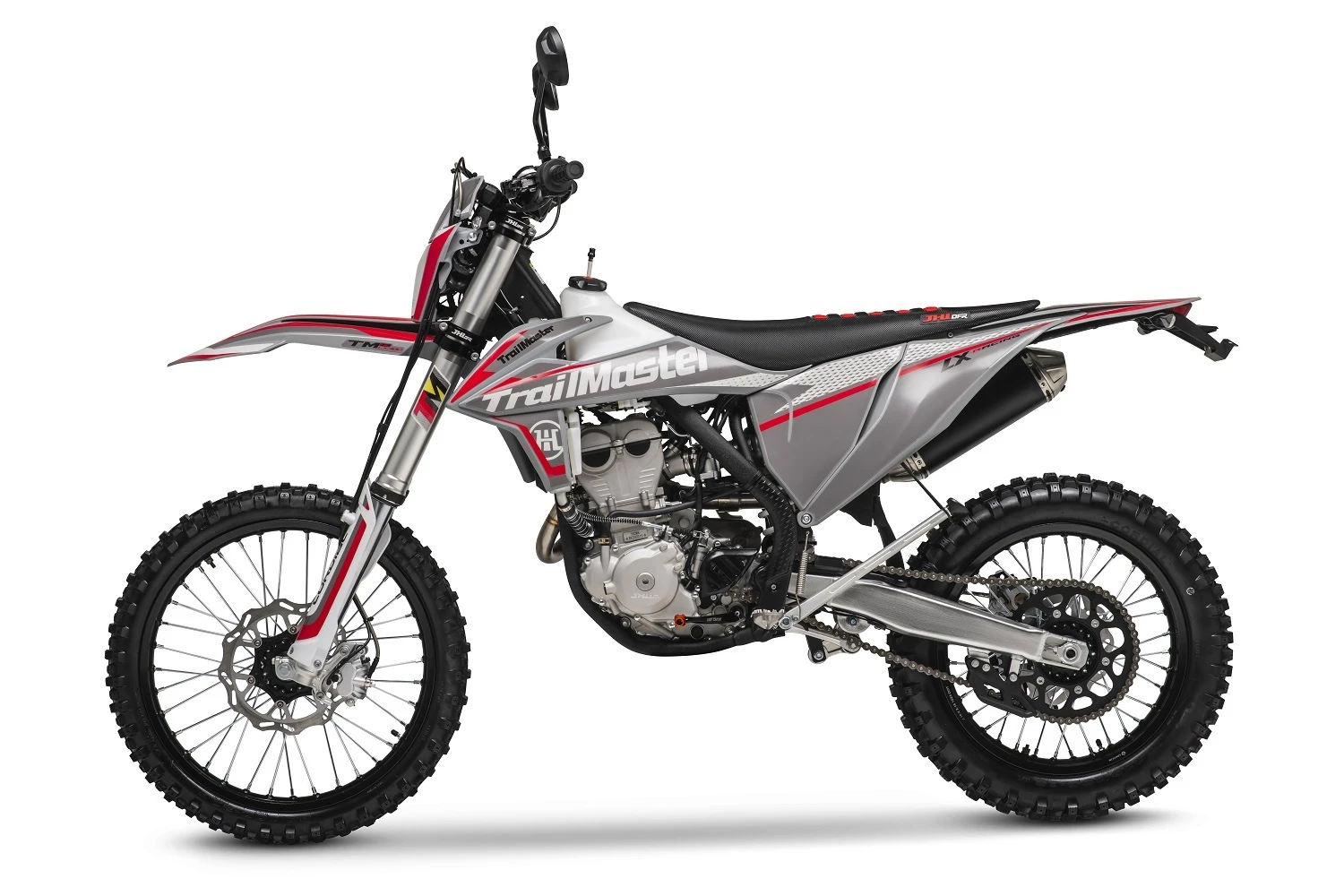

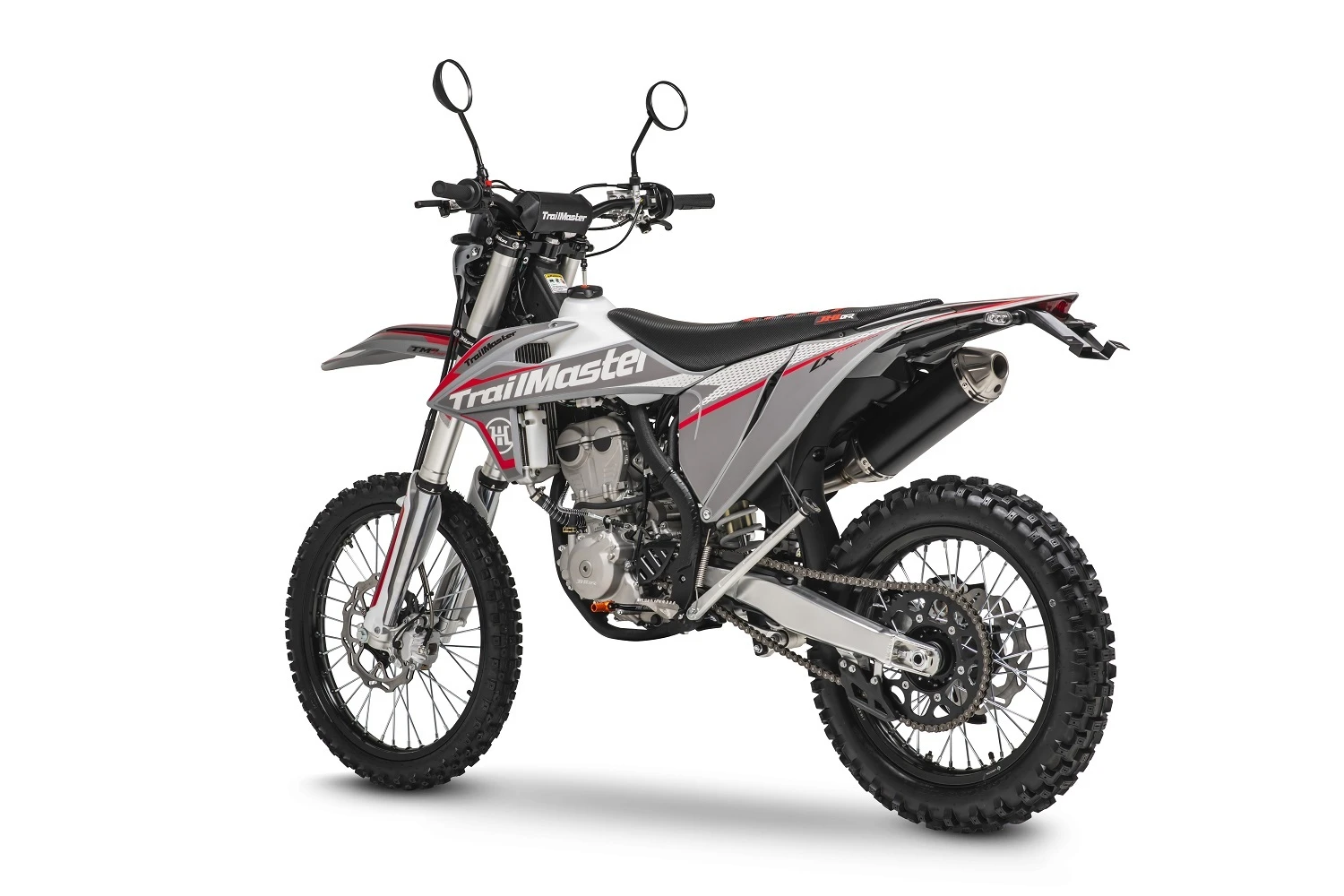

TrailMaster JHL Pro Series Dirt Bike TM LX300 - 283cc EFI Engine

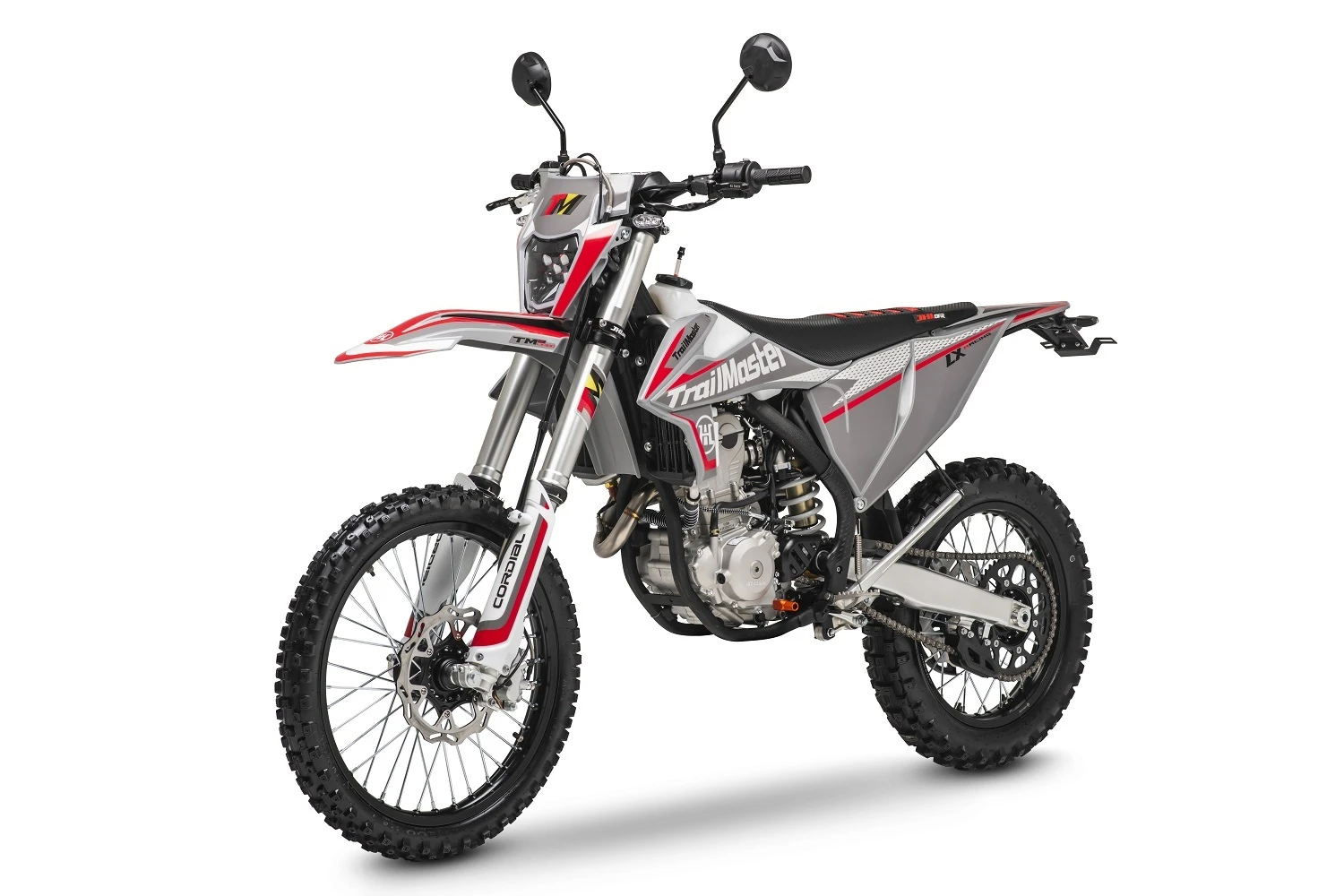

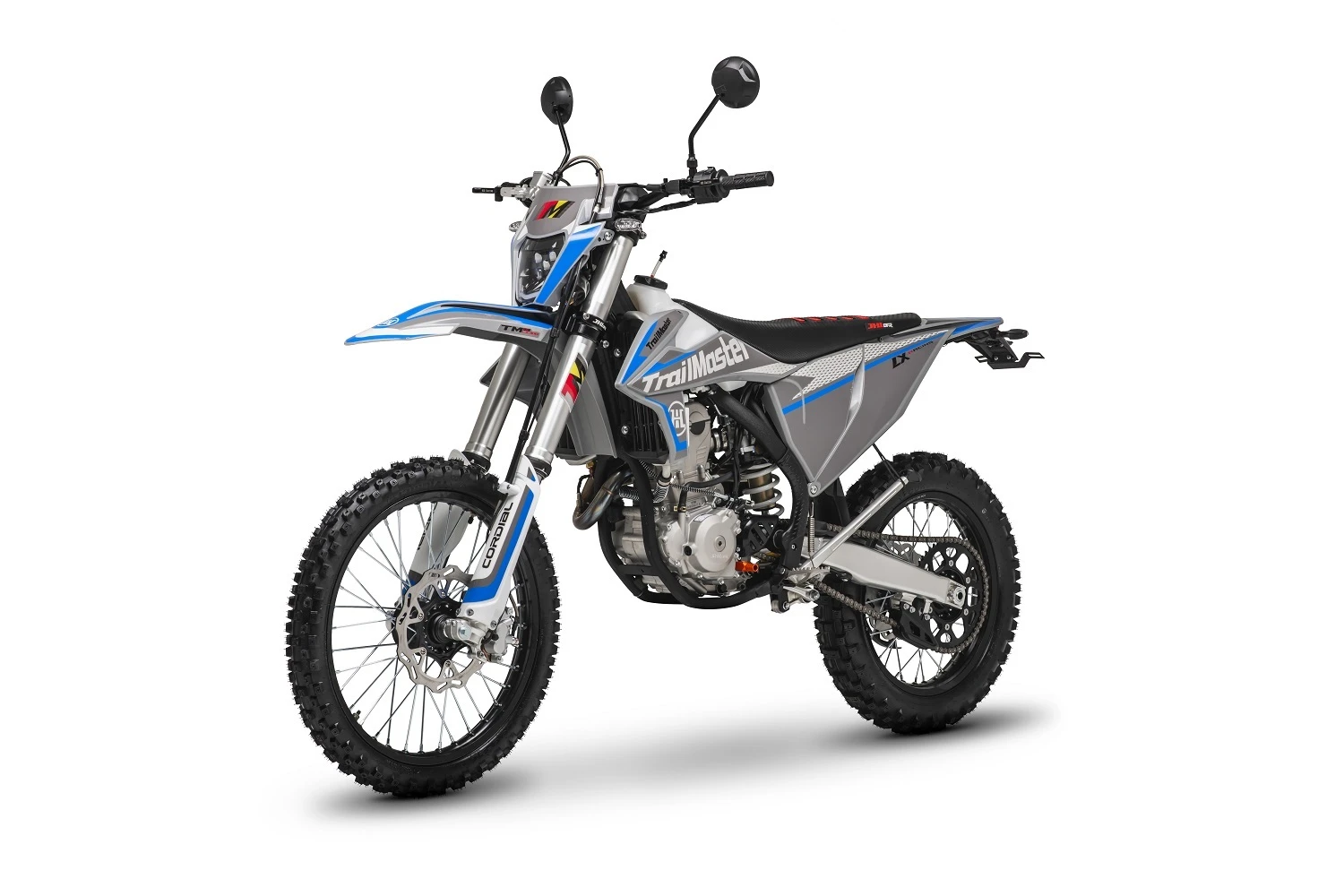

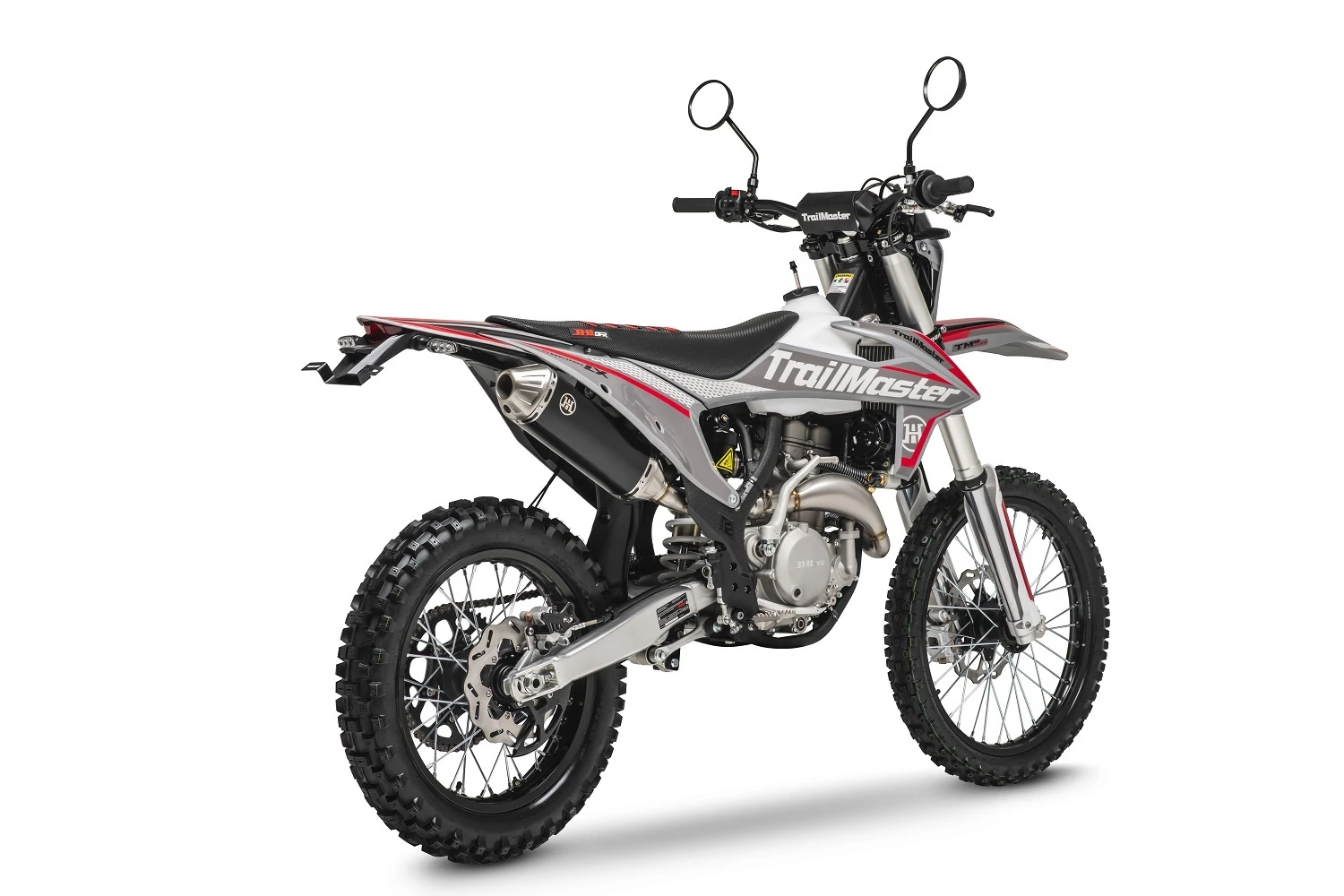

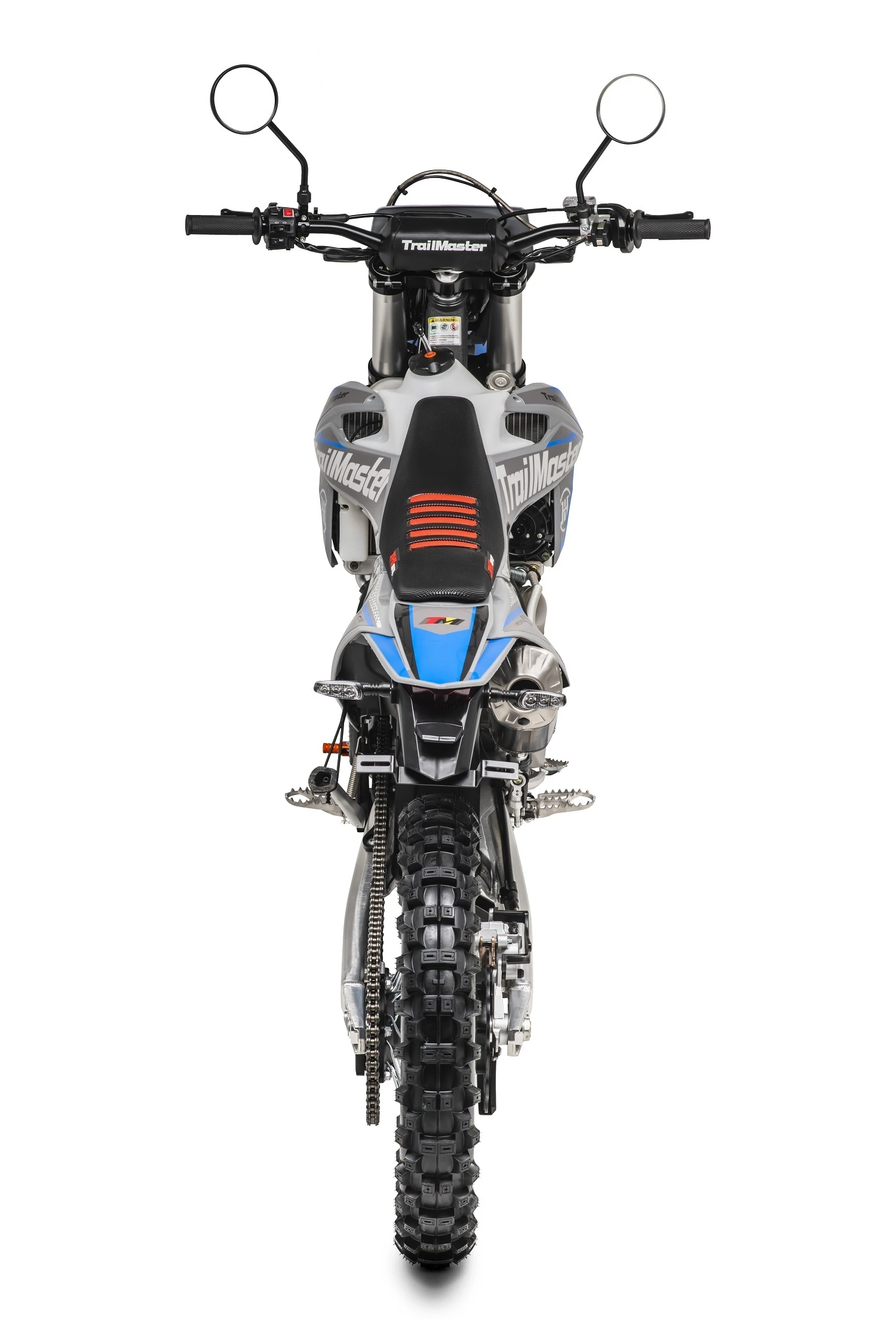

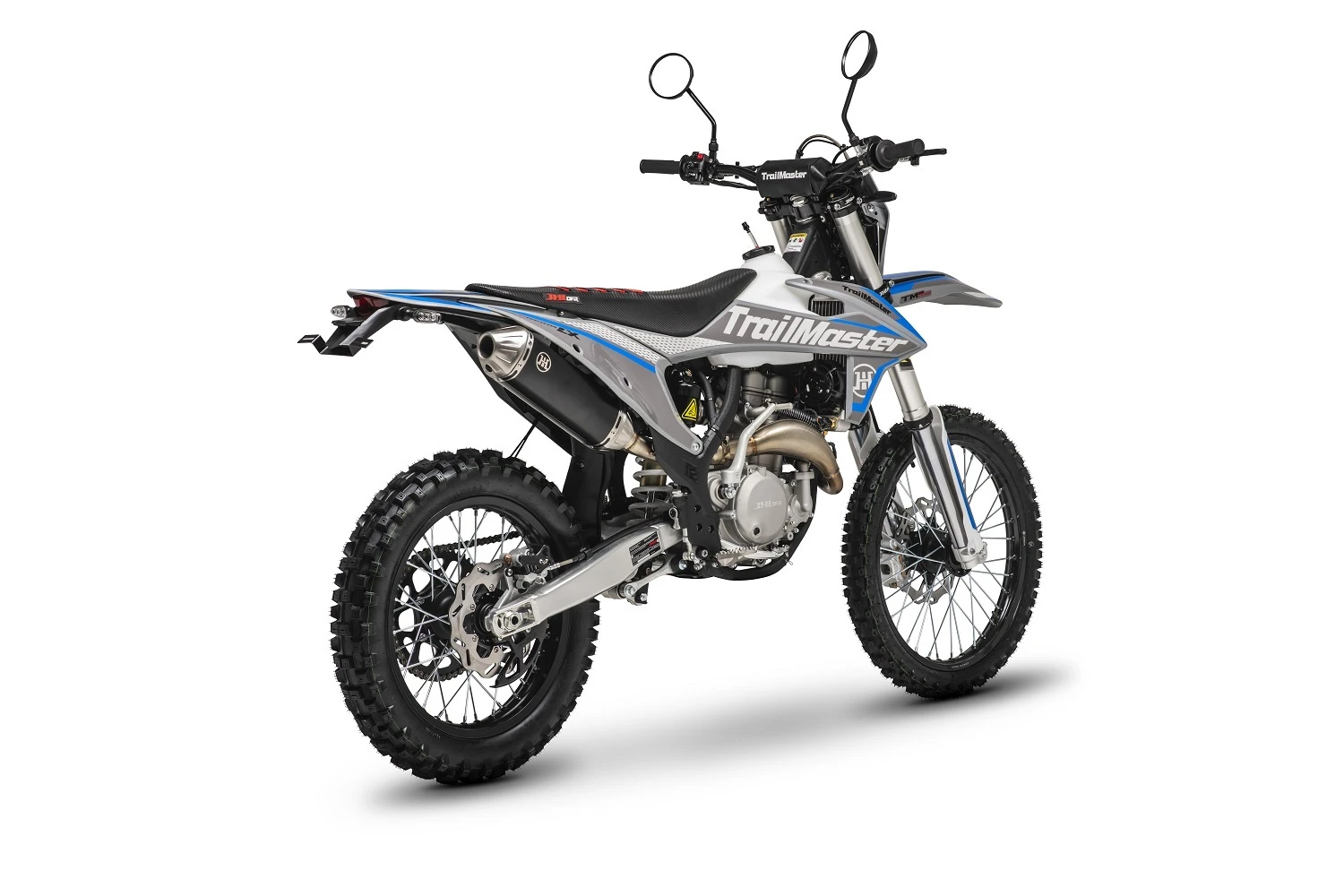

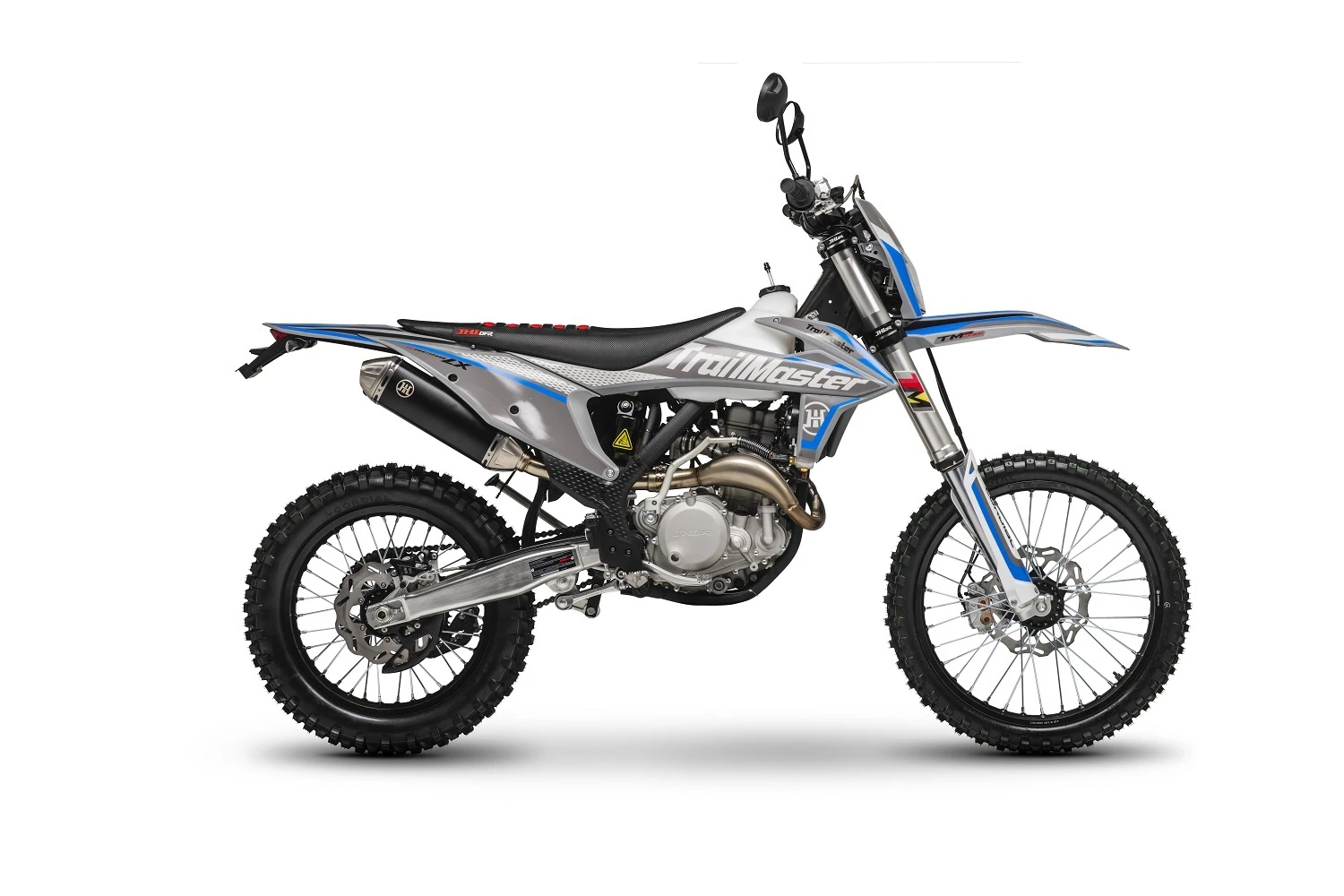

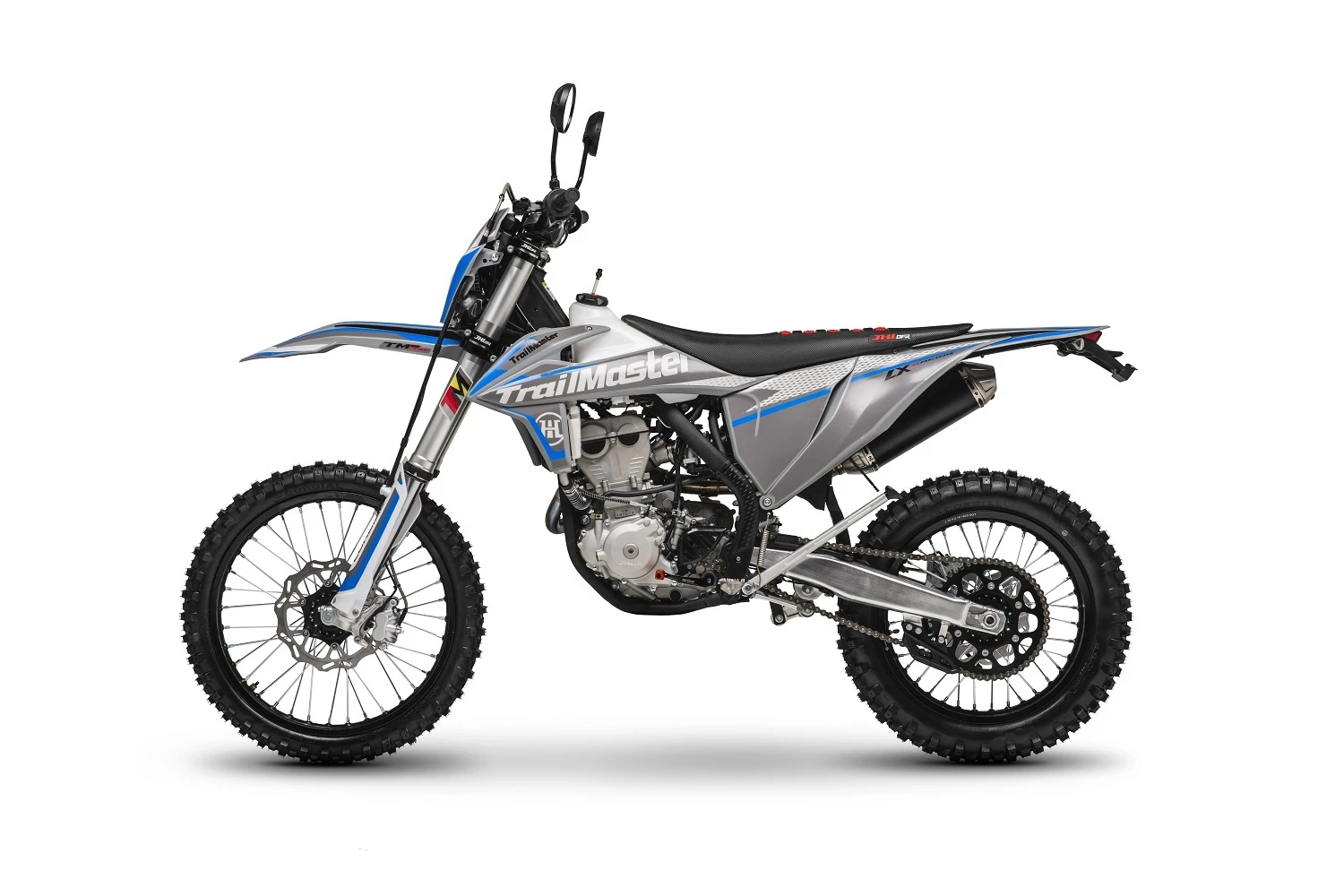

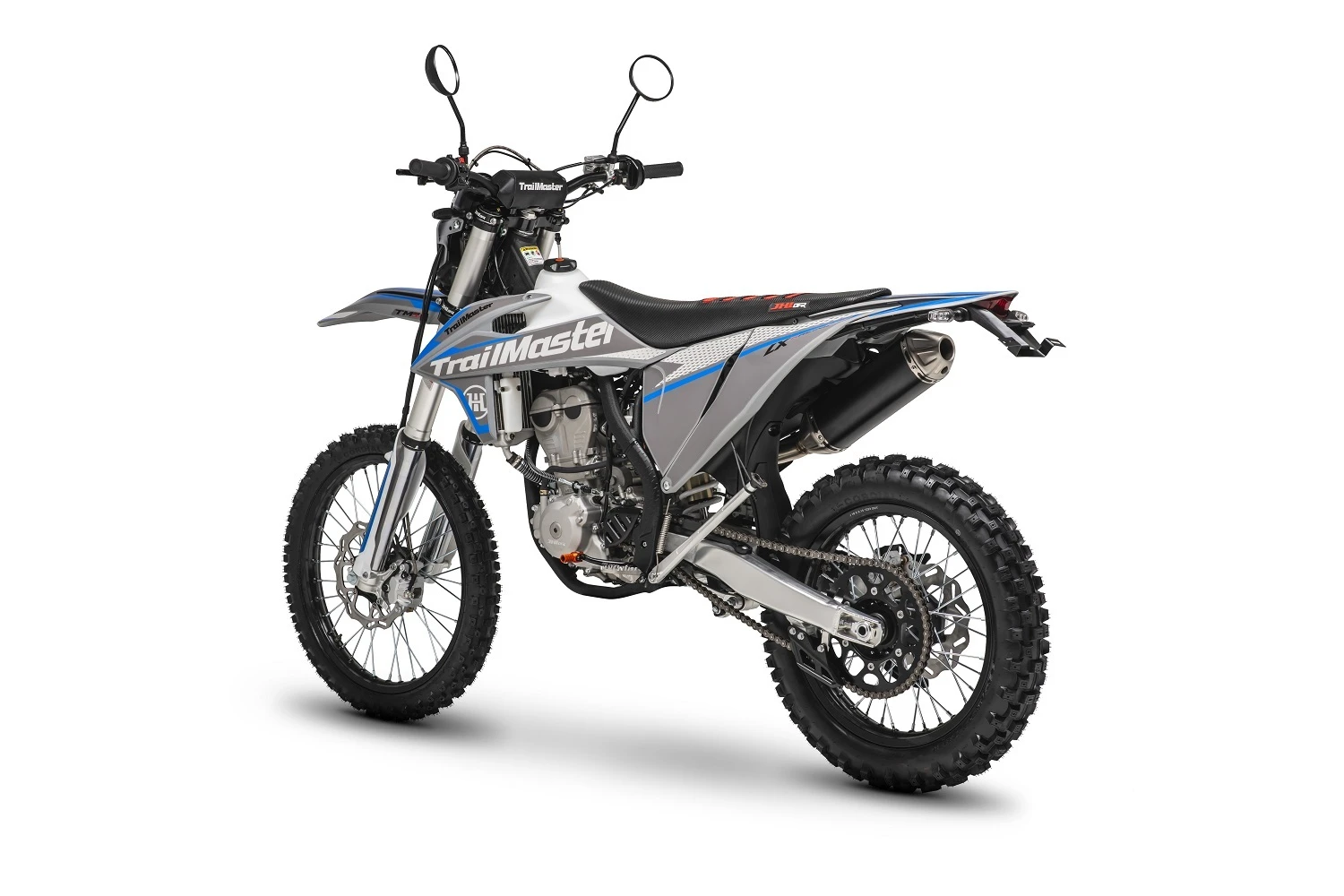

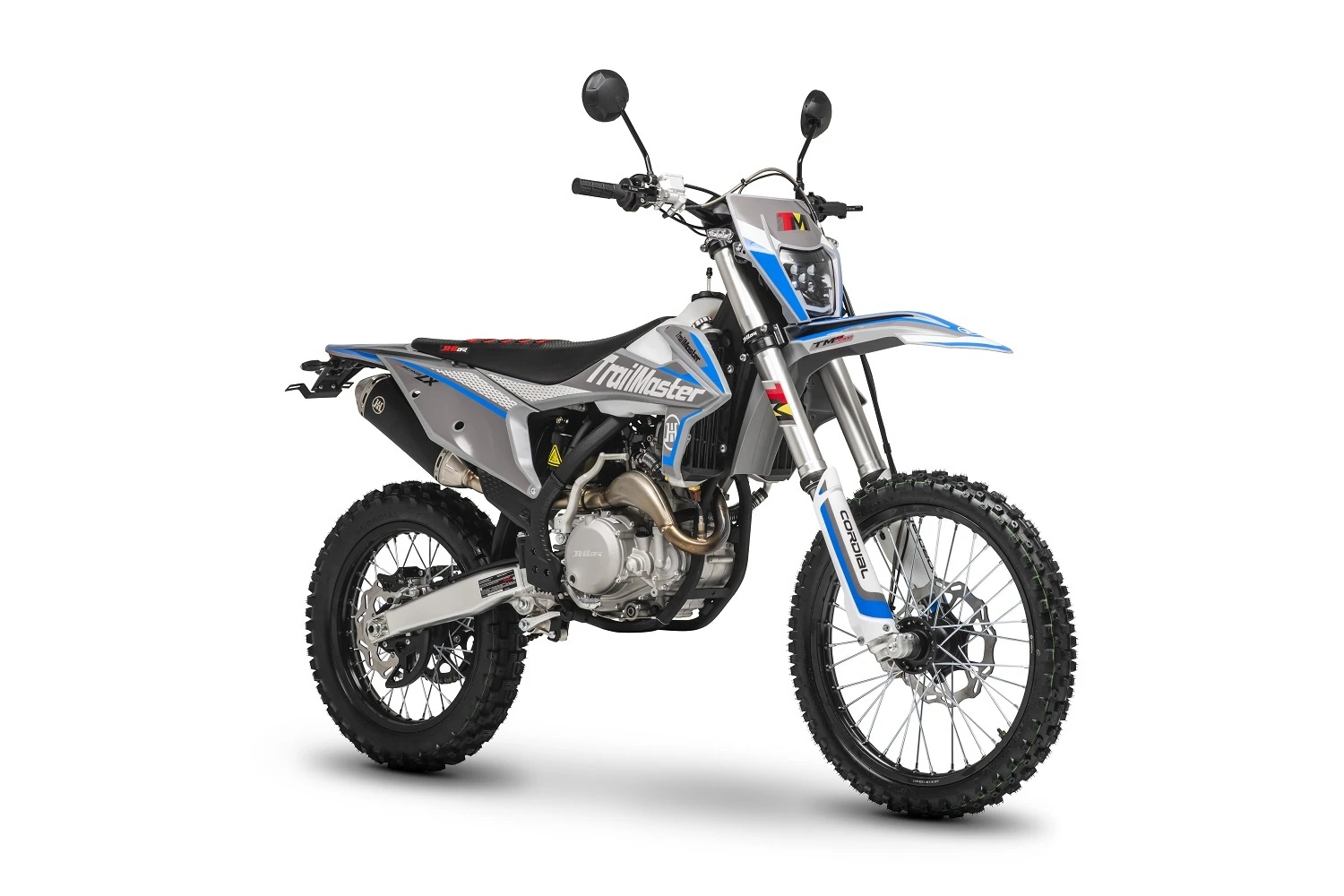

Explore the off-road with unmatched power and style with the TrailMaster JHL Pro Series Dirt Bike TM LX300, available at Arlingtonpowersports.com. This top-tier dirt bike is powered by a water-cooled 283cc Zongshen balance shaft engine with EFI, delivering exceptional performance and efficiency. The TM LX300 features a large frame with a 37.43-inch seat height, inverted dual adjustable front shocks, and high-quality rear dual adjustable absorbers for superior handling and comfort. Enhanced with a performance stainless steel muffler and high-quality LED headlight, this bike ensures both functionality and aesthetic appeal. Built to withstand rugged terrains, it includes CNC forged alloy wheels, unbreakable levers, and upper and lower triple clamps. Additional features include a high-performance CHOCHO 520HDS chain, 7 series aluminum alloy handlebar, waterproof wire harness, non-slip gripper seat, and quality front and rear disc brakes. The bike also comes with rearview mirrors, turn signals, speedometer, and tail light. Discover the TrailMaster JHL Pro Series TM LX300 at Arlingtonpowersports.com, available in striking red and blue colors.

These two models carry a lot of excellent selling features such as:

Product Features

Powerful water-cooling 283cc Zongshen balance shaft engine with EFI
Large frame with 37.43-inch seat height
Inverted 54/60-950mm dual adjustable front shock absorber
High-quality rear dual adjustable absorber
Performance stainless steel muffler
High-quality LED headlight with lens
CNC forged alloy wheels
High-performance CHOCHO 520HDS chain
CNC alloy unbreakable levers
CNC forged alloy upper and lower triple clamps
7 series aluminum alloy handlebar
Waterproof wire harness
Non-slip gripper seat
Quality front and rear disc brakes
Equipped with rearview mirrors, turn signals, speedometer, and tail light

TECHNICAL SPECS

Engine Type	Zongshen NC300S，Single cylinder,4-stroke,4-valve，water-cooling, double overhead camshaft, with balance shaft.
Displacement(cc)	283
Max Power	〔23（1±5%）〕/〔9000（1±5%）〕
Max Torque	〔25（1±5%）〕/〔7000（1±5%）〕
Compression Ratio	11.6
Shift Type	6 gears
Start Type	Electric / Kick Start
Fuel supply	EFI
Min. Fuel Consumpetion:	≤354 g/kw.h
Minimum turning radius :	2500mm
Lubricant Type #：	SJ_10W-40
Transmission:	Chain Drive

Size Data
Overall Size (L x W x H)	21908101290 mm / 86.2831.9150.82 Inch
Wheel Base	1500 mm /59.1 Inch
Seat Height	950 mm / 37.43 Inch
Ground Clearance	300mm /11.82 Inch
Fuel Capacity	7 L / 2.11 Gal
Wheels	Aluminium alloy wheel rims, High Quality Alloy Hubs
Tires	Cordial tire 21"/18"

Frame/Suspension/Brake system
Frame	30 CrMo steel,high strength
Front shock	Front single chamber dual adjustable inverted shock absorbers, 54/60-950mm
Rear Shock	Rear compression and recovery damping adjustable shock absorber
Rockerarm	Forged aluminium alloy linkage
Upper and Lower Triple Clamps	CNC forged aluminium alloy
Handle levers	CNC alloy unbreakable levers
Handlebar	7 Series aluminium alloy
Front Brake	Disc
Rear Brake	Disc
Exhaust	Stainless steel muffler
Fork	Aluminium alloy welded fork
Chain	CHOCHO 520HDS
Sprocket	Alloy
Brake	GG grade
With	LED headlights with lens
With	Turning lights/ Tail lights
With	LED speedometer
With	Rear mirrors
With	Rear disc protection cover
Optional	3A Lithium battery
Packing and Loading
Packing Size	22004601280 mm / 86.68 18.12 50.43 Inch
N.W/LBS	121 KGS / 266.2 LBS
G.W/LBS	166 KGS / 365.2 LBS

Arlington Powersports present TrailMaster JHL Pro Series TM MK125, TM MK125s, TM SX125, TM-SX150, TM MX250, TM MX250 Pro, TM LX250, TM LX300, TM LX300 Pro

Model	max.weight	Wheel Base	Seat height	Engine size	Starting	Transmission	Tires Front	Rear
TM MK125	149.6LB	45.31''	29.55''	125cc	Kick Start	Chain Drive	60/100 -14	80/100 -12
TM MK125s	149.6LB	45.31''	29.55''	125cc	Electric / Kick Start	Chain Drive	60/100 -14	80/100 -12
TM SX125	189.2LB	49.25''	32.70''	125cc	Electric / Kick Start	Chain Drive	70/100-19	90/100-16
TM SX150	189.2LB	49.25''	32.70''	140cc	Electric / Kick Start	Chain Drive	70/100-19	90/100-16
TM MX250	266.2LB	54.96 ''	35.46''	223cc	Electric / Kick Start	Chain Drive	80/100-21	110/100-18
TM MX250 Pro	266.2LB	54.96''	35.46''	250cc	Electric / Kick Start	Chain Drive	80/100-21	110/100-18
TM LX250	266.2LB	59.1''	37.43''	250cc	Electric / Kick Start	Chain Drive	Cordial tyre 21"/18"	Cordial tyre 21"/18"
TM LX300	266.2LB	59.1''	37.43''	283cc	Electric / Kick Start	Chain Drive	Cordial tire 21"/18"	Cordial tire 21"/18"
TM LX300 Pro	266.2LB	59.1''	37.43''	283cc	Electric / Kick Start	Chain Drive	Cordial tire 21"/18"	Cordial tire 21"/18"

Arlington Powersports present TrailMaster Dirt Bike TM series TM10, TM11, TM15, TM21, TM22, TM23, TM24, TM27, TM29, TM31, TM36, TM38

Model	max.weight	Wheel Base	Seat height	Engine size	Starting	Transmission	Tires Front	Rear
TM10	150LB	39.37''	24.41''	110cc	Kick Start	Automatic Clutch ,N-1-2-3-4	2.5x10	2.5x10
TM11	150LB	39.37''	24.41''	110cc	Electric	Automatic clutch, One gear	2.5x10	2.5x10
TM15	150LB	40''	24.4''	110cc	Kick & Electric Start	Automatic Clutch ,N-1-2-3-4	2.75x12	3x10
TM21	170LB	41.54''	29.13''	125cc	Kick Start	Automatic Clutch ,N-1-2-3-4	60/100-14	80/100-12
TM22	170LB	41.54''	29.13''	125cc	Kick Start	Manual Clutch, N-1-2-3-4	60/100-14	80/100-12
TM23	170LB	41.54''	29.13''	125cc	Kick & Electric Start	Automatic Clutch ,N-1-2-3-4	60/100-14	80/100-12
TM24	170LB	42.3''	32.7''	125cc	Kick Start	Manual Clutch, N-1-2-3-4	70/100-17	90/100-14
TM27	200LB	49.8''	33.5''	125cc	Kick Start	Manual Clutch, N-1-2-3-4	70/100-17	90/100-14
TM29	200LB	49.8''	33.5''	125cc	Kick & Electric Start	Manual Clutch, N-1-2-3-5	70/100-17	90/100-14
TM31	280lbs	53.1"	34"	250cc	Electric & Kick Start	Manual Wet Multi-Plate, 1-N-2-3-4-5, 5-Gears	70/100-19	90/100-16
TM33	300lbs	59"	37"	223cc	Electric & Kick Start	Manual Wet Multi-Plate, 5gears	80/100-21	110/100-18
TM36	300lbs	59"	37"	300cc	Electric & Kick Start	Manual Wet Multi-Plate, Constant-mesh, two-stage transmission, 5-Gears	80/100-21	110/100-18
TM38	300lbs	59"	37"	300cc	Electric & Kick Start	Wet multi disc clutch, International Gear Pattern,6-Speed
