What is not assembled if buying fully assembled :Roll cages, steering wheel, canopy top, rear top-side plastics

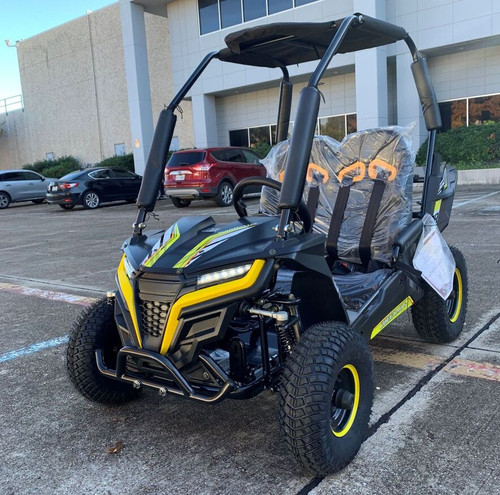

TrailMaster Cheetah i6 electric Super Quiet 650W DC Motor 48V 20Ah Battery Assembled Version
The TrailMaster Cheetah i6 Electric UTV / Go-Kart (Assembled Version) is a super-quiet, battery-powered off-road vehicle designed for younger riders seeking safe, smooth, and exciting outdoor fun. Powered by a 650W DC brush motor with a peak output of 1100W, the Cheetah i6 delivers strong, controlled performance with up to 15Nm torque, making it suitable for backyard trails, light off-road terrain, and recreational driving.
Equipped with a 48V 20Ah battery, this electric UTV offers up to 30 miles of range per charge and reaches speeds up to 19 MPH, with selectable low-speed and high-speed modes for added safety. Its dual A-arm front suspension and rear thru-shaft dual shocks provide a comfortable ride over uneven terrain, while rear disc brakes ensure reliable stopping power. With forward/reverse control, LED headlights, and a 4-point safety seat belt system, the Cheetah i6 is built for both safety and enjoyment.
This new kid’s size UTV/Go kart includes the following main features:
- Super Quiet 650W DC Motor
- 48V 20Ah Battery
- 3 speed switch L/M/H with max speed 19M/H on H, 13M/H on L;
- 30 mile capacity on full charge
- Forward/Reverse gear (Controlled by Red on/off switch)
- LED Headlight
- Adjustable seat: pedal to seat back adjustable from 28” to 32”, Age Group: 6-12 yrs, fits person up to 5’4”
- 4 point safety seat belt
TECHNICAL SPECS
| Specification of Cheetah i6 | |
| Motor Type | DC Brush Motor |
| Power | 650W |
| Max. Output | 1100W |
| Max torque | 15n.m/2500rpm |
| Battery | 48V20AH |
| Max speed | 19 M/H, 13 M/H on low speed mode |
| Climbing ability | 12° |
| Mileage at full charge | 30 Mile |
| Turning Radius | 13.1 feet |
| Gears | F--R |
| Drive Mode | CHAIN / DUAL WHEEL DRIVE |
| Suspension, F / R | DUAL A-ARM / THRU-SHAFT WITH DUAL SHOCKS ARM |
| Brakes | REAR DISC |
| Tires, F / R | 145/70-6 / 16*6-8 |
| Weight, G.W. / N.W. | 308 / 264 lbs - 139/ 119 kg |
| Max load | 180 LBS |
| Dimension Information | |
| Wheelbase | 43.7" |
| Length×Width×Height(Inches) | 63x36x50 / (mm) 1600x914x1270 |
| Height to seat | 14.2 inches |
| Min. ground clearance | 3.6 inches |
| Pedal to seat back | 28” to 32” |
| package size | 60X32X21 inches |
