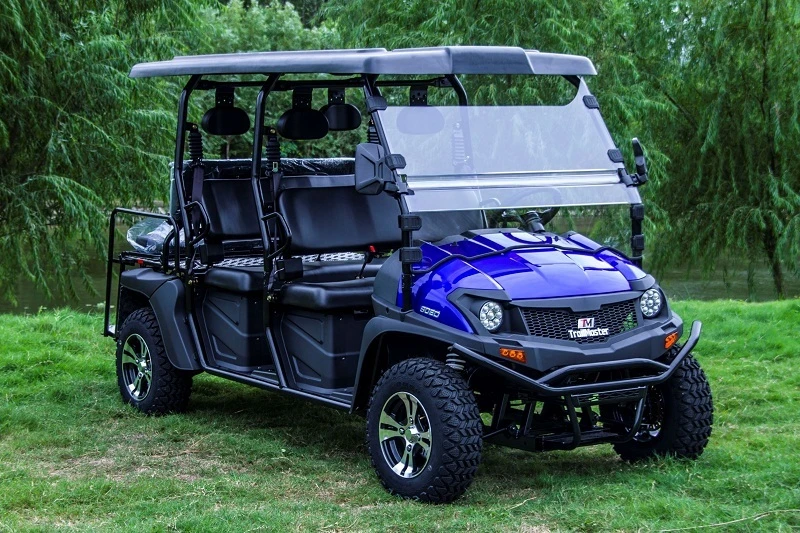

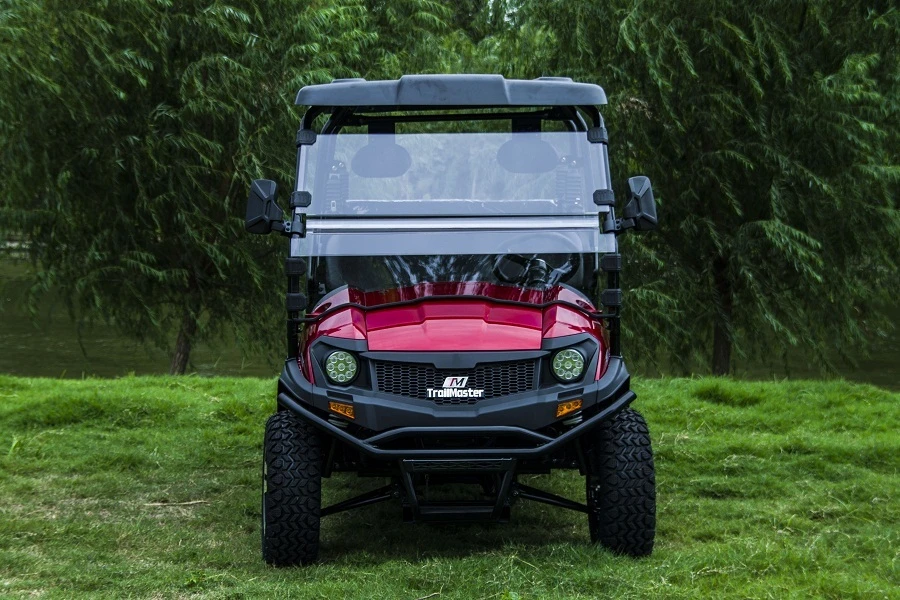

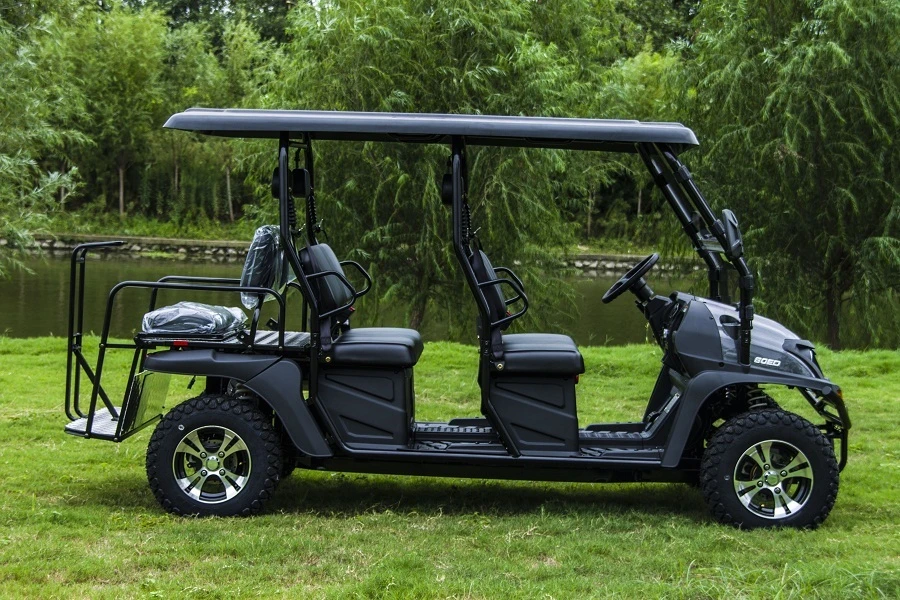

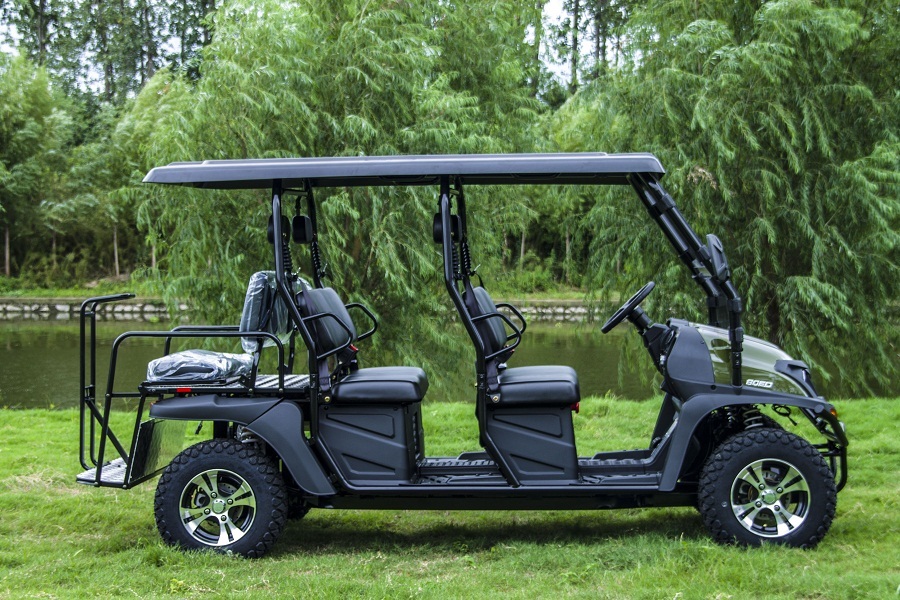

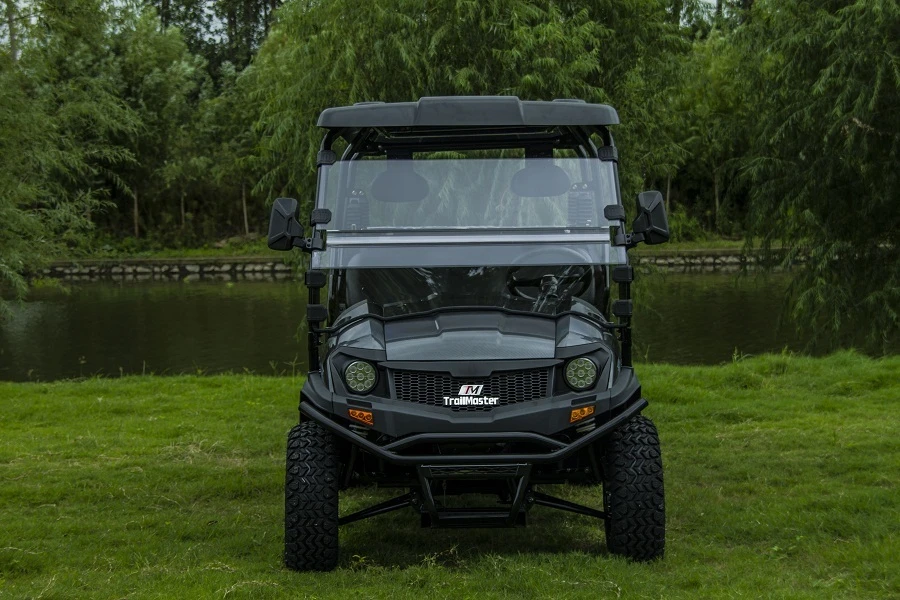

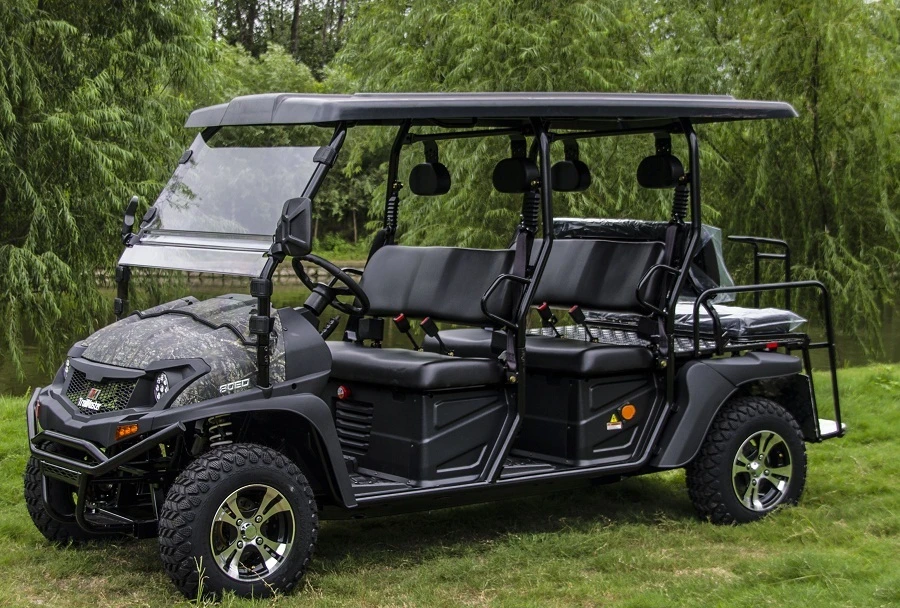

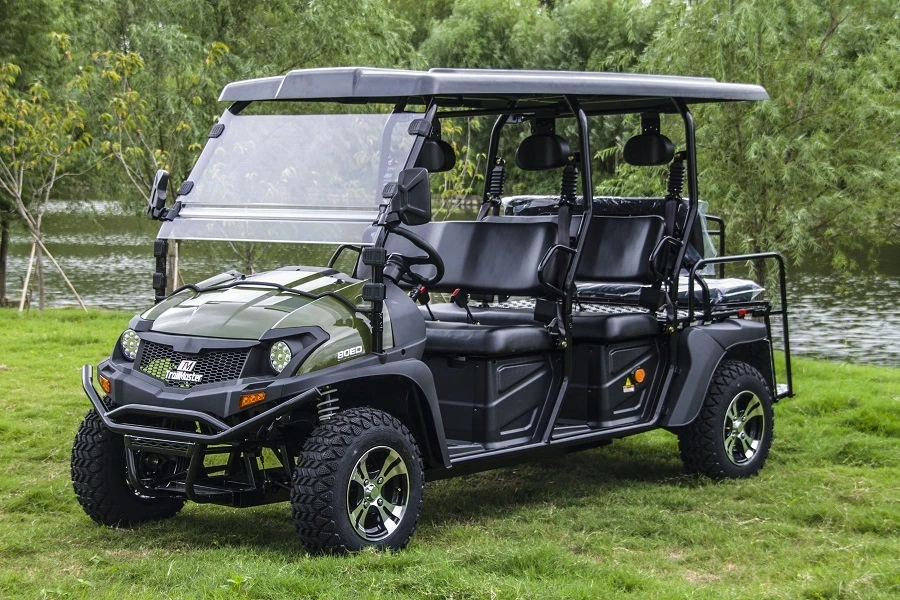

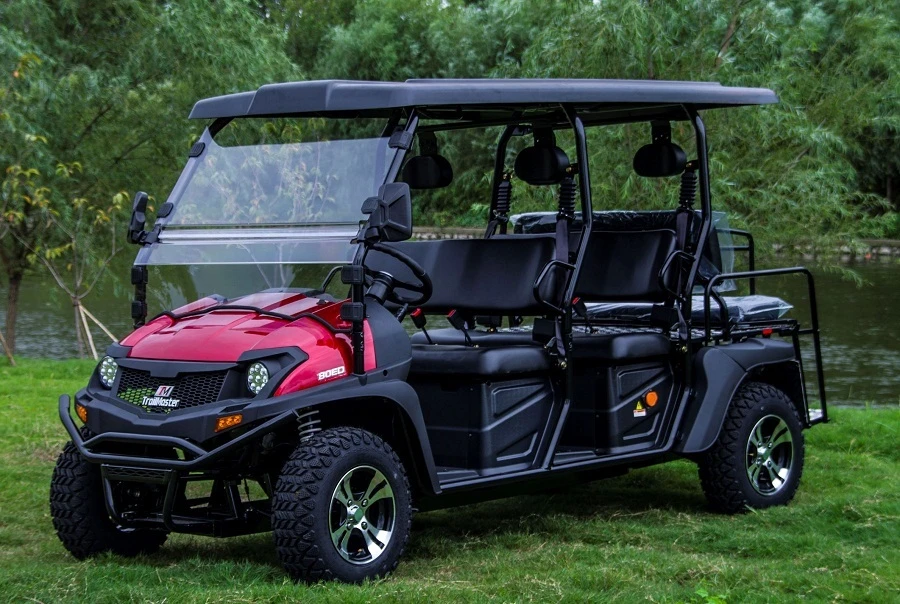

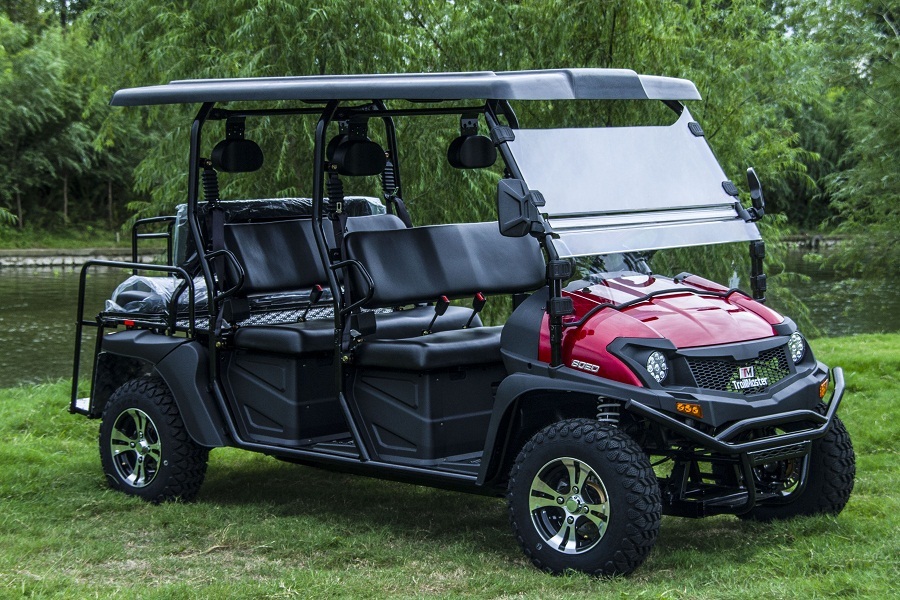

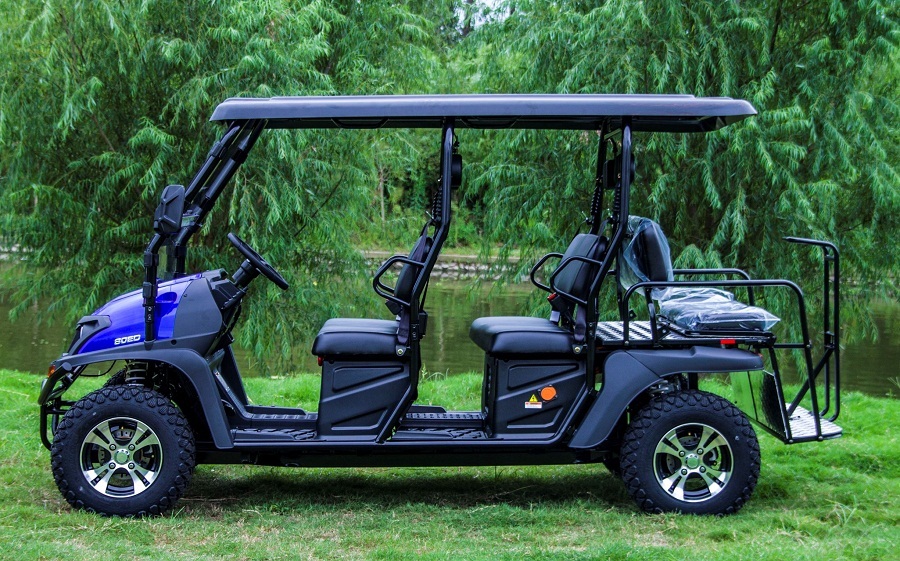

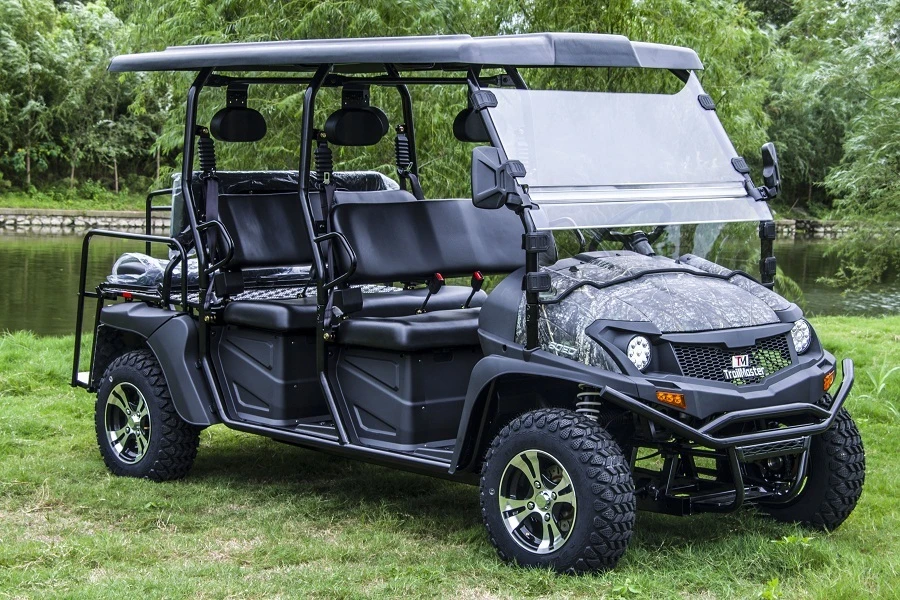

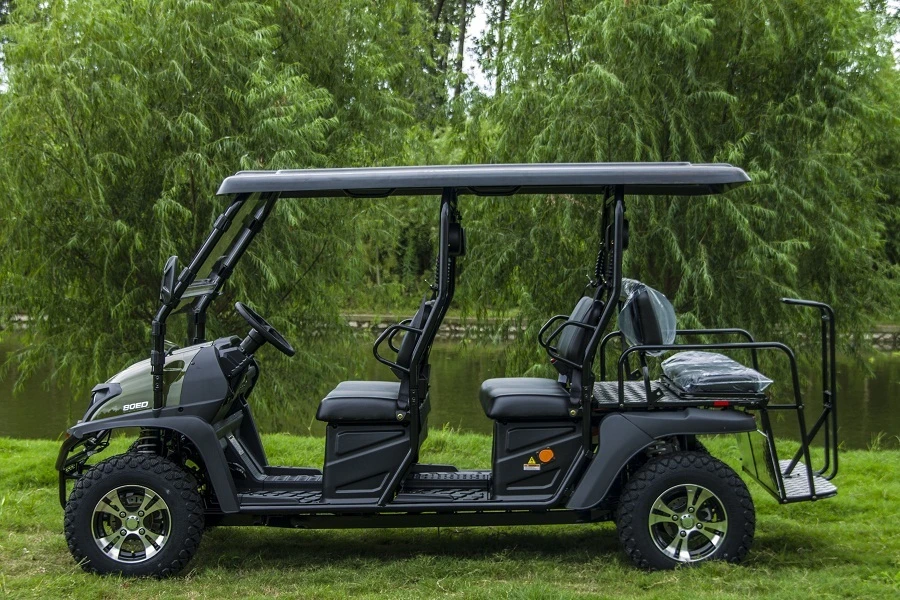

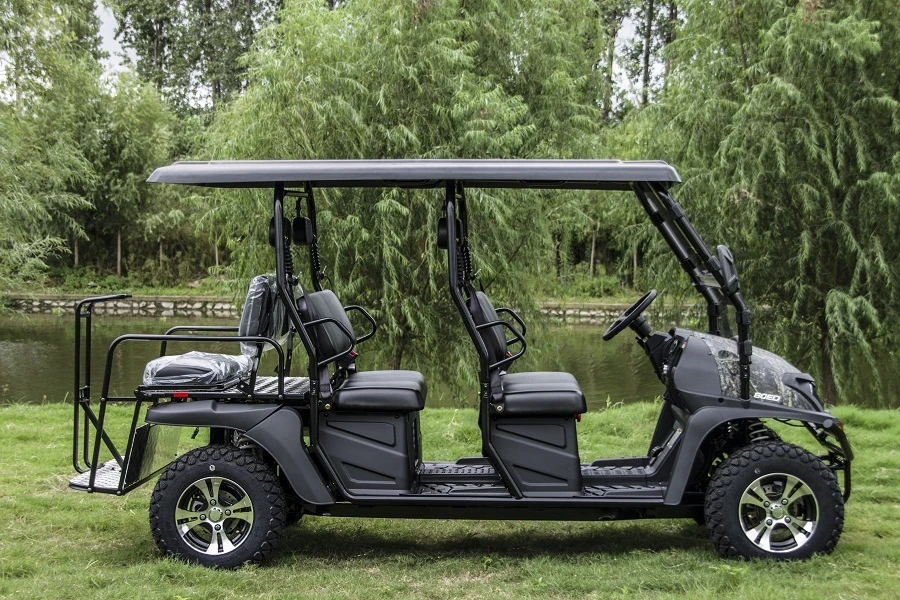

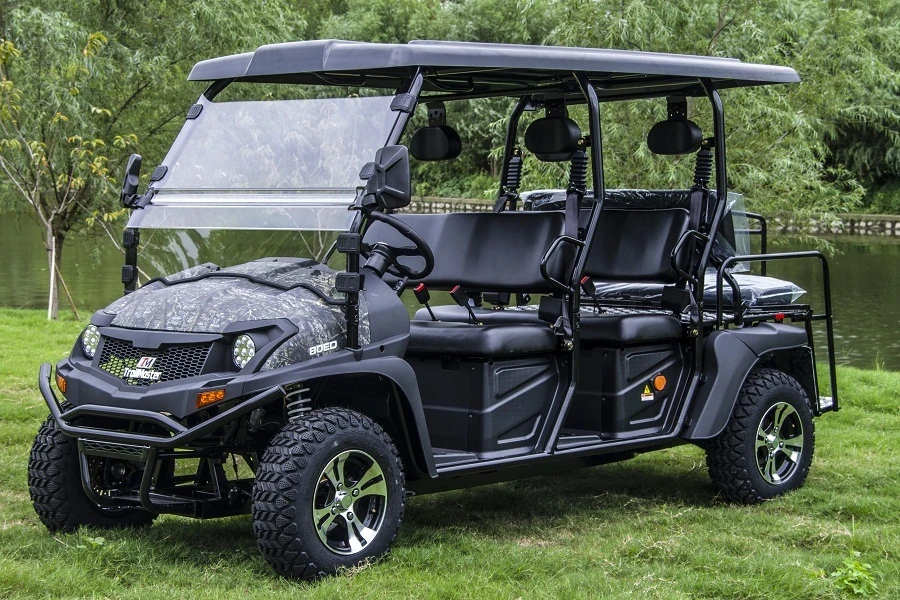

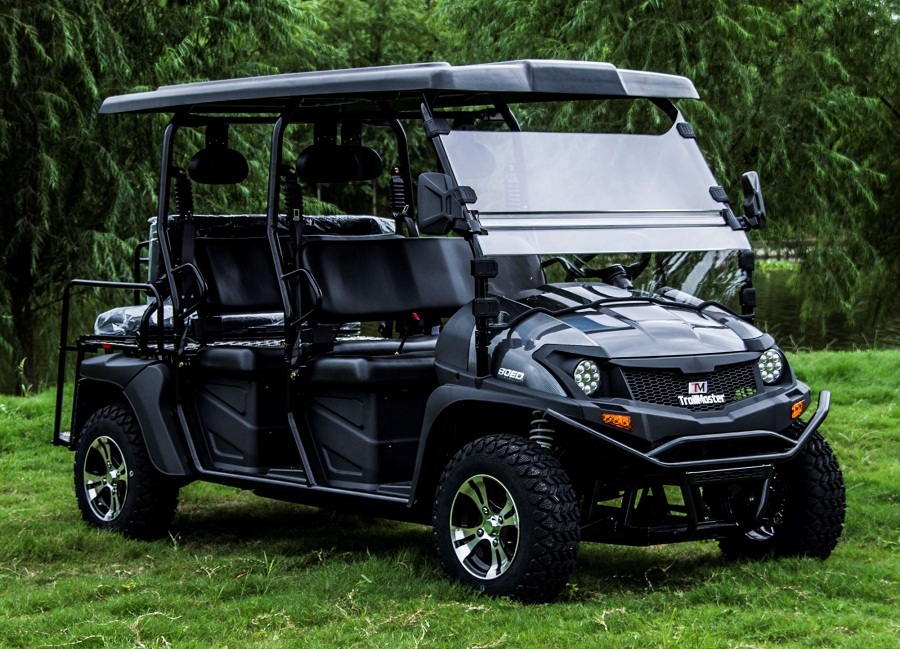

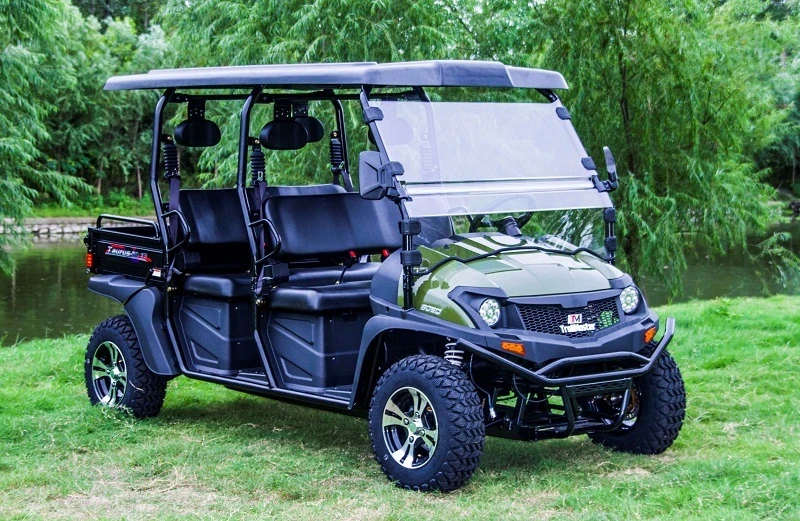

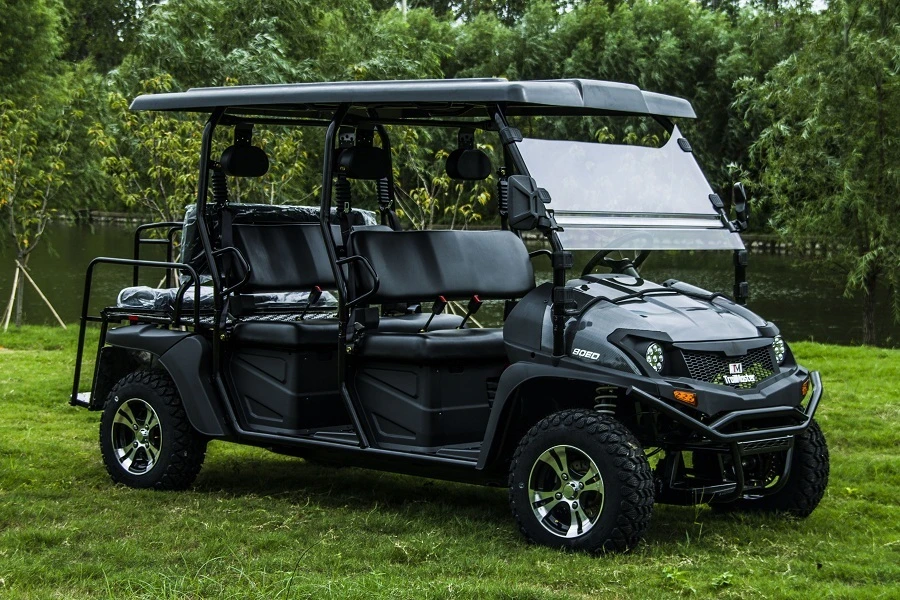

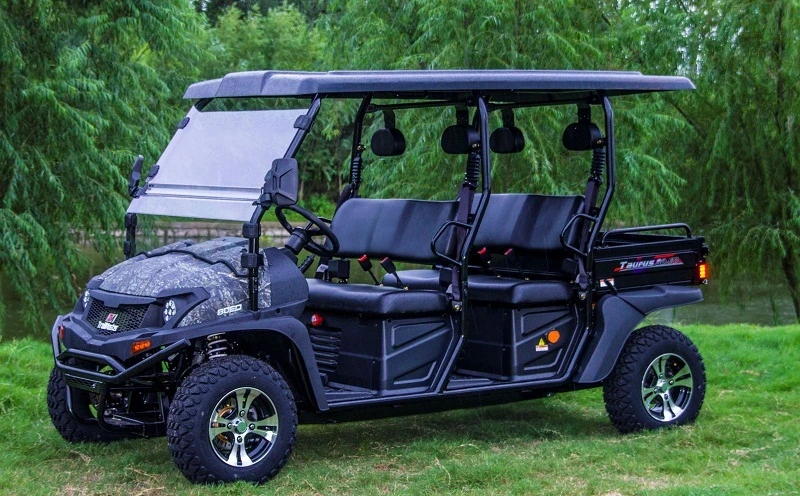

Trailmaster Taurus 80ED GV UTV, Steering Wheel With Rear Flip Seat
The TrailMaster Taurus 80ED GV is a versatile electric UTV designed for practical transportation, utility work, and recreational use. Powered by a 72V PMSM 7.5kW electric motor producing 95 N·m of maximum torque, this steering-wheel-controlled UTV delivers a listed top speed of 33 MPH and an estimated range of up to 60 miles / 100 km. Its rear flip-seat configuration provides added passenger flexibility, while the shaft-drive system delivers power through a simple and durable drivetrain.
Built for stability and capability, the Taurus 80ED GV features independent front MacPherson suspension and independent rear Double A-Arm suspension. The suspension setup is designed to provide controlled handling over uneven surfaces, while 10.23 inches of ground clearance helps the UTV clear obstacles and rough terrain. Ventilated hydraulic disc brakes provide controlled stopping, and the vehicle's 670-lb tractive force adds useful pulling capability for utility applications.
The Taurus 80ED GV combines electric efficiency with practical utility features. Its 135Ah battery supports a listed driving range of up to 60 miles, while the included 1.8kW charger accepts 110–240V input and requires approximately 8–10 hours for a full charge. The UTV measures 121.7 x 58.27 x 76.4 inches, has a 63.8-inch wheelbase, and offers a listed 441-lb bed capacity with a 26.4 x 43.4 x 9.45-inch bed. With steering-wheel control and a rear flip-seat design, the Taurus 80ED GV is built to provide a practical combination of passenger versatility, electric performance, and utility capability.
✅ Key Features & Highlights
Electric Motor & Performance
- 7.5kW PMSM Electric Motor – Permanent Magnet Synchronous Motor designed for efficient electric power delivery.
- 95 N·m Maximum Torque – Strong low-speed torque for transportation and utility applications.
- 72V Electrical System – High-voltage platform supporting the electric drivetrain.
- 33 MPH Top Speed – Listed maximum speed of 55 km/h.
- 670-lb Tractive Force – Provides useful pulling capability for utility applications.
- 60-Mile / 100 km Range – Listed maximum mileage under specified conditions.
Battery & Charging
- 135Ah Battery Capacity – High-capacity battery designed to support extended operation.
- 110–240V Charger Input – Compatible with a broad range of household electrical inputs.
- 1.8kW Car Charger – Supplied charging system for the electric powertrain.
- 8–10 Hour Charging Time – Listed approximate charging duration.
Drivetrain & Controls
- Shaft Drive – Transfers motor power through a shaft-drive system.

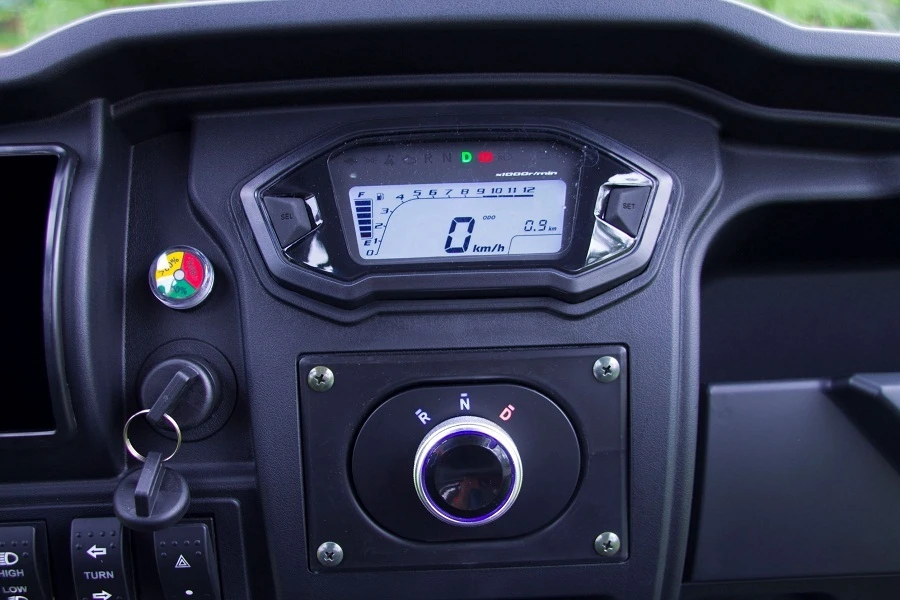

- Steering Wheel Control – Automotive-style steering wheel for familiar vehicle operation.

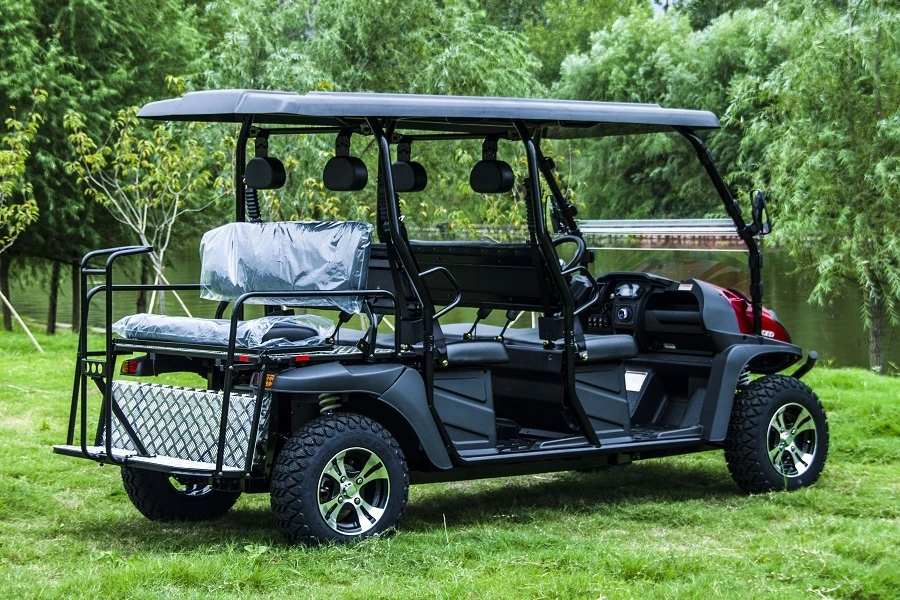

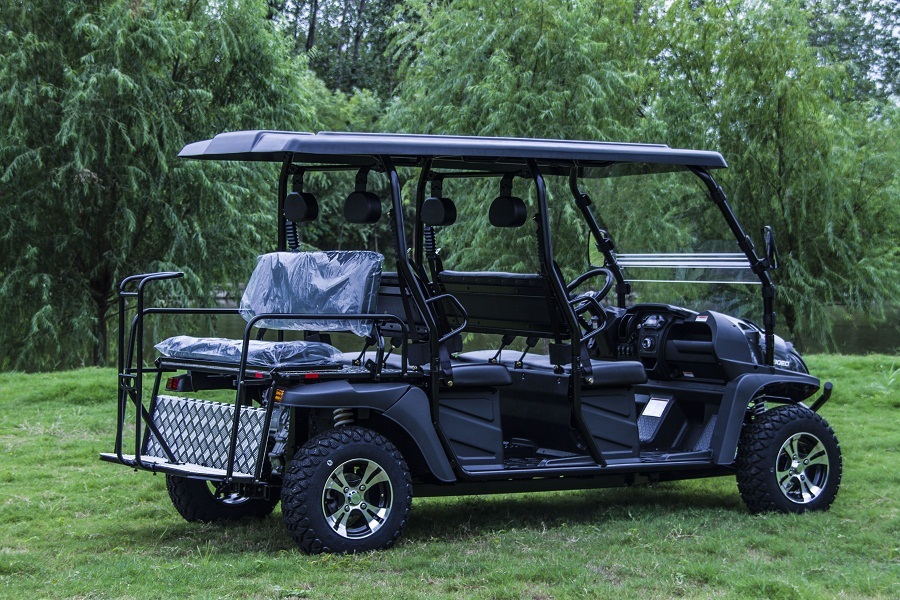

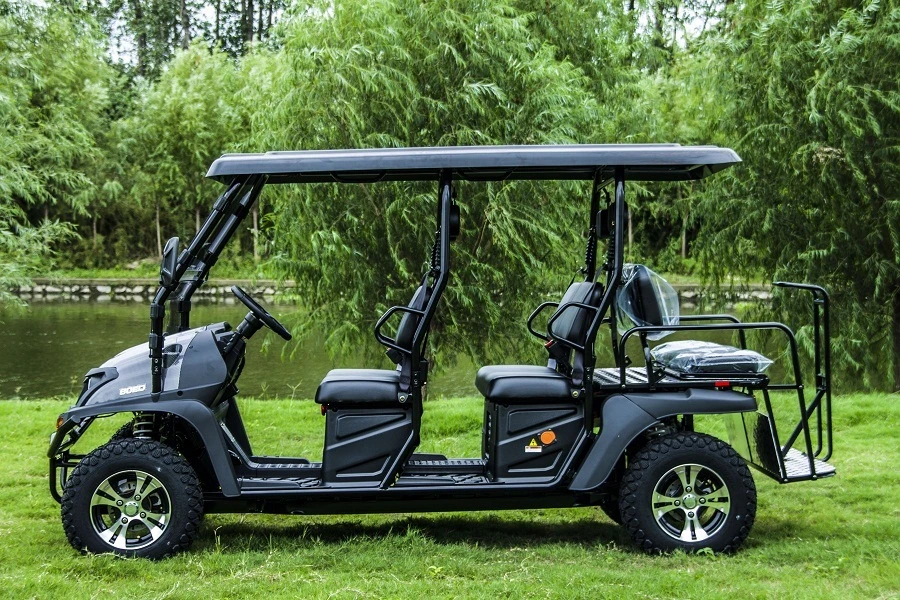

- Rear Flip Seat – Adds passenger versatility while maintaining the UTV's practical utility layout.
Options
Optional: Folded windshield - at $250
Optional: 24” LED light bar - at $150
Optional: Snow Plow- at $500
Optional: Winch - at $200
TECHNICAL SPECS
General Specification
Overall Size (Length × Width × Height) : 121.7" × 58.27" × 76.4" / 3092 × 1480 × 1940 mm
Wheelbase : 63.8" / 1620 mm
Ground Clearance : 10.23" / 260 mm
Curb Weight : 1698 lbs / 770 kg
Bed Capacity : 441 lbs / 200 kg
Bed Dimension : 26.4" × 43.4" × 9.45" / 670 × 1102 × 240 mm
Full Load Capacity : 2800 lbs / 1270 kg
Maximum Speed : 33 MPH / 55 km/h
Control Mode : Steering Wheel
Drive Mode : Shaft Drive
Tractive Force : 670 lbs / 314 kg
Electric System
Motor Type : PMSM 7.5 kW
Maximum Torque : 95 N·m
Vehicle Voltage : 72V
Battery Capacity : 135Ah
Range : 60 Miles / 100 km
Charger Input Voltage : 110–240V
Charger Power : 1.8 kW
Charging Time : 8–10 Hours
Frame / Suspension / Brake System / More Features
Front Suspension : Independent McPherson
Rear Suspension : Independent Double A-Arm
Front / Rear Brake : Ventilated Hydraulic Disc
Bed : Utility Cargo Bed
Steering : Steering Wheel
Ground Clearance : 10.23" / 260 mm
