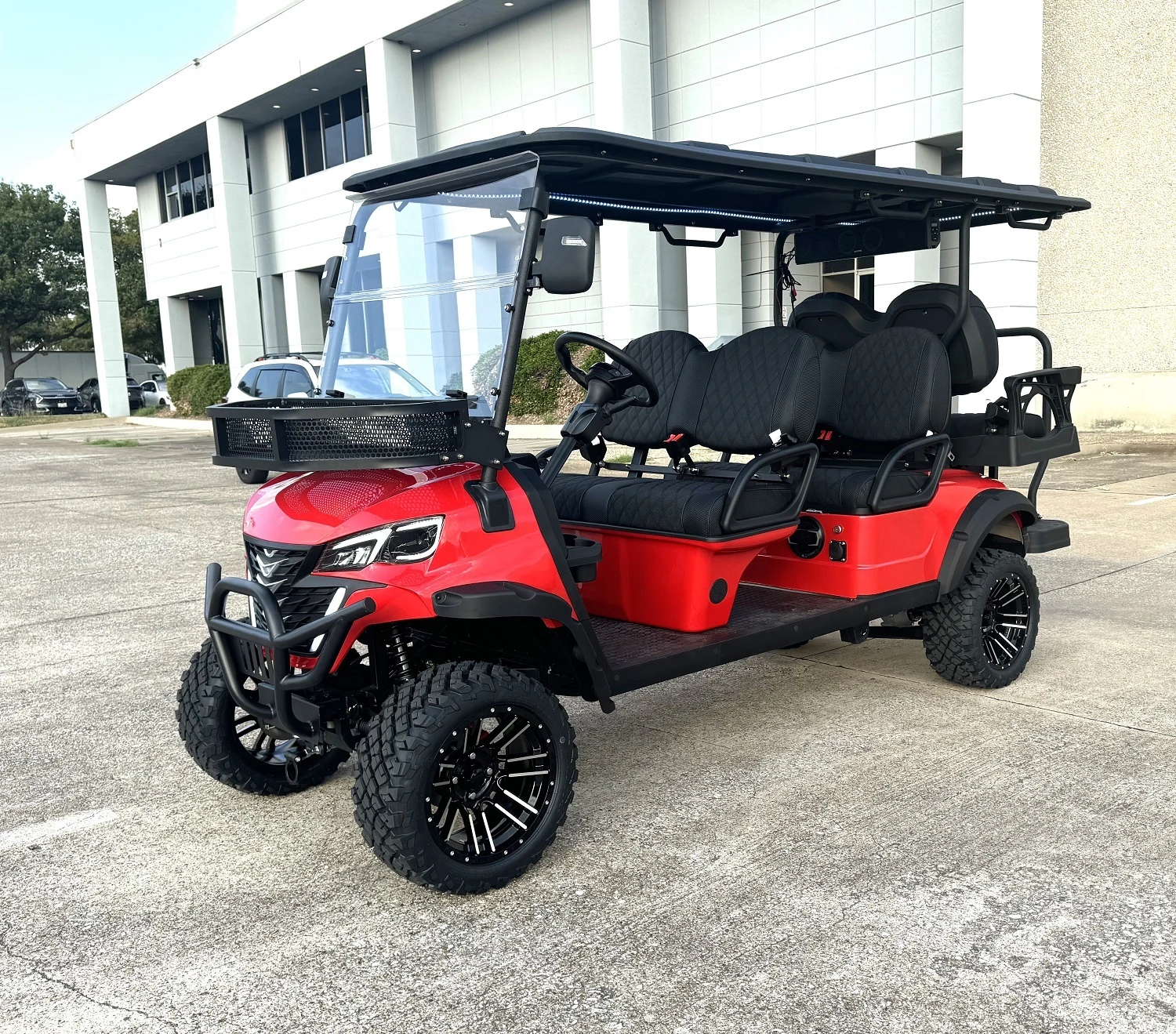

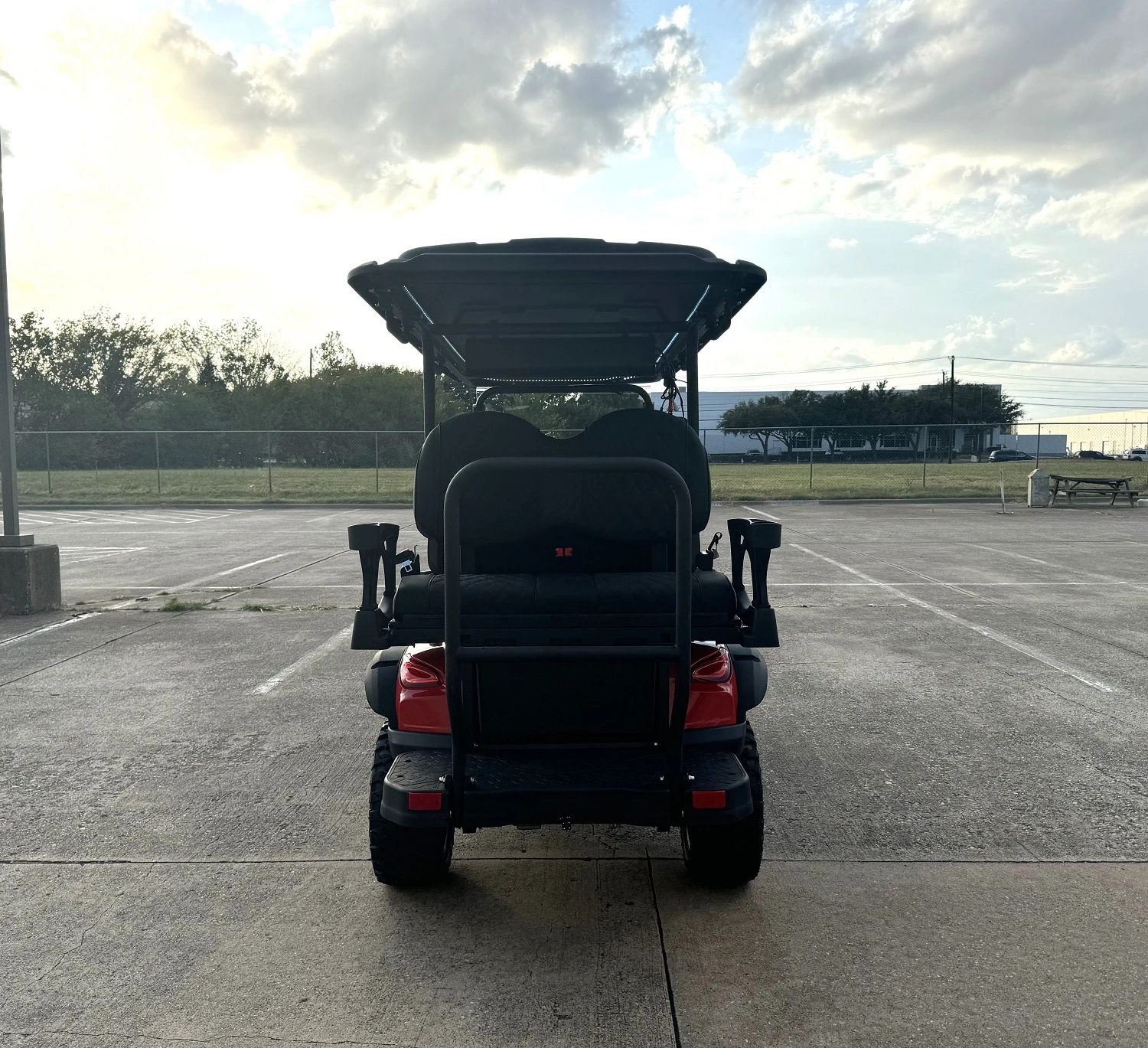

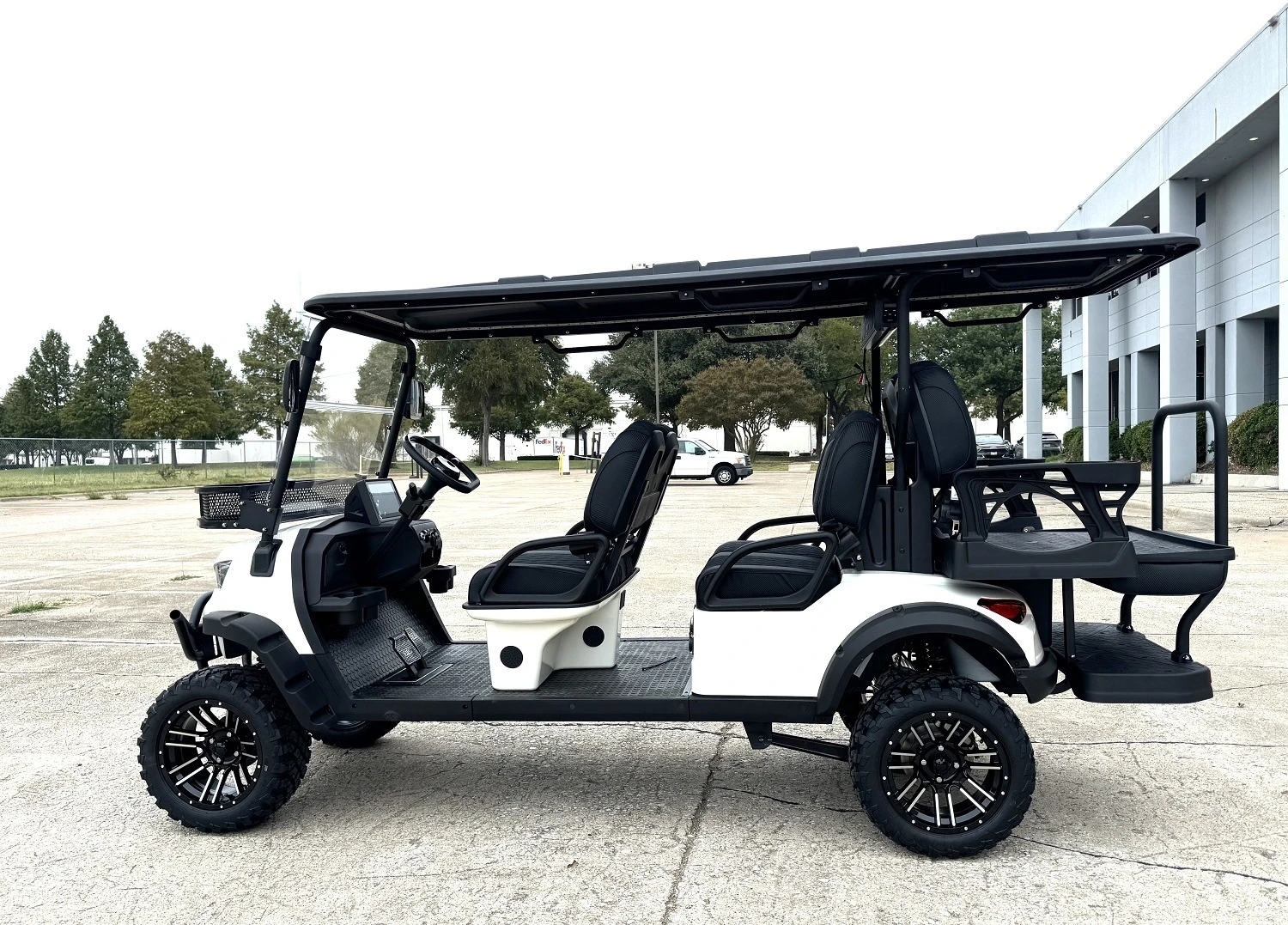

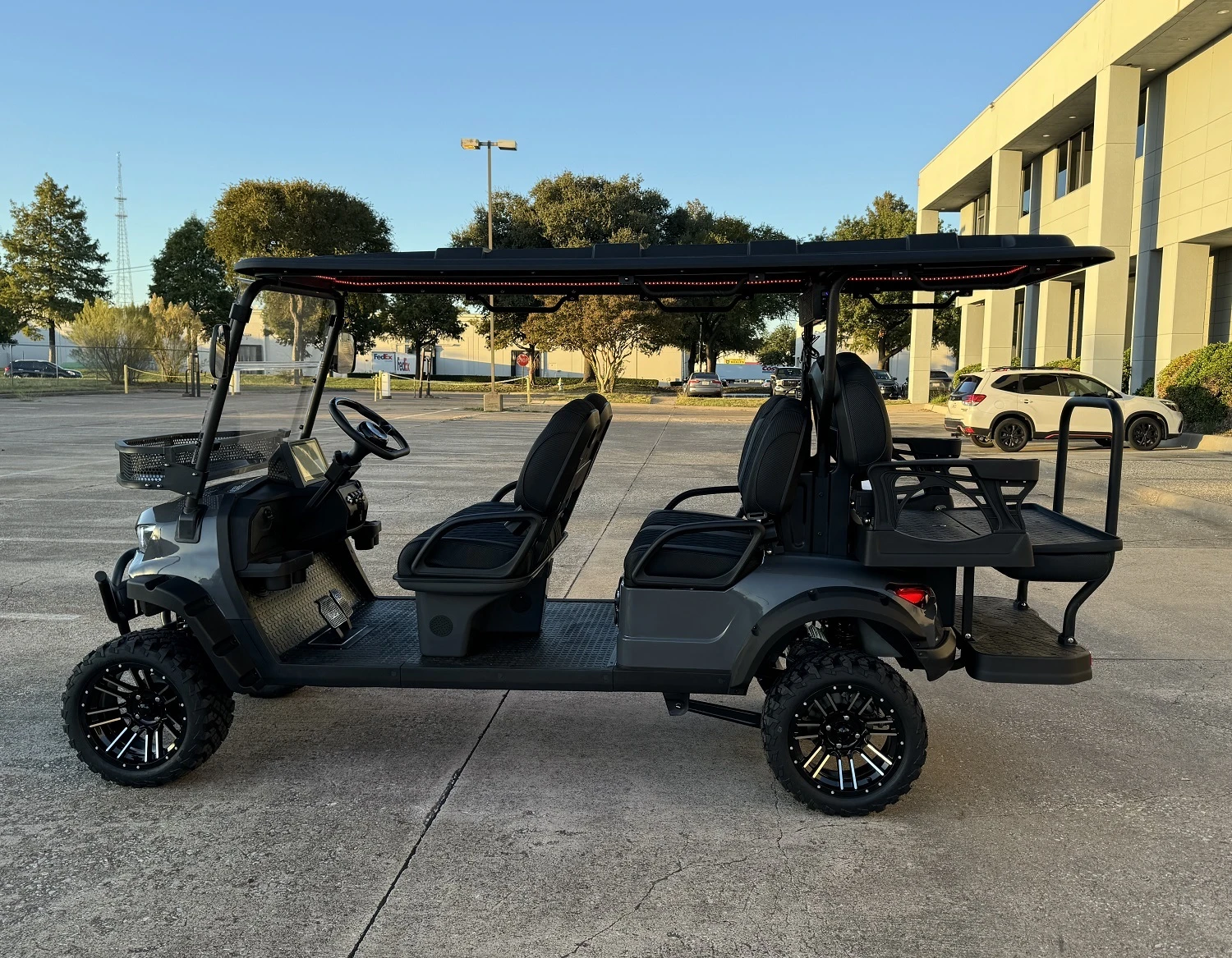

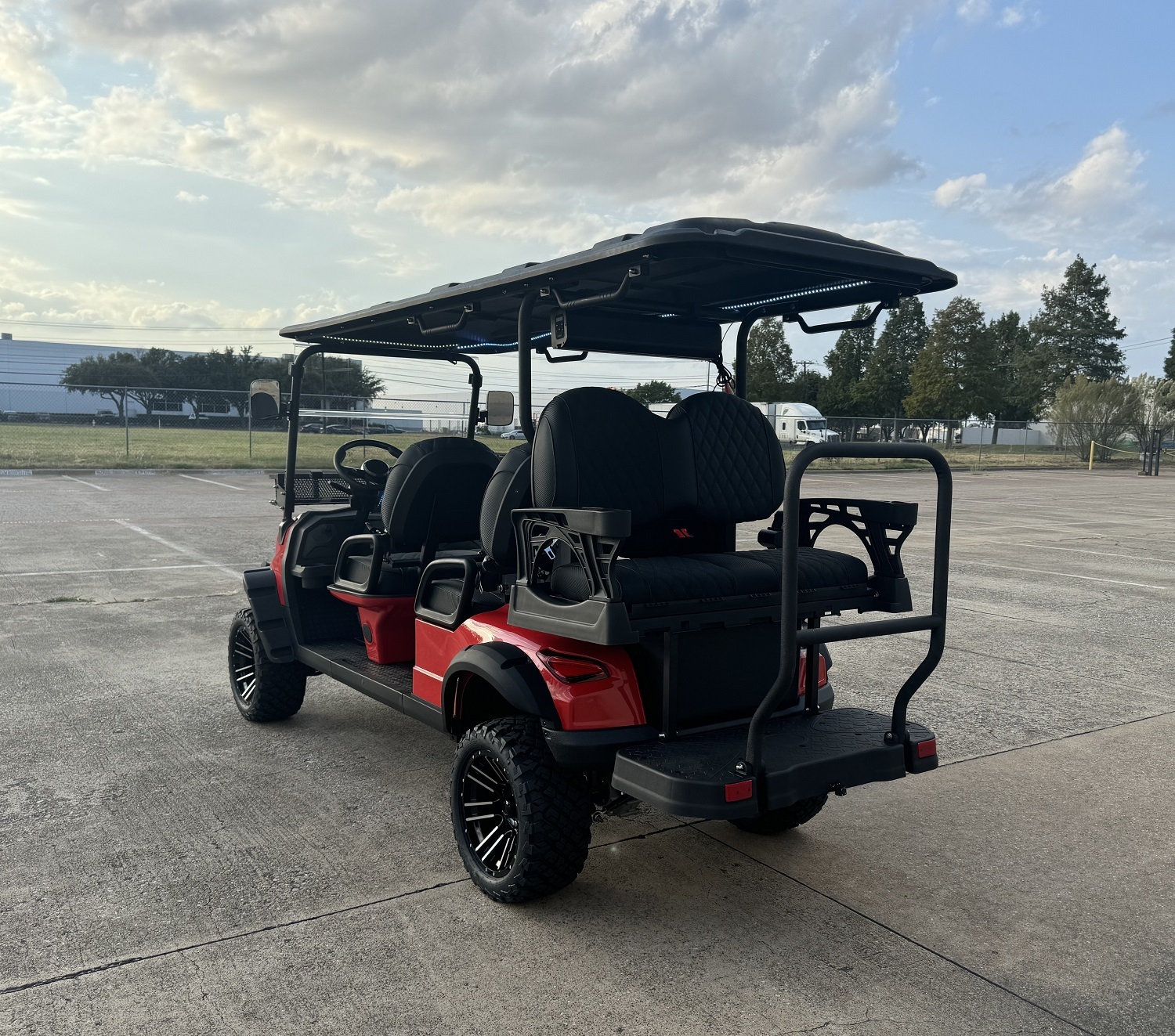

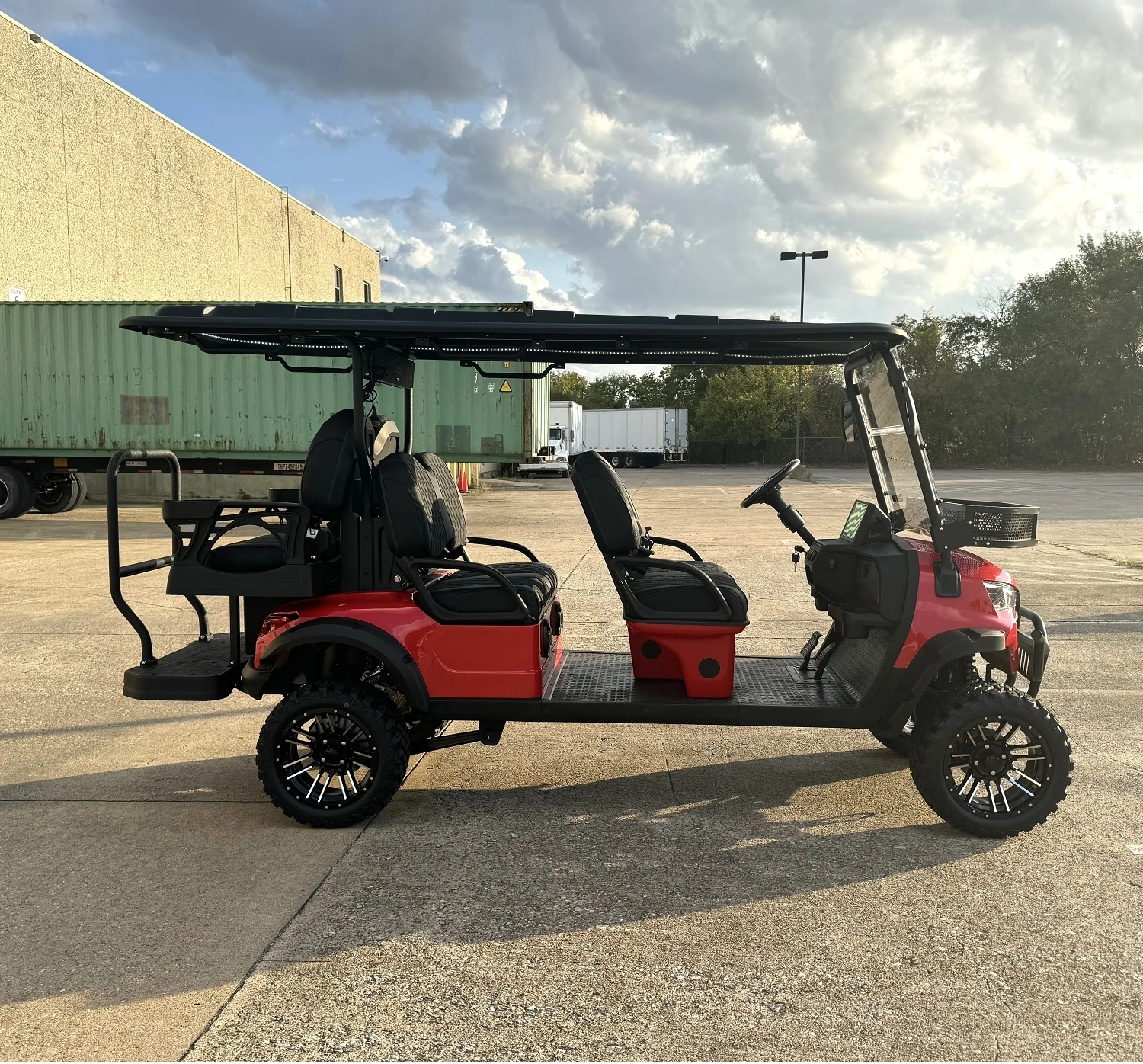

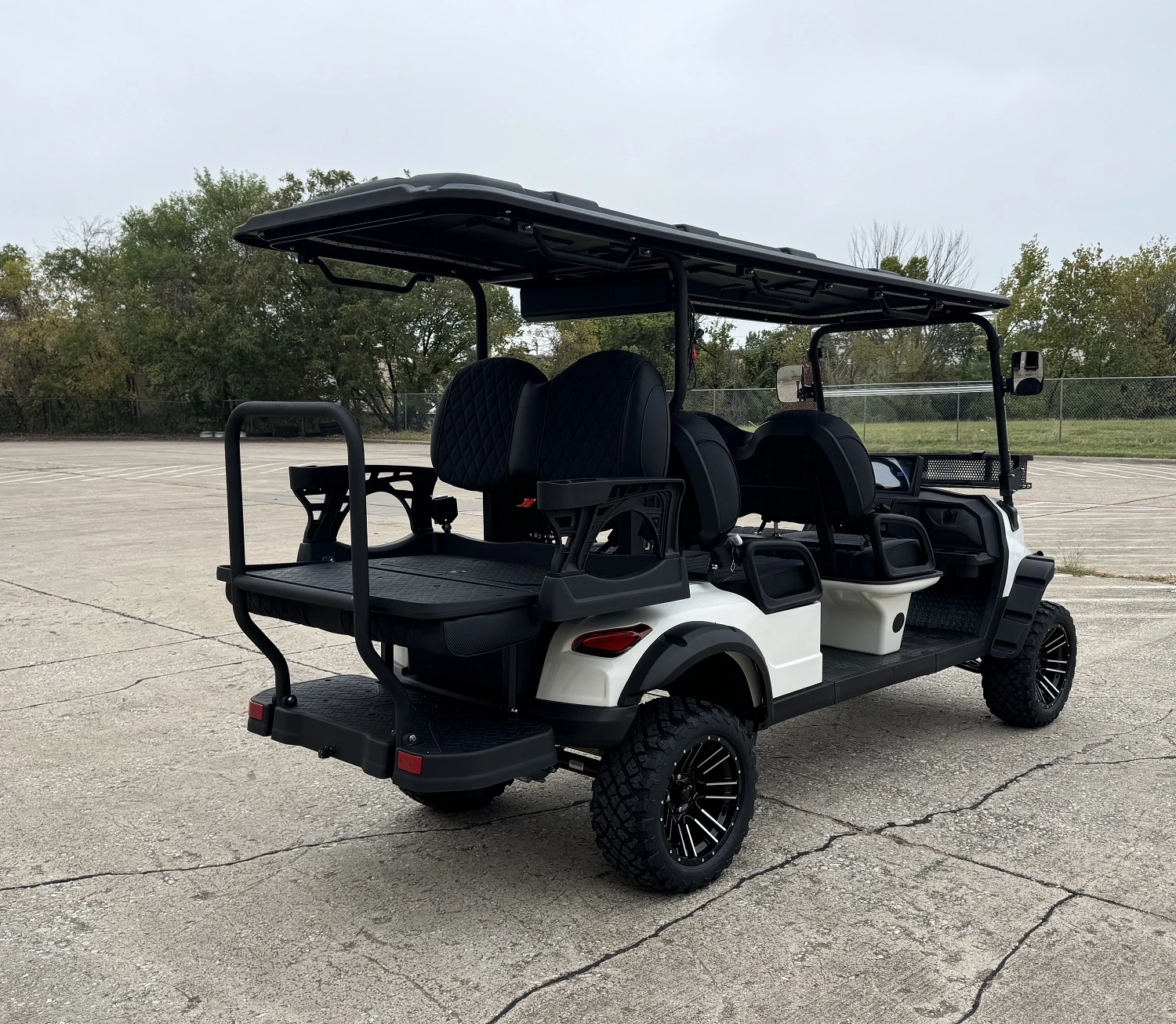

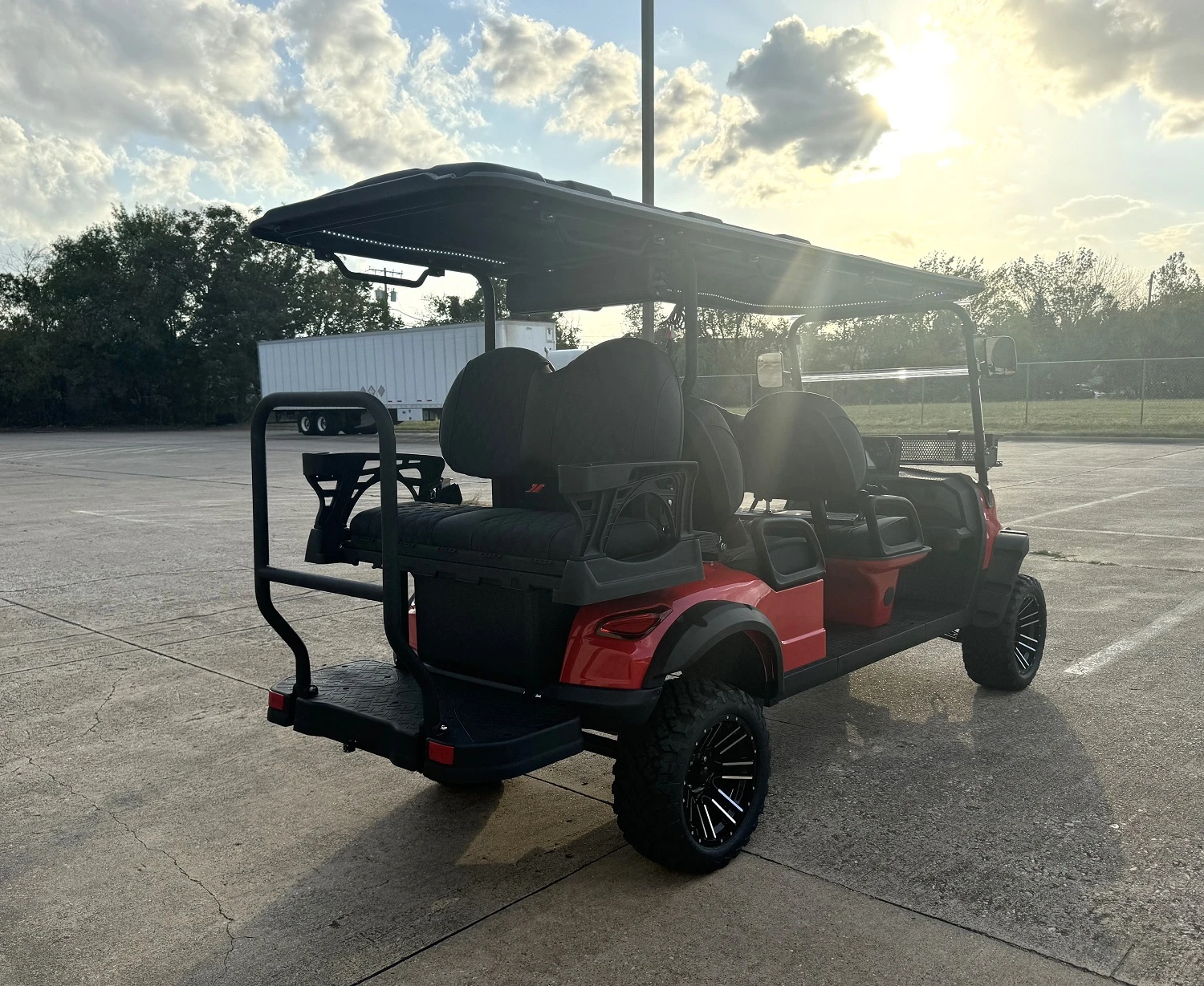

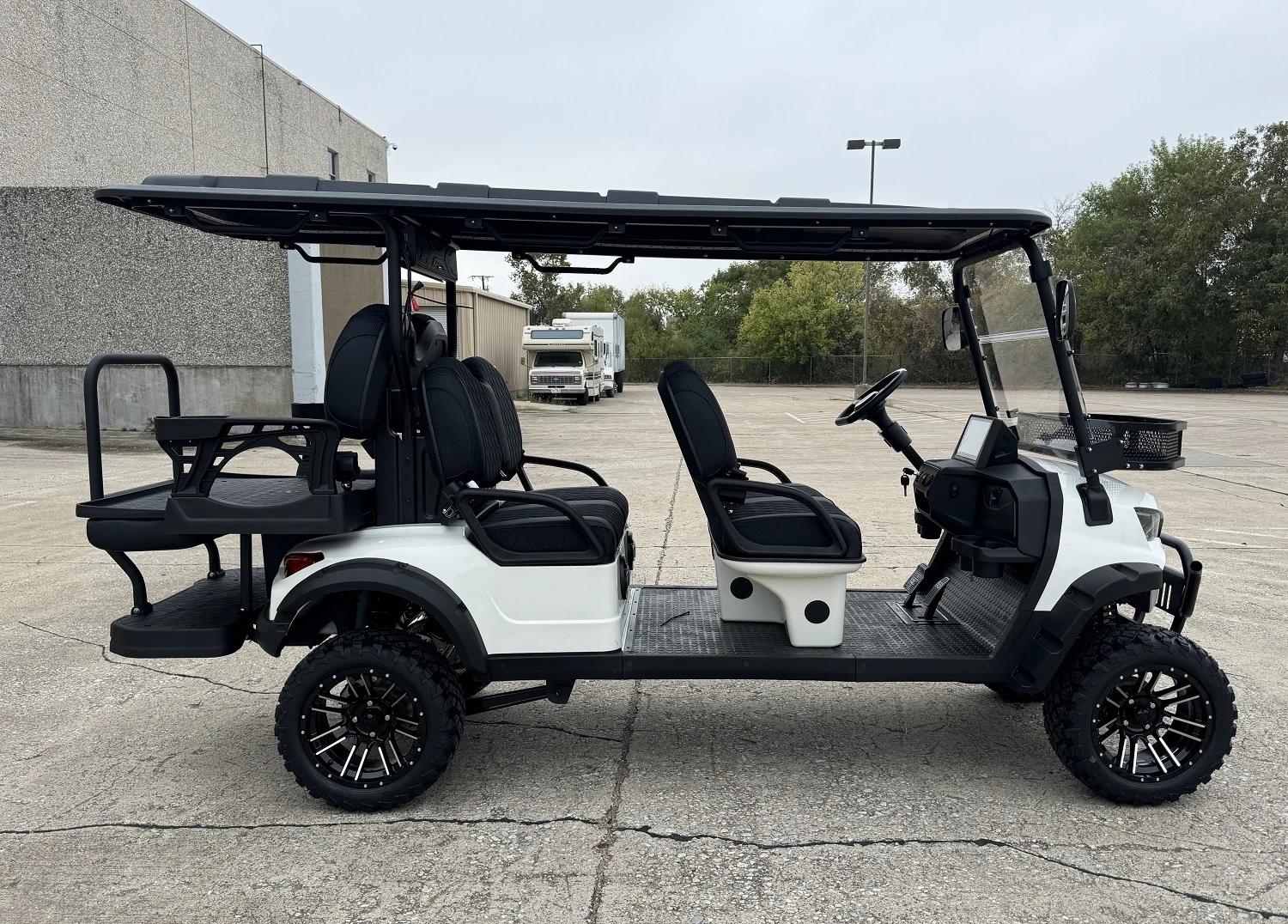

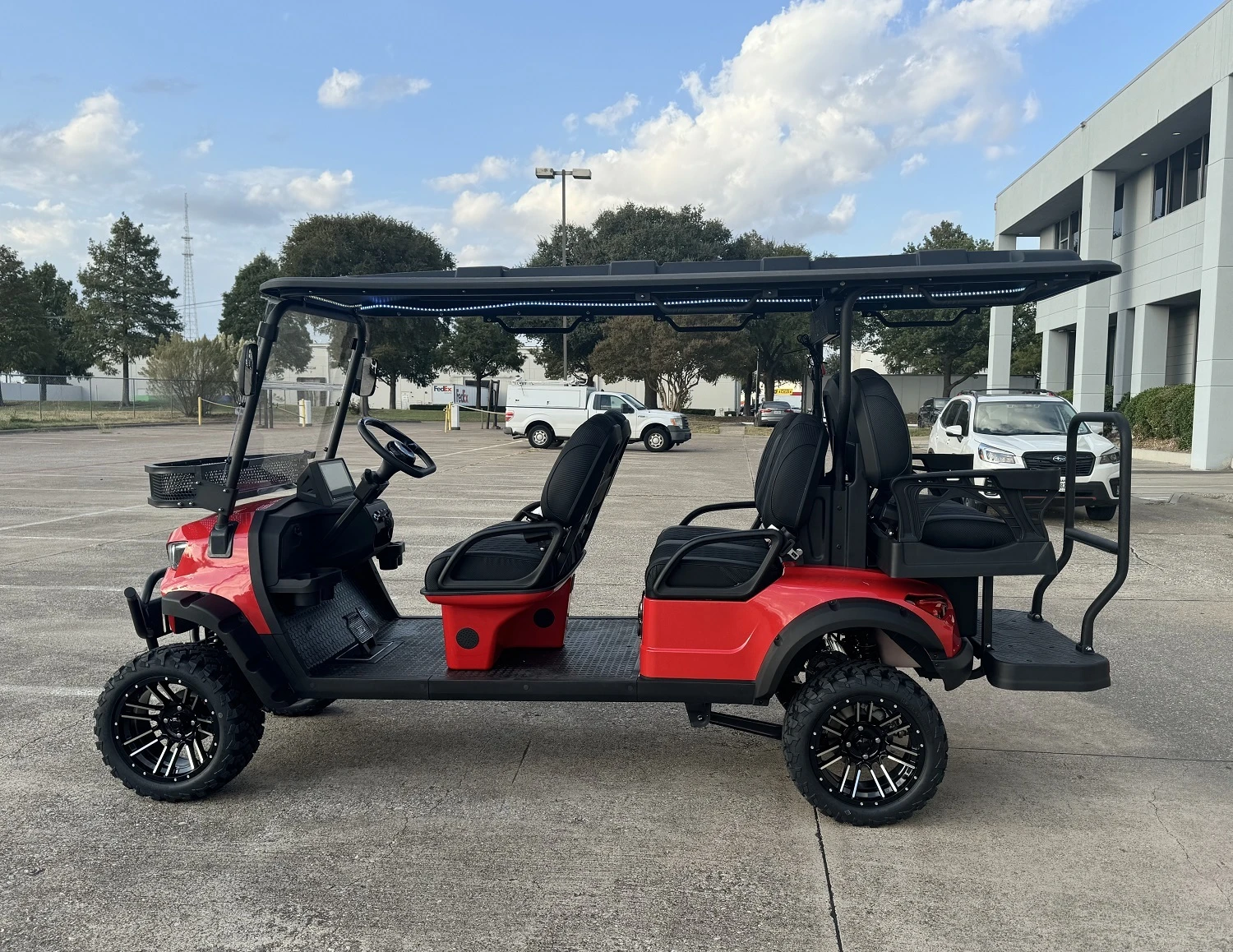

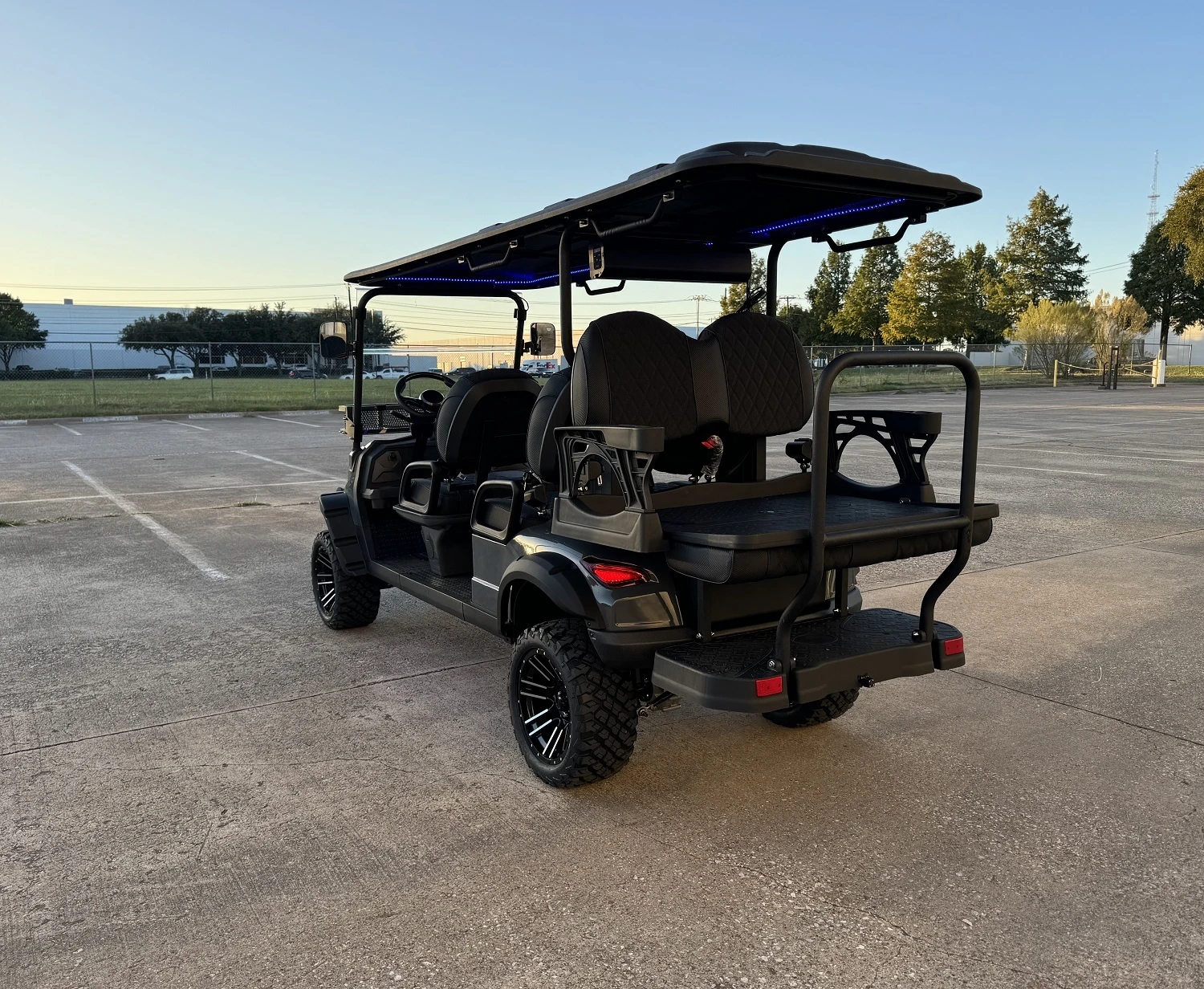

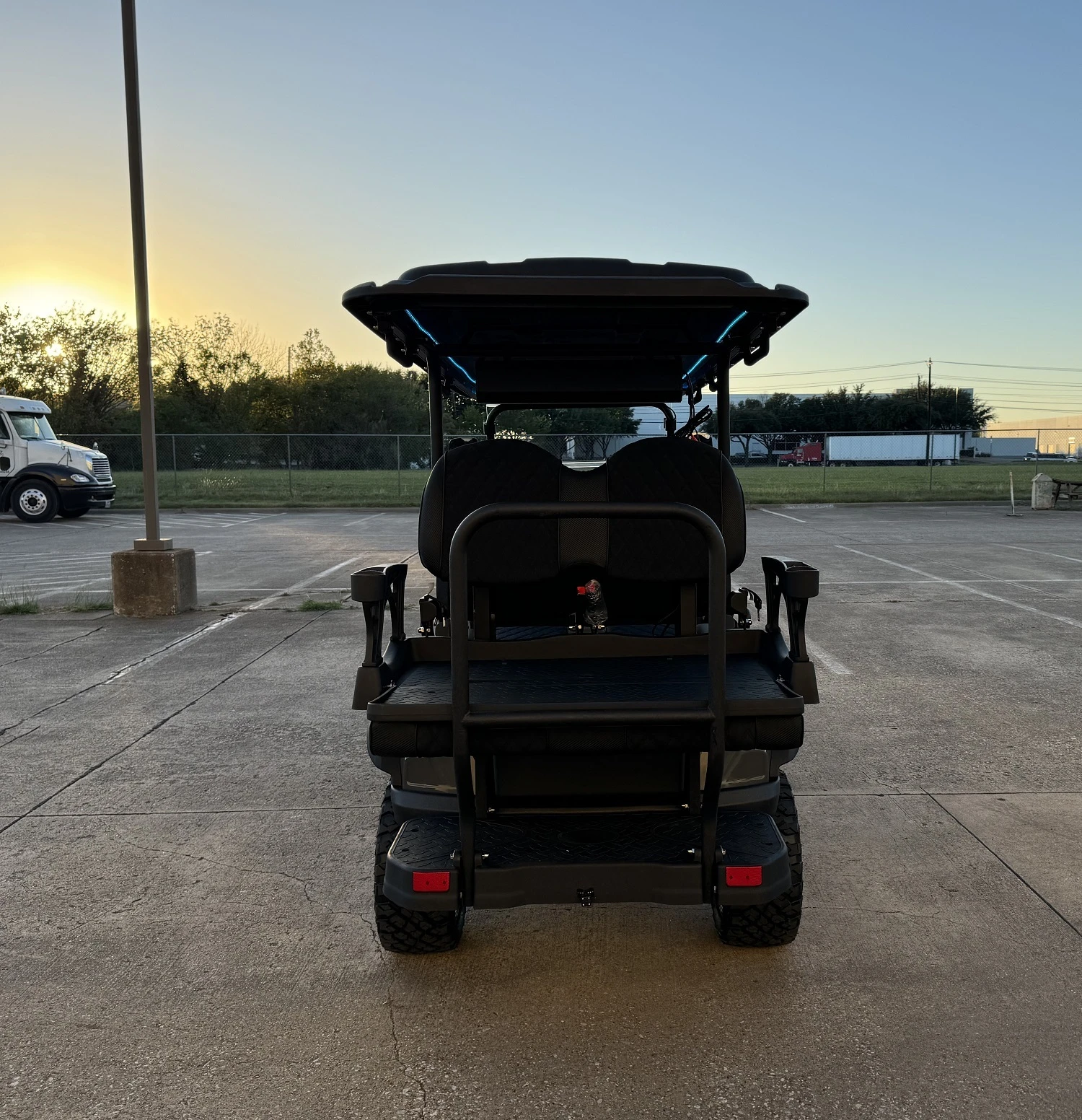

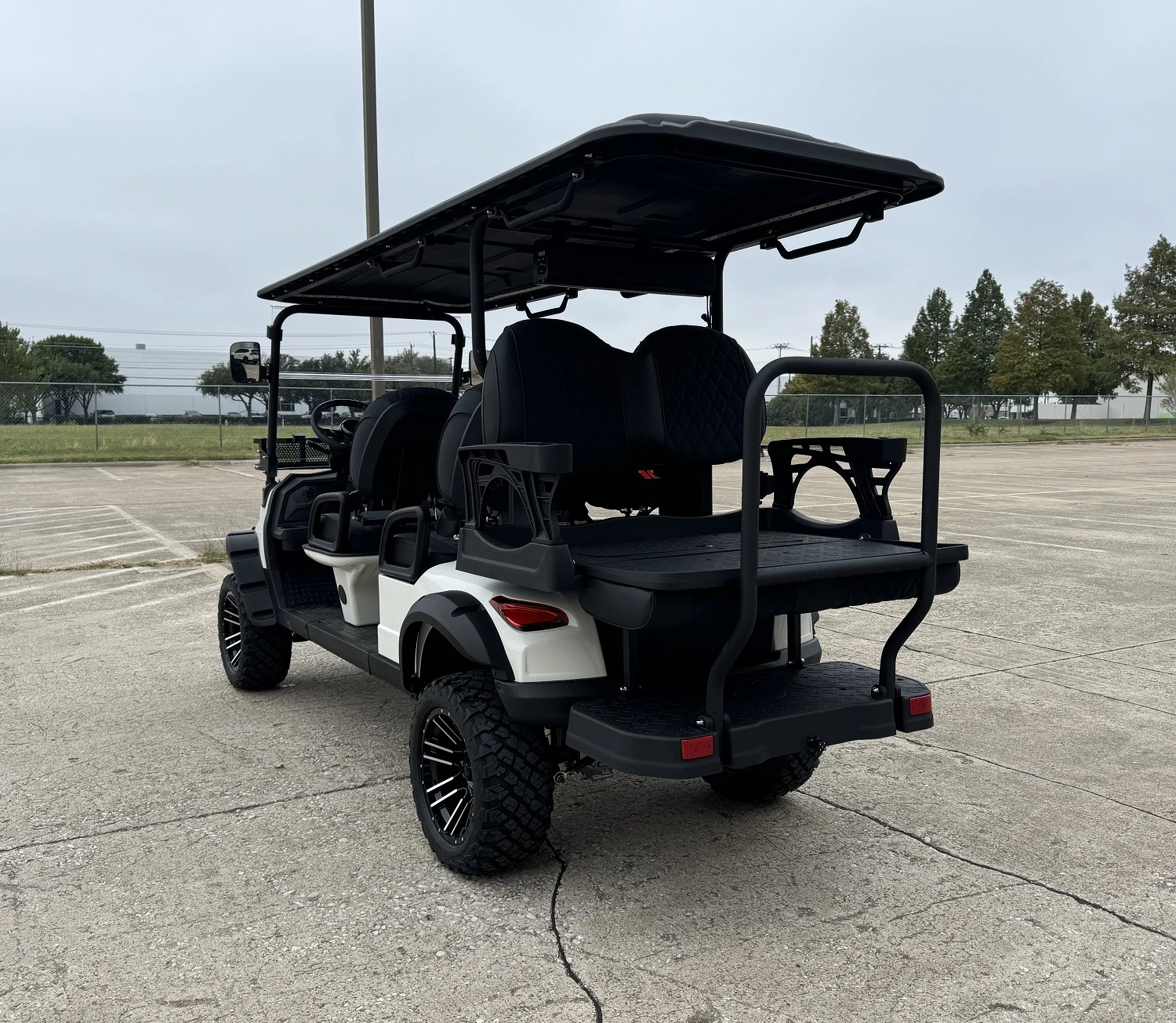

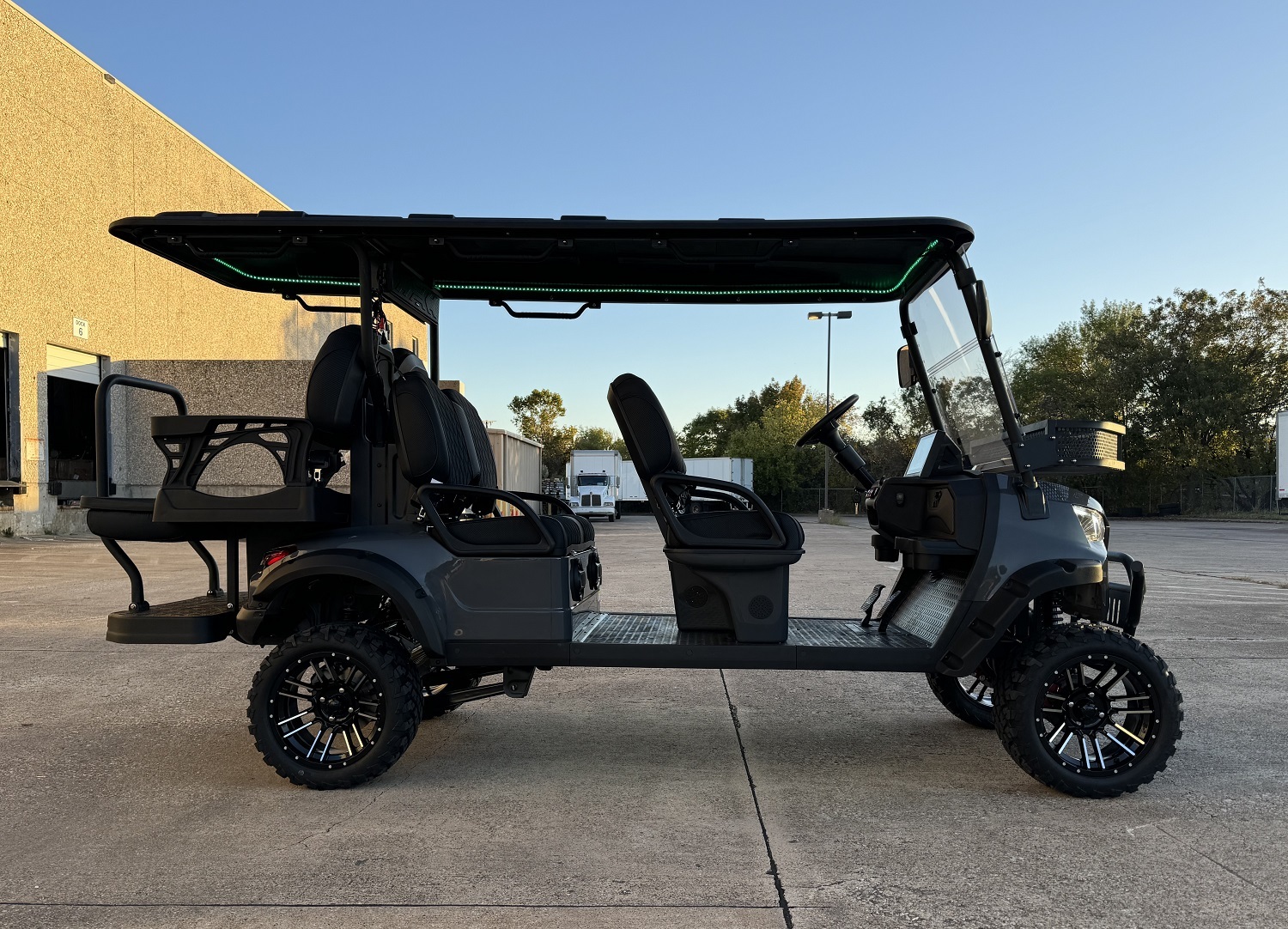

TBM X6 6-SEATER GOLF CART WITH 5KW LITHIUM BATTERY
The TBM X6 is the ultimate 6-seater golf cart for both utility and luxury, designed to transport your family or friends in style and comfort. Equipped with a powerful 5KW motor and a 105AH lithium battery, this golf cart offers up to 48 miles on a single charge. With high-end features like a 10.1" touchscreen with Carplay, Bluetooth, reverse camera, ambient LED lights, a sound bar speaker, and more, the TBM X6 ensures every ride is an enjoyable experience. Built with a robust high-strength carbon steel frame, four-wheel hydraulic disc brakes, and independent suspension, it’s crafted for both performance and durability. Available now at Txpowersports.com, the TBM X6 6-seater golf cart is perfect for on-road and off-road adventures alike.
Features
- Powerful Battery & Motor: 105AH lithium battery with 5KW motor, offering a range of up to 48 miles

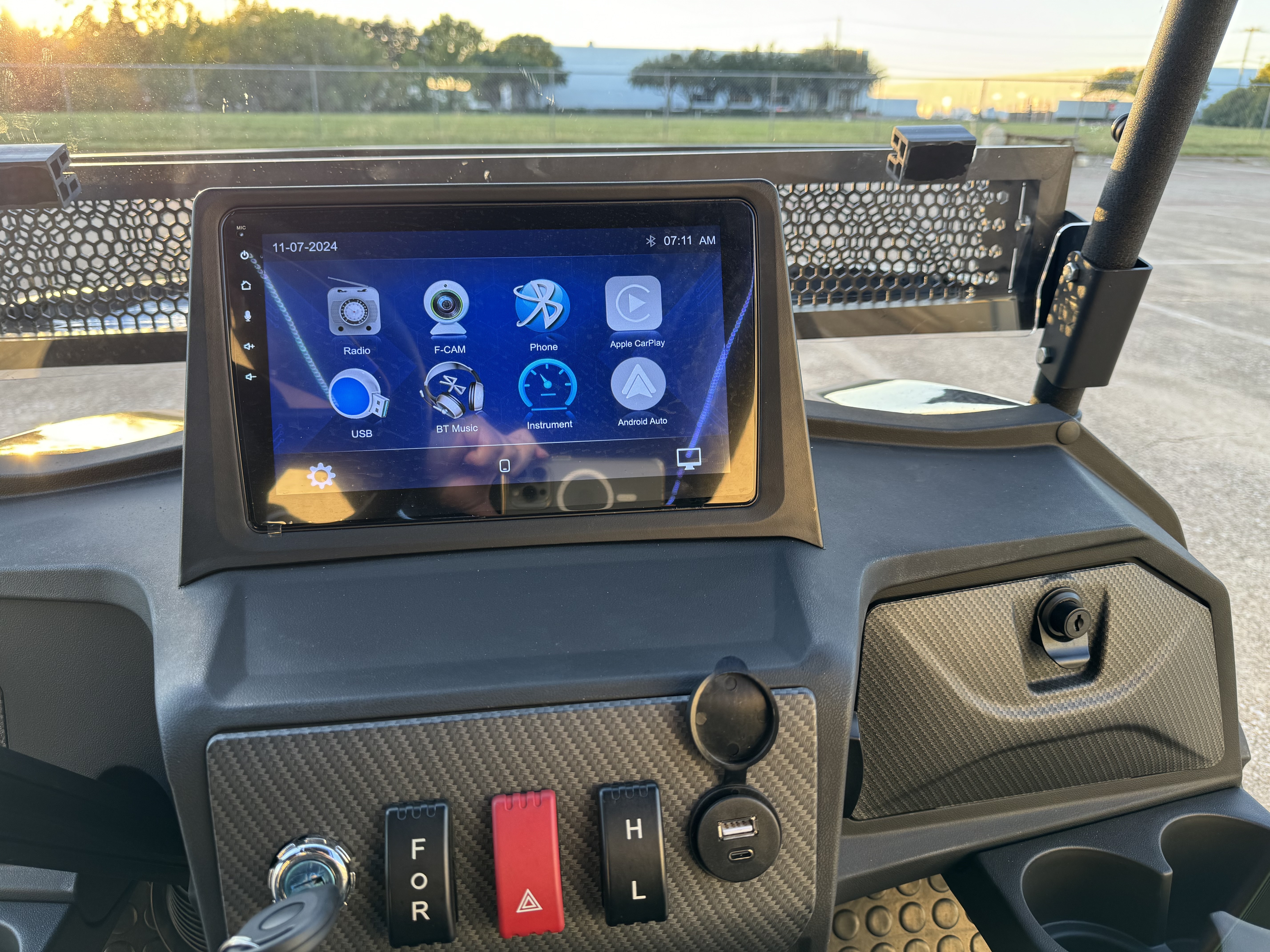

- 10.1" Touchscreen Display: Features Carplay, Bluetooth, reverse image, odometer, and battery capacity display
- Seating Capacity: Comfortable seating for 6 passengers with artificial leather cushions and backrests
- Safety-Enhanced Design: Four-wheel hydraulic disc brakes and electromagnetic braking system for superior control
- Ambient LED Lighting: Roof and underbody LED lights with remote control for night drives
- Reverse Camera & Sound System: Integrated reverse camera for easy parking and sound bar speaker for entertainment

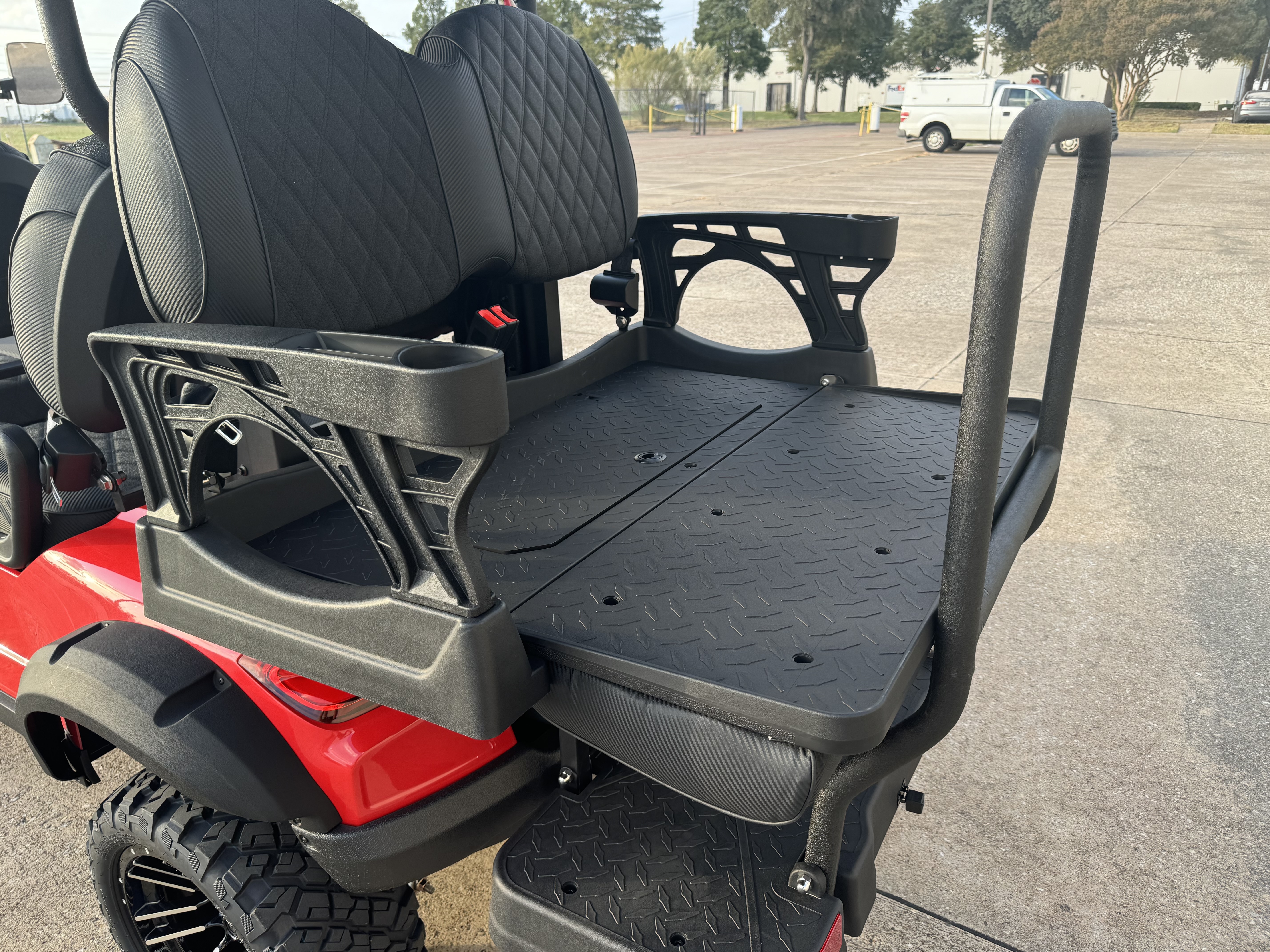

- Storage Solutions: Aluminum front cargo rack, back storage basket, and multiple cup holders
- Premium Build Quality: High-strength carbon steel frame with corrosion resistance and UV-protected paint
- Convenient Features: Foldable windshield, front trailer hook, side mirrors with turn signals, and USB ports (USB-A and USB-C)
- Rugged Tires & Wheels: 22x10-14 tires on aluminum rims for smooth and stable rides over diverse terrains
TECHNICAL SPECS
| General Specification | |||
| Length × Width ×Height | 144"X47.2"X72.8"(3650mm×1200mm×1850mm) | ||
| Wheelbase | 96.46"(2450mm) | ||
| Ground clearance | 13" (330mm) | ||
| Net weight | 1188 lbs | ||
| Loading capacity | 1200lbs; 6 people | ||
| Brake Type (front/rear) | Foot Pedal Four Wheel Hydraulic Disc Brake | ||
| Control Mode | Steering Wheel | ||
| Suspension front/rear | Double A arm Independent Suspension/Rear Towing Arm | ||
| Power | 5KW | ||
| Transmission ratio | 12 : 1 | ||
| Vehicle voltage | 48V | ||
| Battery capacity | 105AH | ||
| Maximum Speed | H: 20 m/h ; L: 12 m/h | ||
| Mileage at full charge | 48 Mile/ 80 km | ||
| Climb ability | 20% | ||
| Minimum turning radius | 196.8" | ||
| Power Off Switch | One on the battery, one on the lower right side of the rear seat | ||
| Frame | High Strength Carbon Steel Integral Frame, Corrosion Resistance | ||
| Steering Wheel | Carbon fiber coated steering wheel | ||
| Tires | 22X10-14 Front and rear | ||
| Rims | Aluminum | ||
| Body | Automotive color baking process with UV protection | ||
| Frame | High strength carbon steel integral frame, phosphating coating, high strength, corrosion prevention | ||
| Instrument | 10.1" LED touched screen with Carplay, Radio, Bluetooth, Reverse image, Odometer, Battery Capacity Display and etc. | ||
| Electric System | |||

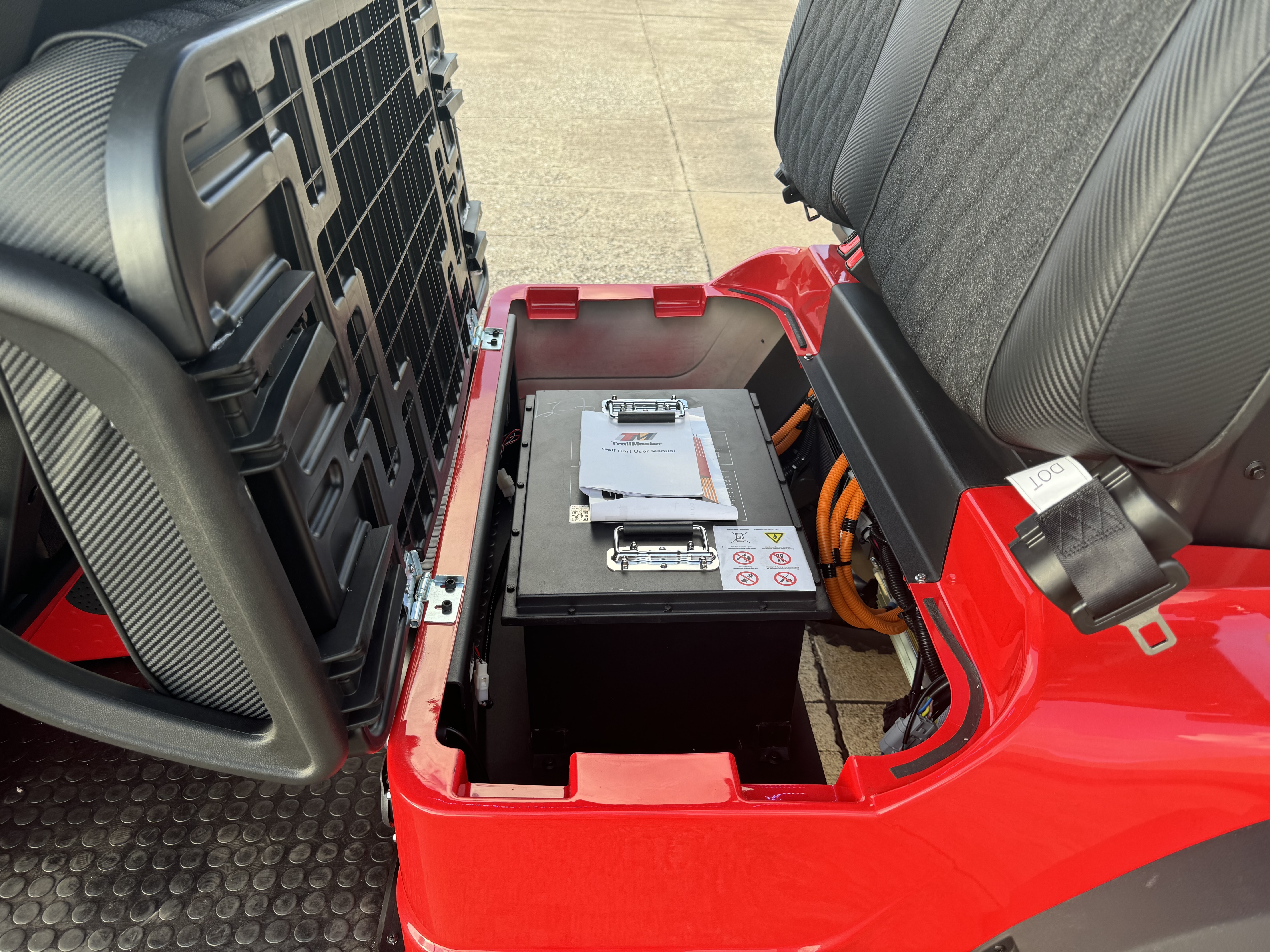

| Battery | 48v105AH Lithium Iron Phosphate battery | ||
| Motor | 6.3 KW Three-phase asynchronous AC motors | ||
| Electromagnetic braking | With Electromagnetic braking , Manual release mounted on the motor | ||
| Controller | Enpower-3818 | ||
| Charger | Lithium special car charger | ||
| Lighting system and horn | LED headlights, turn signal lights, taillights, horn | ||
| Reverse Alarm | Yes | ||
| Other Features | |||
| Foldable windshield | |||

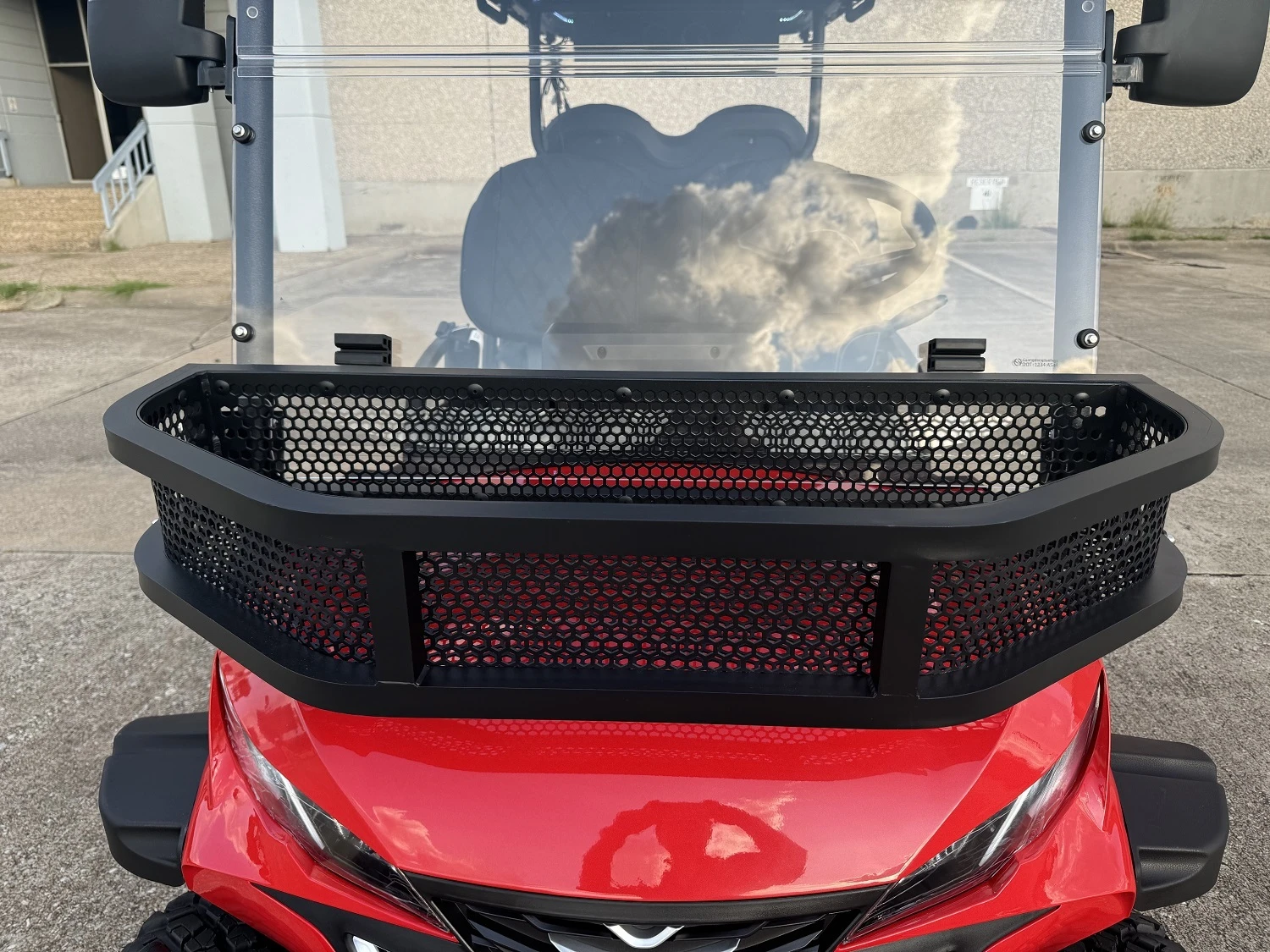

| Aluminum Front cargo rack | |||

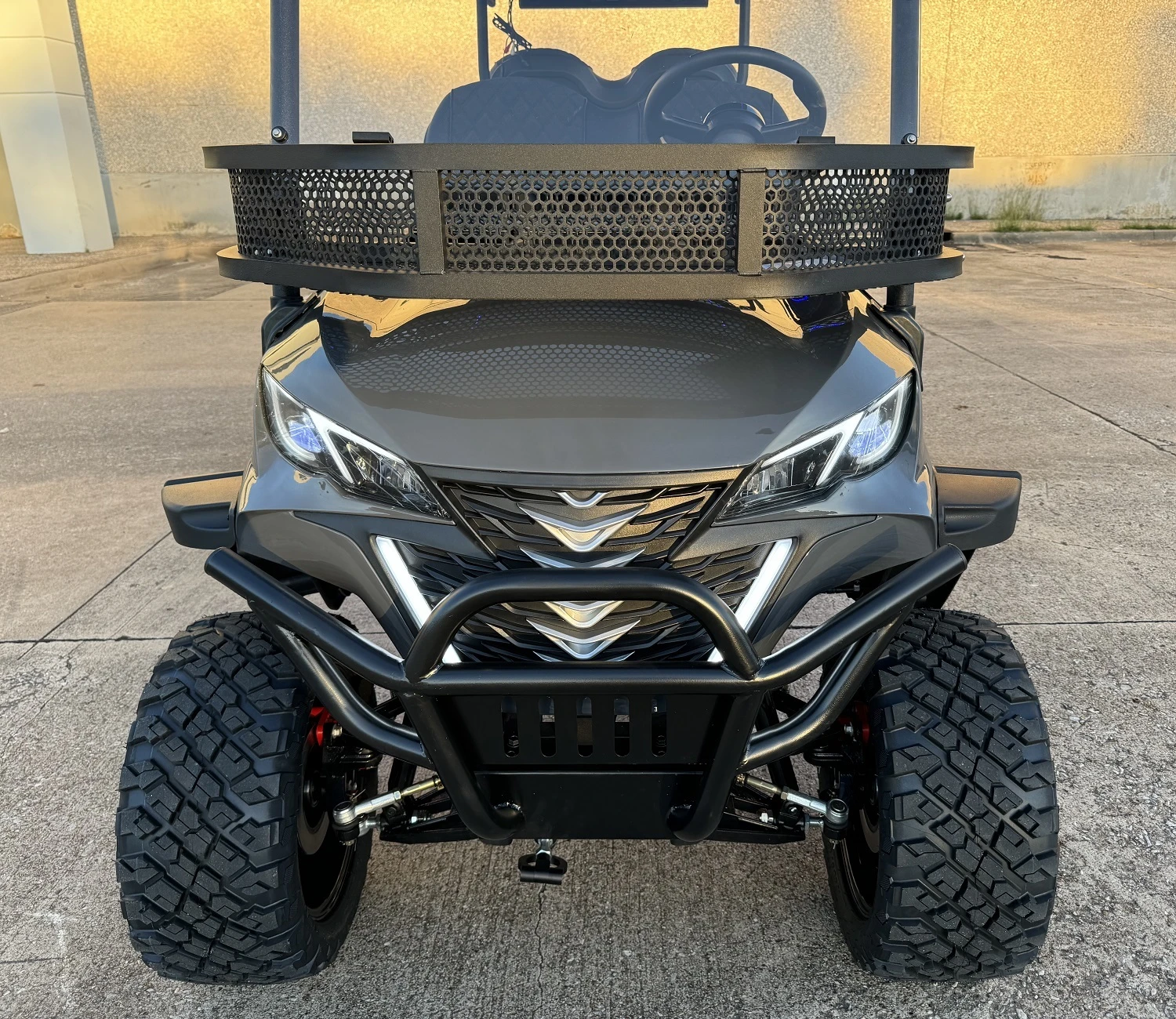

| Front bumper | |||
| Roof and underbody LED ambient lights with remote control | |||

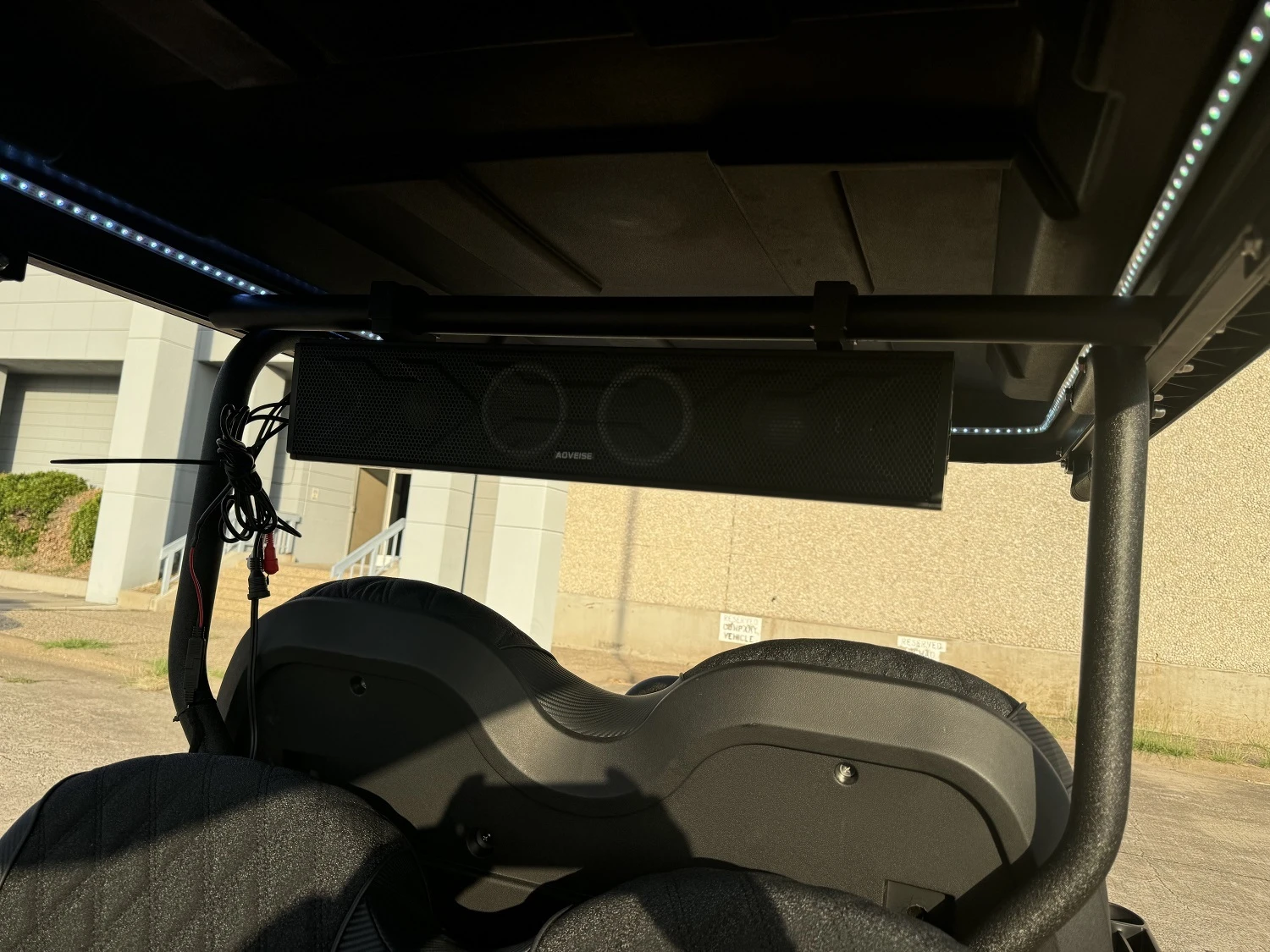

| Sound bar speaker | |||
| Side mirrors with turning signal | |||
| Reverse camera | |||

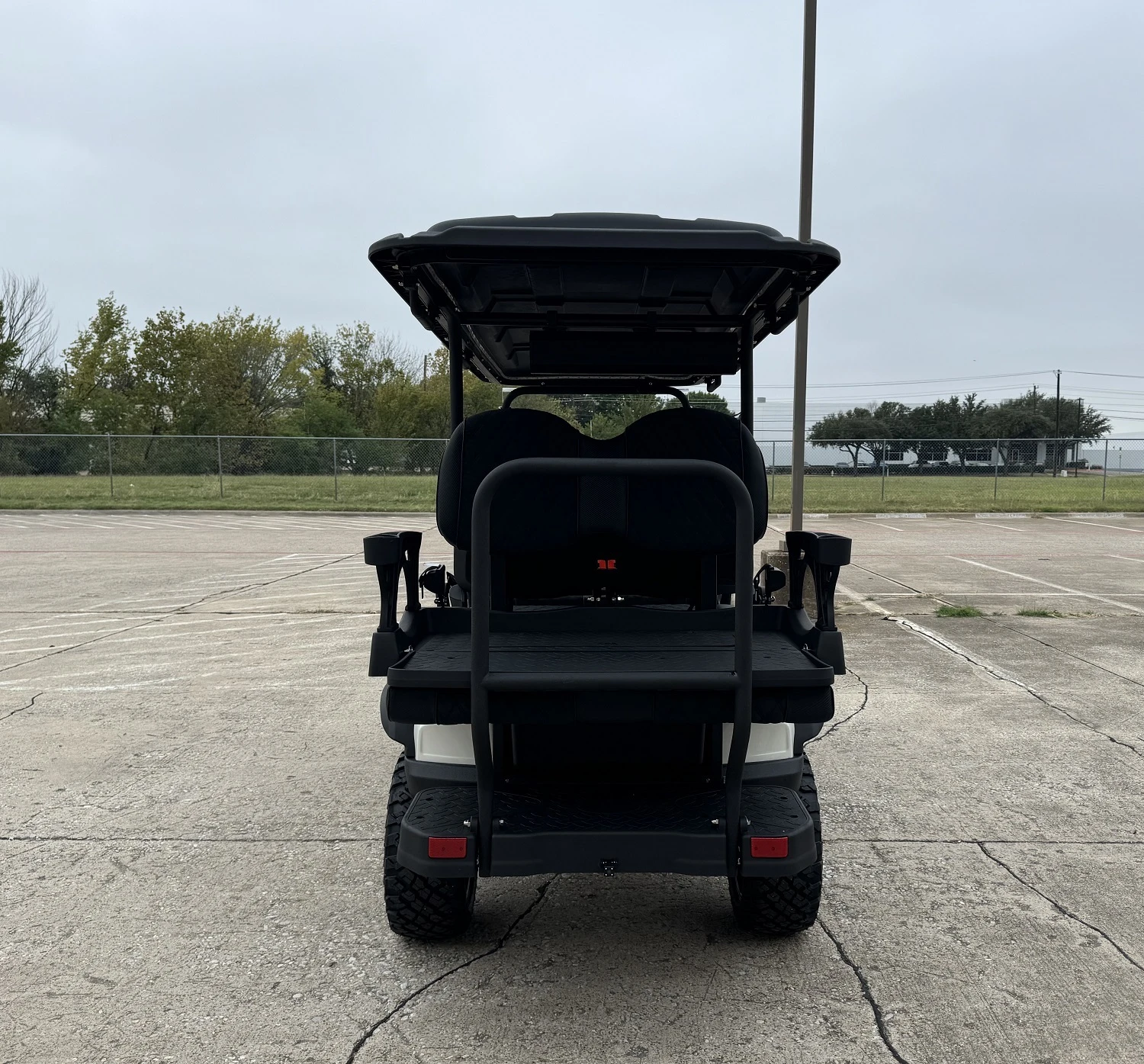

| Back storage basket | |||

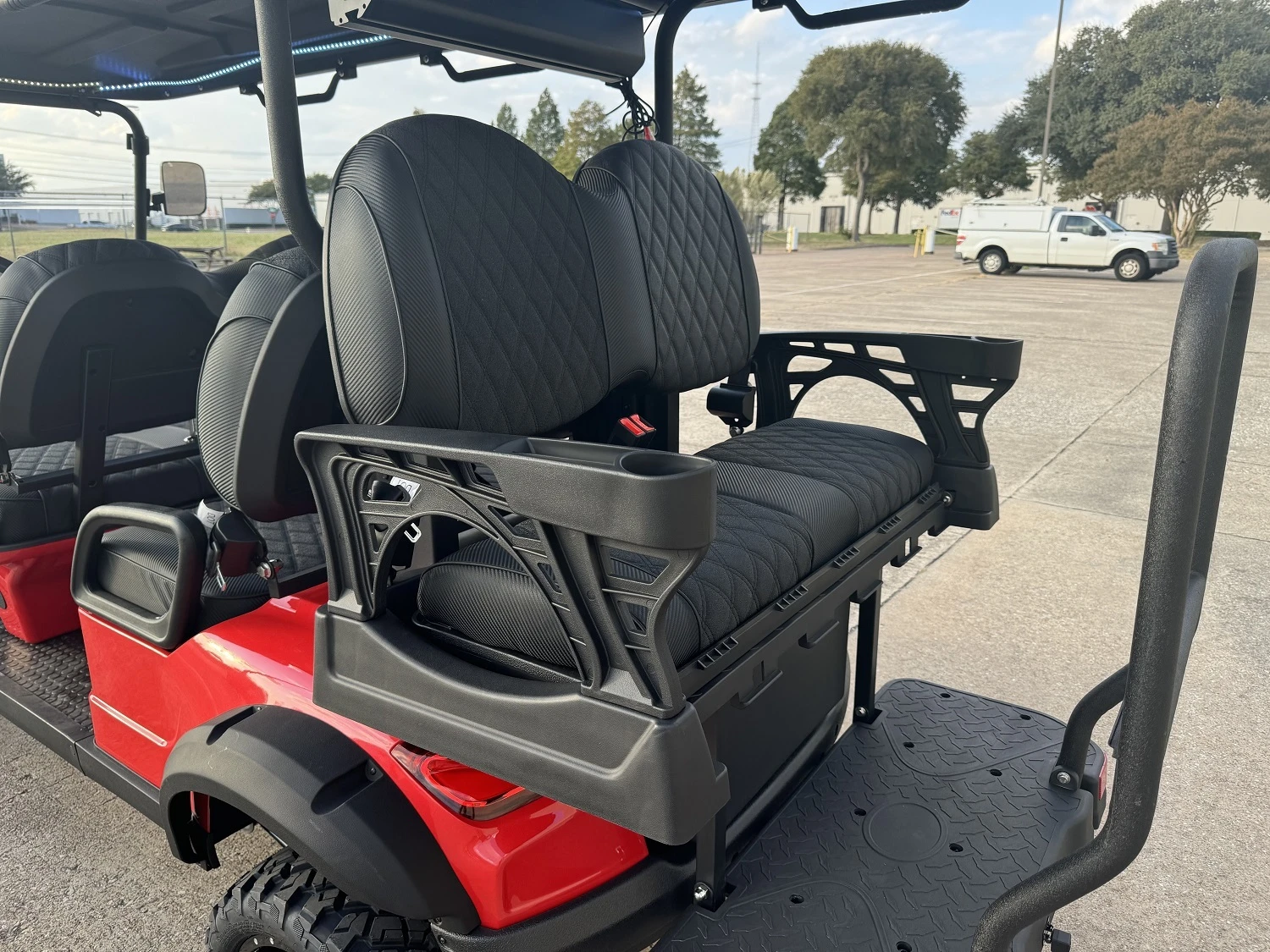

| Artificial leather seat cushion and backrest | |||
| USB-A and USB-C | |||
| Cup holder in both front and back | |||
| Front trailer hook | |||
| Colors | Red, Pearl Blue, Grey, White | ||
