TBM X4-SEATER GOLF CART WITH 5KW LITHIUM BATTERY

SKU:
TBM-X4-GOLF-CART
TBM-X4-GOLF-CART-7348
Condition:
New
Weight:
530.00 LBS
Shipping:
Calculated at Checkout
Delivery:
SINCE THESE ARE VERY BIG UNITS PLEASE ALLOW 3 TO 4 ADDITIONAL PROCESSING TIME.
Processing:
PLEASE ALLOW 3 TO 5 BUSINESS DAYS ADDITIONAL PROCESSING TIME.
Delivery:
We ship nationwide!
ON SALE
CoupenCodeImg

Local Pick-Up: For Local DFW customers Please buy it online and pick up @ our Warehouse located Click Here. Or simply stop by our warehouse and buy it in person here is our location Click Here

Special handling for larger units: Please take note handling time on this unit will be about 3 to 5 business days. Assembling time will be about 3 to 5 business days. Delivery time, depending on your state will be about 5 to 15 business days (it can be quicker than this but sometimes it can take some time due to we locating drivers. Thank you for your understanding.

Financing our Products:
Bread-Pay-Finance paytpmorrow-prod american-first-finance
If you have a good credit score, please use Bread Pay as your first finance option (Add the item to your shopping cart then choose Bread Pay as your payment option). If you are denied with Bread Pay you can apply with the following link to get your finance approved with Pay Tomorrow or American First Finance. If you are local to DFW please CLICK HERE to finance our product. For out-of-state customers (Also for Local customers looking to get street-legal items) who want to use Pay Tomorrow please CLICK HERE. Or get Financing Options – Instantly. | With American First Finance! If you are Local to DFW CLICK HERE to finance. For out-of-state customers (Also for Local customers looking to get street-legal items) CLICK HERE. Once you are approved with either Pay Tomorrow or American First Finance please give our Finance department a call @ 817-825-8517
Did you find a cheaper price ? Request a price match here.
$8,999.00
Questions about our products? Please call 817.649.7823
Secure Icon Secure Icon Secure Icon Secure Icon Secure Icon Secure Icon

TBM X4-SEATER GOLF CART WITH 5KW LITHIUM BATTERY

Introducing the TBM X4, a high-performance 4-seater golf cart designed to combine comfort, style, and functionality. Powered by a 5KW motor and a 48V 105AH lithium battery, this cart can travel up to 48 miles on a single charge, making it perfect for extended rides. The TBM X4 is equipped with advanced features, including a 10.1" touchscreen with Carplay, Bluetooth, and a reverse camera, as well as roof and underbody LED lights for nighttime visibility. Built with a high-strength carbon steel frame, four-wheel hydraulic disc brakes, and independent suspension, the TBM X4 is crafted for durability and a smooth ride. Whether for neighborhood cruising or outdoor adventures, the TBM X4 offers a luxurious, enjoyable experience.

Features

  • Powerful Lithium Battery & Motor: 48V 105AH lithium battery with 5KW motor, providing up to 48 miles of range

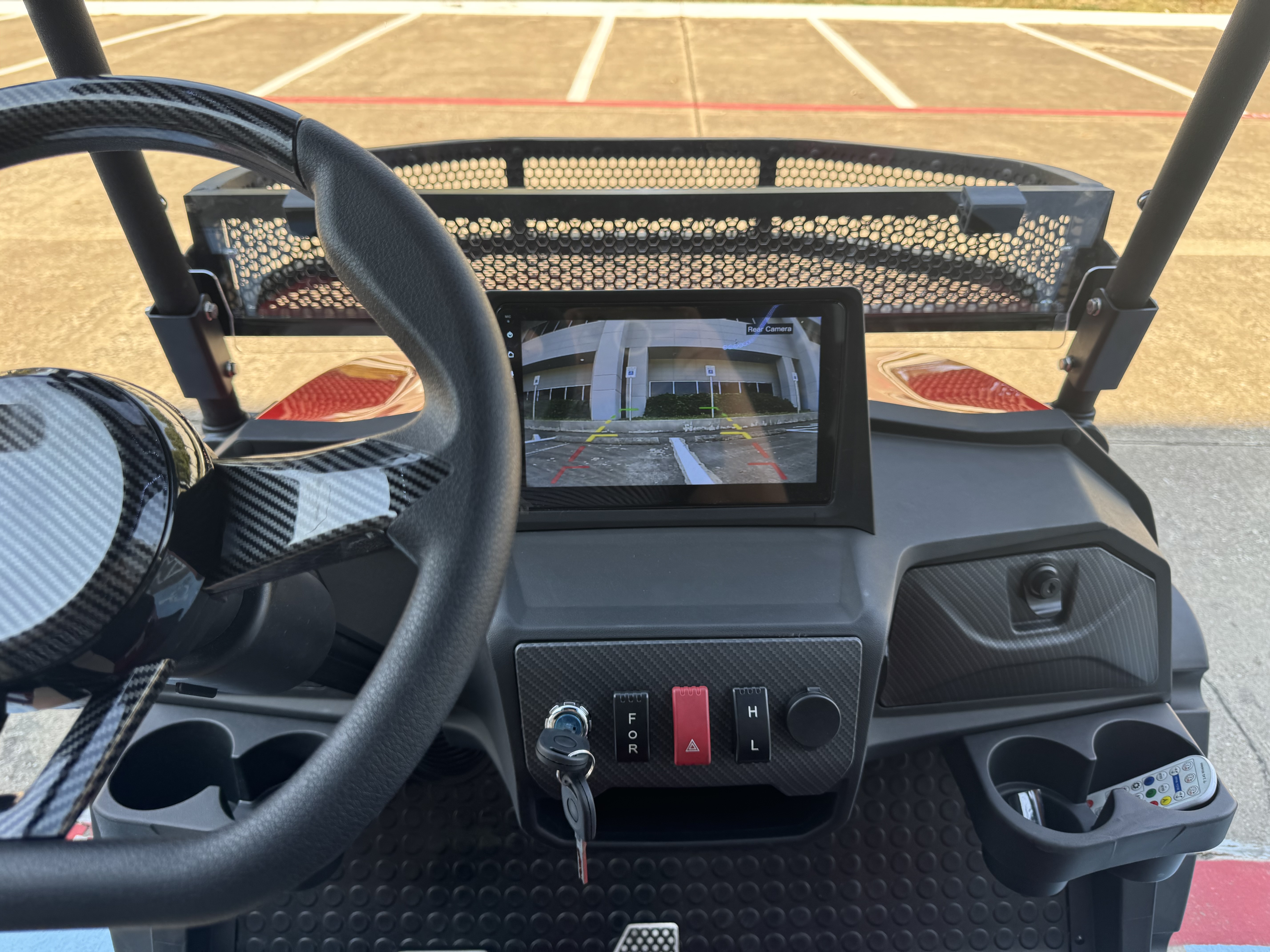

  • 10.1" Touchscreen Display: Carplay, Bluetooth, reverse image, odometer, and battery capacity display
  • 4-Passenger Capacity: Comfortable seating for 4 with a maximum load capacity of 770 lbs
  • Enhanced Safety Features: Four-wheel hydraulic disc brakes, LED headlights, taillights, and reverse alarm
  • Ambient LED Lighting: Roof and underbody lights with remote control for evening drives
  • Convenience Features: Foldable windshield, front cargo rack, sound bar speaker, back storage basket, and USB charging ports
  • Rugged Design: 22x10-14 aluminum wheels and all-terrain tires for stability on various surfaces
  • High-Quality Frame: High-strength carbon steel frame with corrosion-resistant coating
  • Additional Safety & Comfort: Side mirrors with turn signals, reverse camera, and comfortable cup holders in both front and back





TECHNICAL SPECS

General Specification
Length × Width ×Height                          114"X47.2"X72.8"(2900mm×1200mm×1850mm)
Wheelbase                         67"(1700mm)
Ground clearance                     13" (330mm)
Net weight          900 lbs
Loading capacity     770lbs/350kg; 4 people
Brake Type (front/rear) Foot Pedal Four Wheel Hydraulic Disc Brake
Control Mode Steering Wheel
Suspension front/rear Double A arm Independent Suspension/Rear Towing Arm
Power                               5KW
Transmission ratio                              12 : 1
Vehicle voltage                         48V
Battery capacity                       105AH
Maximum Speed                            H: 20 m/h ;  L: 12 m/h
Mileage at full charge                           48 Mile/ 80 km
Climb ability                               20%
Minimum truning radius                            16 feet
Power Off Switch One on the battery, one on the lower right side of the rear seat
Frame High Strength Carbon Steel Integral Frame, Corrosion Resistance
Steering Wheel Carbon fiber coated steering wheel
Tires  22X10-14 Front and rear
Rims Aluminum
Body Automotive color baking process with UV protection
Frame High strength carbon steel integral frame, phosphating coating, high strength, corrosion prevention
Instrument 10.1" LED touched screen with Carplay, Radio, Bluetooth, Reverse image, Odometer, Battery Capacity Display and etc.
Electric System
Battery                      48v105AH Lithium Iron Phosphate  battery
Motor 6.3 KW Three-phase asynchronous AC motors
Electromagnetic braking With Electromagnetic braking , Manual release mounted on the motor
Controller Enpower-3818
Charger Lithium special car charger
Lighting system and horn LED headlights, turn signal lights, taillights, horn
Reverse Alarm Yes
Other Features
Foldable windshield
Aluminum Front cargo rack
Front bumper
Roof and underbody led ambiance lights with remote control

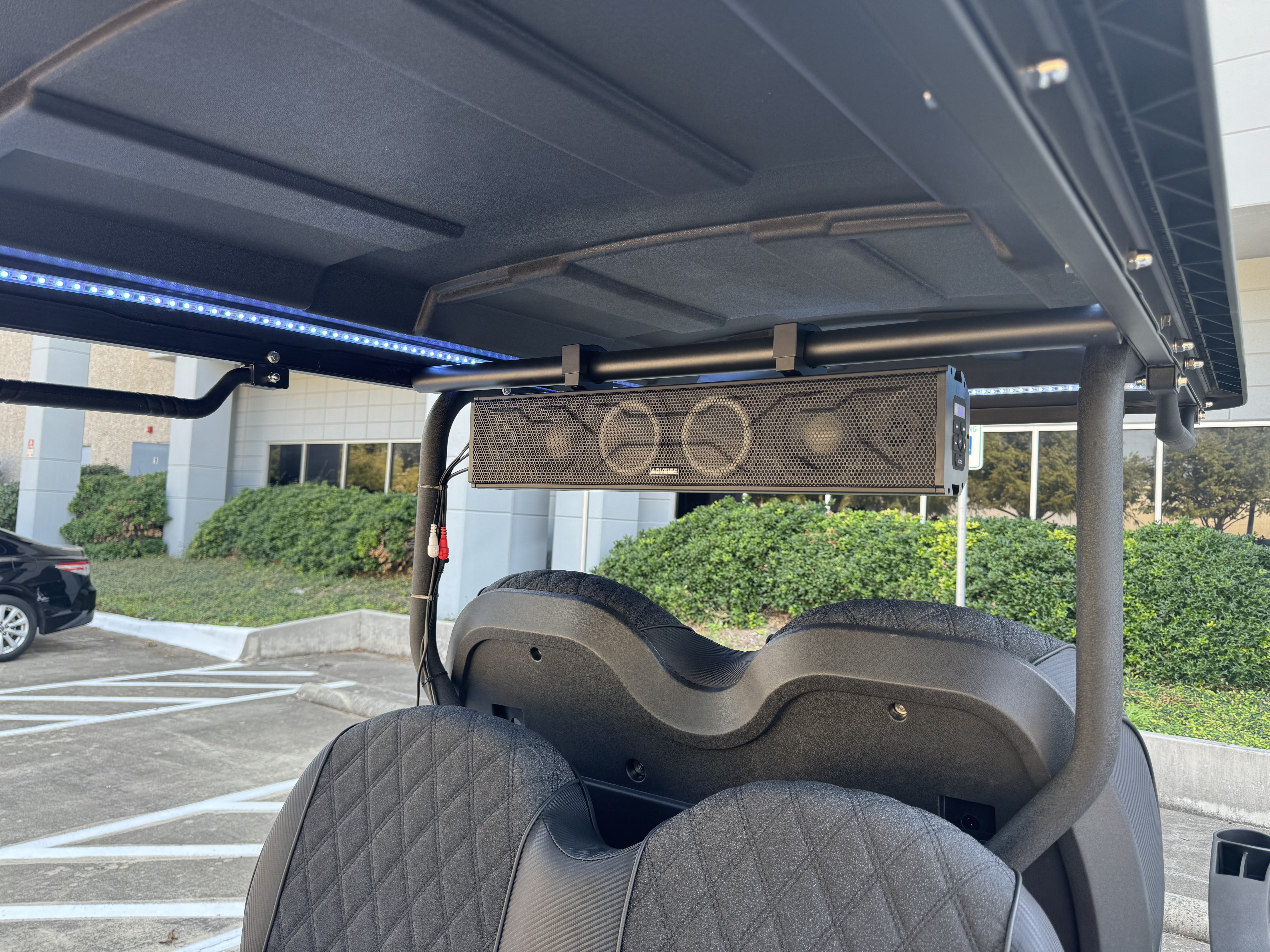

Sound bar speaker
Side mirrors with turning signal
Reverse camera

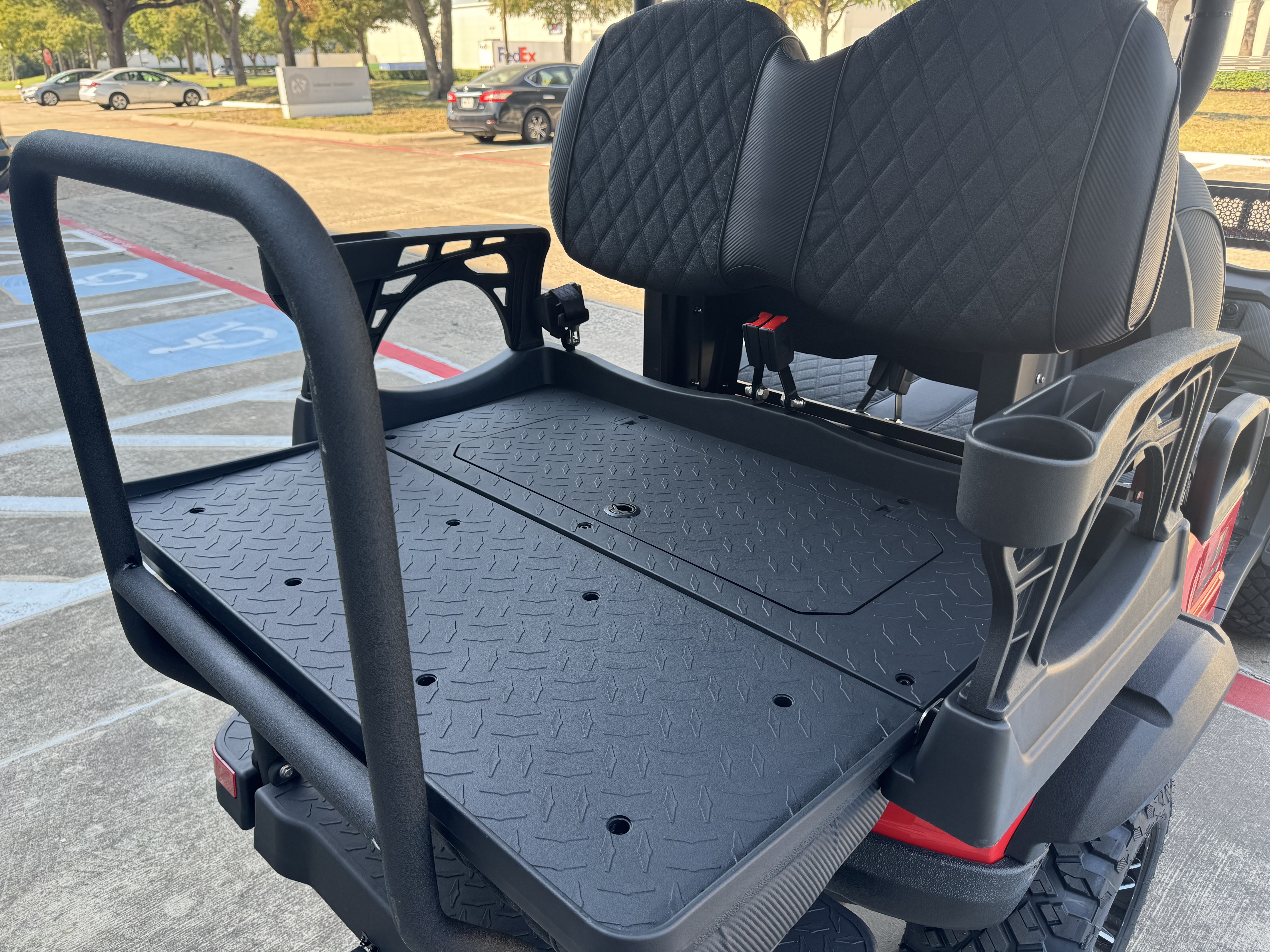

Back storage basket
Artificial leather seat cushion and backrest
USB-A and USB-C output
Cup holder in both front and back
Front trailer hook
Colors Red, Pearl Blue, Grey, White, Orange, Chameleon
