TECHNICAL SPECS

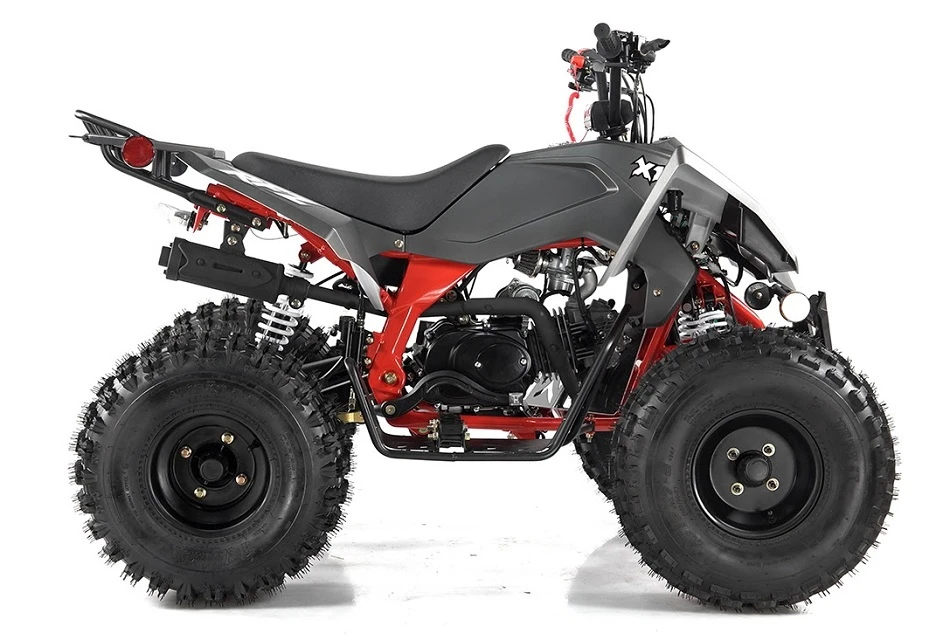

Model name : AGA-12A |
Vehicle Class : Y12+ class |
Overall dimensions (L×W×H) : (mm) 1495×970×1000 / (Inches) 58×38×39 |
Wheel base : 965mm |
front wheel distance : 795mm |
rear wheel distance : 680mm |
ground clearance : 125mm |
Seat height : 760mm |
Curb weight : 123kg / 271lbs |
rated load mass : 100kg / 220lbs |
Max speed : 55km/h |
minimum turning radius : 2500mm |
maximum gradability : 10° |
front brake type : front hydraulic brake |
rear brake type : rear hydraulic brake |
brake operation : Front hydraulic brake by hand , rear hydraulic brake by foot pedal |
front rim : steel |
rear rim : steel |
front tire size : 19×7-8 |
rear tire size : 18×9.5-8 |
front tire air pressure : 10P.S.I. |
rear tire air pressure : 10P.S.I. |
transmission : Chain |
packing size : 1310mm×760mm×660mm |
Net weight : 121kg |
Gross weight : 135.5kg |
Transmission type : Semi-automatic 1+R |
Engine type : 4 stroke,Single cylinder , air cooling |
displacement : 119.7cc |
Bore×Stroke : 52.4mmX55.5mm |
Max power : 5.5kW/7500rpm |
Max torque : 8.5N.m/5000rpm |
ignition : CDI |
start : electric start |
fuel grade : RQ-93 |
Lubrication : Pressure and splash lubrication |
Engine oil grade : SAE15W/40 |
