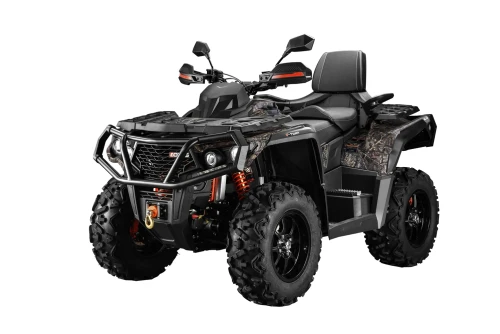

NEW AODES PathCross 1000 L – 976cc V-Twin 4x4 Utility ATV
The AODES PathCross 1000 L is a powerful full-size 4x4 utility ATV designed for demanding off-road work, recreation, and adventure riding. Powered by a strong 976cc V-twin 4-stroke liquid-cooled engine, it delivers approximately 85–86 horsepower and high torque output for confident performance on mud, hills, trails, and heavy-duty terrain.
Built with a rugged chassis and advanced drivetrain, the PathCross 1000 L features a selectable 2WD/4WD system with differential lock, allowing riders to adapt traction based on terrain conditions. The automatic CVT transmission ensures smooth acceleration and easy operation without manual shifting.
For off-road control and comfort, it uses an independent double A-arm suspension system with long travel shocks, providing excellent shock absorption on rough terrain. Combined with a high ground clearance of around 10 inches, it is capable of handling deep ruts, rocks, and uneven trails with stability.
- Engine & Drivetrain
- Engine Type: 976cc, V-Twin Cylinder, 4-Stroke, Liquid-Cooled, DOHC
- Fuel System: Delphi Electronic Fuel Injection (EFI)
- Compression Ratio: 10.5:1
- Maximum Power: 85 HP @ 6500 RPM
- Maximum Torque: 74.5 ft-lb (101 N·m) @ 5500 RPM
- Transmission: CVT, Selectable L/H/N/R/P
- Drive System: Selectable 2WD / 4WD / 4WD Lock
- Final Drive: Shaft Drive
- Front Differential: Locking Differential
- Power Steering: 3-Mode Speed Adjustable Electric Power Steering (EPS)
- Starter: Electric
- Brake System
- Front Brake: Dual Vented Disc Brake with Hydraulic 2-Piston Calipers
- Rear Brake: Dual Vented Disc Brake with Hydraulic 2-Piston Calipers
- Parking Brake: Handle Brake
- Wheels & Tires
- Front Tire: 26 × 9-R14
- Rear Tire: 26 × 11-R14
- Wheels: 14-inch Aluminum Alloy Wheels
- Fuel & Capacity
- Fuel Capacity: 4.8 Gallons (18.2 Liters)
- Front Rack Capacity: 75 lbs (34 kg)
- Rear Rack Capacity: 150 lbs (68 kg)
- Towing Capacity: 1,323 lbs (600 kg)
- Seating Capacity: 2 Persons
- Suspension
- Front Suspension: Independent Dual A-Arm
- Rear Suspension: Independent Dual A-Arm
- Shocks: Adjustable Coil-Over Shocks
- Size & Weight
- Wheelbase: 59 inches (1499 mm)
- Ground Clearance: 10.6 inches (270 mm)
- Overall Dimensions (L × W × H): 95.7" × 48.8" × 55.1" (2430 × 1240 × 1400 mm)
- Curb Weight: 924 lbs (419 kg)
- Gross Vehicle Weight: 1078 lbs (489 kg)
- Features
- Winch: 3500 lbs Front Winch
- Lighting: LED Headlight and LED Tail Lights
- Display: Multifunction Digital Display
- Hitch: Trailer Hitch with Trailer Ball
- Protection: Front & Rear Bumpers, Side Fender, Handlebar Protector
