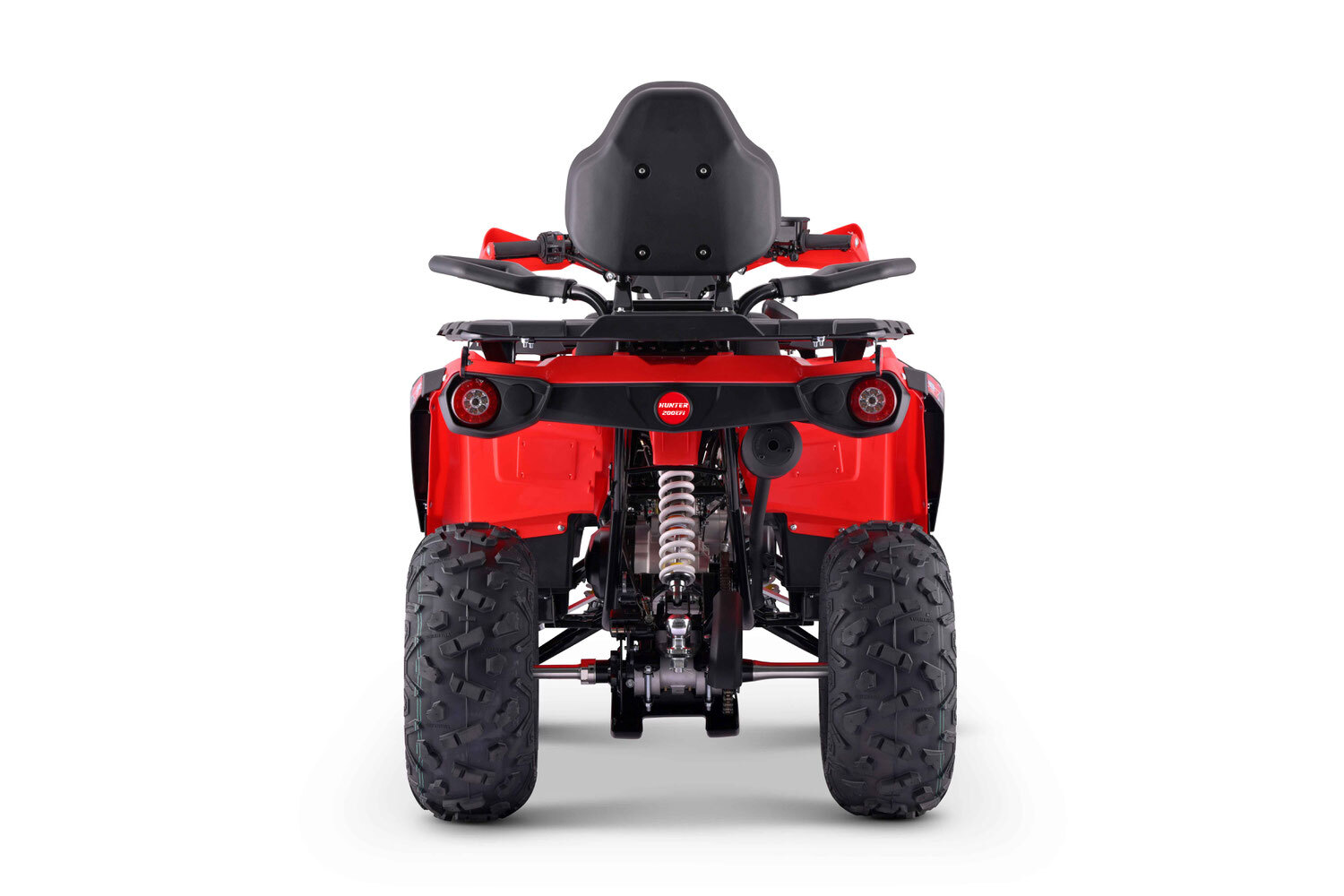

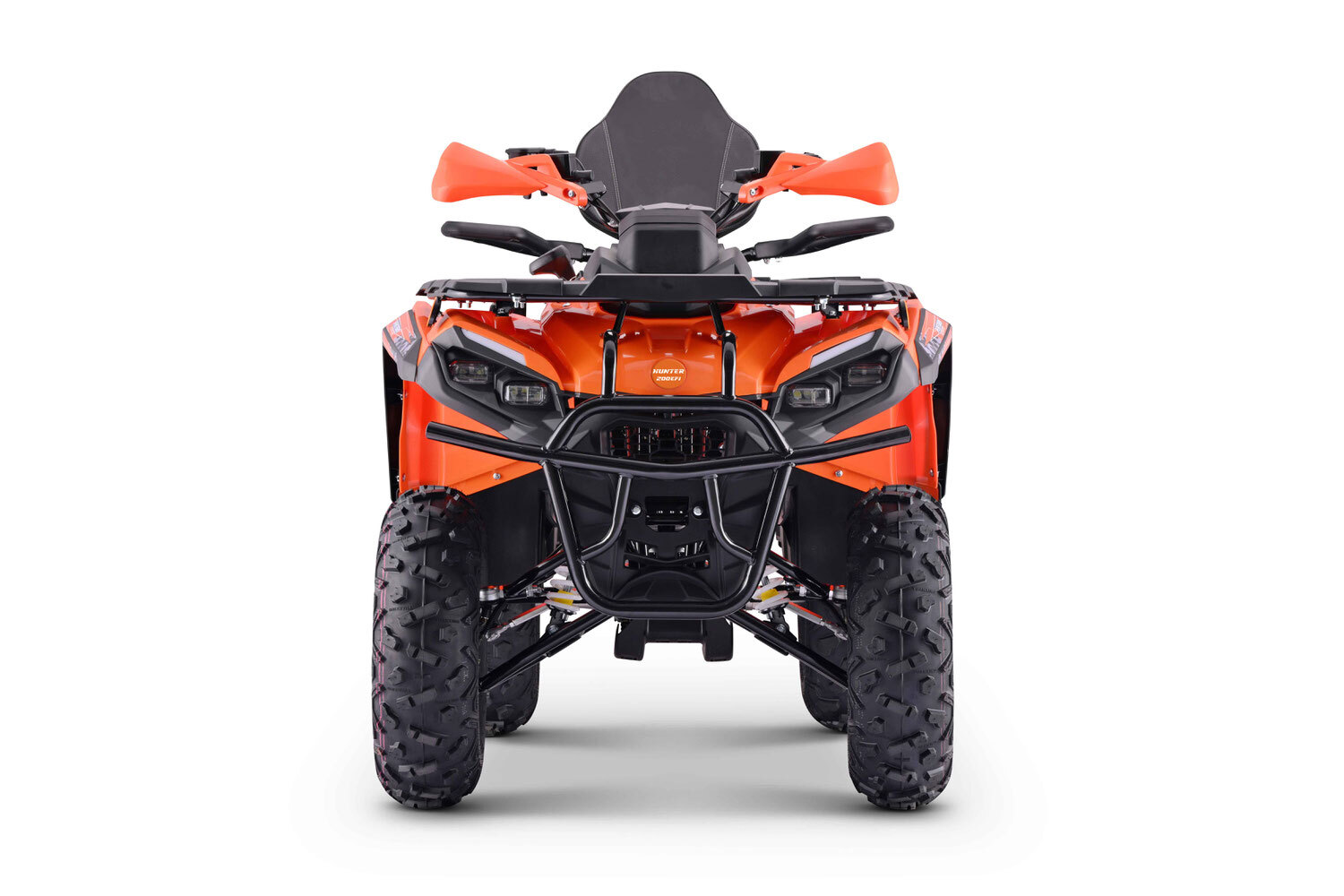

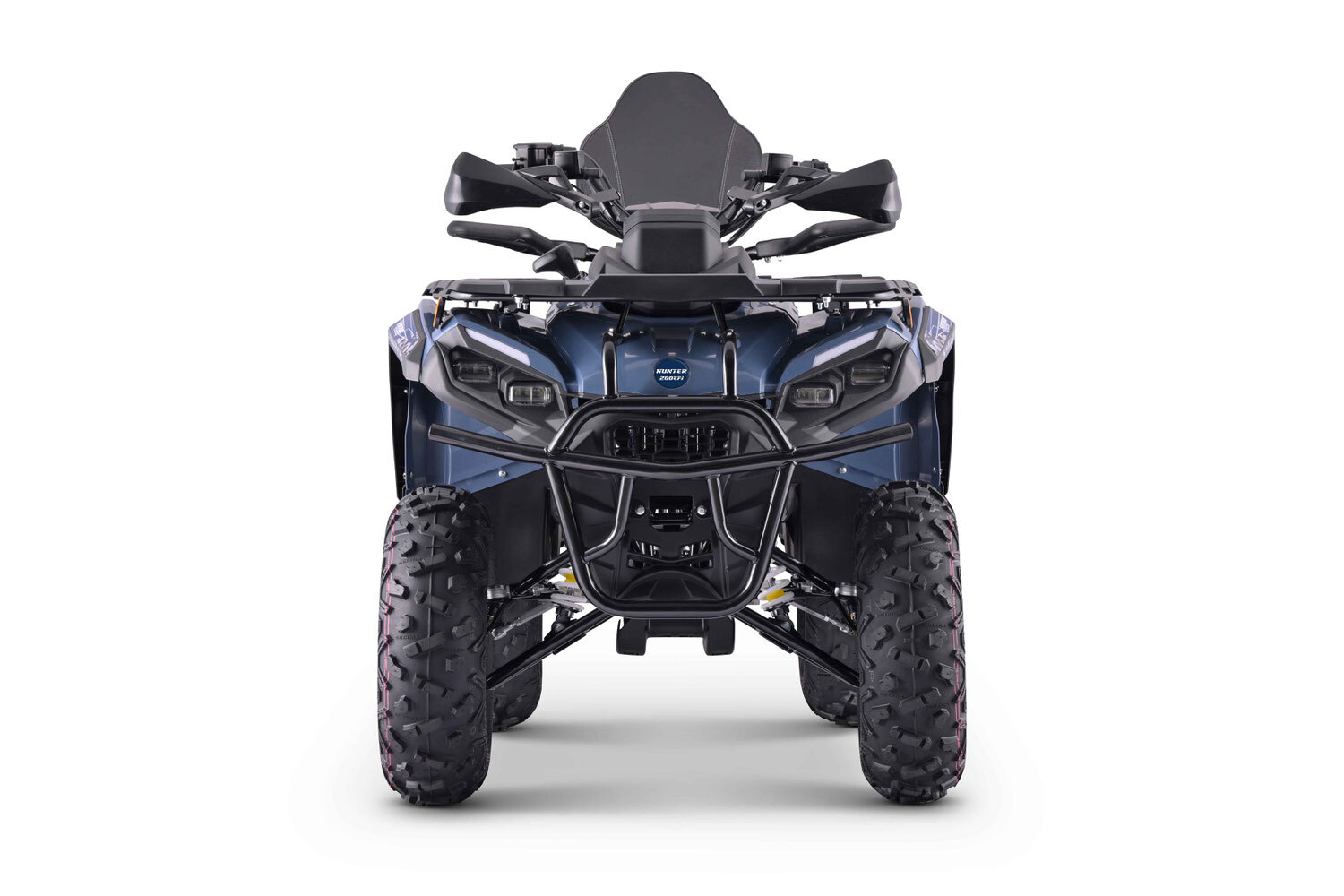

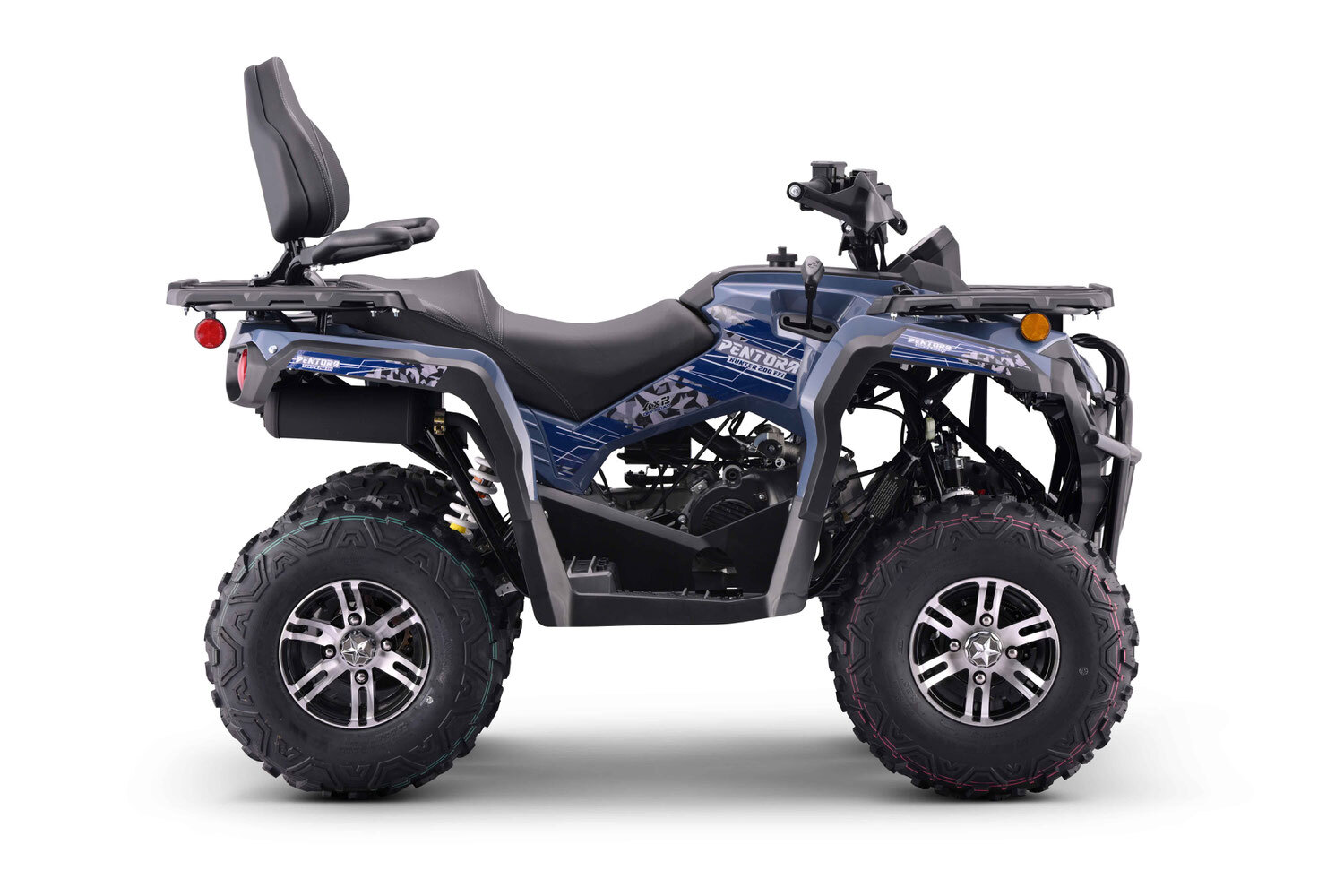

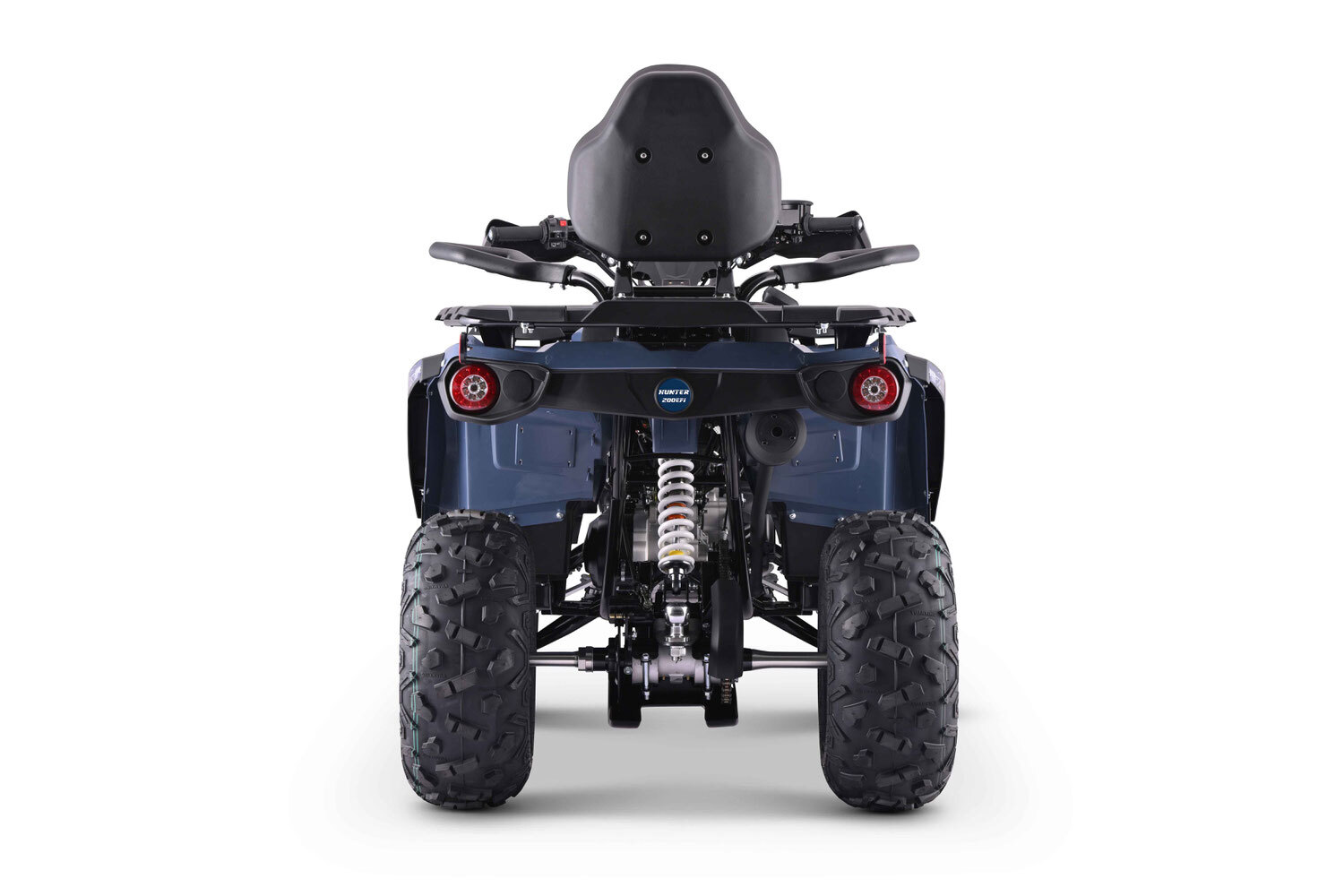

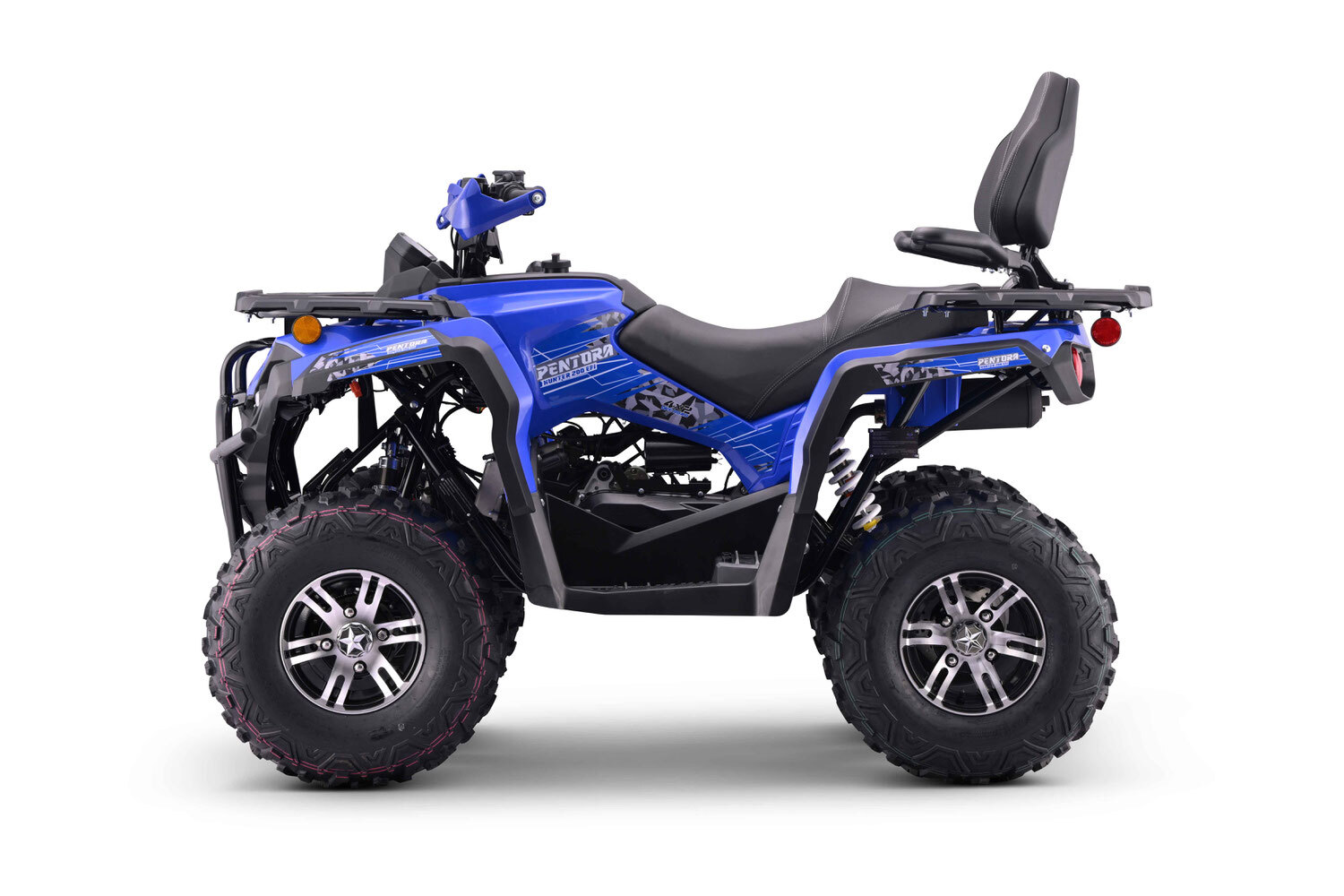

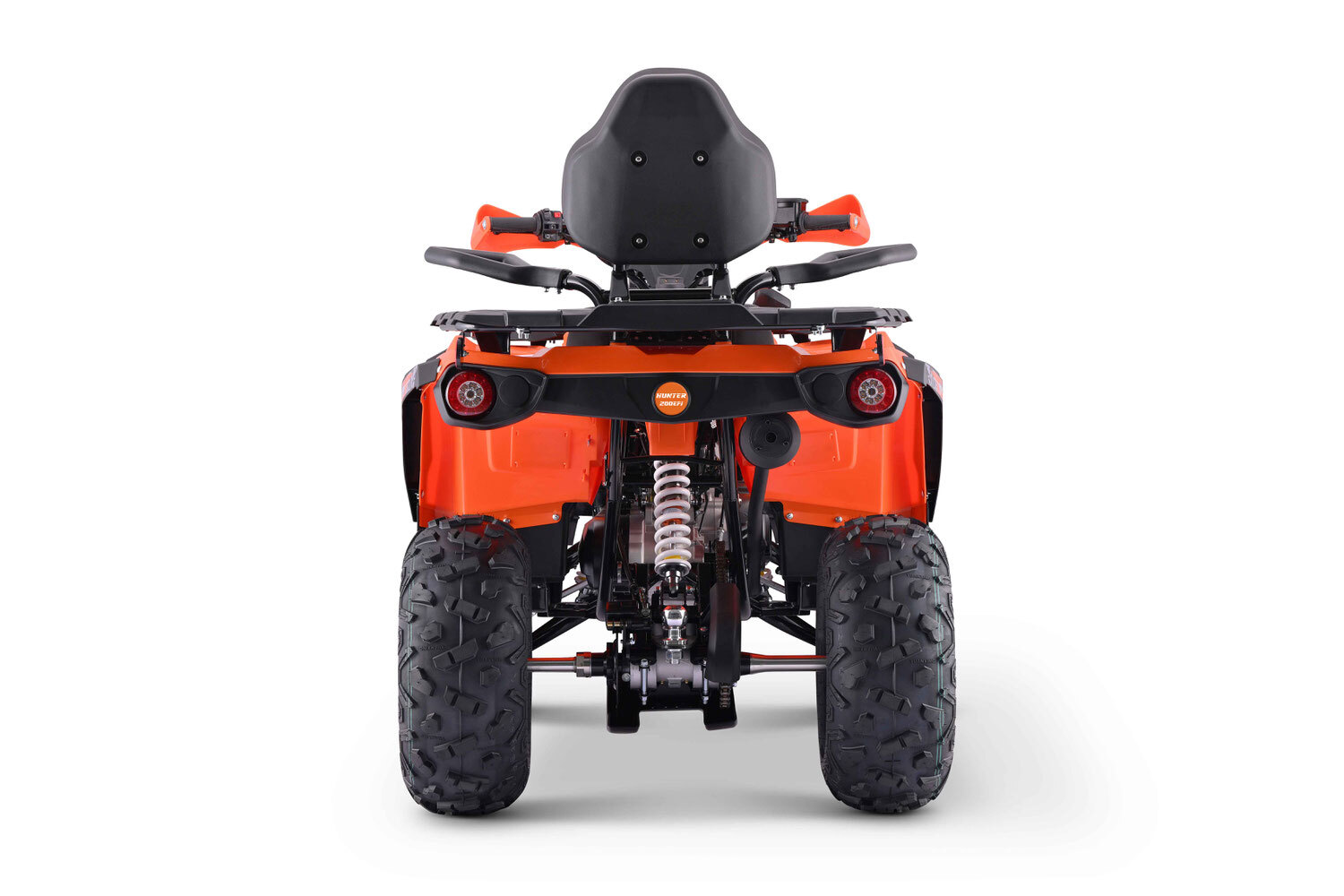

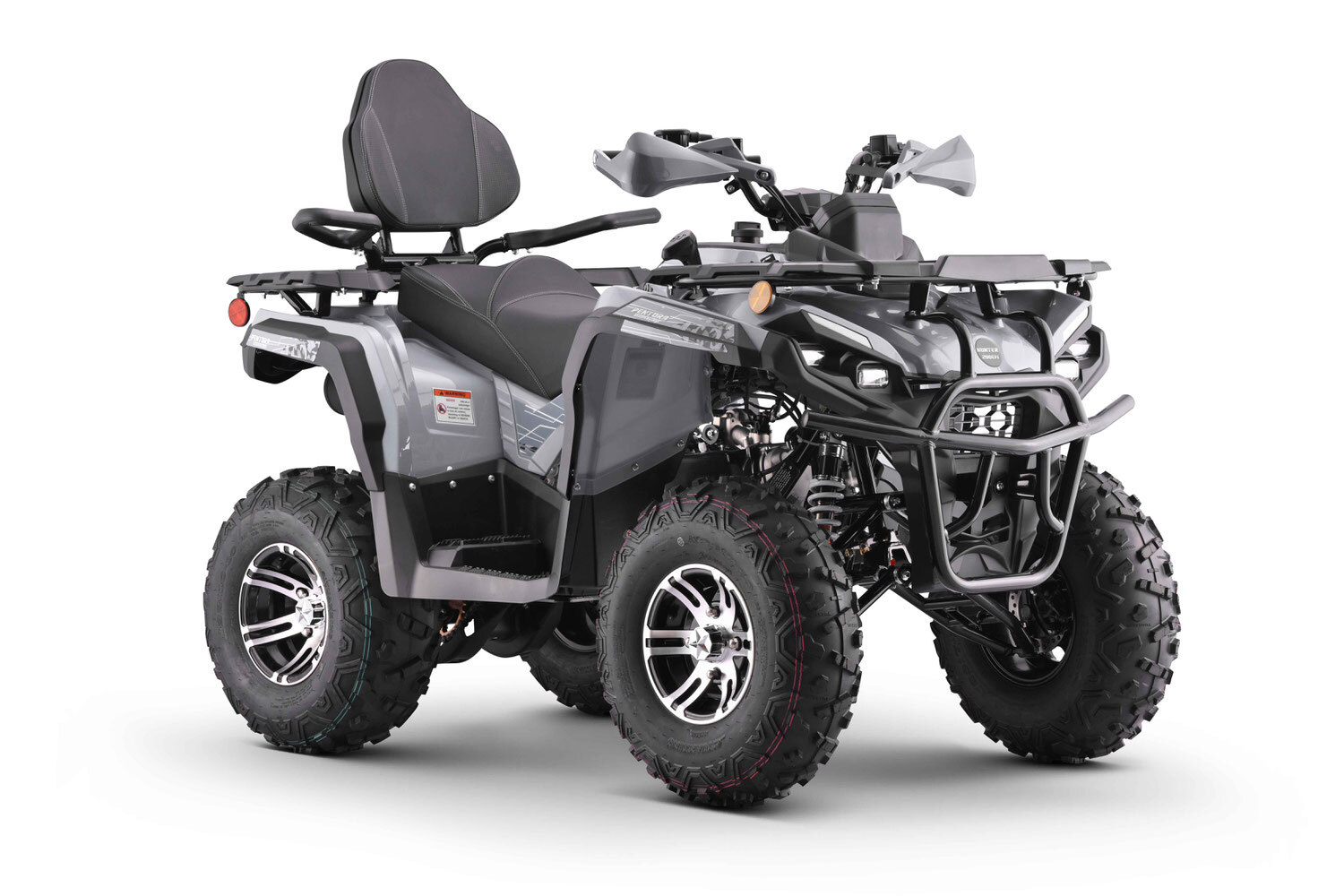

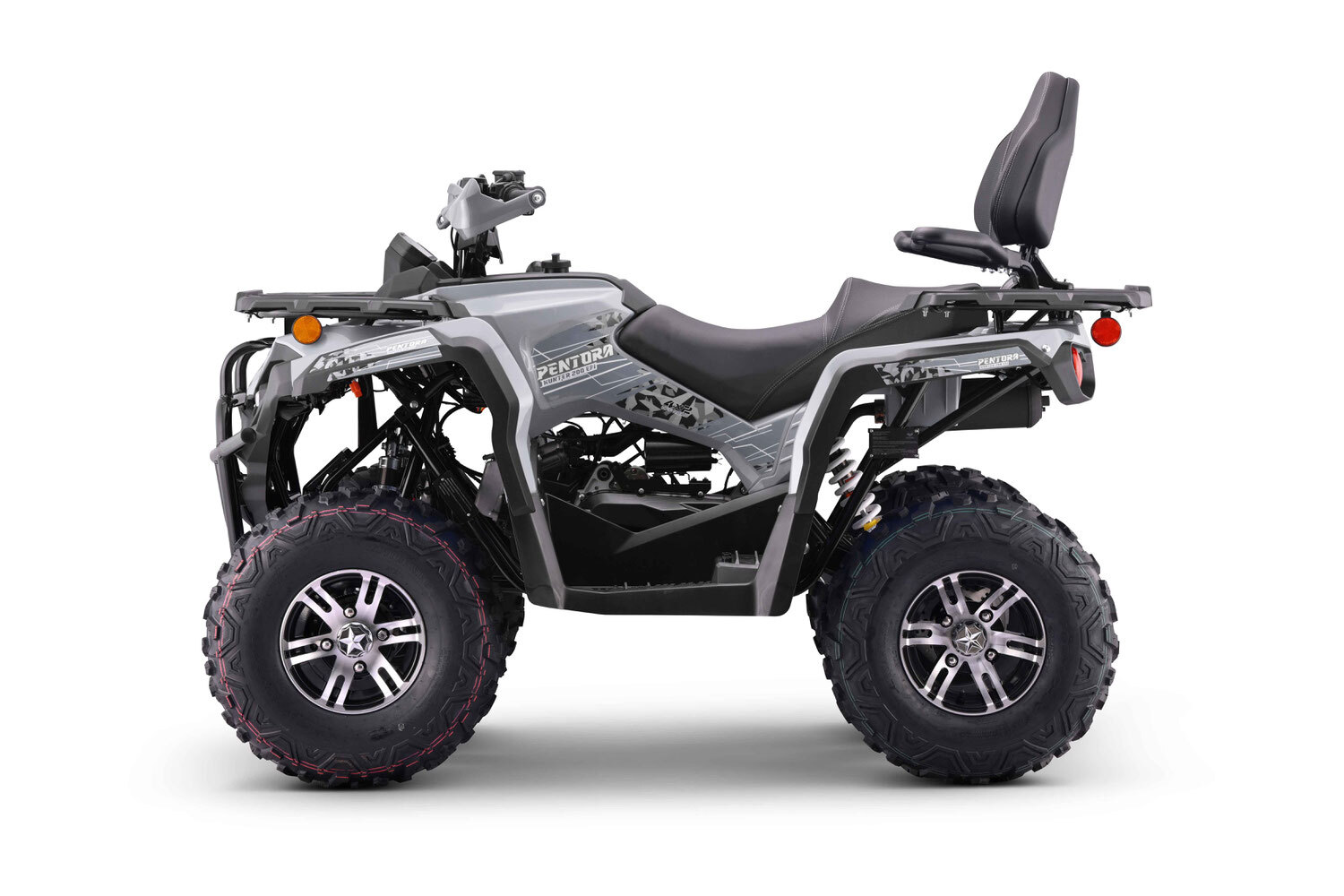

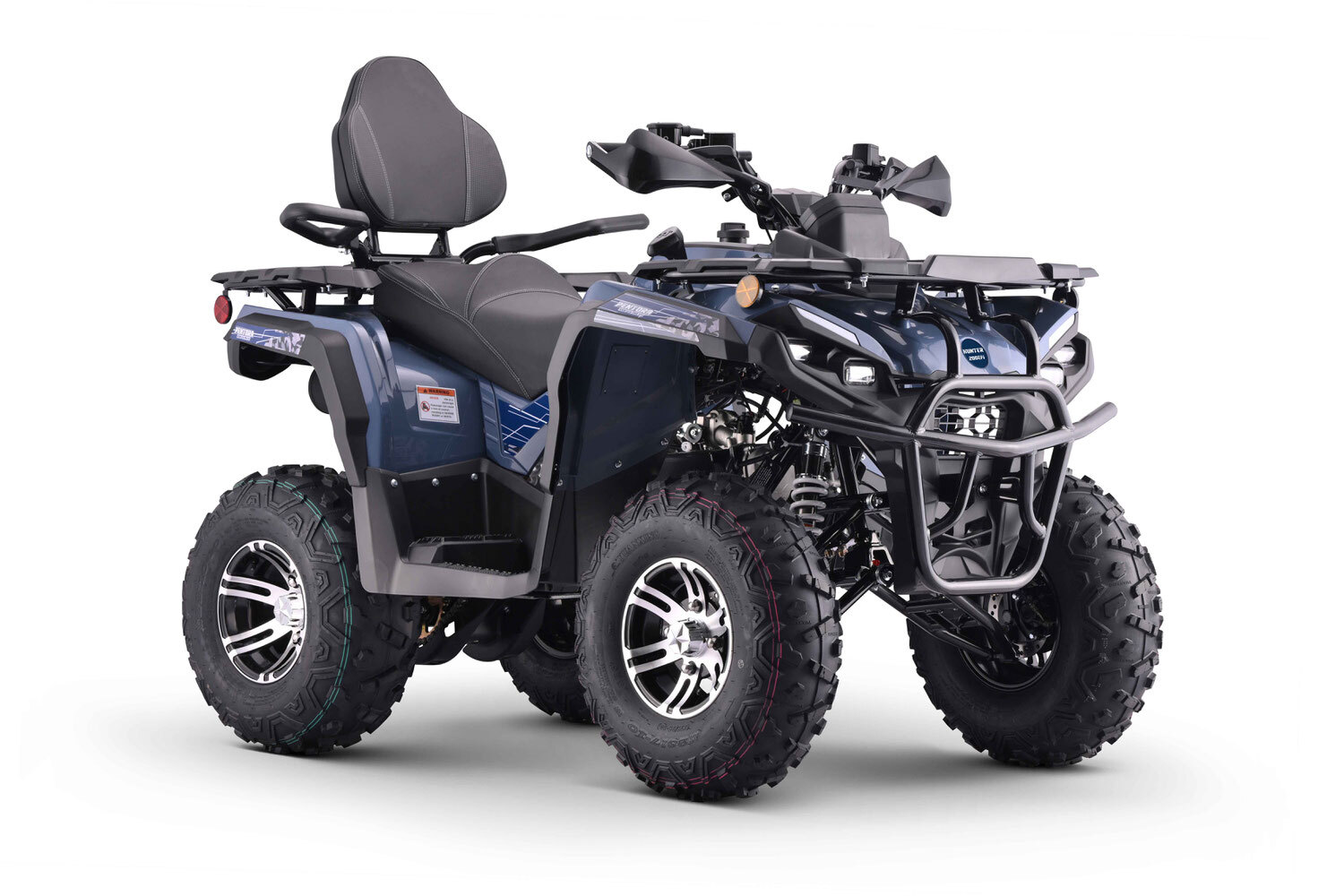

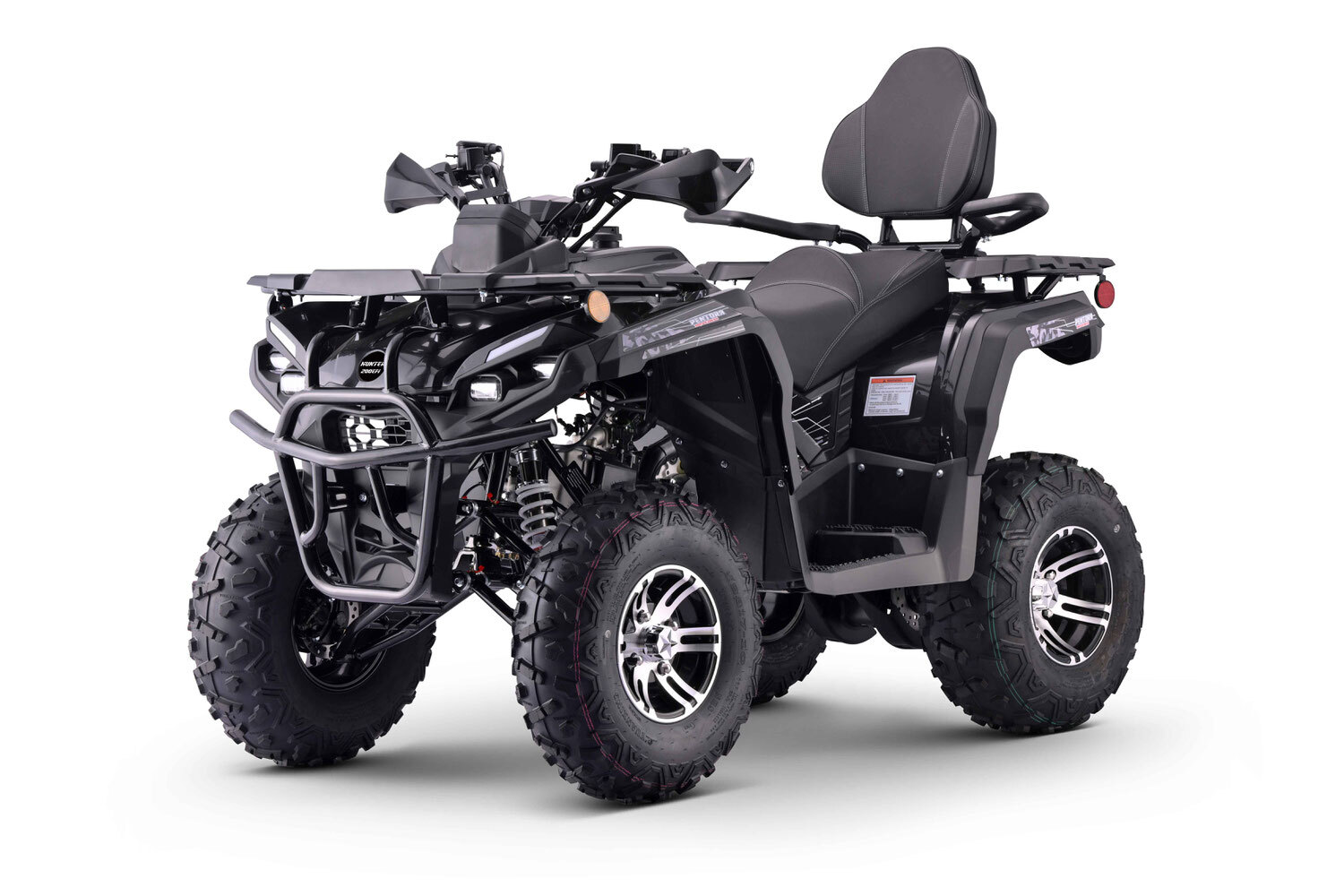

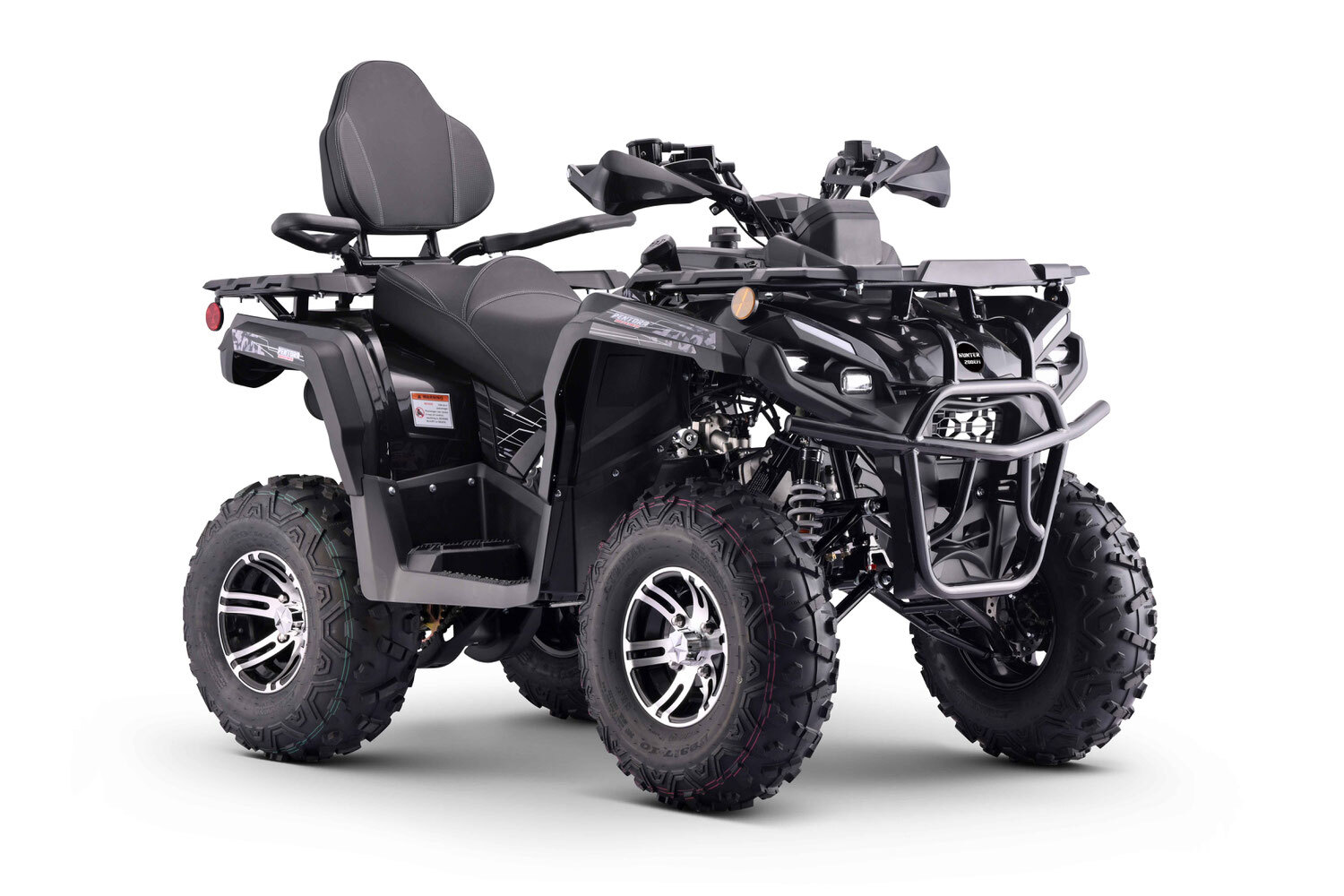

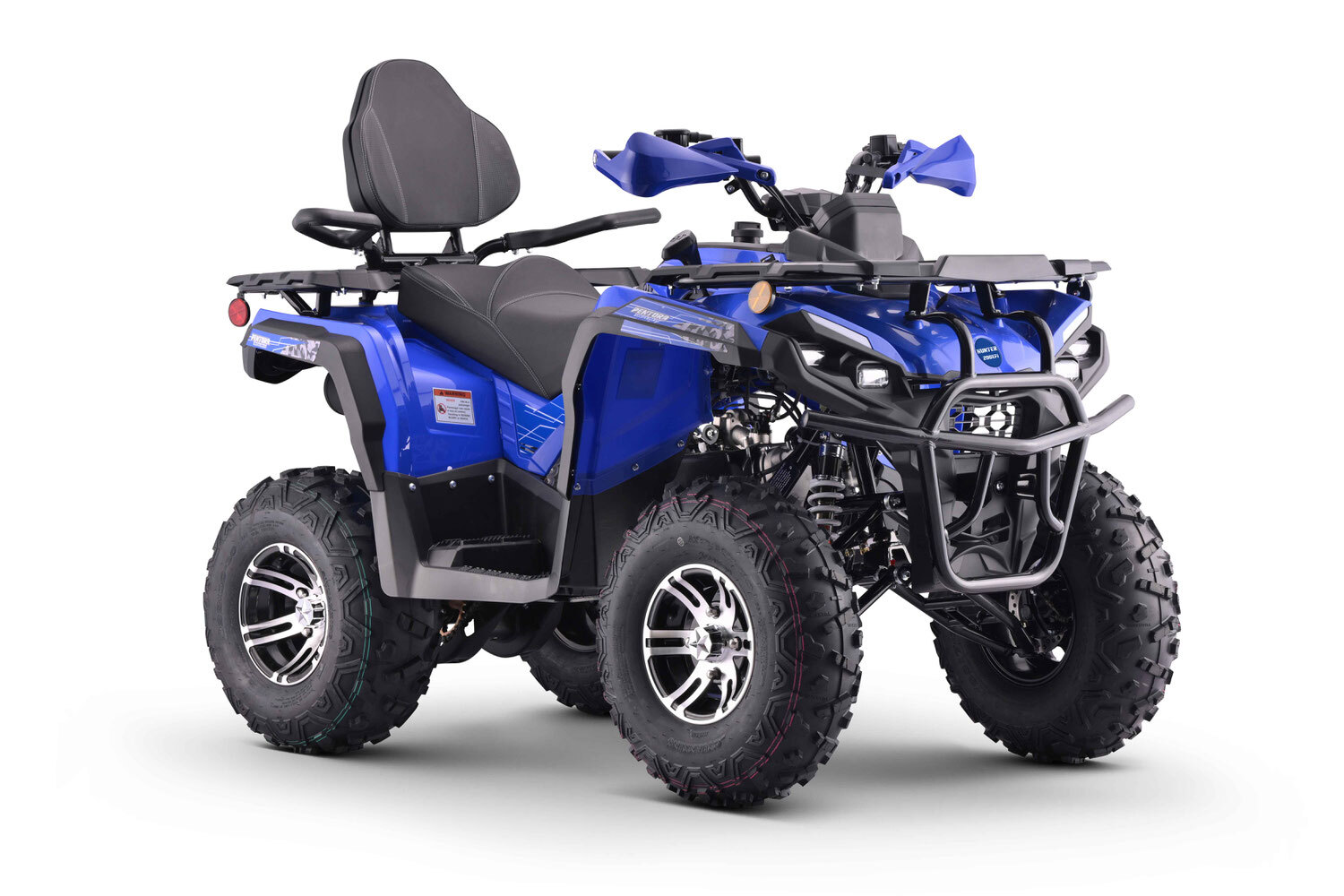

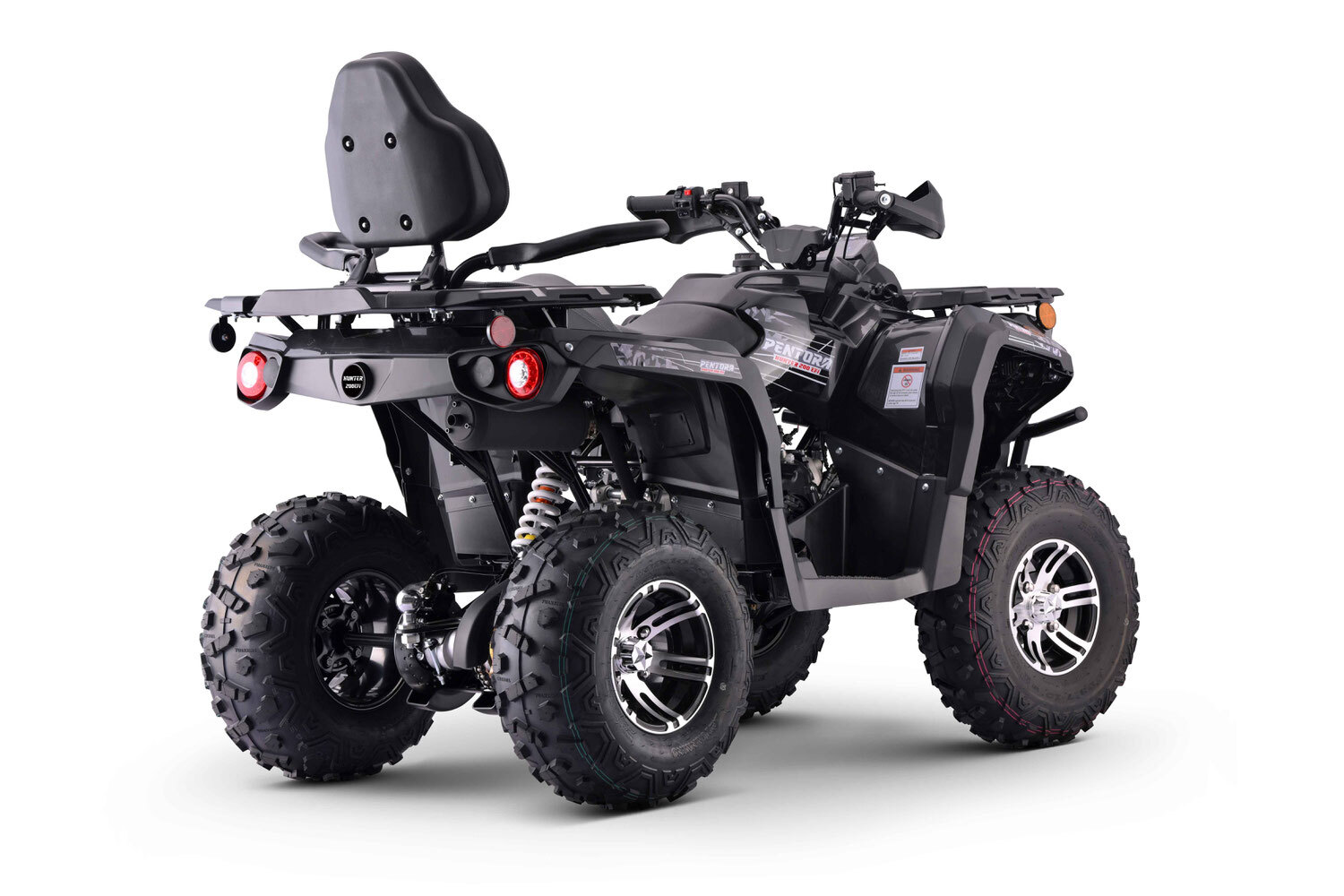

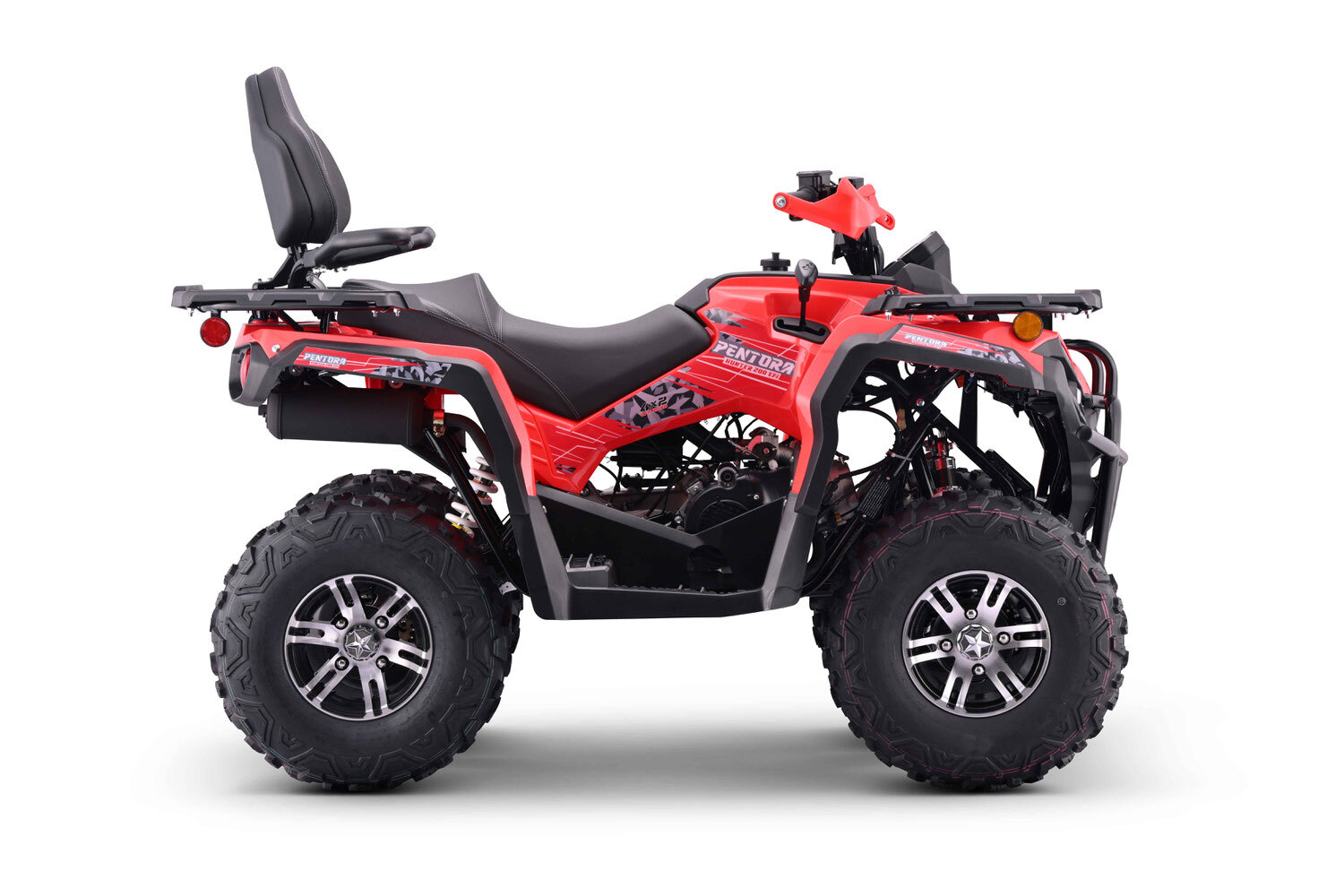

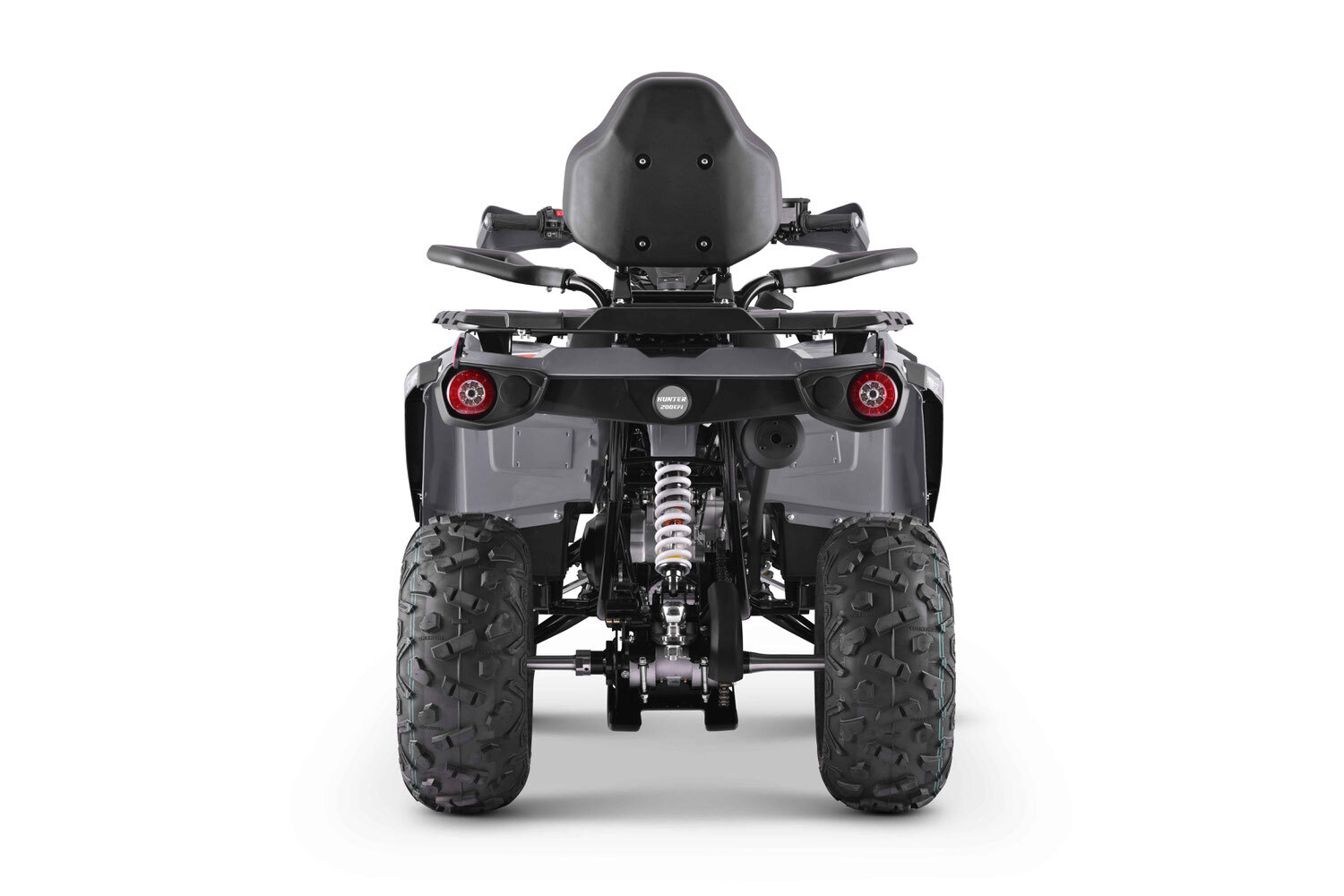

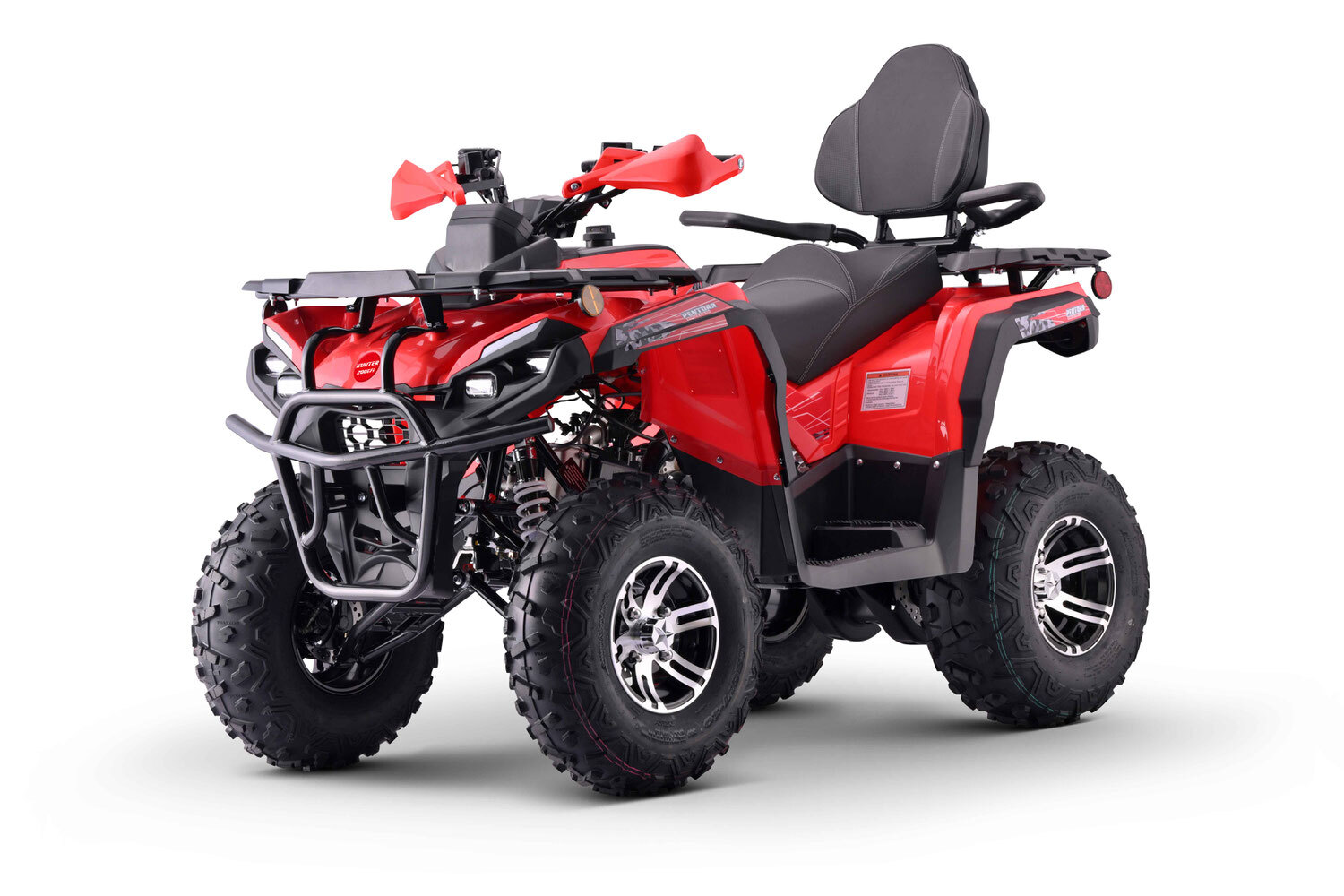

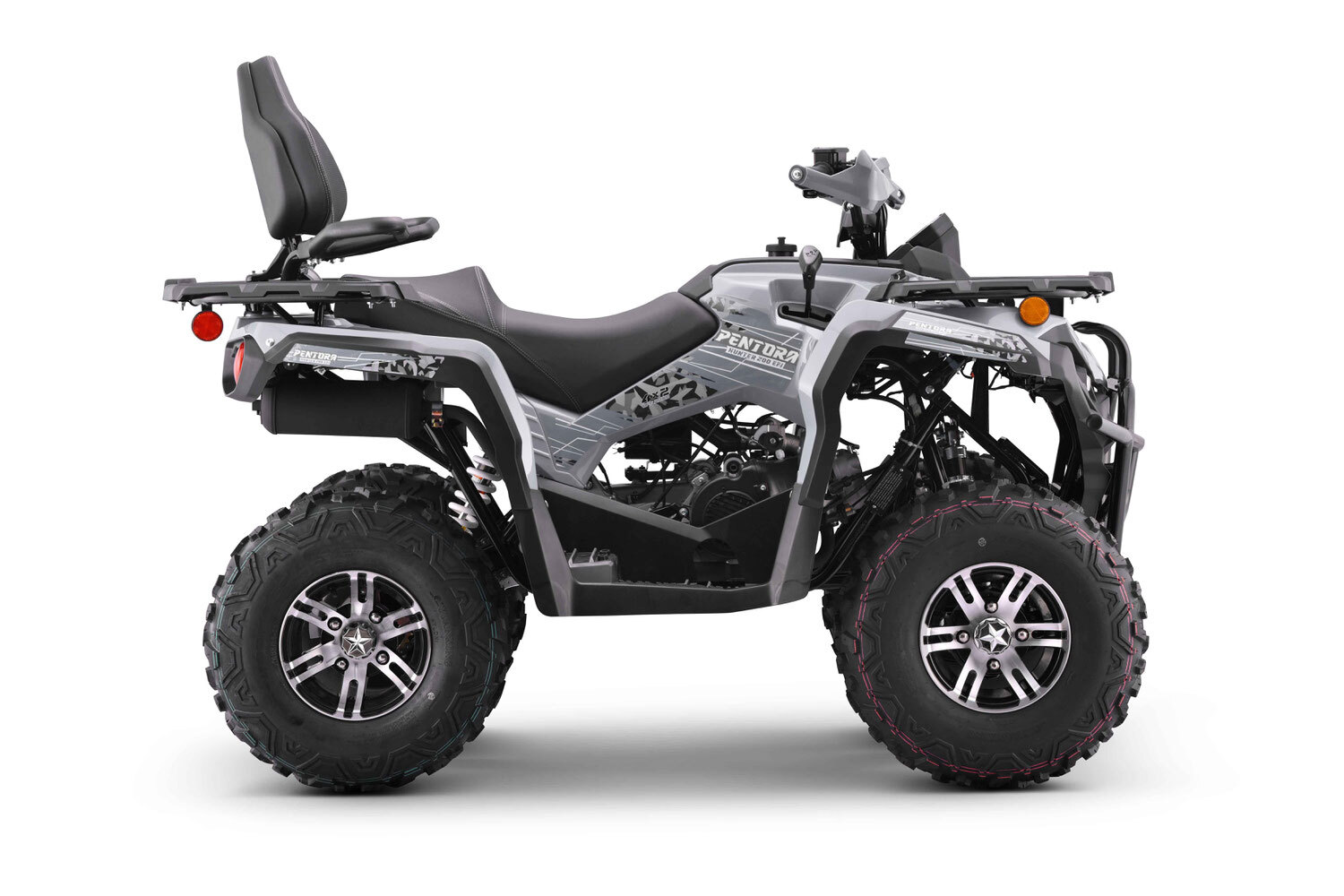

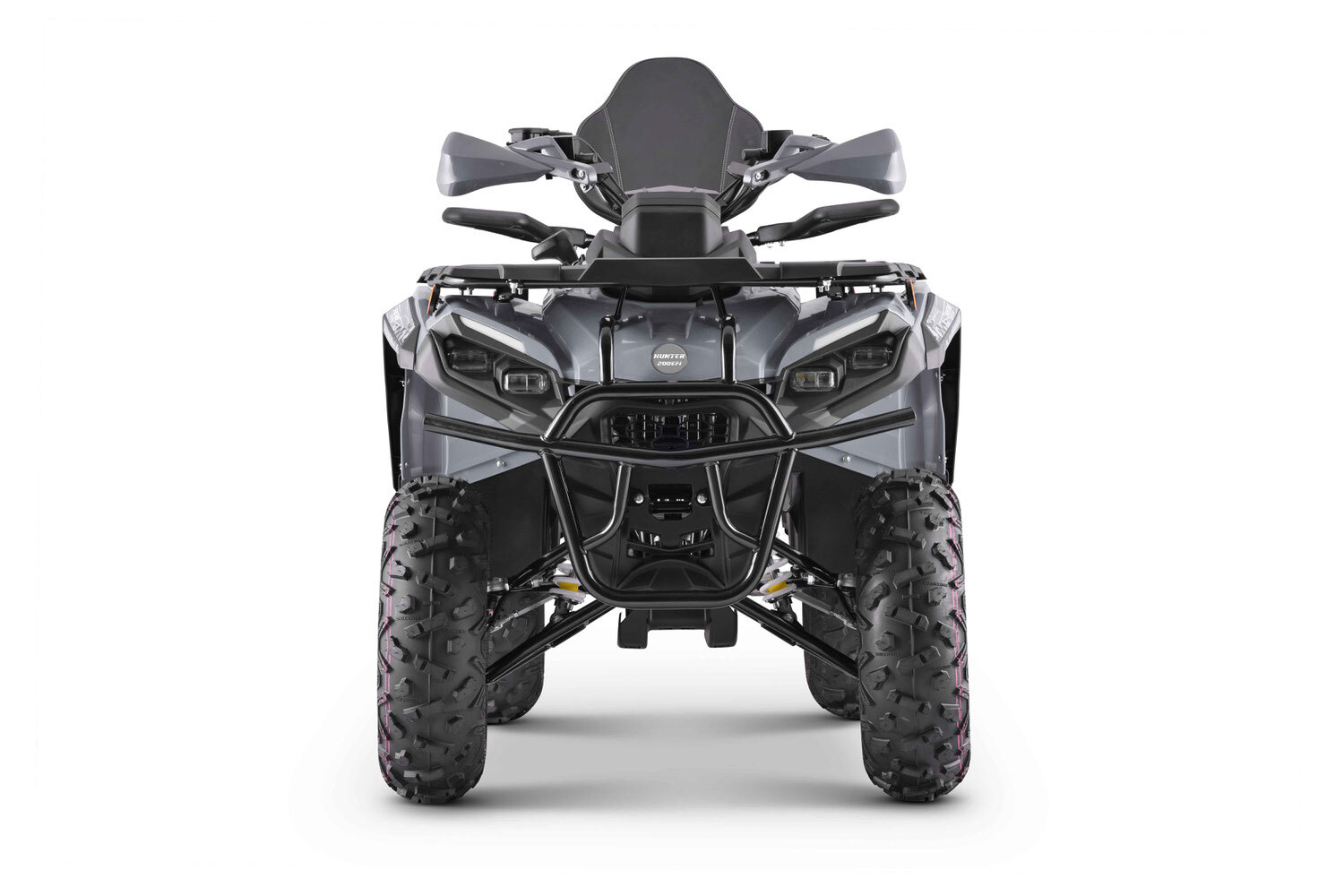

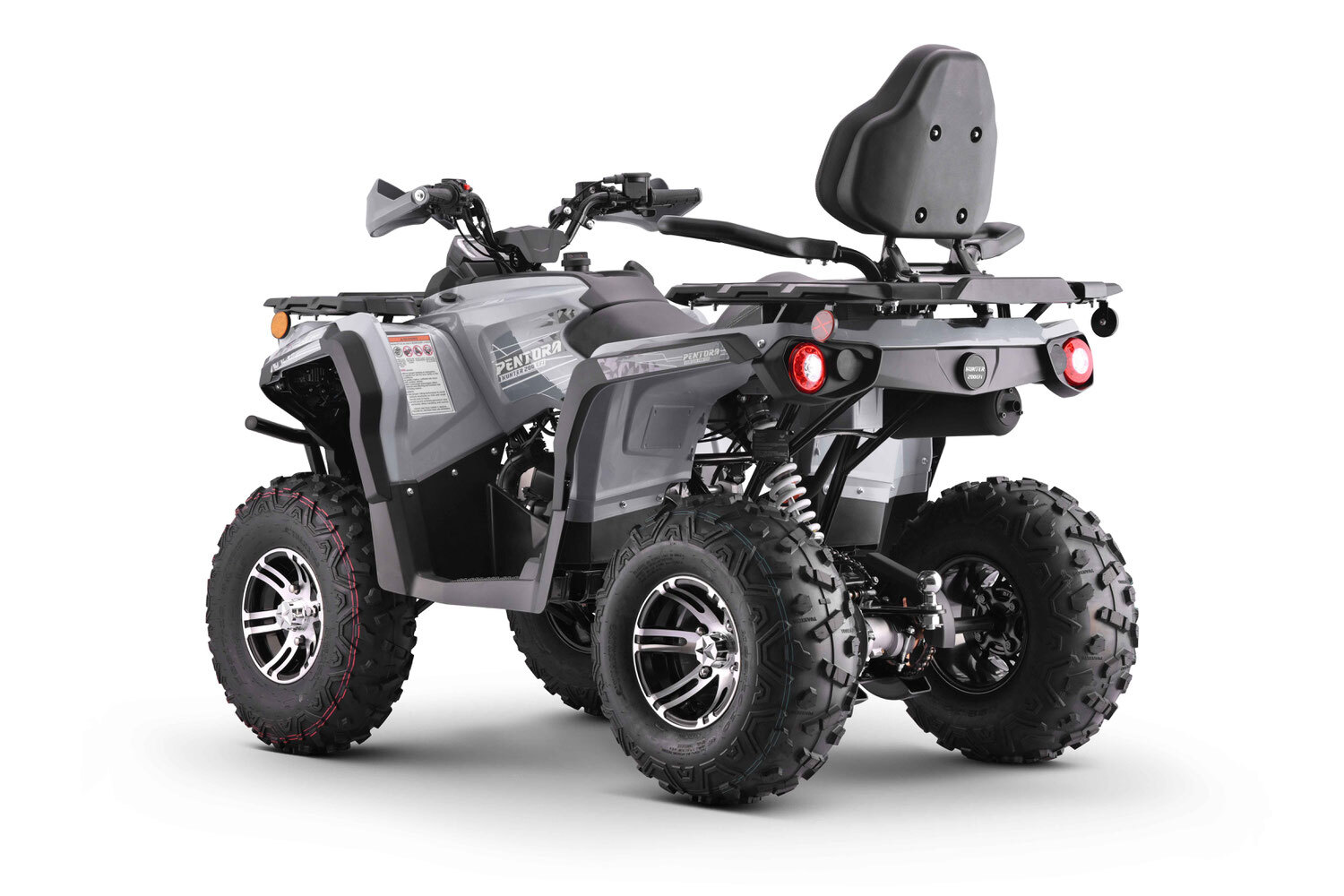

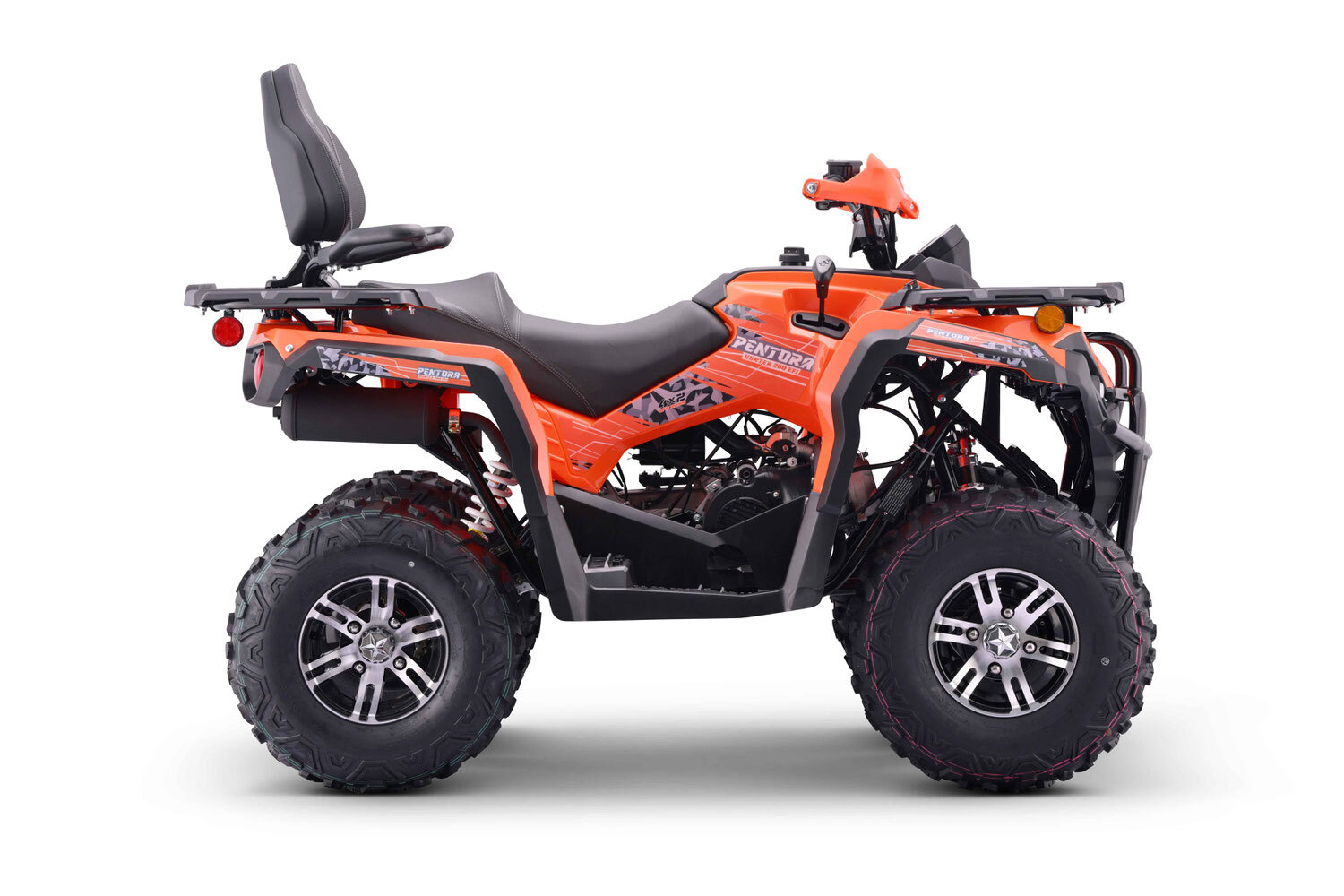

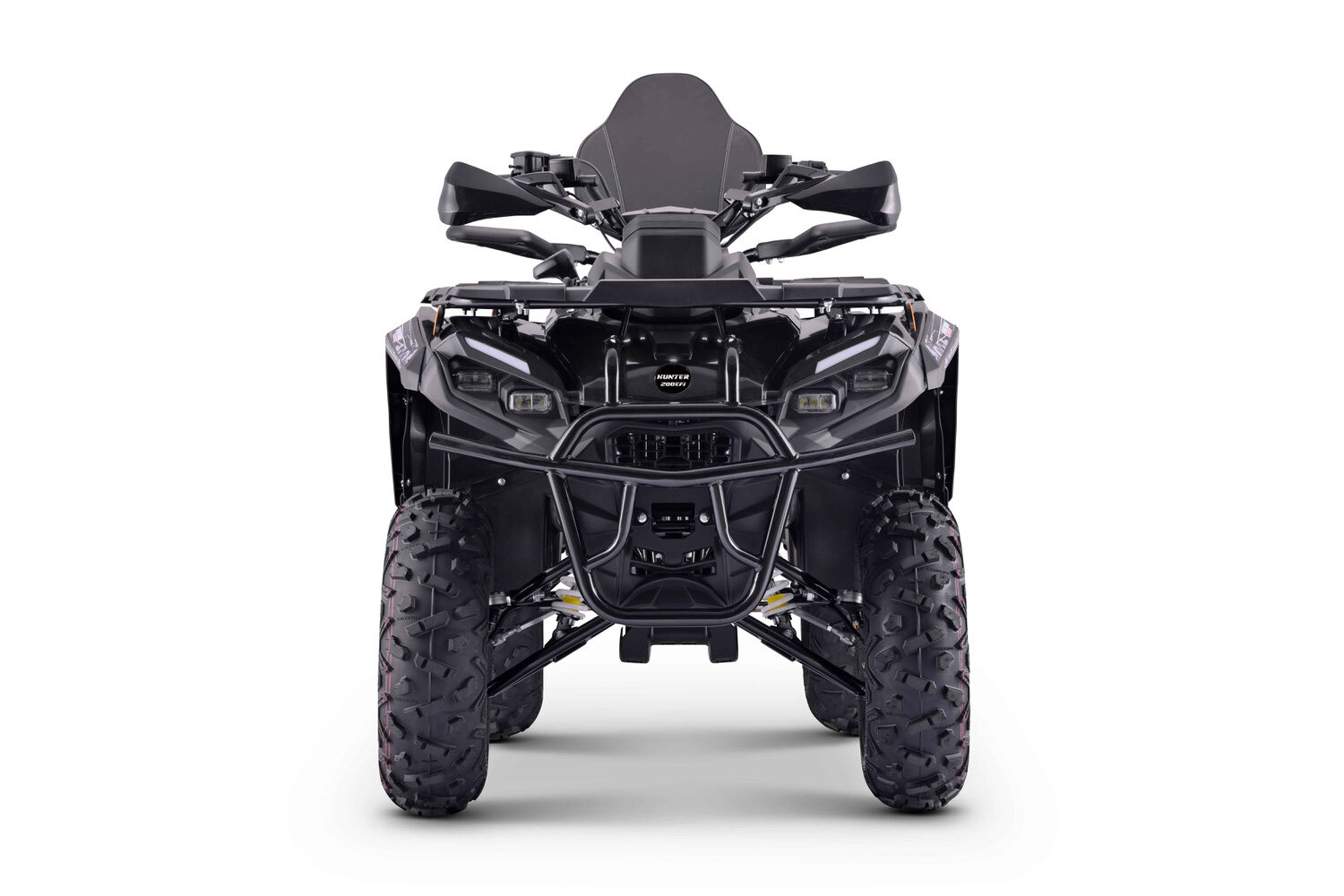

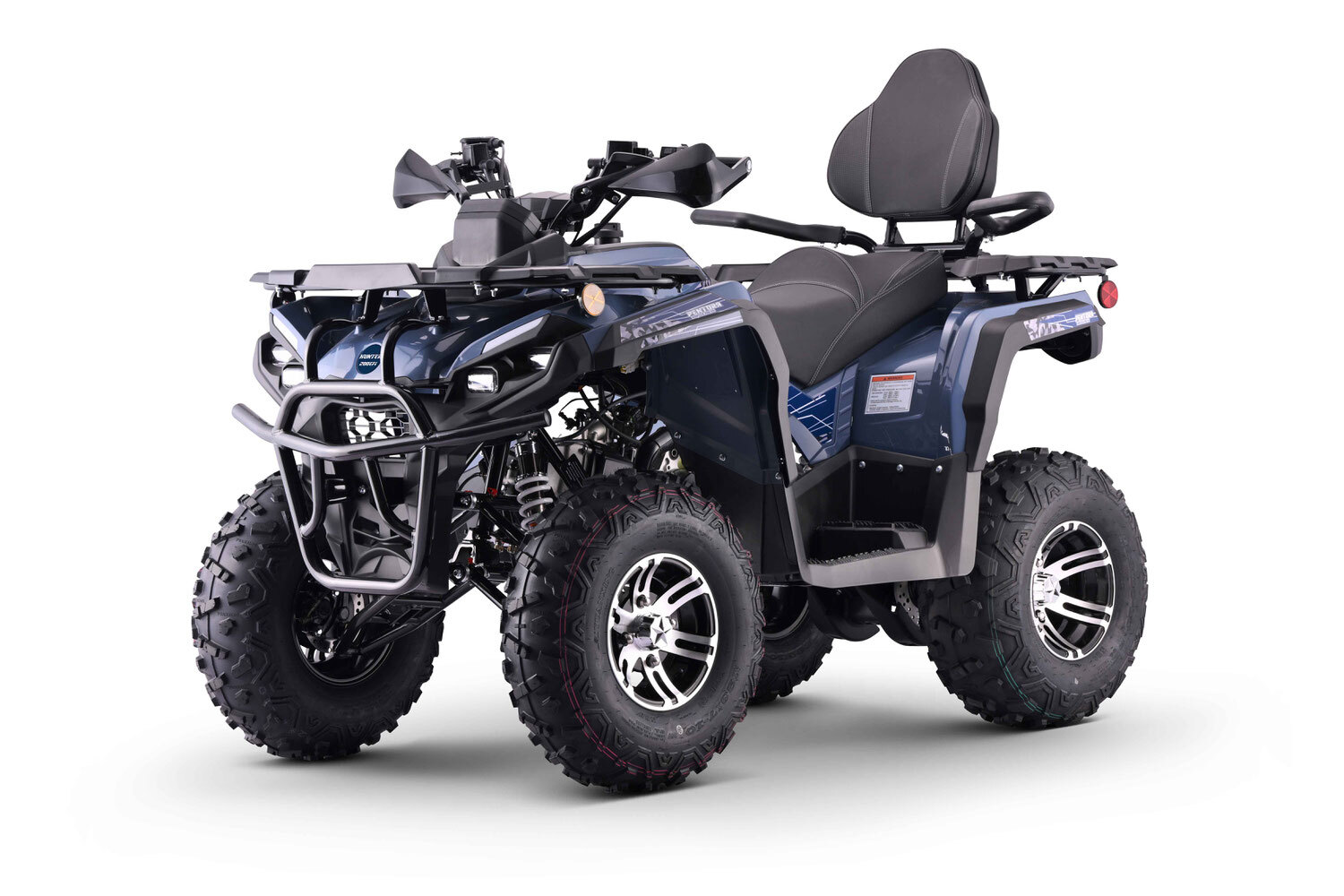

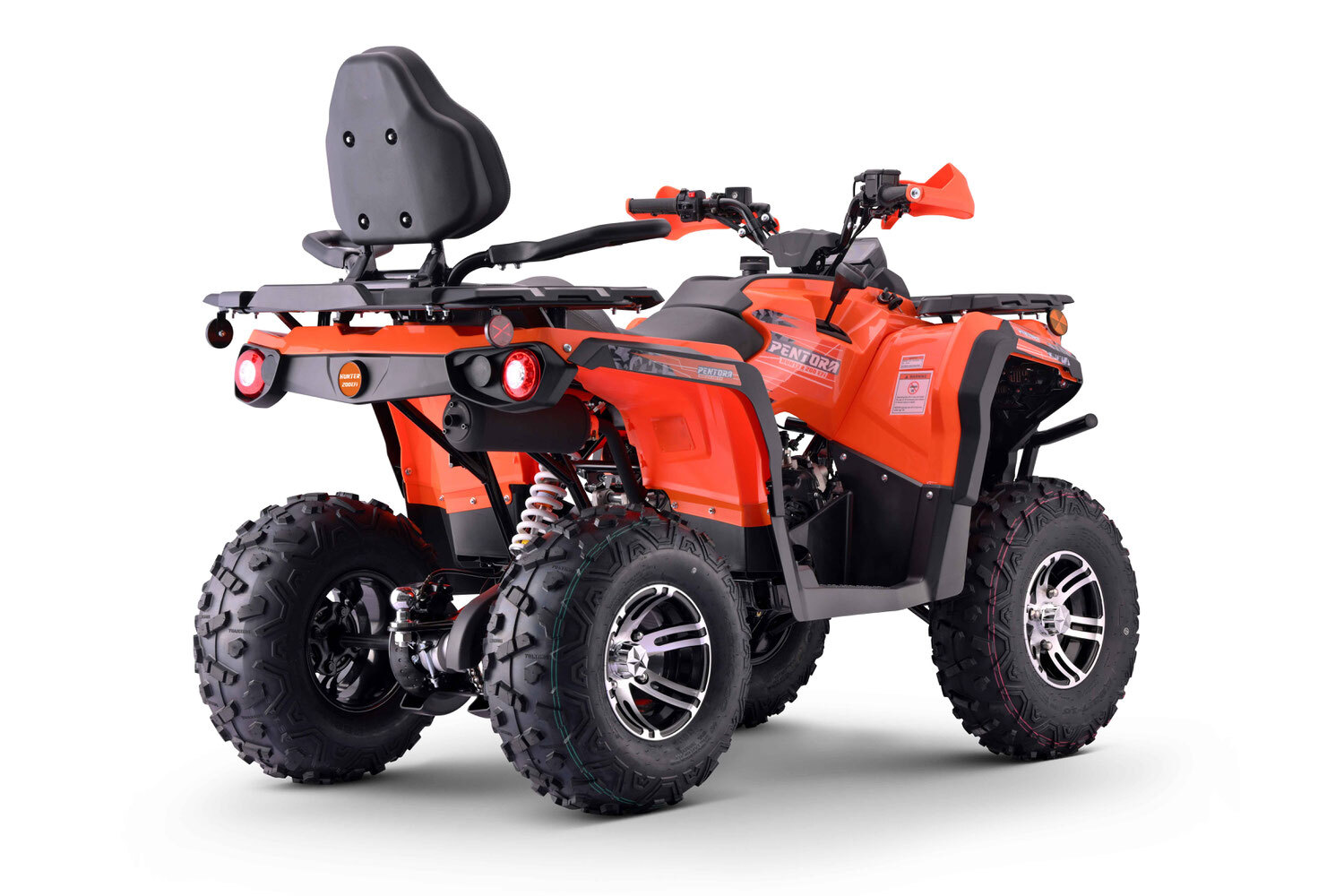

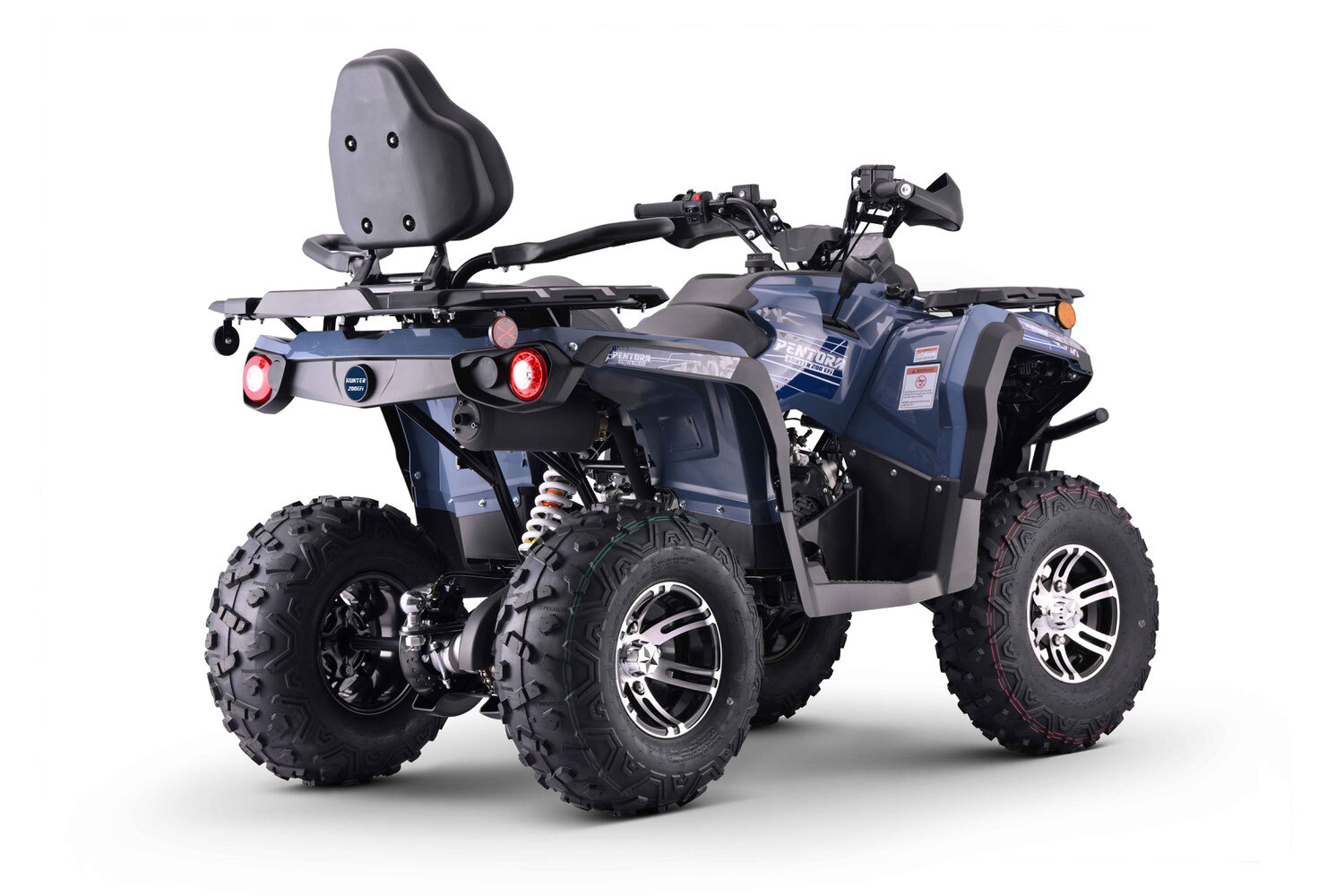

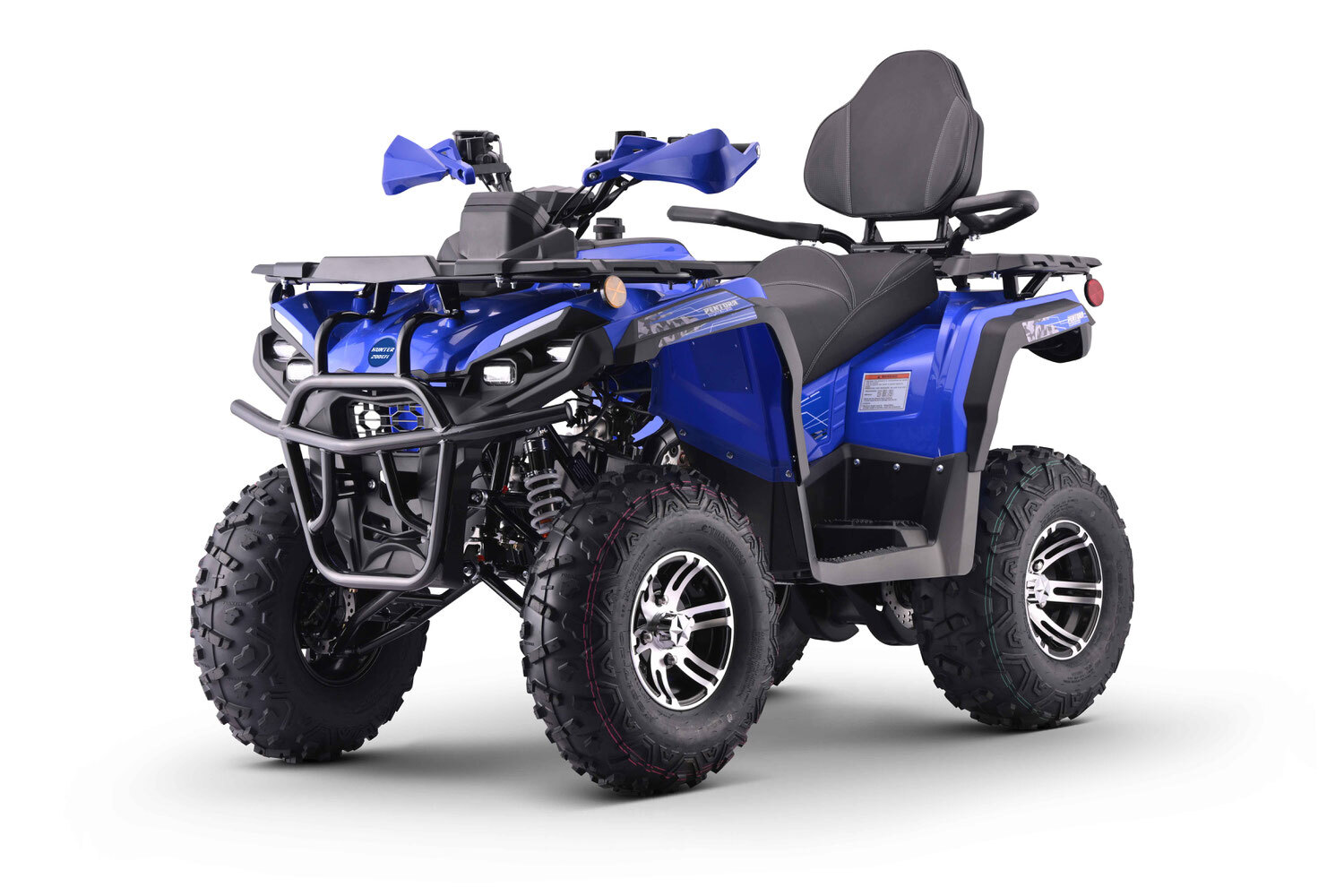

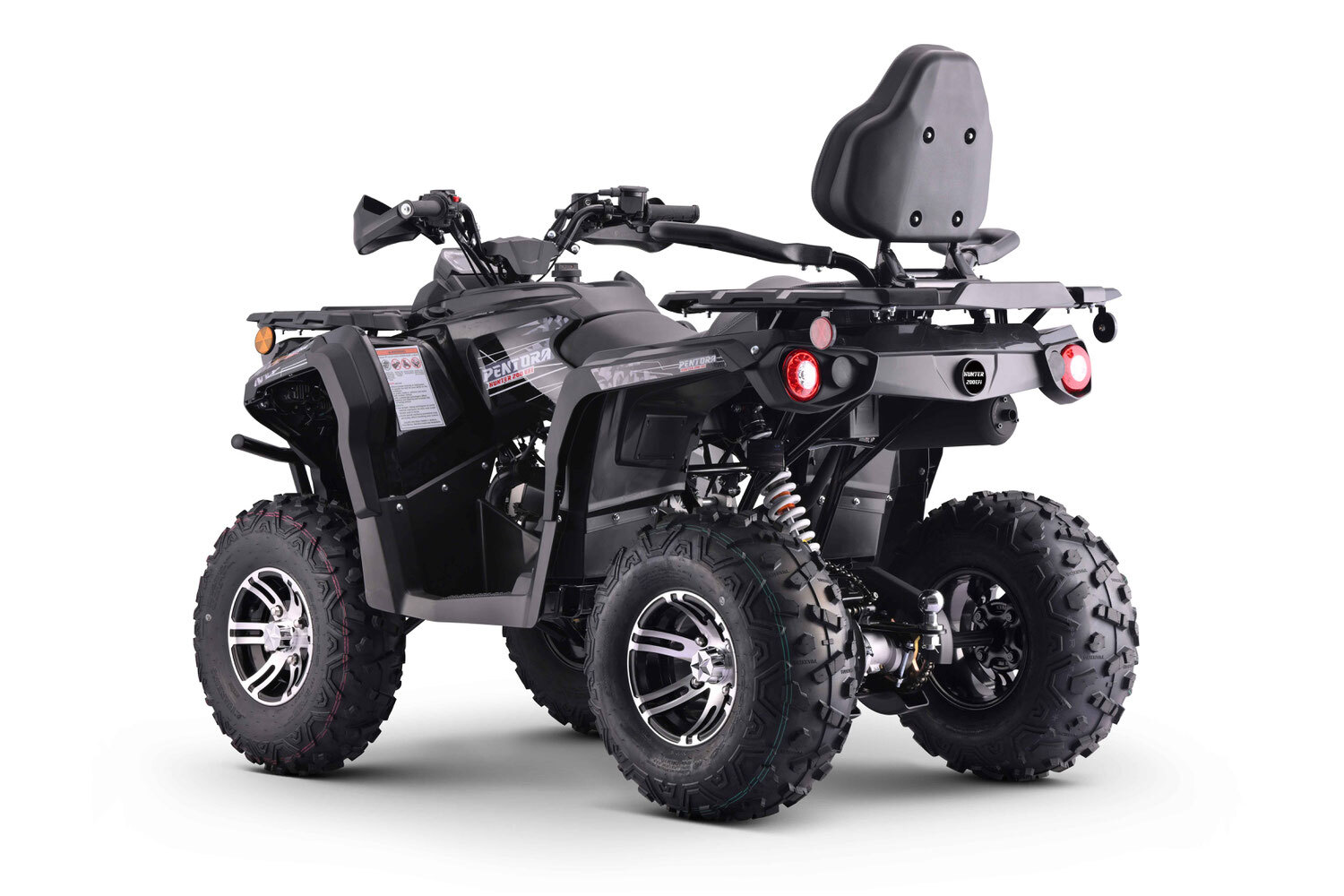

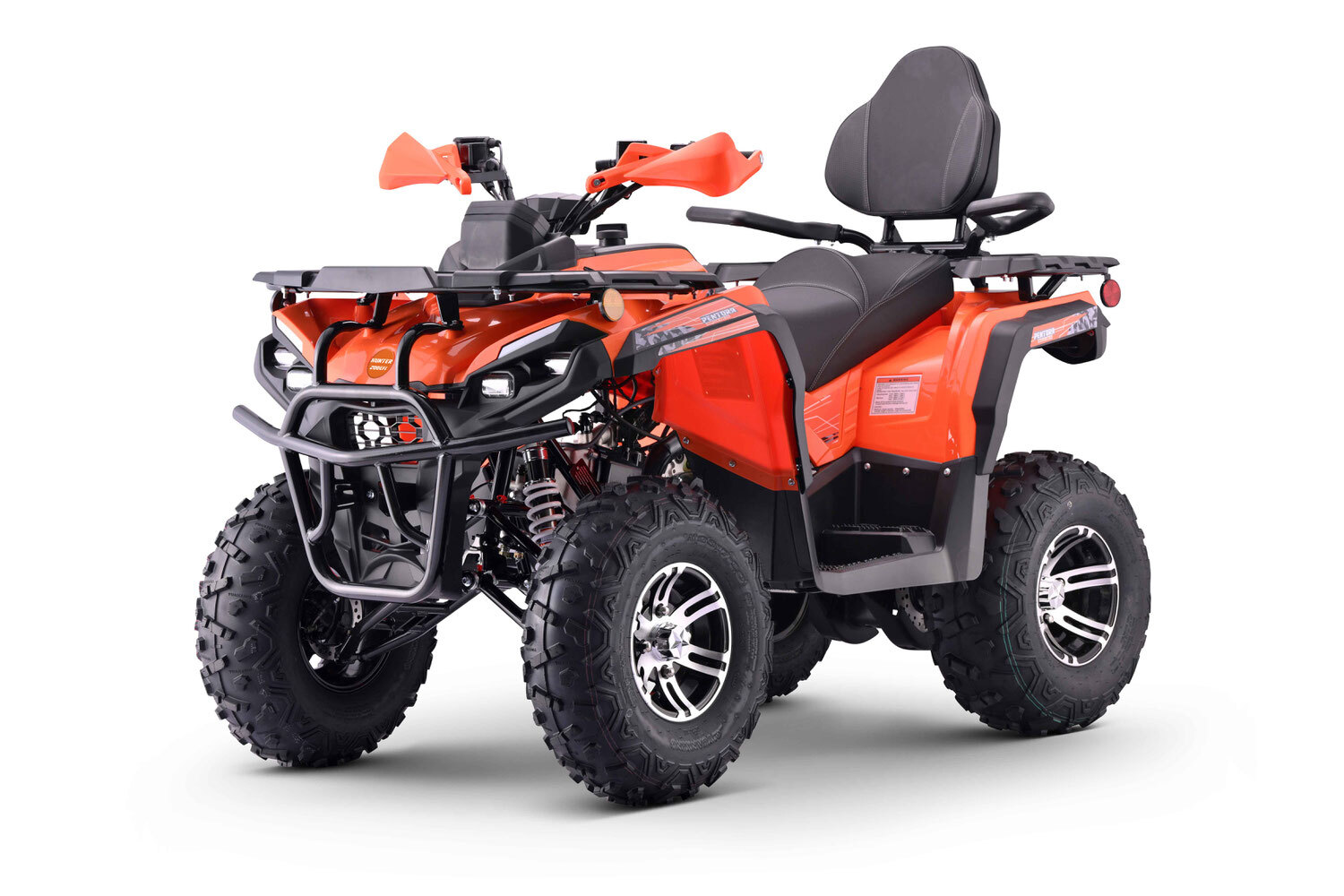

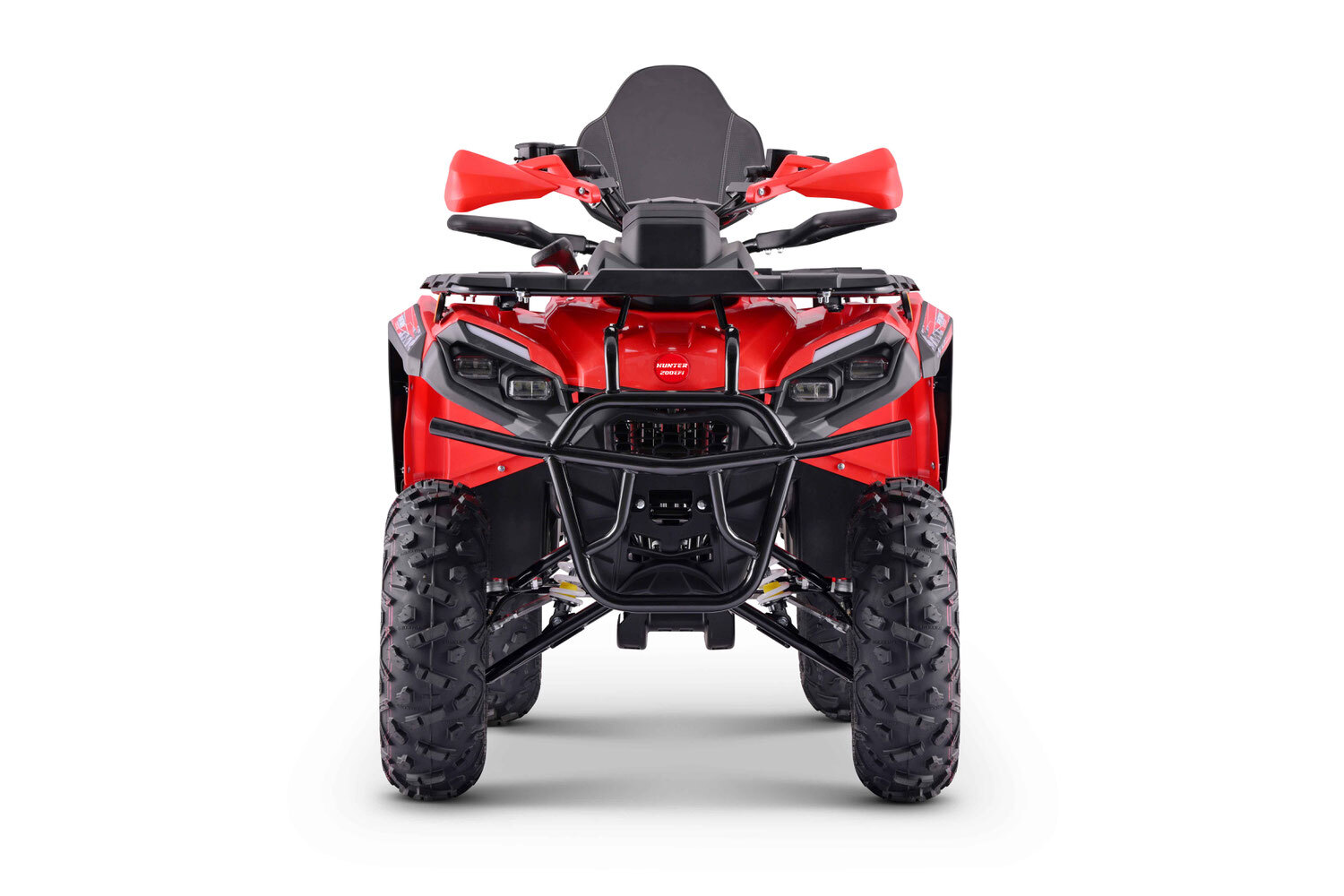

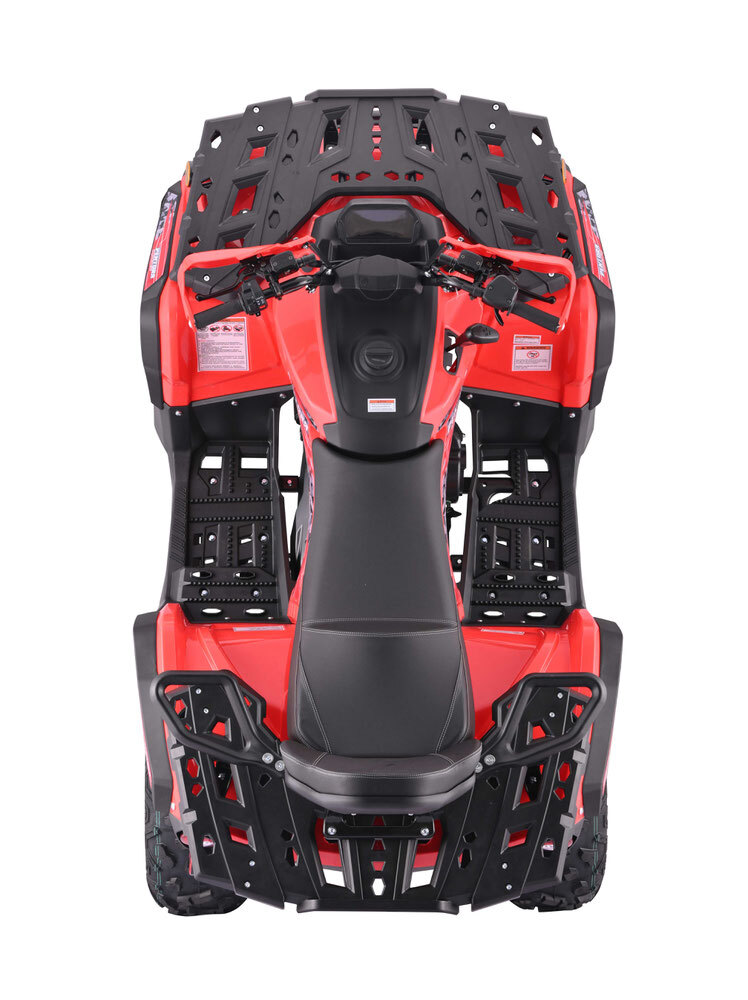

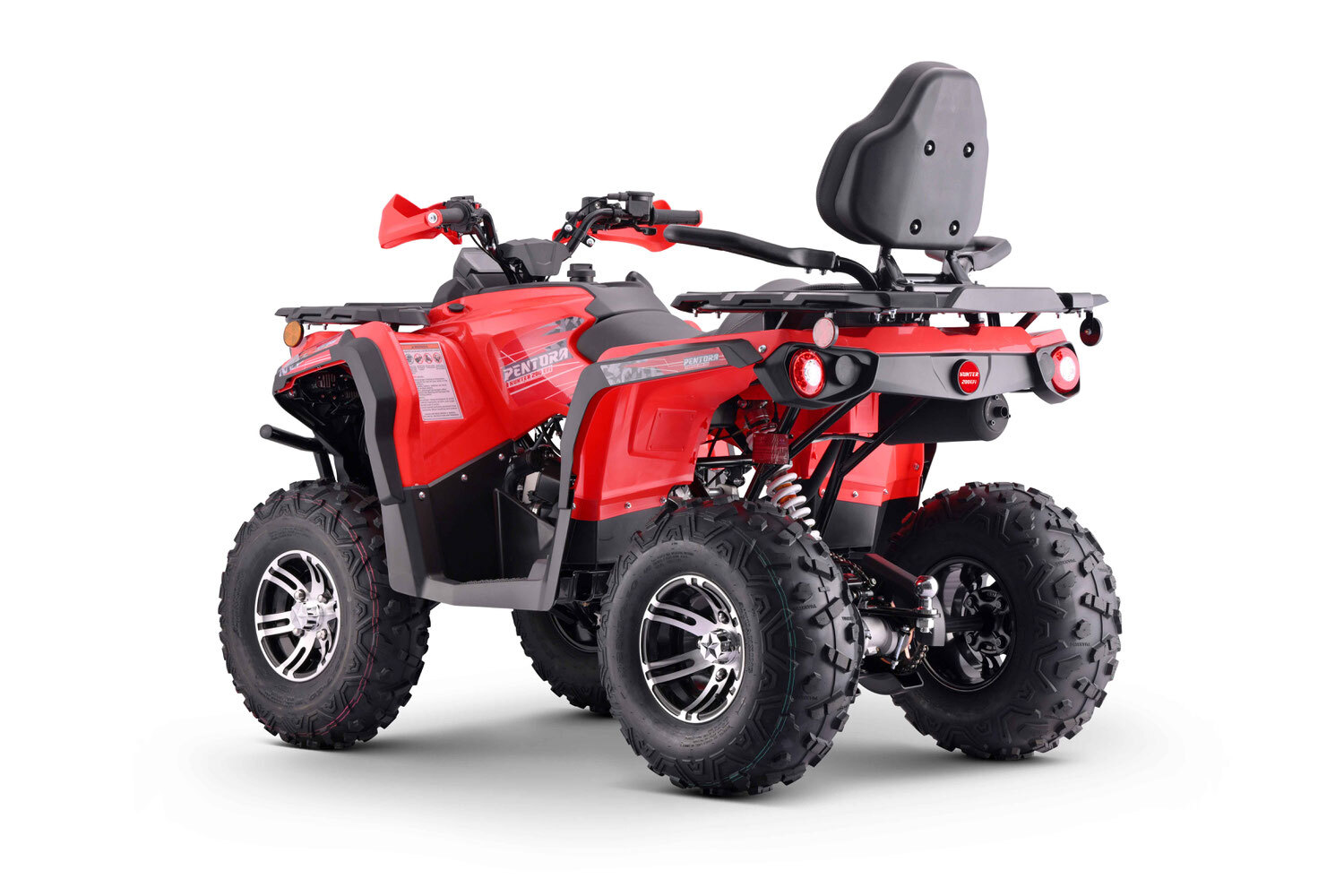

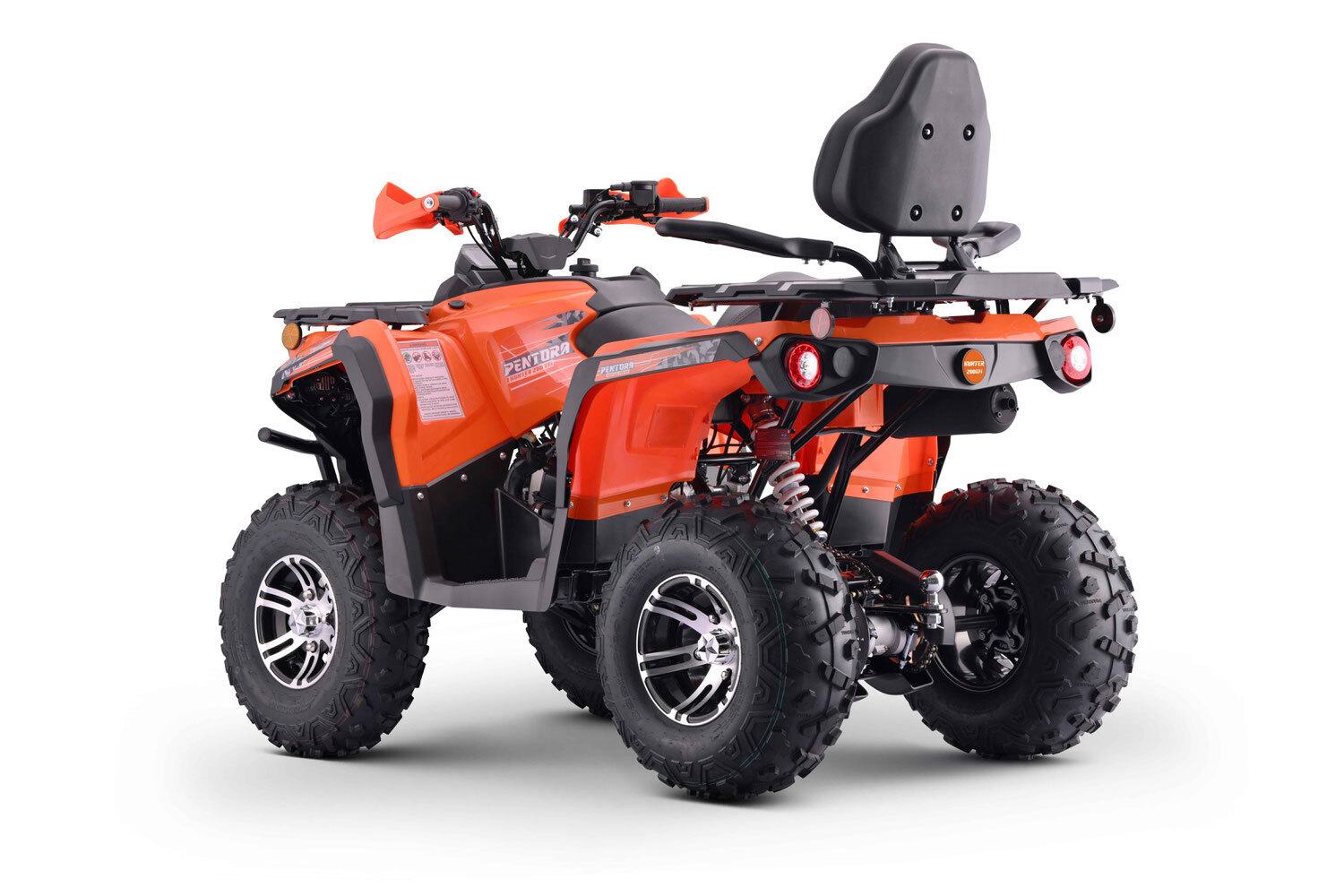

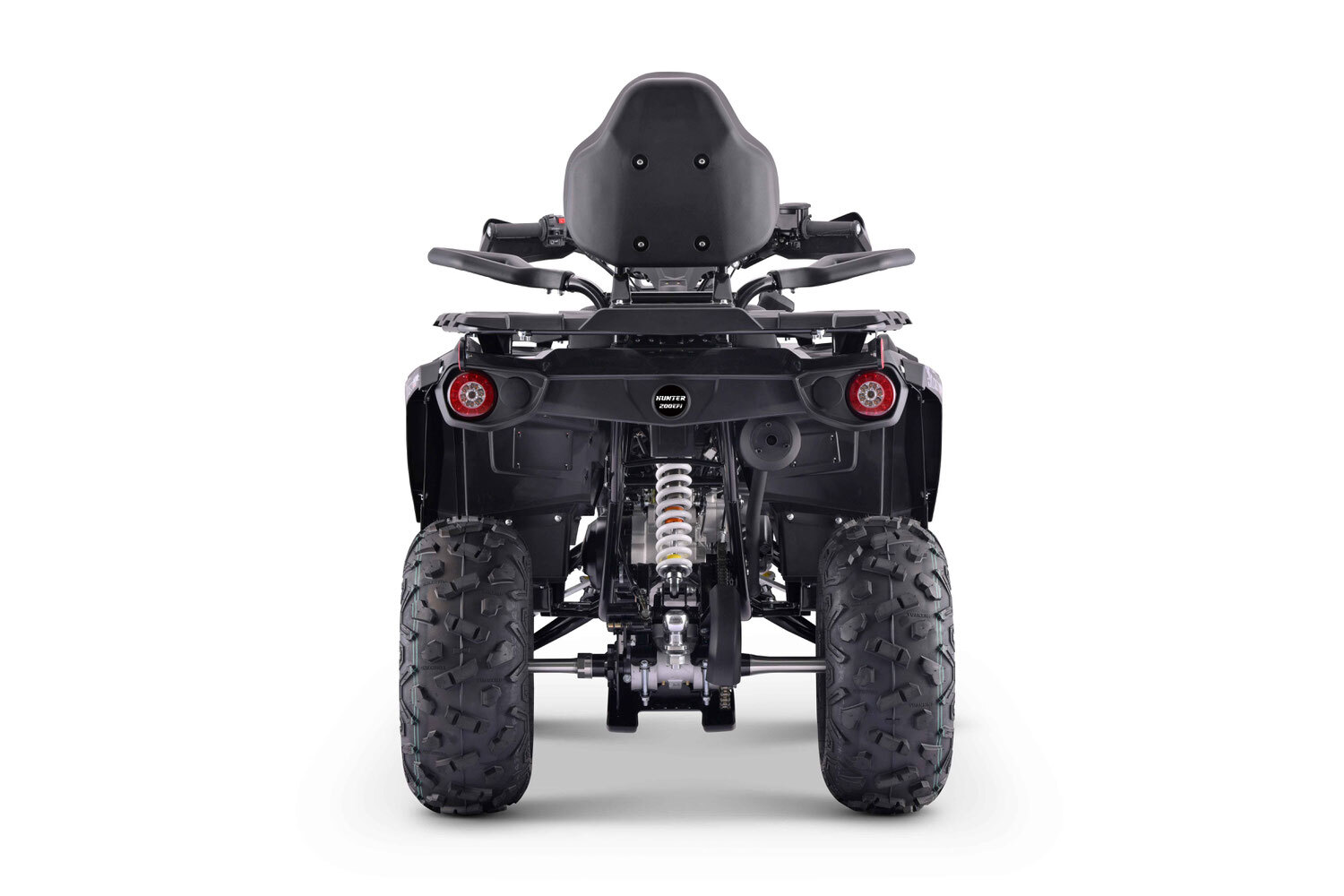

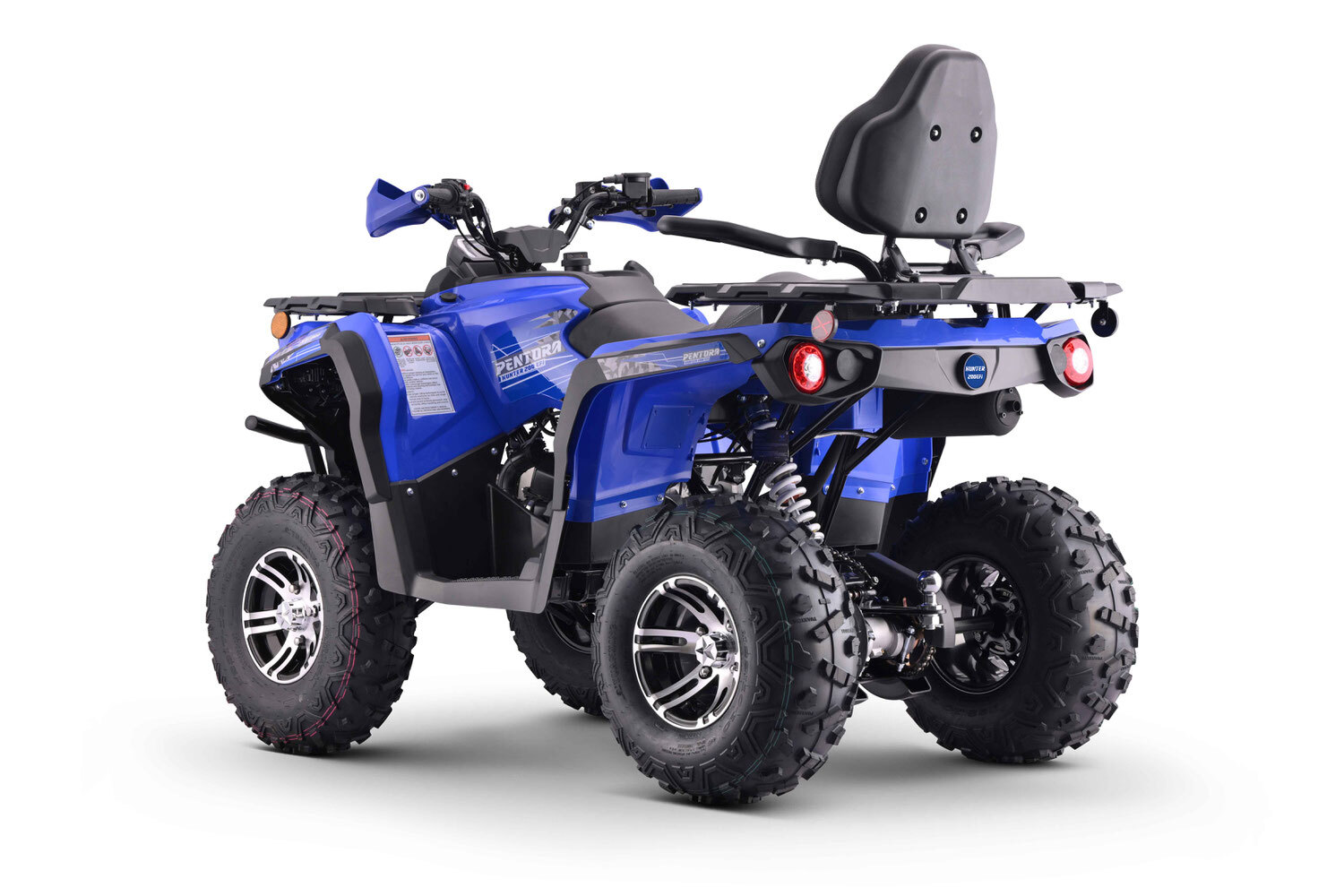

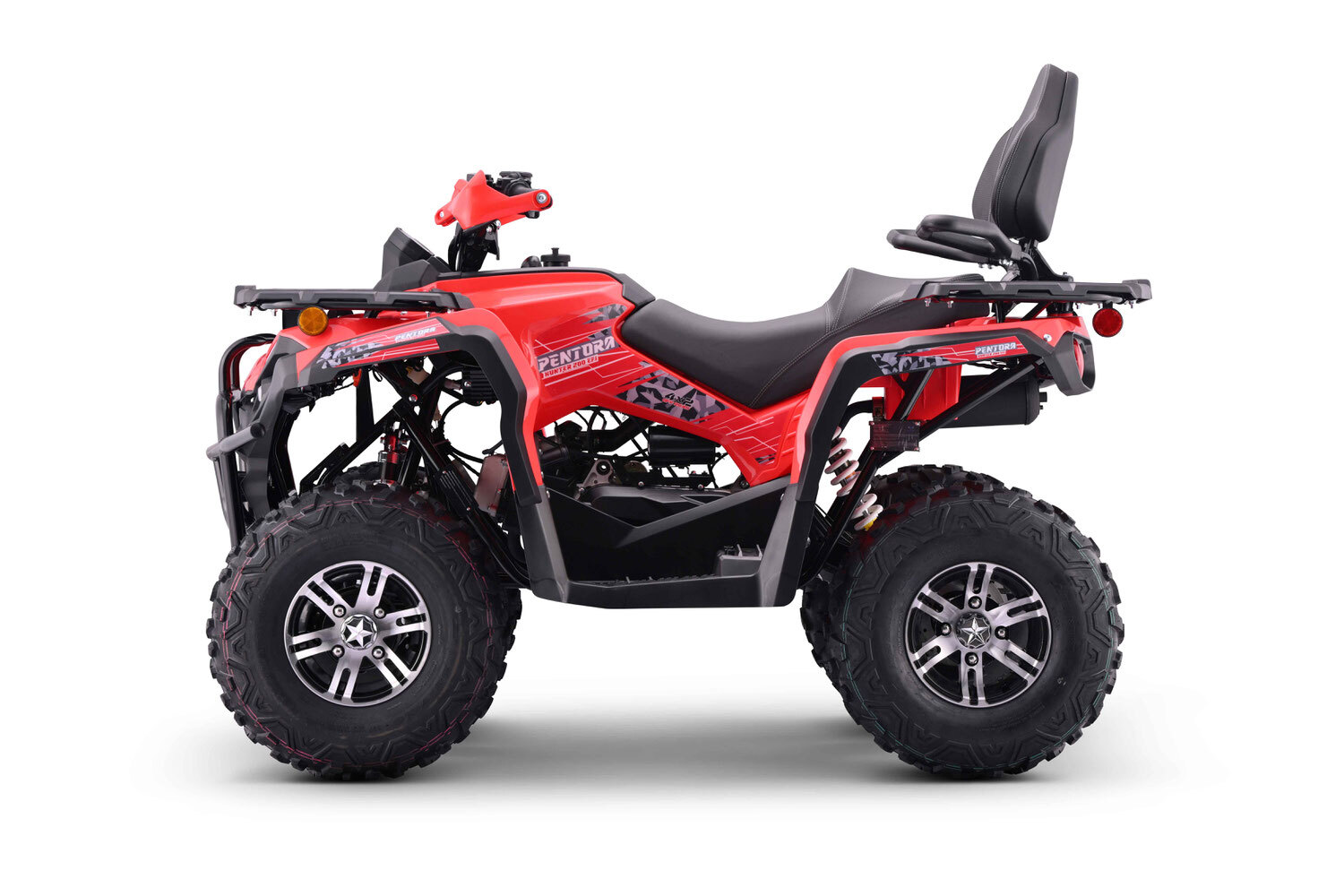

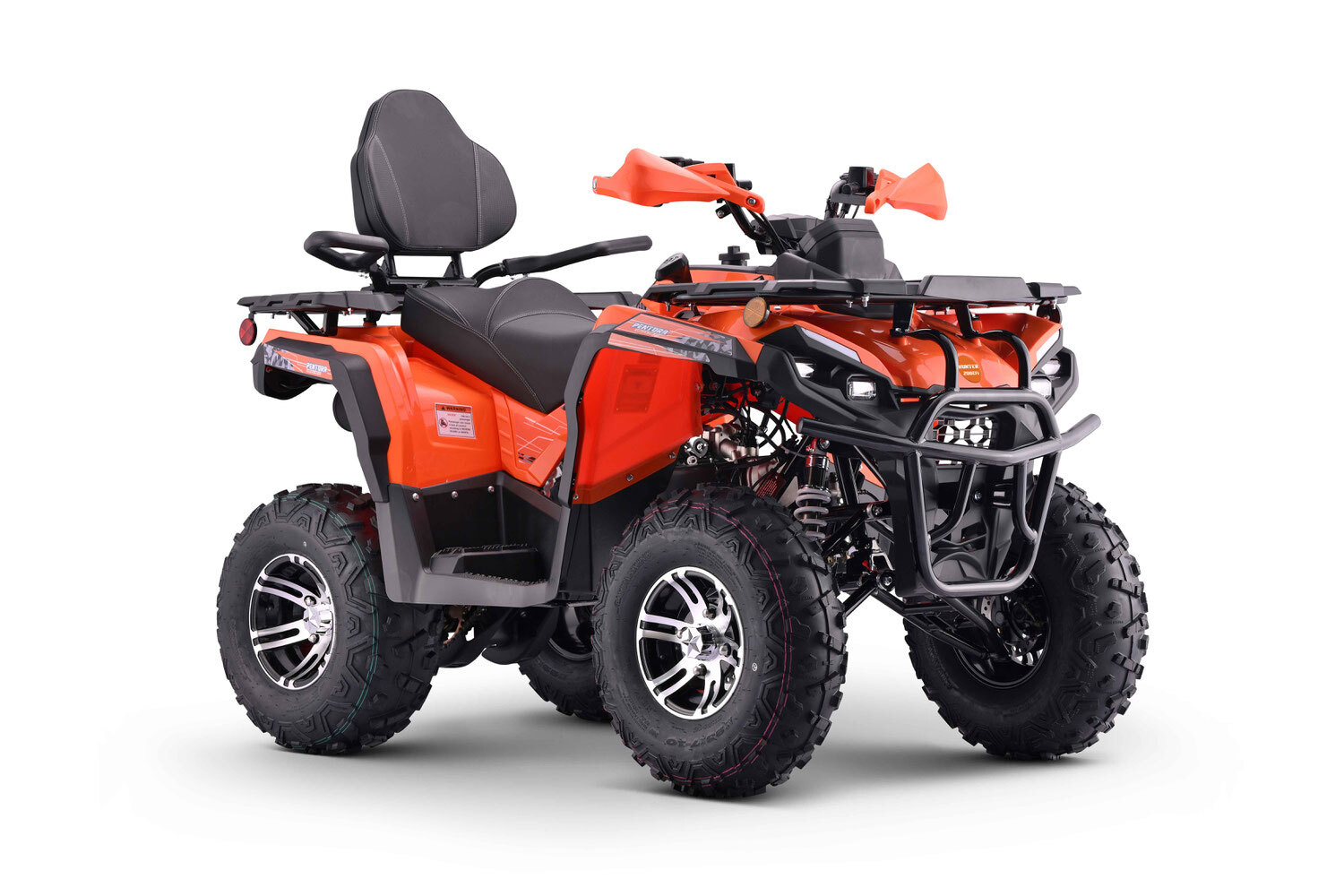

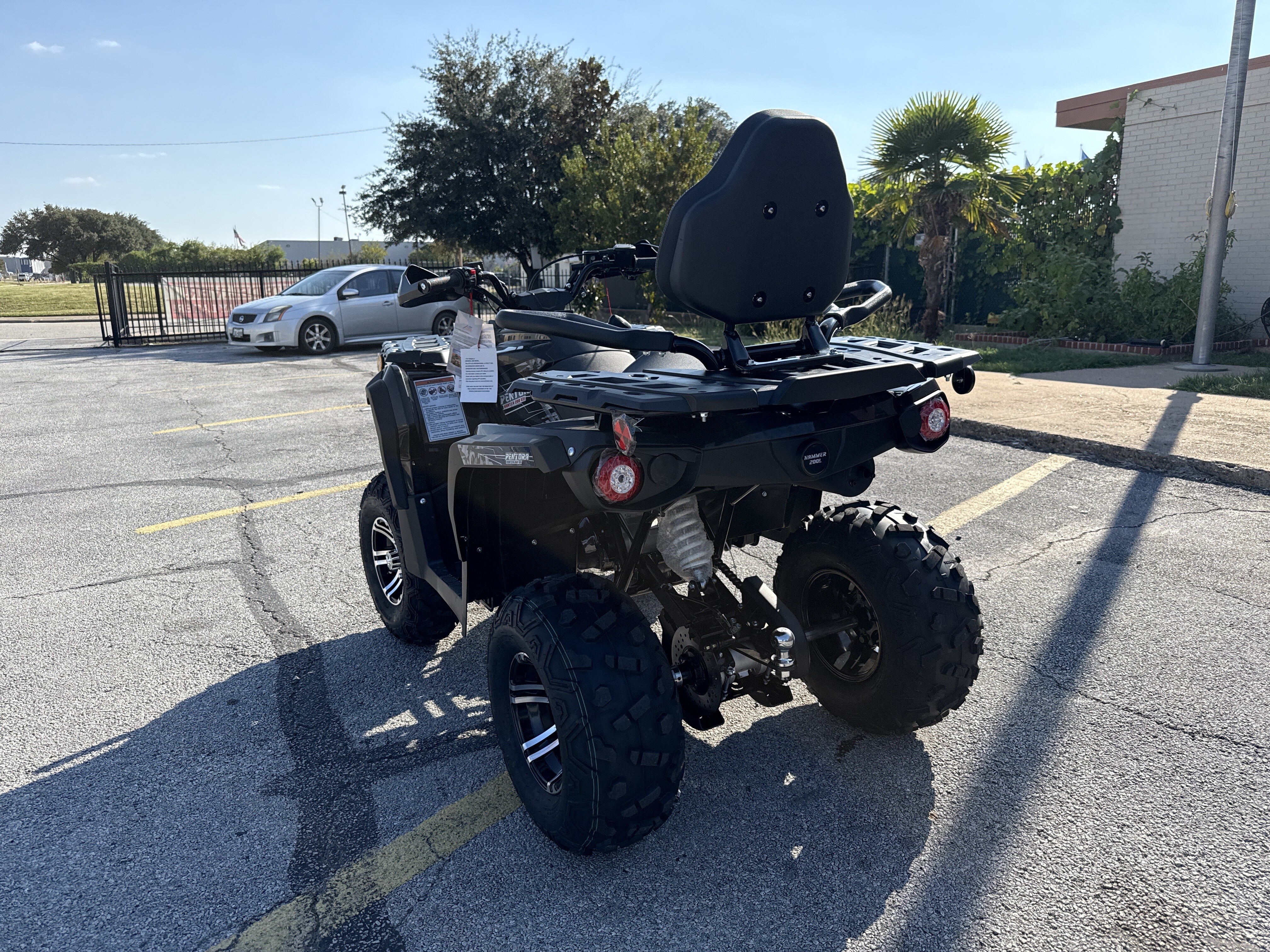

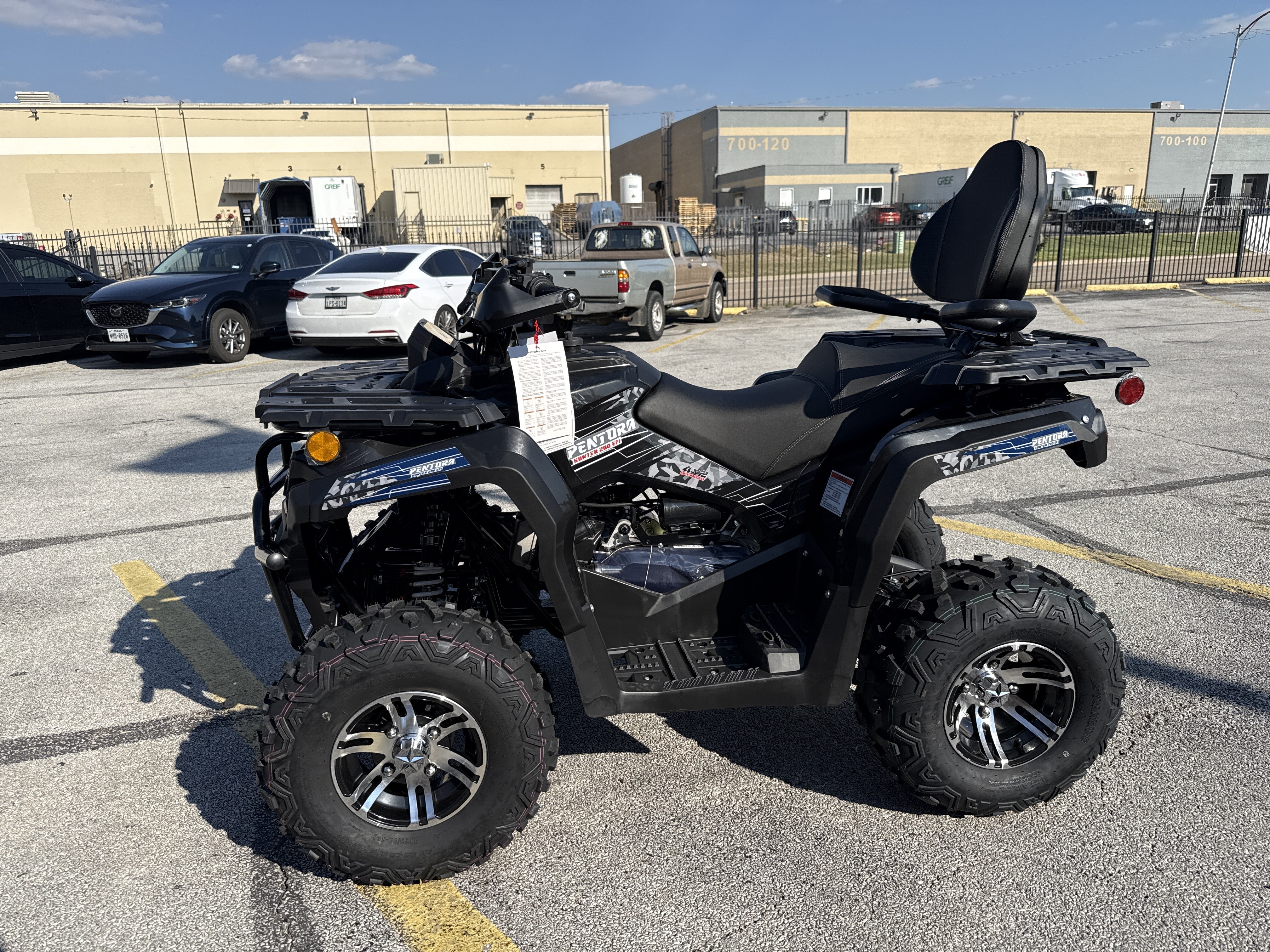

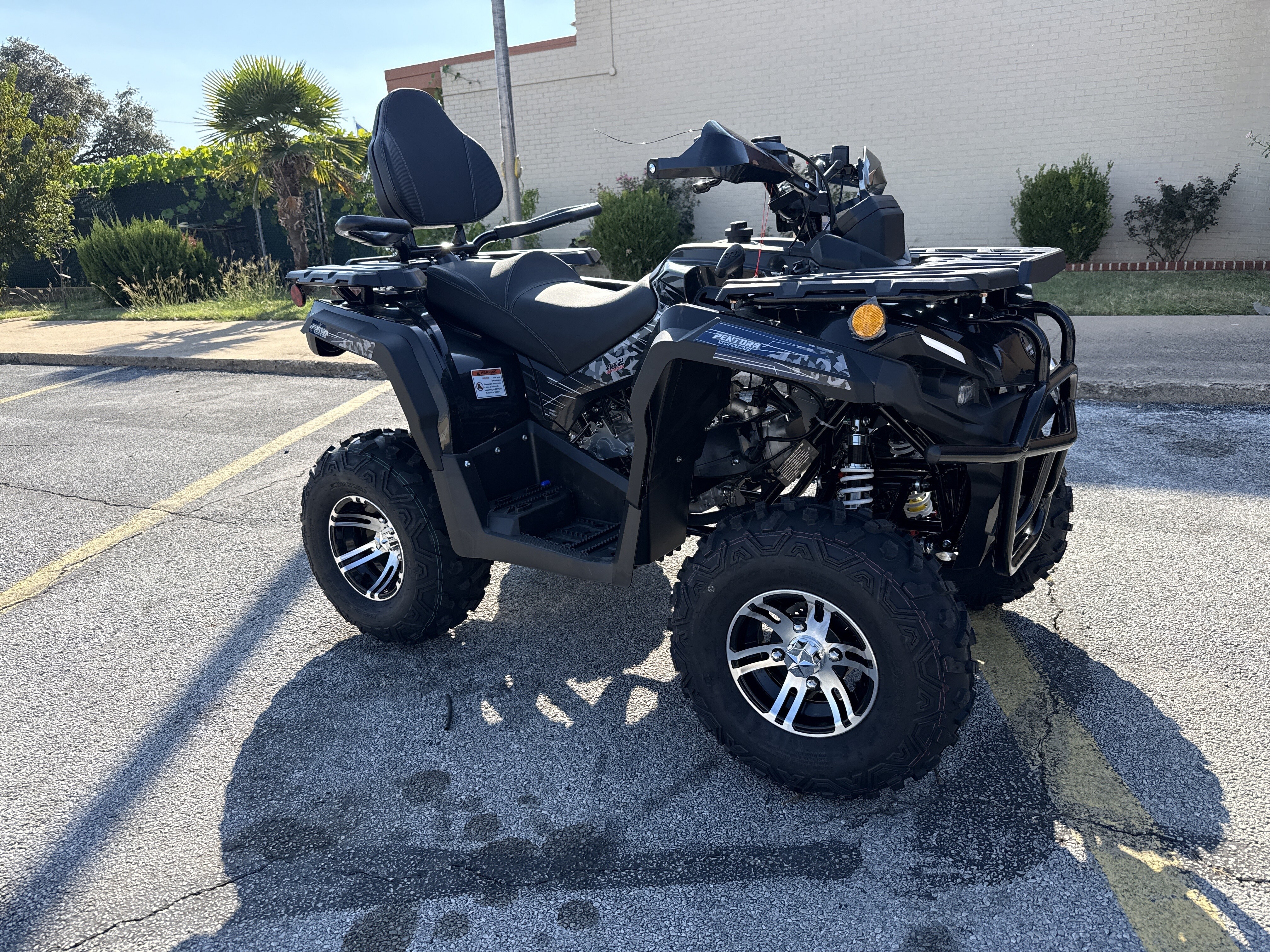

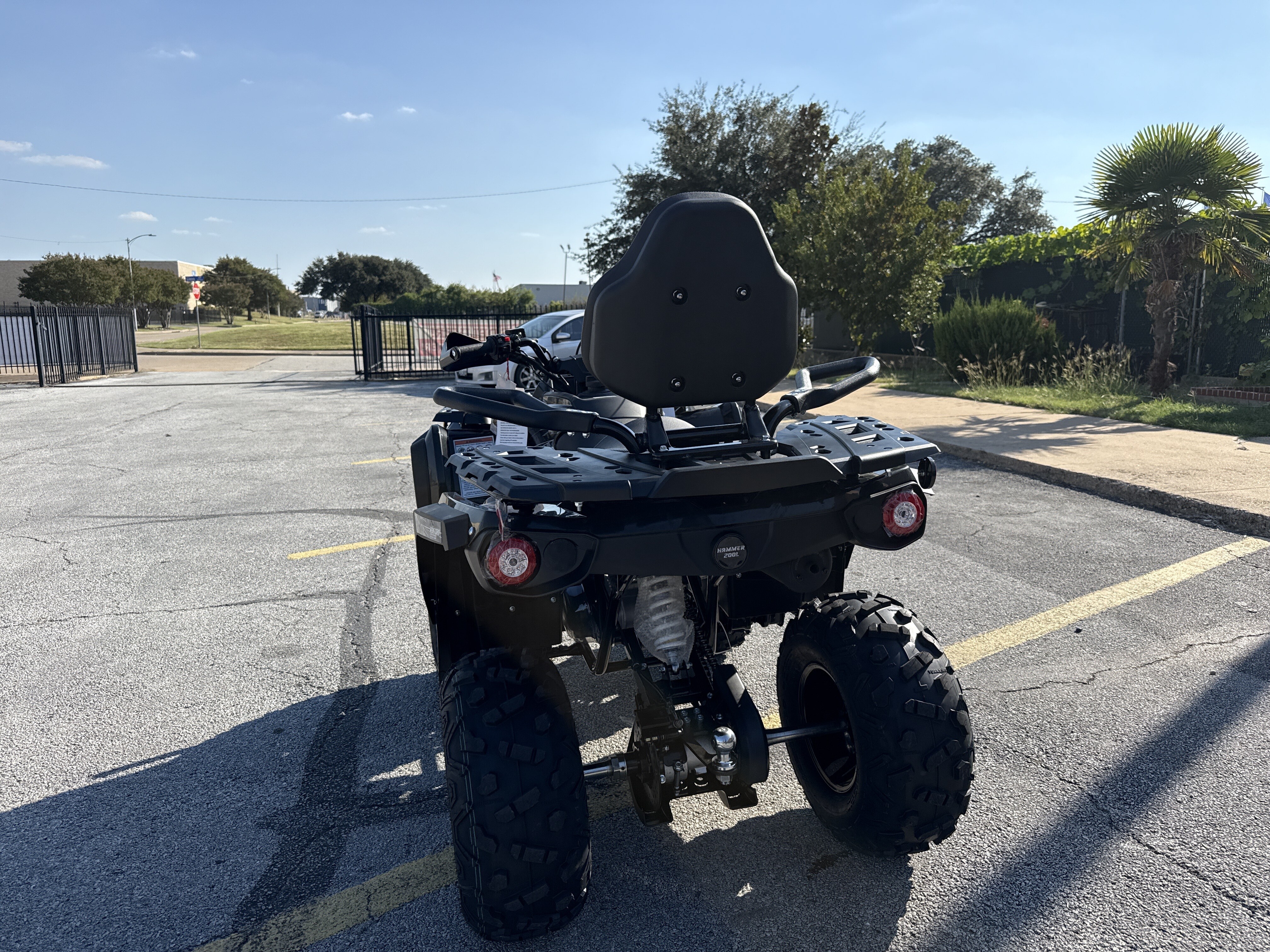

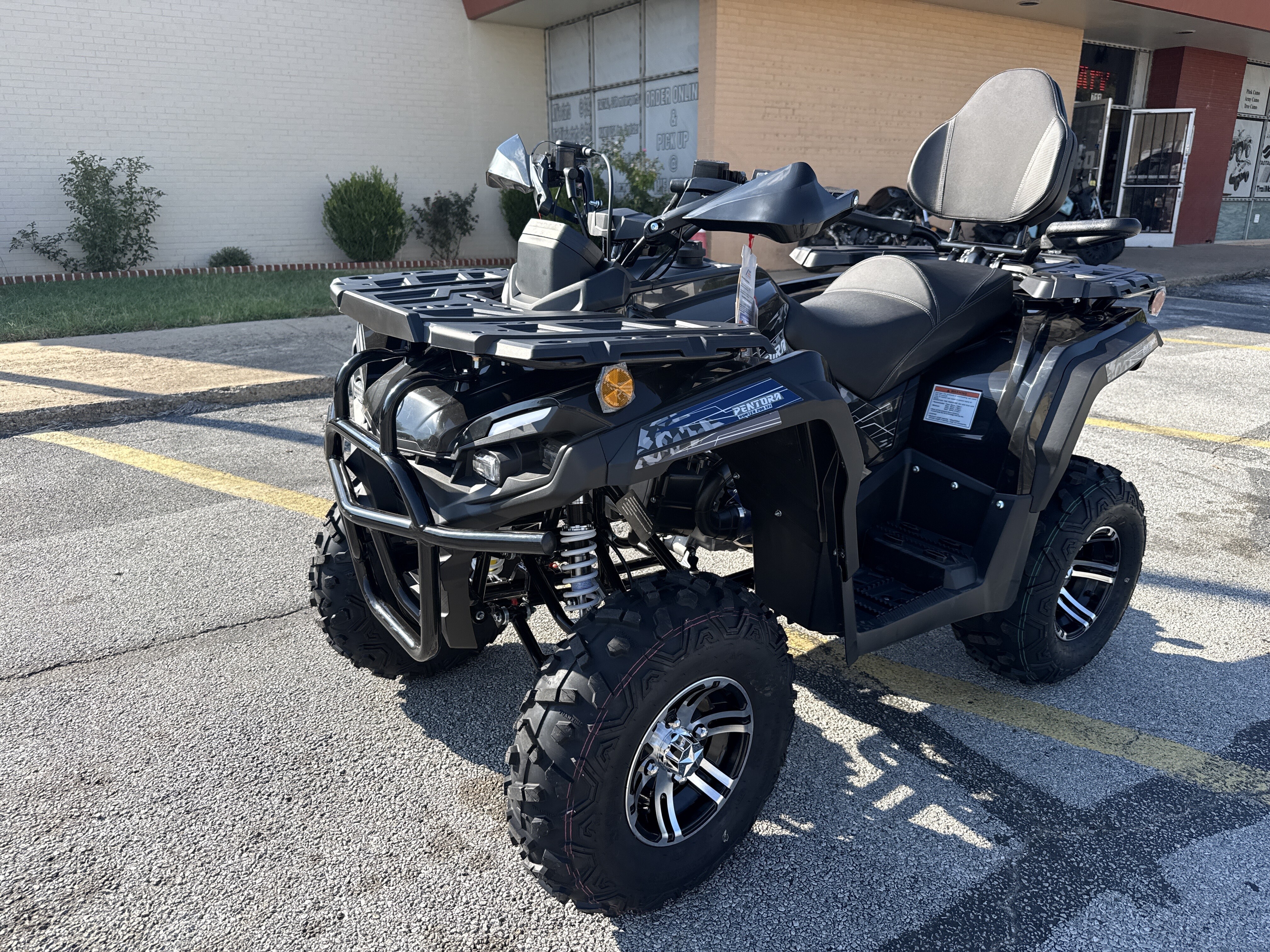

Vitacci Pentora HUNTER 200 EFI ATV – Rugged Off-Road Adventure Machine
Experience adventure like never before with the Vitacci Pentora HUNTER 200 EFI ATV, available now at Arlingtonpowersports.com. Powered by a 177.3cc four-stroke engine with oil and forced air cooling, a balance shaft, and horizontal design, this ATV delivers smooth, reliable performance. The automatic centrifugal dry clutch and electric start make operation effortless, while the CDI ignition ensures consistent power. Reach speeds up to 60 km/h and tackle slopes with 21° climbing ability. Equipped with front and rear hydraulic brakes, 21×7-10 front and 22×10-10 rear tires, and a 9.7L fuel tank, it balances control, stability, and long-lasting rides. Comfort meets functionality with 835mm seat height, 1120mm handle height, 265mm ground clearance, and hydraulic shock absorbers. With a tube-type impedance muffler, compact package, and rugged design, the Pentora HUNTER 200 EFI is built for thrill and durability. Shop today at Arlingtonpowersports.com and elevate your off-road adventures with this versatile and powerful ATV.
KEY FEATURES
✔️ Electronic Fuel Injection for Smooth Performance
✔️ Front & Rear Hydraulic Disc Brakes for Reliable Stopping Power
✔️ Heavy-Duty Steel Frame with 21" Front & 22" Rear Tires
✔️ Electric Start with Automatic Centrifugal Clutch
✔️ Max Speed 60 km/h with 21° Climbing Capability
✔️ Front & Rear Hydraulic Shock Absorbers for Comfort
✔️ 9.7L Fuel Tank for Extended Rides
- VEHICLE SPECIFICATIONS
- Vehicle Size: 1860 × 1050 × 1340 mm
- Wheelbase: 1210 ± 20 mm
- Front Wheel Spacing: 810 mm
- Rear Wheel Tread: 800 mm
- Minimum Ground Clearance: 265 ± 15 mm
- Seat Height: 835 ± 15 mm
- Chassis Height: 295 mm
- Handle Height: 1120 mm
- Package Size (L × W × H): 1950 × 1130 × 820 mm (36/40H)
- Front Mechanical Hitch Travel: 75 mm
- Rear Mechanical Hitch Travel: 90 mm
- Minimum Turning Diameter: 3400 ± 500 mm
- Steering Angle: <45° (actual 39°)
- Sides Lip: <5 m/km
- Rated Load Mass: 100 kg
- Net Weight: 197 kg
- Gross Weight of Packing: 225 kg
- BRAKES & WHEELS
- Brake Type (Front / Rear): Hydraulic
- Brake Control Mode (Front / Rear): Front hand brake / Rear foot brake
- Rim Type (Front/Rear): 10寸
- Tire Size (Front / Rear): 21×7-10 / 22×10-10
- Tire Pressure (Front/Rear): 9 PSI
- Transmission Mode: Chain
- ENGINE
- Model: JN1P63QMK
- Type: 4-stroke, oil and forced air cooling, balance shaft, horizontal
- Production Unit: Juneng
- Bore × Stroke: 62.5 × 57.4 mm
- Cylinder Capacity: 177.3 ml
- Compression Ratio: 10:1
- Rated Power / Speed: 7 kW / 7000 r/min
- Max Power/Speed: 7.3 kW / 7500 r/min
- Max Torque / Speed: 10 N·m / 6000 r/min
- Min No-load Stable Speed: 1700 ± 100 r/min
- Minimum Fuel Consumption Rate: 367 g/kW·h
- Fuel Grade: 93#
- Lubrication Mode: Pressure + splash mixed
- Lubricating Oil: SAE 80W/90SF / SAE 15W-40 (crankcase), SAE 80W/90 (gearbox)
- Clutch Type: Automatic centrifugal dry
- Starting Mode: E-start
- Ignition Mode: CDI
- Spark Plug: C7HAS (NGK), A7T or A7RT
- Battery: 12V, 9Ah
- Headlamp: 12V 55-55W
- Fuel Tank Volume: 9.7 L
- PERFORMANCE
- Maximum Speed: 60 km/h
- Starting Performance: 15 s
- Braking Performance: ≤ 5.9 m / 30 m/km/h
- Front Wheel Force: ≥ 60%
- Front Wheel Force Differential: ≤ 20%
- Rear Wheel Force: ≥ 55%
- Rear Wheel Force Differential: ≤ 24%
- Climbing Performance: 21°
- Parking Performance: ≥ 18%
- Emission Index: CO ≤ 2%, HC ≤ 250 ppm
- Maximum Noise: ≤ 82 dB(A)
- Starting Acceleration Performance: ≤ 18 s
- Beyond Acceleration: ≤ 15 s
- SUSPENSION & EXHAUST
- Front/Rear Shock Absorber: Hydraulic damper
- Shock Absorption Length (F/R): 345 mm / 350 mm
- Exhaust Muffler Type: Tube-type impedance composite
