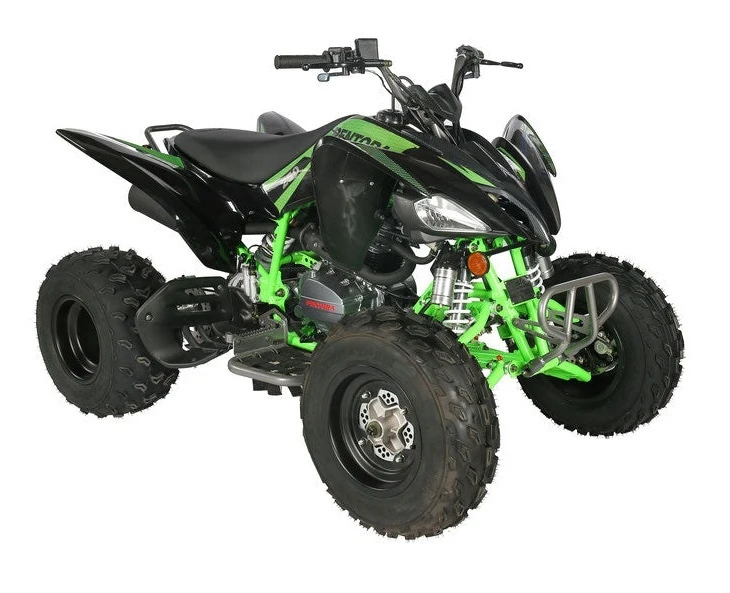

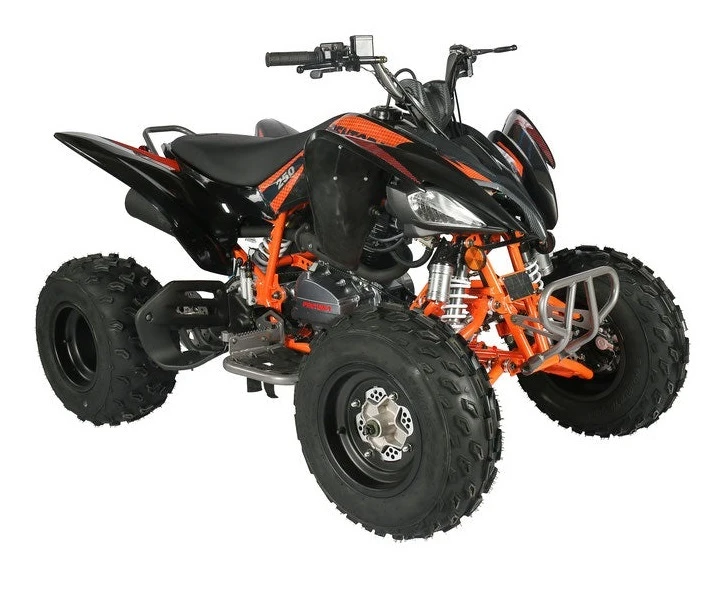

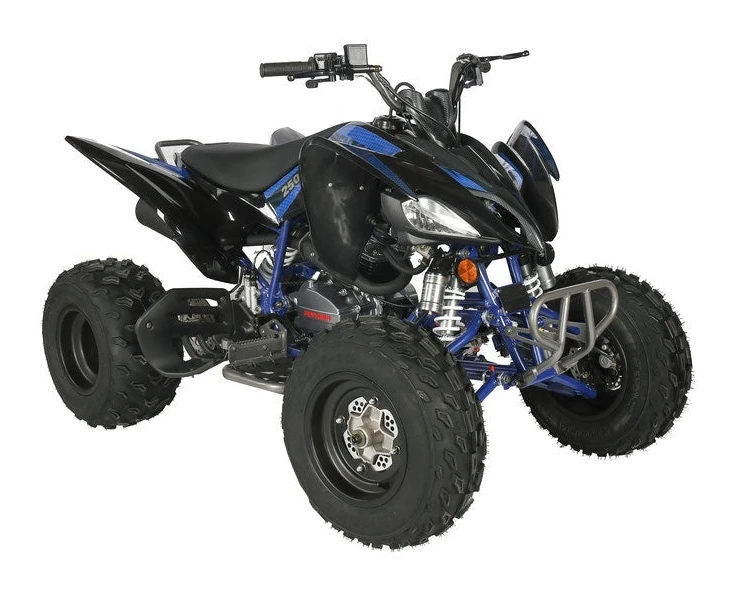

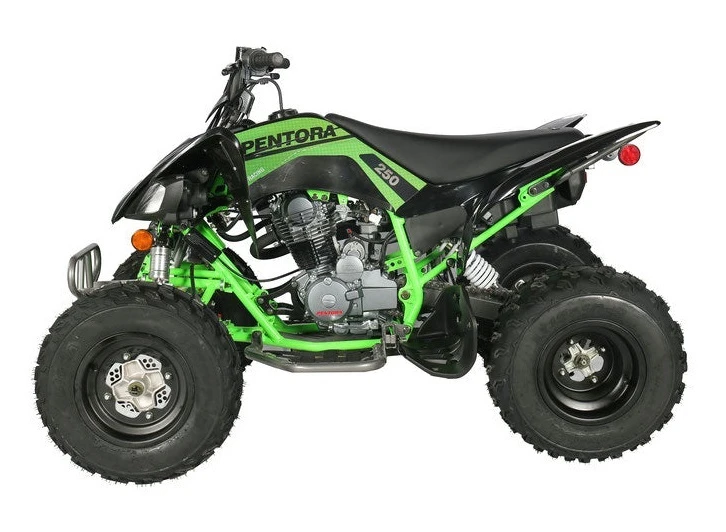

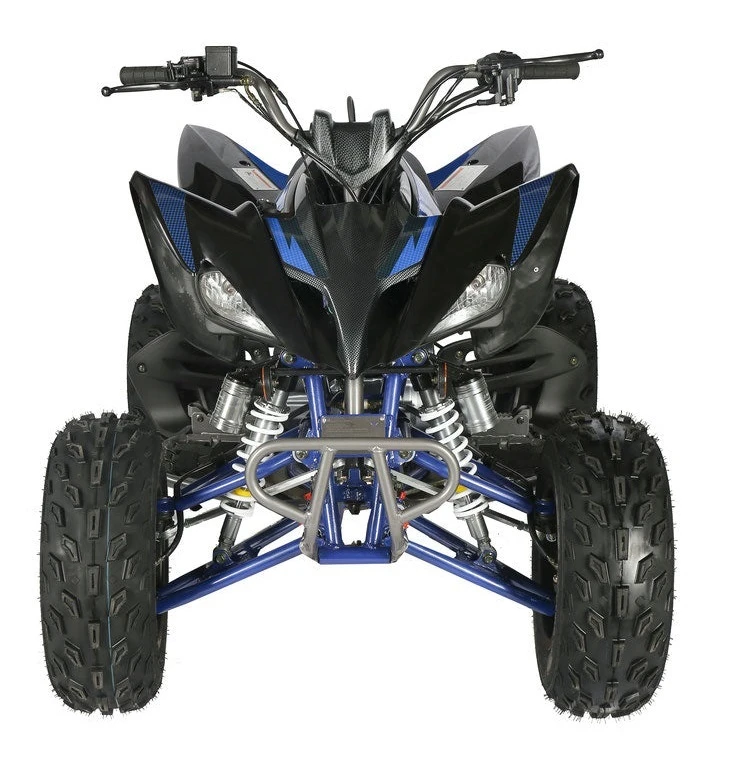

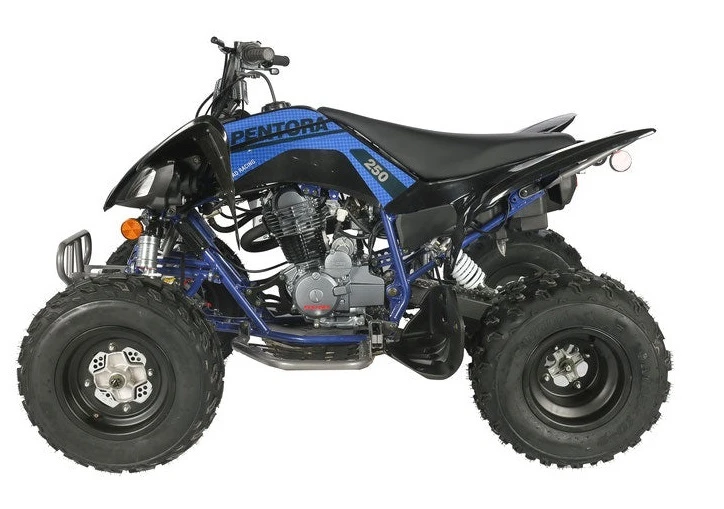

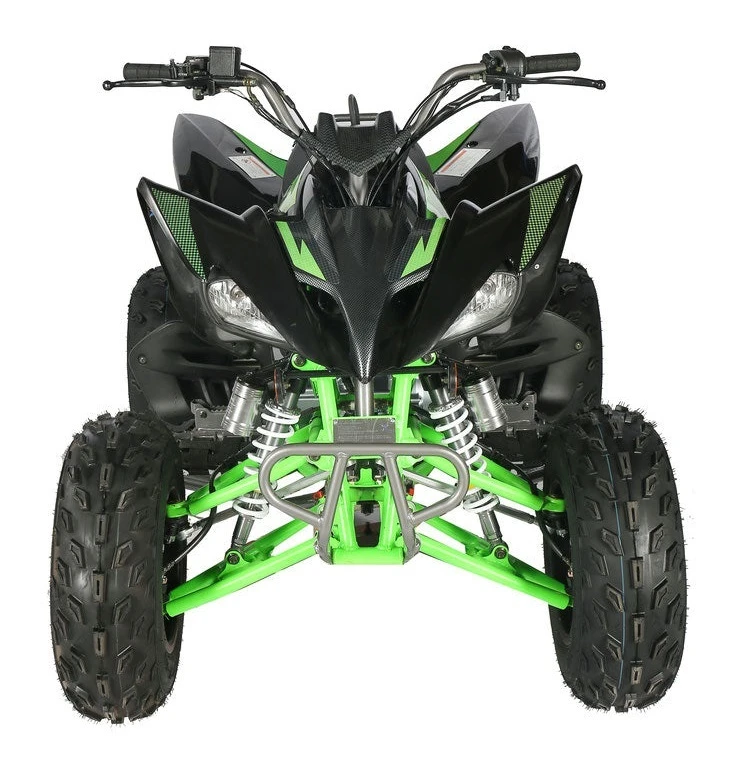

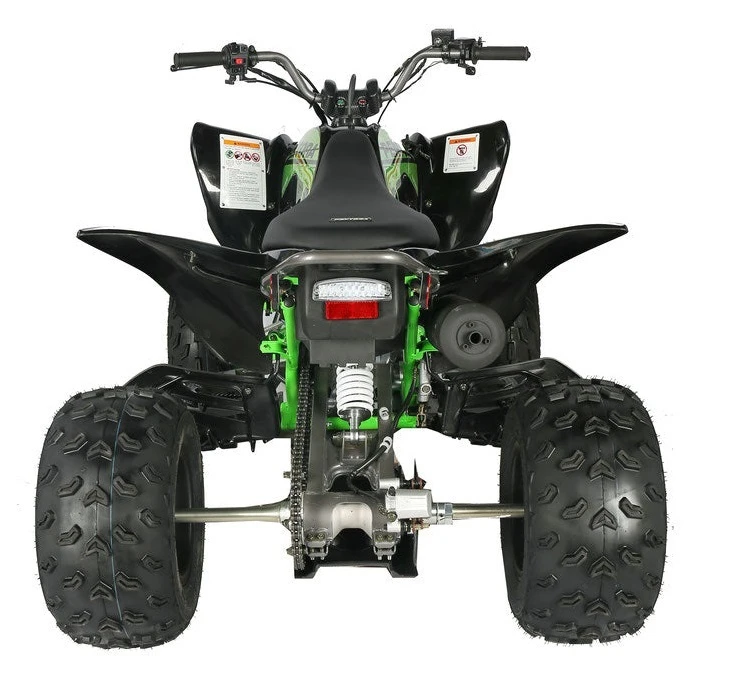

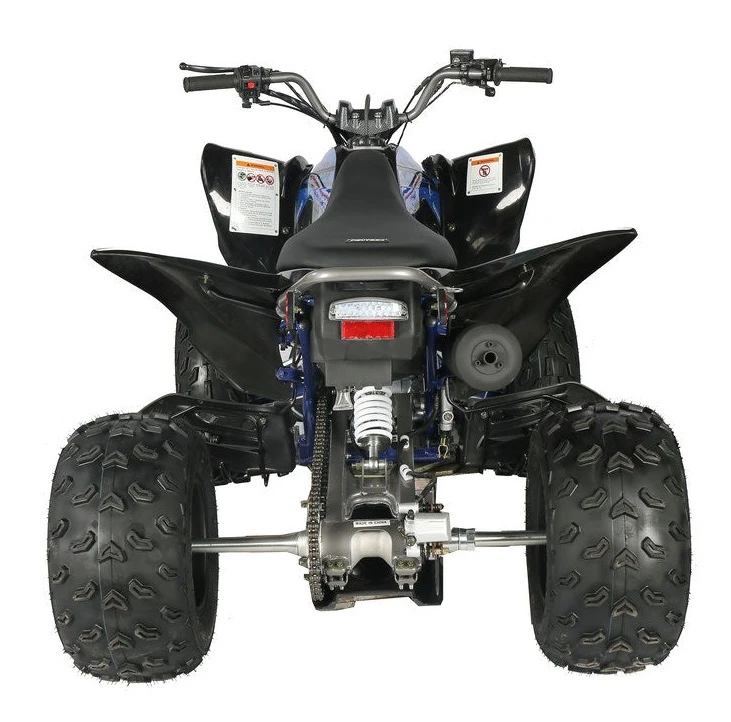

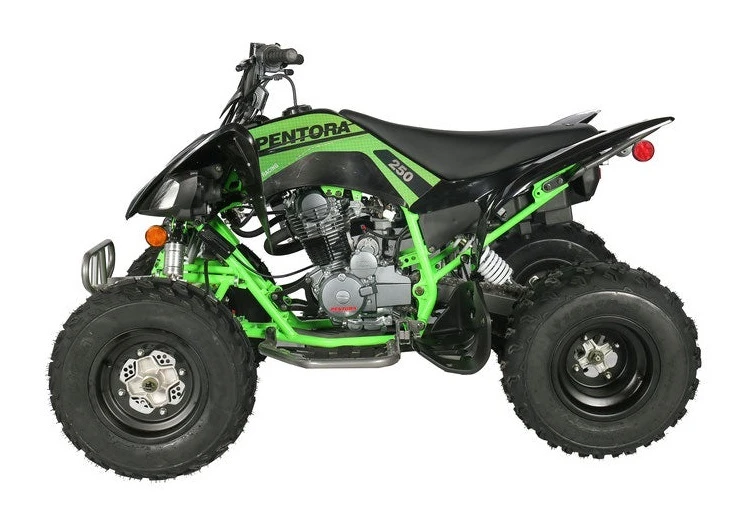

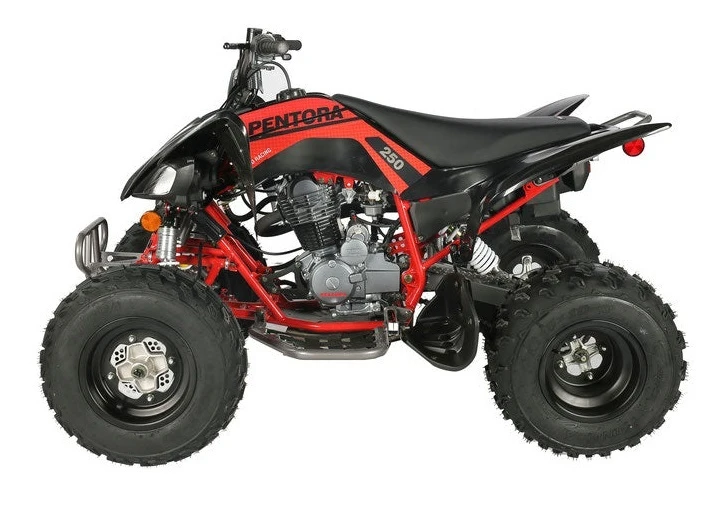

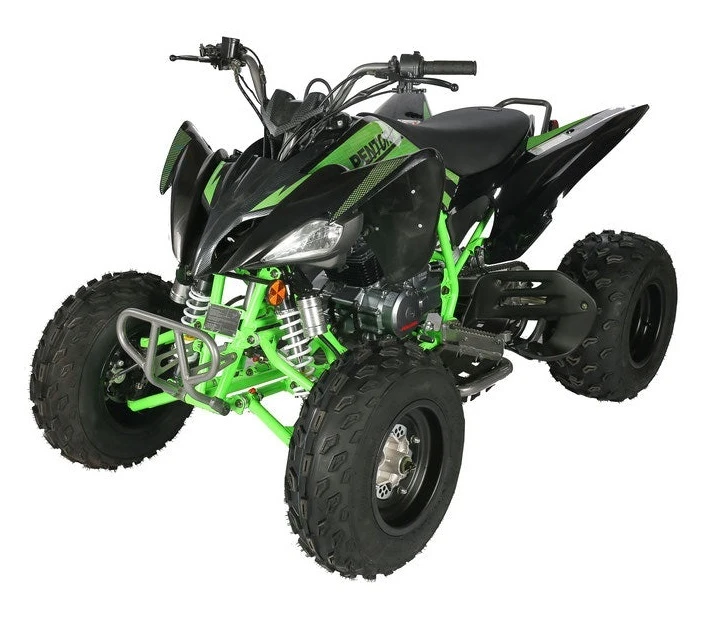

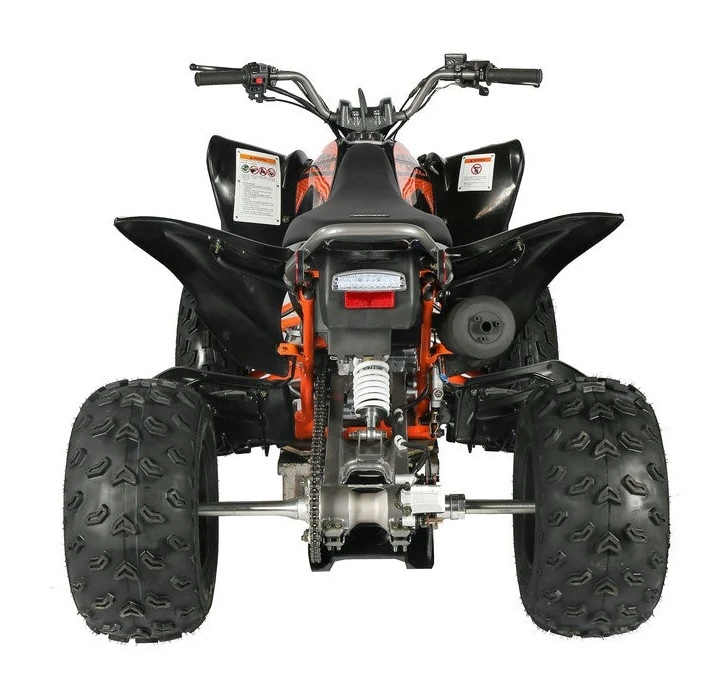

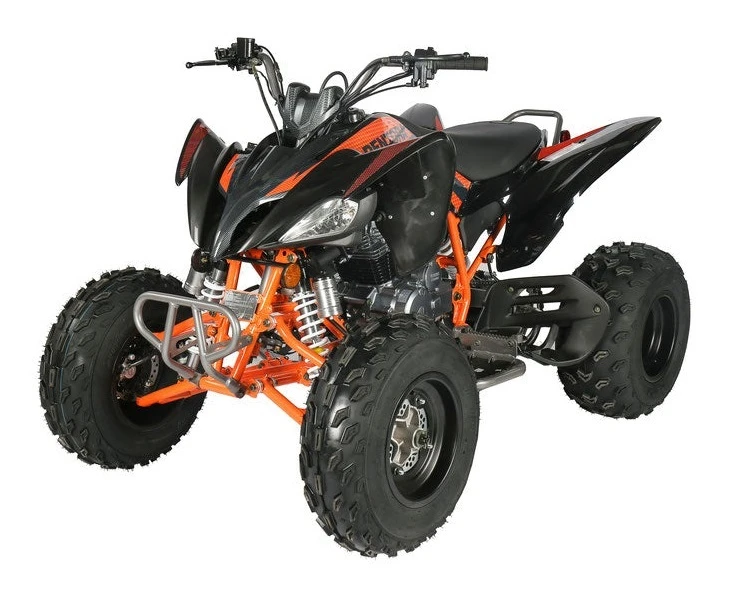

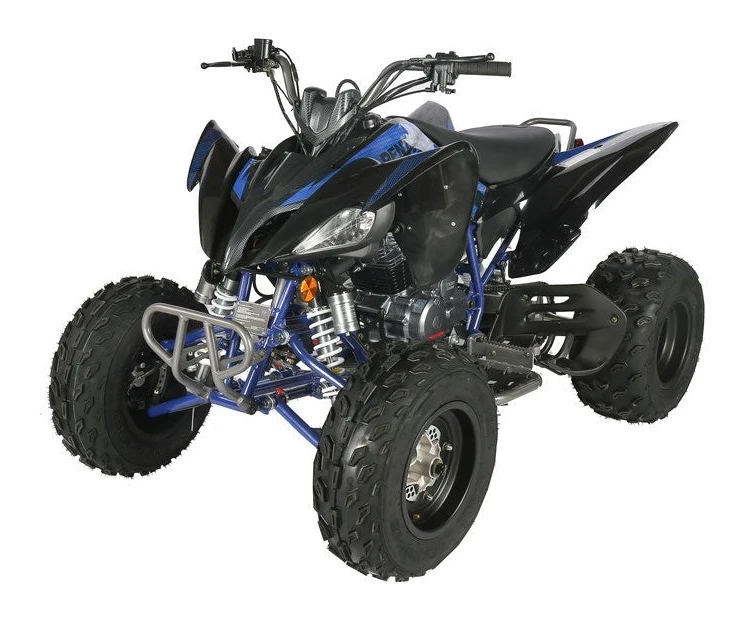

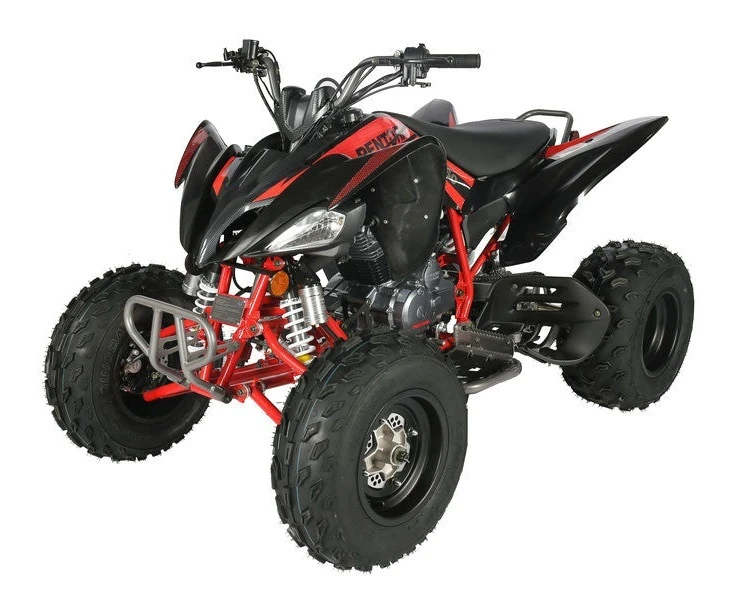

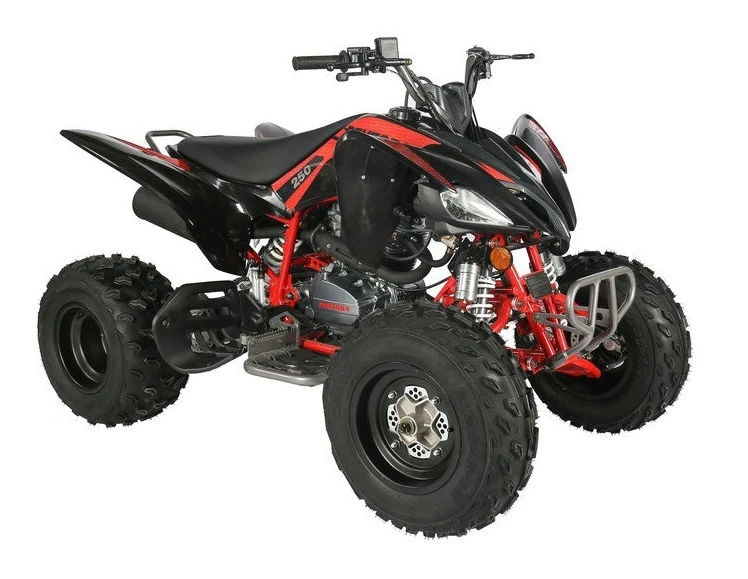

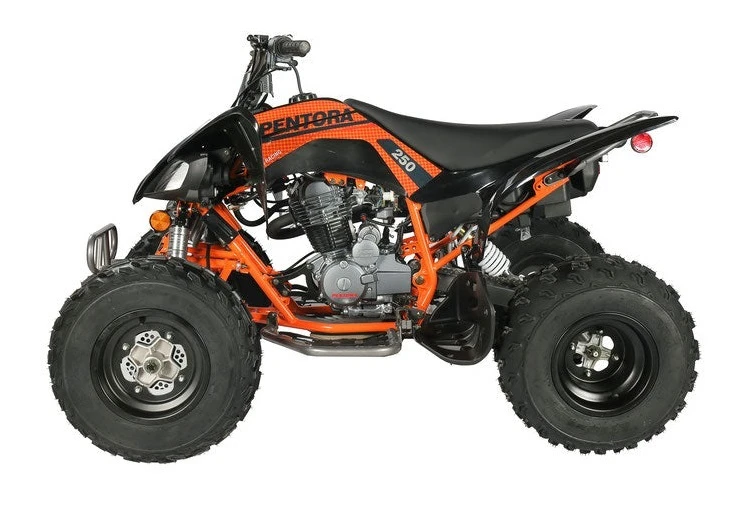

Vitacci Pentora 250cc Racing ATV, Polaris Style Rims, Loncine Engine

SKU:
VITACCI-PENTORA-250-ATV
Availability:
CURRENTLY SOLD OUT
Weight:
240.00 LBS
Shipping:
Free Shipping
CoupenCodeImg

Local Pick-Up: You can come and pick up your New ride at a lower price @ 3201 East Pioneer pkwy #34 Arlington, Tx 76010, however, In store we offer assembling service at additional charges, please call for details.

$2,006.99
Found it cheaper elsewhere? Call 817.649.7823 OR Request Price Match
Secure Icon Secure Icon Secure Icon Secure Icon Secure Icon Secure Icon
GET YOUR Vitacci Pentora 250cc Racing ATV FROM THE BEST FOR LESS

When you’re investing in motorsports, make sure you get your money’s worth by working with the best in the business. Arlington PowerSports offers unbeatable prices on the Vitacci Pentora 250cc Racing ATV, and it’s backed by a 1-year warranty. We’ll even ship your order right to your door FREE of charge.

At Arlington PowerSports, we specialize in everything motorized that goes off-road. We’re a licensed dealer with years of experience and thousands of sales under our belts. If you have questions or would like to know more about the Vitacci Pentora 250cc Racing ATV, give us a call at 1-817-649-7823 and we’ll be happy to help.


NO.

ITEM

TECHNICAL SPECIFICATION



1.

SPECIFICATION

PARTS SPECIFICATION

L ×W×H

1625*1060*1065

2.

WHEELBASE

1090 ±20mm

3.

FRONT WHEELBASE

820mm

4.

REAR WHEELBASE

830mm

5.

MINIMUM GROUND CLEARANCE

135 ±15mm

6.

SEAT HEIGHT

790 ±15 mm

7.

RIDE HEIGHT

225mm

8.

HANDLE HEIGHT

1000mm

9.

PACKING SIZE

1460*880*860mm 62pcs/40HQ

10.

MINIMUM TURNING CIRCLE DIAMETER

5900 ±500mm

11.

TURNING ANGLE

<45 °

12.

RATED LOAD

100kg

13.

NET WEIGHT

149kg

14.

GROSS WEIGHT (WITH PACKING)

177kg

15.

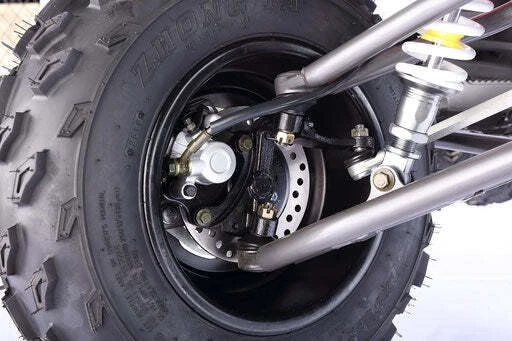

F&R BRAKE

F&R HYDRAULIC DISC

16.

F&R BRAKE OPERATION TYPE

FRONT HAND BRAKE, REAR FOOT BRAKE

17.

F&R RIM

10*5.5AT/9*8.0AT

18.

F&R TYRE

AT20*7.0-10/AT19*10-9

19.

TRANSMISSION

CHAIN

20.

TECHNICAL SPECIFICATION

FUEL TANK

9L`

21.

22.

BATTRY

12V/7HA `

23.

MAXIMUM SPEED

70km/h

24.

SPECIFICATION

STARTING PERFORMANCE

15S

25.

CLIMBING PERFORMANCE

21 °

26.

PARKING PERFORMANCE

≥18°

27.

EMISSION INDEX

CO (%)

≤3.8

HC(PPm)

≤800

28.

db.(A)

≤82 dB(A)

29.

ENGINE SPECIFICATION

MODEL

LC166FMM

30.

TYPE

SINGLE CYLINDER、250cc air cooler 2 valves、4-STROKE

31.

BRAND

LONCIN

32.

BRORE×STROKE

65.5x66.2mm

33.

capacity

223mL

34.

COMPRESSION RATIO

9.0:1

35.

MAX.POWER

12(1±5%)kW /7500(1±5%)rpm

36.

MAX.TORQUE

17(1±5%)N · m/6000(1±5%)rpm

37.

Min no load speed

1500(1±10%) r /min

38.

min fuel consumption rate

354g / kw.h

39.

Fuel no.

≥RQ90

40.

CLUTCH METHOD

Manual

41.

Start

Electrical start

42.

cdi

C.D.I

43.

PARTS SPECIFICATION

carb

PZ30

44.

Spark plug

D8TC

45.

Front light

12V18-18W

46.

TECHNICAL SPECIFICATION

Max speed

70km/h

47.

Start time

15S

48.

break



前轮力和

≥60%

前轮力差

≥55%

后轮力和

≤20%

后轮力差

≤24%

49.

CLIMBING PERFORMANCE

21°°

50.

PARKING PERFORMANCE

≥18%

51.

EMISSION INDEX

CO (%)

≤3.8

HC(PPm)

≤800

52.

db(A)

≤82 dB(A)

53.

Starting acceleration(S)

≤8

54.

Speed acceleration(S)

≤8

55.

Parts spec

Tank capacity

9L

56.

Fr. & re suspension

Oil dumper

57.

Fr. &re suspension

L=350 m m /L=390 m m
