What is not assembled if buying fully assembled: Roll cages, steering wheel, canopy top, rear top-side plastics

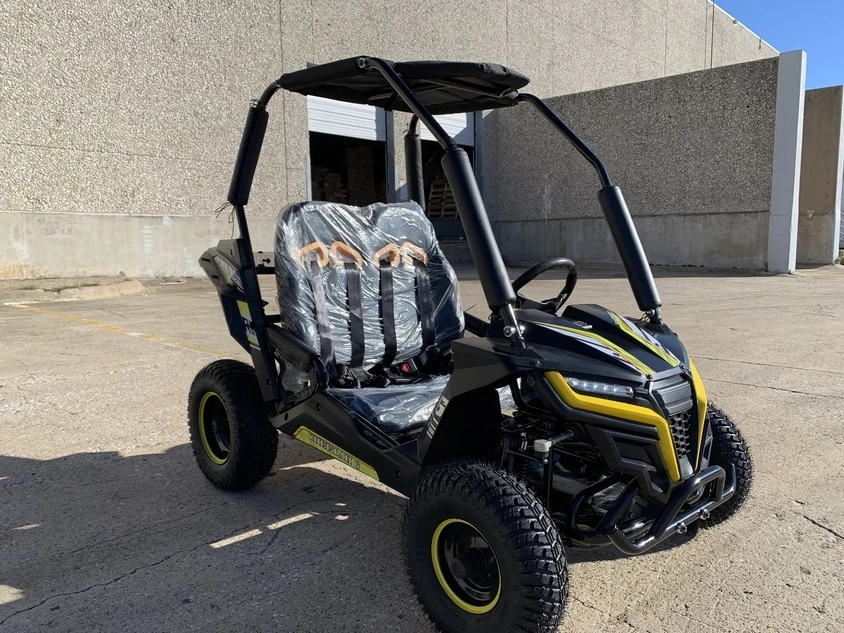

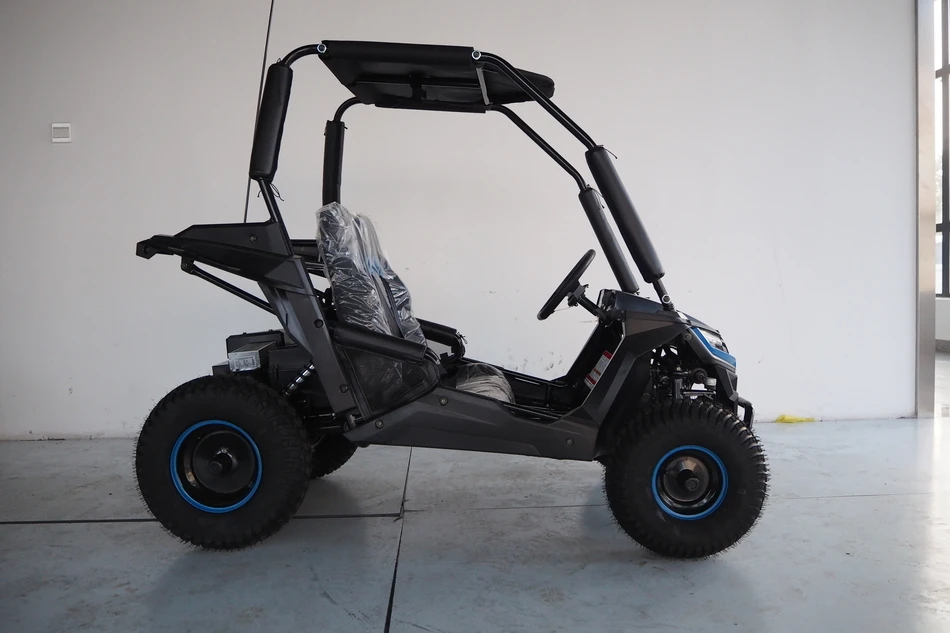

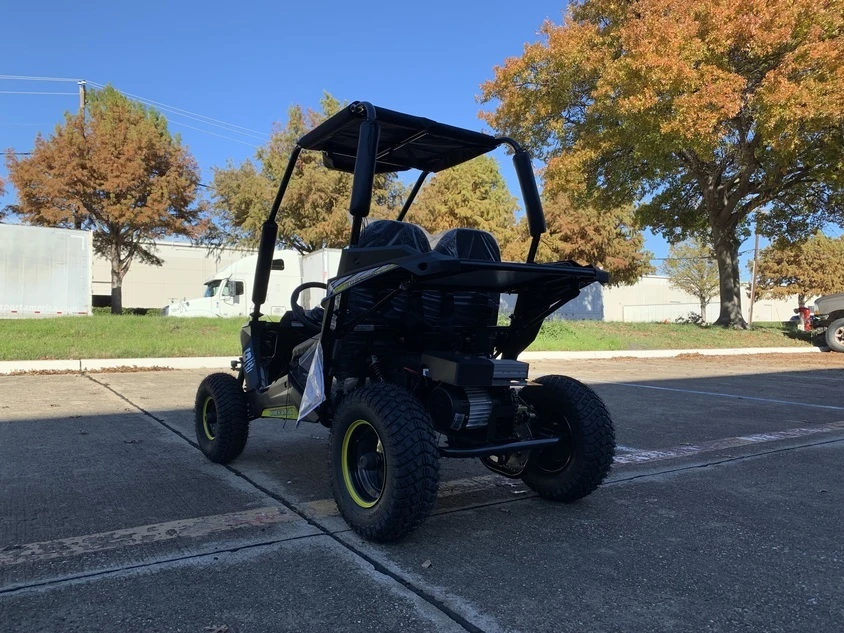

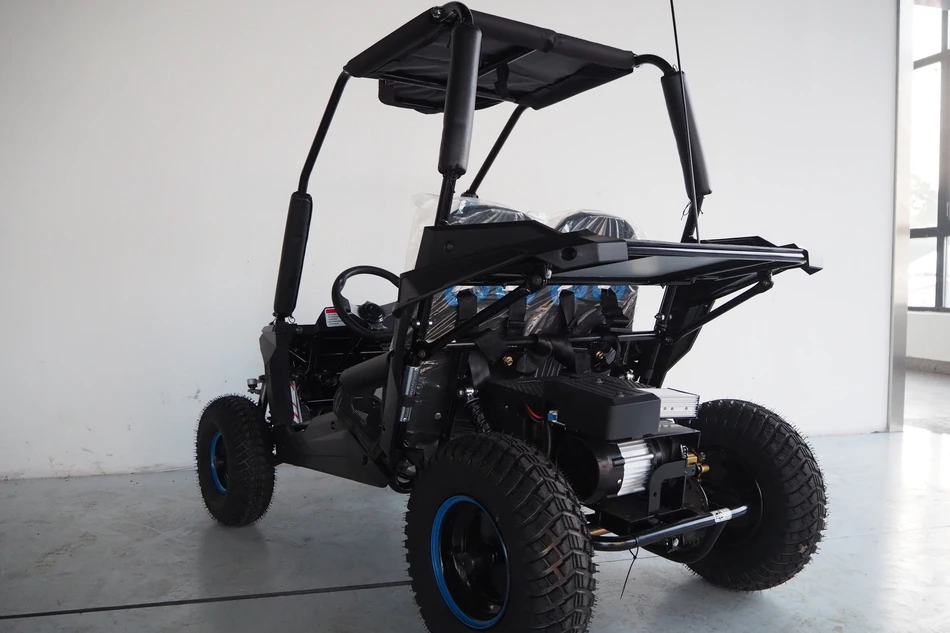

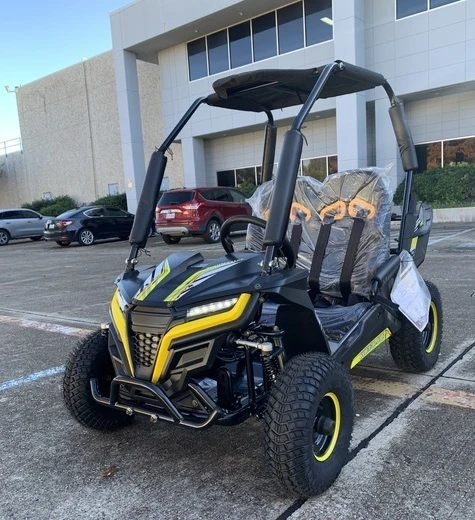

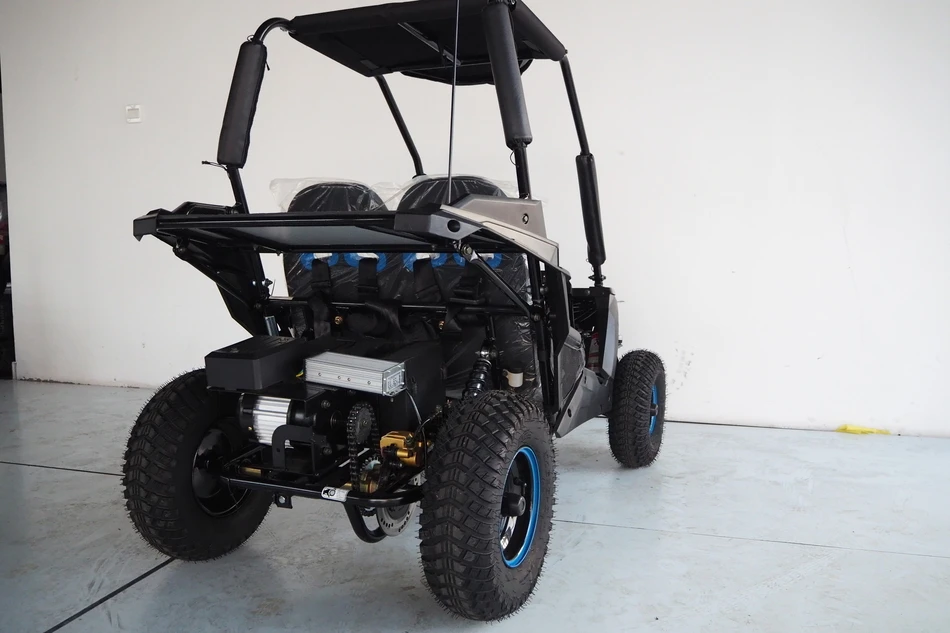

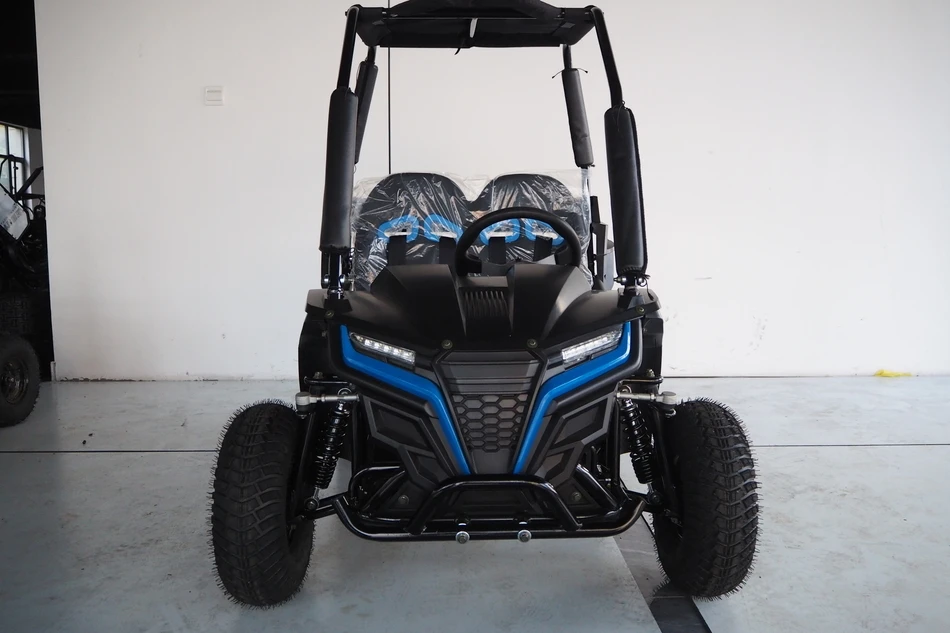

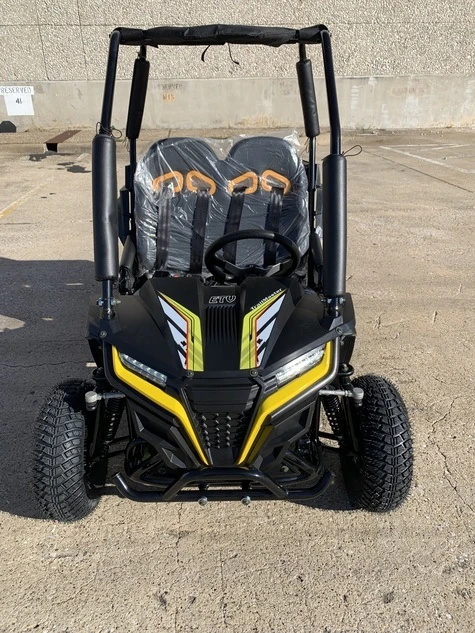

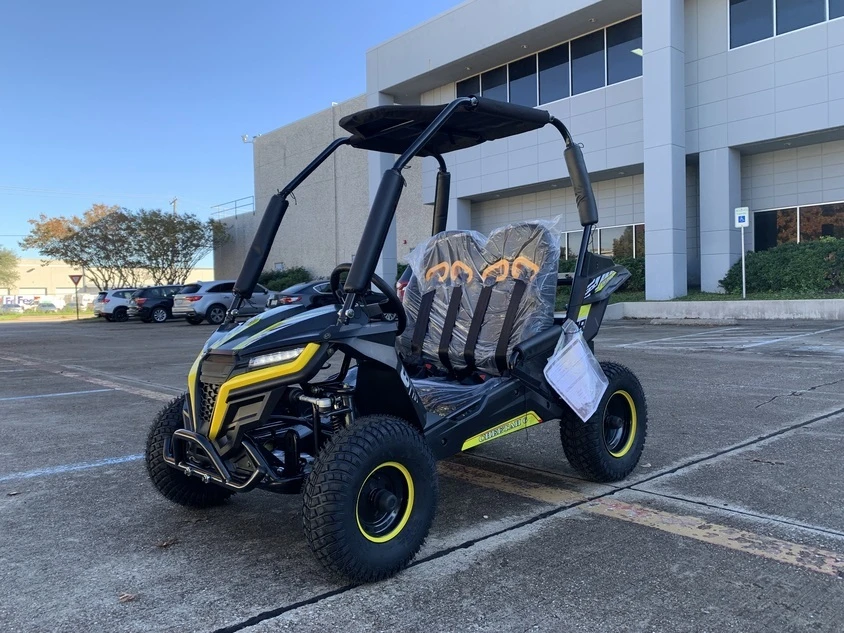

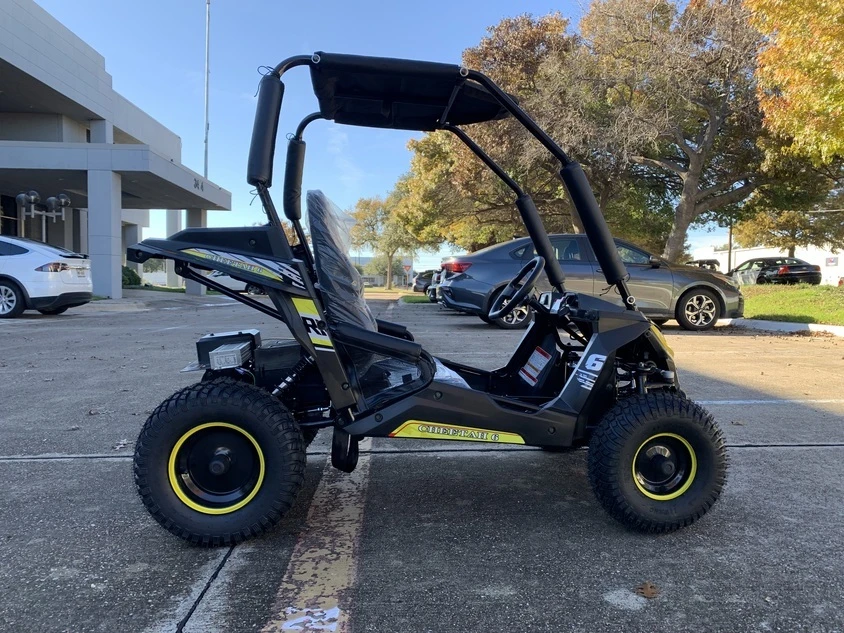

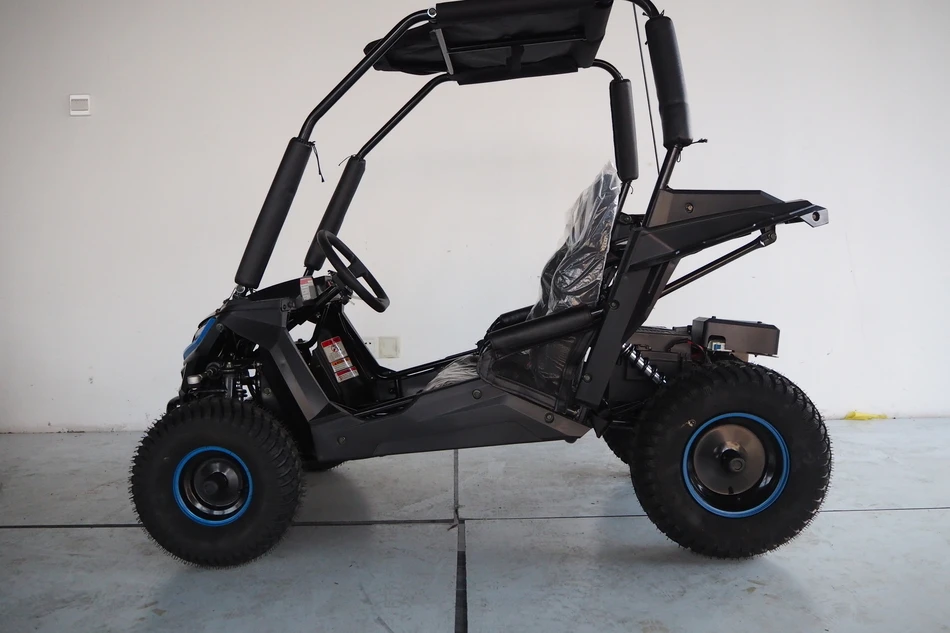

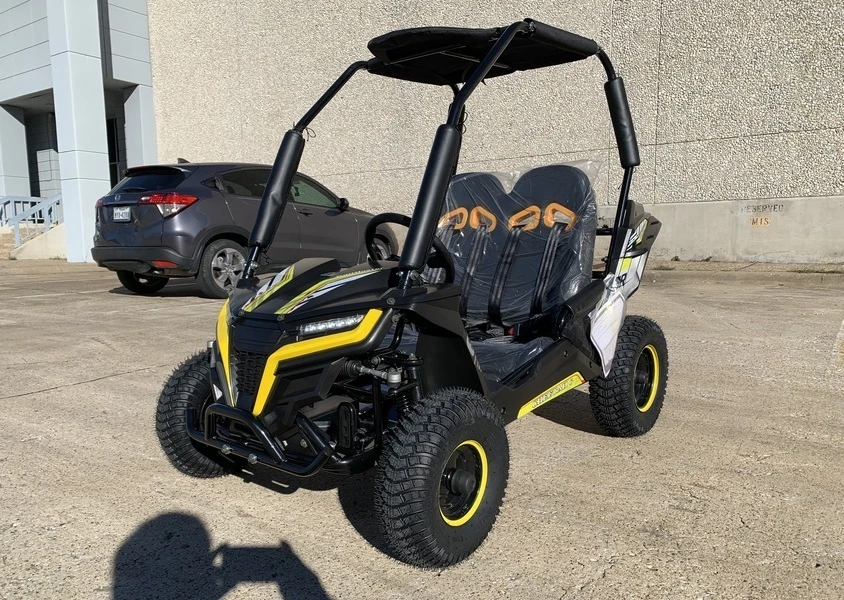

TrailMaster Cheetah i6 electric Super Quiet 650W DC Motor 48V 20Ah Battery
This 650W DC Brush Motor electric vehicle delivers 1100W max output and 15Nm torque at 2500 RPM, providing powerful performance. Equipped with a 48V 20AH battery, it offers a maximum range of 30 miles per charge and can reach speeds of 19 MPH, with a low-speed mode of 13 MPH for safer rides. The 12° climbing ability ensures smooth navigation over inclines.

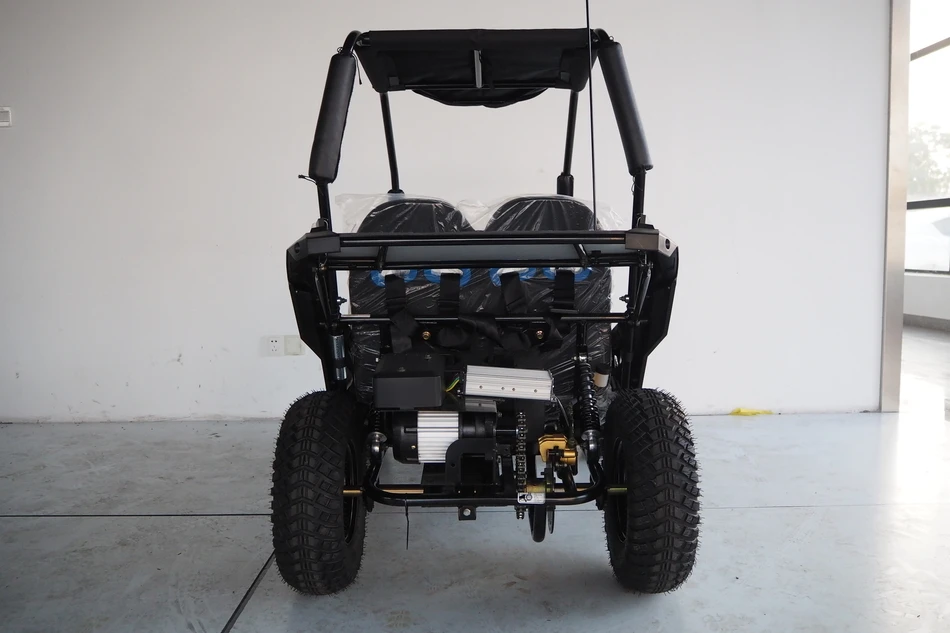

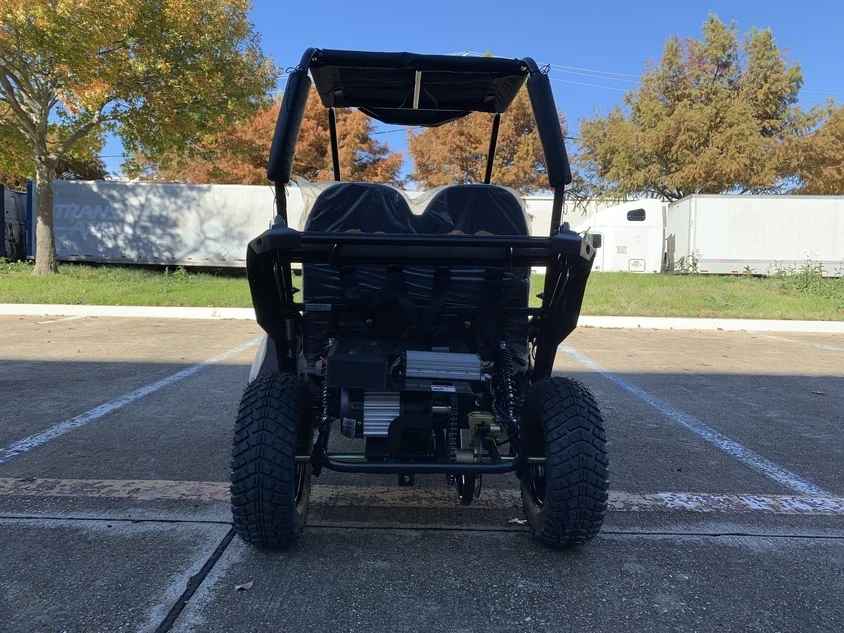

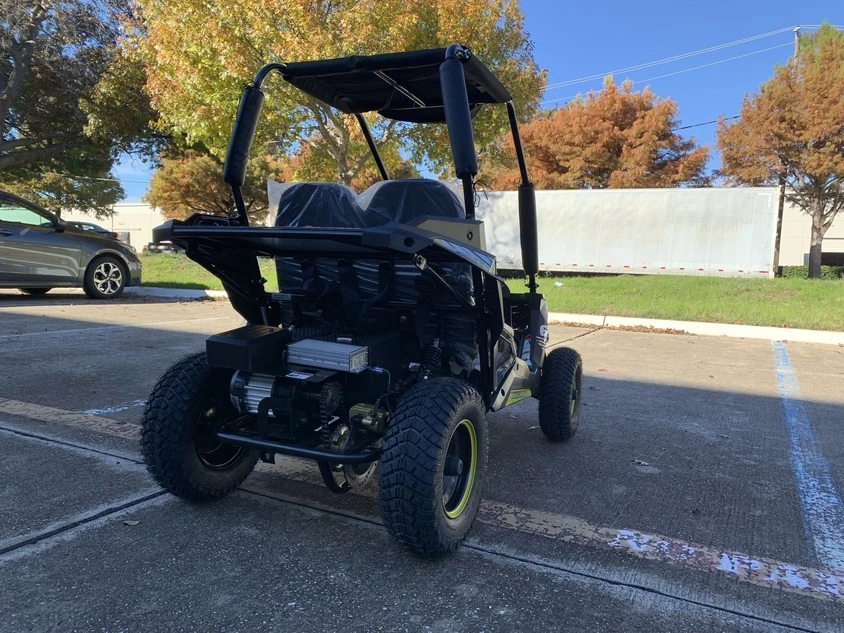

Designed with CHAIN / Dual Wheel Drive, this model provides enhanced traction and stability. Its Dual A-Arm front suspension and Thru-Shaft with Dual Shocks rear suspension absorb shocks effectively for a smoother ride. Safety features include rear disc brakes and high-traction tires (145/70-6 front, 16*6-8 rear) for excellent grip.
The frame supports a maximum load of 180 lbs, making it ideal for various riders. The turning radius of 13.1 feet ensures excellent maneuverability, while the seat height of 14.2 inches and adjustable pedal-to-seat-back distance (28” to 32”) provide comfortable ergonomics
This new kid’s size UTV/Go kart includes the following main features:
- Super Quiet 650W DC Motor
- 48V 20Ah Battery
- 3 speed switch L/M/H with max speed 19M/H on H, 13M/H on L;
- 30 mile capacity on full charge

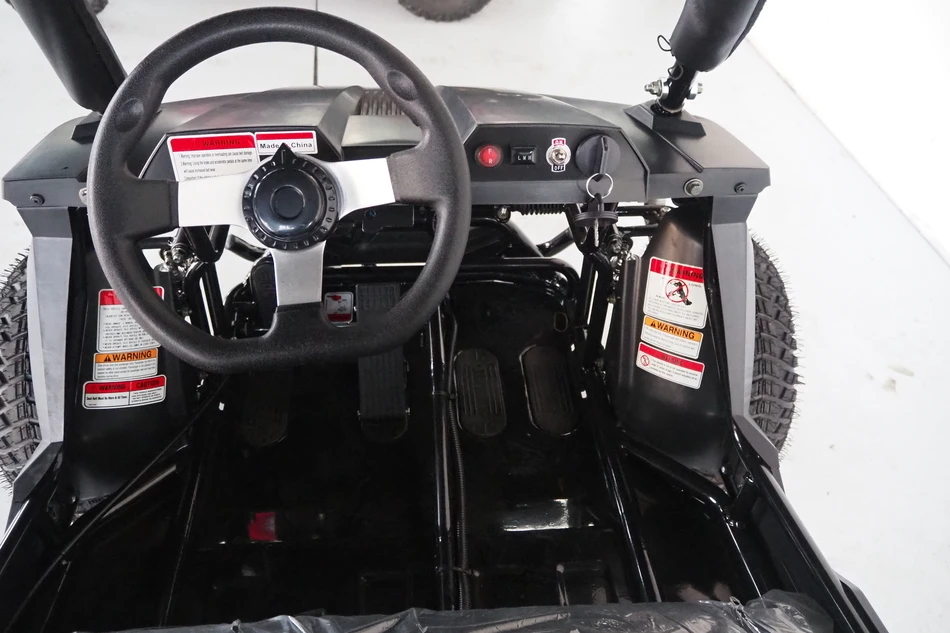

- Forward/Reverse gear (Controlled by Red on/off switch)
- LED Headlight
- Adjustable seat: pedal to seat back adjustable from 28” to 32”, Age Group: 6-12 yrs, fits person up to 5’4”
- 4 point safety seat belt
TECHNICAL SPECS
Parts breakdown set up manuel
Cheetah 6 | Owner's Manual |
Specification of Cheetah i6 | |
Motor Type | DC Brush Motor |
Power | 650W |
Max. Output | 1100W |
Max torque | 15n.m/2500rpm |
Battery | 48V20AH |
Max speed | 19 M/H, 13 M/H on low speed mode |
Climbing ability | 12° |
Mileage at full charge | 30 Mile |
Turning Radius | 13.1 feet |
Gears | F--R |
Drive Mode | CHAIN / DUAL WHEEL DRIVE |
Suspension, F / R | DUAL A-ARM / THRU-SHAFT WITH DUAL SHOCKS ARM |
Brakes | REAR DISC |
Tires, F / R | 145/70-6 / 16*6-8 |
Weight, G.W. / N.W. | 308 / 264 lbs - 139/ 119 kg |
Max load | 180 LBS |
Dimension Information | |
Wheelbase | 43.7" |
Length×Width×Height | (Inches)63x36x50 / (mm)1600x914x1270 |
Height to seat | 14.2 inches |
Min. ground clearance | 3.6 inches |
Pedal to seat back | 28” to 32” |
package size | 60X32X21 inches |
