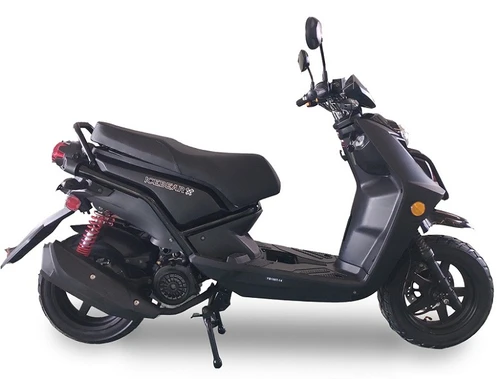

ICE BEAR VISION (PMZ150-17) 150CC SCOOTER, AIR COOLED, AUTOMATIC, ELECTRIC AND KICK START
150cc, Air Cooled, Front Disc/Rear Drum, 120/70-12" Aluminum Wheels, Kenda Tires
Technical Specs
Engine | 150cc, 157QMJ, XinBa |
Transmission | Automatic |
Drive type | Belt |
Belt and or chain size | 842-20-30 |
Starter System | electric /kick |
Fuel system | Gasoline, 1.7gal, carbureted |
Brake (Front/Rear) | Disc/Drum |
Tire size(Front/Rear) | 120/70-12 |
Wheel size and type(Front/Rear) | 12, Alunimum |
Oil capacity and type (in liters) | 0.8L, 10w40 aircooled engine oil (non-synthetic) |
Gear oil type and capacity( in liters) | GL-3, 0.25L |
Battery | 12V/9Ah |
Light | Standard Lights |
Suspension(Front/Rear) | Double Shock |
Dimensions(in inch / mm) | Assembled(Length*Width*Heigth): 73.6 x 26 x 44 / 1869 x 660 x 1117 Crated(Length*Width*Heigth): 81.5 x 29.1 x 45.3 / 2070 x 739 x 1151 Seat height:33, Wheelbase:56.7 |
Weight | 350 lbs / 159 kg |
weight capacity | 320 lbs / 145 kg |
Ground Clearance (in inch) | 3.9 |
Assembly Require | Handlebars, front wheel,front fender, speedometer,mirrors |
Any special features | |
EPA/carb approved | Yes/No |
