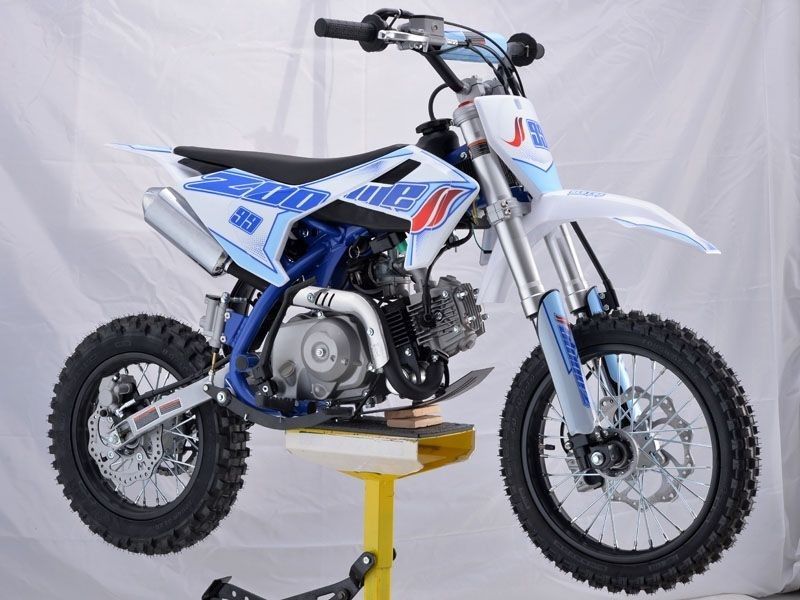

DongFang Moto RF ZOOME SE-110 Dirt Bike Semi-Automatic, 4-Stroke Engine, Disc Brakes, Rear Wheel Drive
The DongFang Moto 107cc Dirt Bike is designed to provide both power and performance, making it the perfect entry-level bike for riders looking for an exciting off-road experience. Equipped with an air-cooled, single-cylinder 4-stroke engine, this dirt bike offers smooth and consistent power. The semi-automatic transmission allows for easier handling, with a gear pattern of 1-N-2-3-4, making it ideal for both new and experienced riders. Featuring a steel tube cradle frame, 9.84 inches of ground clearance, and robust front and rear disc brakes, this dirt bike ensures a safe, durable, and fun ride. Available for purchase at Arlingtonpowersports.com.
The DongFang Moto 107cc also includes a speed limiter and kill switch, adding safety for younger or beginner riders. With its 70/100-14 front tires, 90/100-12 rear tires, and non-adjustable inverted front forks with long travel, this bike offers excellent traction and control on rough terrain.
|
|
Features
◾107cc Air-Cooled, Single-Cylinder 4-Stroke Engine: Delivers reliable power and performance for off-road riding.
◾Semi-Automatic Transmission: 1-N-2-3-4 gear system for easier shifting and rider control.
◾Electric/Kick Start: Dual start options for convenience.
◾Cradle Type Steel Tube Frame: Durable and strong construction for rugged terrain.
◾Front & Rear Disc Brakes: Single piston caliper, 220mm disc at the front, 190mm at the rear for excellent stopping power.
◾9.84 inches Ground Clearance: Optimized for off-road performance.
◾Speed Limiter & Kill Switch: Added safety features for beginners.
◾Front Suspension: Non-adjustable inverted 650mm forks with 140mm travel, 33mm tube for superior shock absorption.
◾Rear Suspension: Coil spring shock with 270mm travel for smooth riding over bumps.
◾Fuel Capacity: 0.92 gallons, ideal for longer rides.
◾Wheelbase: 40.55 inches for enhanced stability and maneuverability.
|
 |
 |
 |
| Carburetor View |
Rear Wheel View |
110cc Dirt Bike Engine Vie |
- General Information
- Vendor: DF-Moto
- Shipping Rate: 279.9500
- Assembly: 85% Assembled (need to install front wheel, handle bar, battery etc)
- Engine & Performance
- Engine: Air cooled,Single cylinder,4 Stroke,Horizontal type
- Engine Type (ml): 107
- Starter: Kick/Electric
- Battery Type: Maintenance Free Lead Acid Battery
- Gear: 1-N-2-3-4 ,Semi-Automatic
- Transmission: Chain Drive
- Driving Wheel: Rear Wheel Drive
- Max Power: 6.8（1±10%）/8000（1±5%） HP/r/min
- Max Torque: 6.7(1±10%）/5500（1±5%） N.m/r/min
- Controls: Start Switch, Kill Switch
- Kill Switch: Yes
- Speed Limiter: Yes
- Fuel Type: Gas
- Fuel Capacity (Gal): 0.92
- Frame, Suspension & Brakes
- Frame: Cradle Type Steel Tube Frame
- Ground Clearance (inch): 9.84
- Wheelbase (inch): 40.55
- Brakes Front: Single Piston Caliper, 220mm Disc
- Brakes Rear: Single Piston Caliper, 190mm Disc
- Tires Front: 70/100-14
- Tires Rear: 90/100-12
- Front Suspension: Non-Adjustable Inverted 650mm Forks, Travel - 140mm, Tube - 33mm
- Rear Suspension: Coil Spring shock - 270mm , Travel - 43mm
- Wheel Size: F14/R12
- Dimensions & Weight
- Weight Capacity (lbs): 185
- N.W. (lbs): 126
- G.W. (lbs): 158
- Vehicle Size (L x W x H): 61.02 IN X 29.13 IN X 38.58 IN
