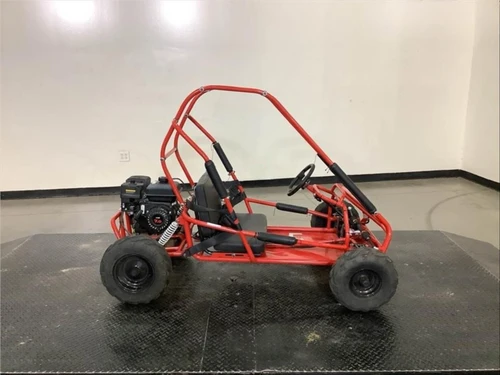

The 2025 TrailMaster MID XRS Display Model is a showroom/display unit that has been assembled and tested for proper operation. This sporty off-road go-kart is designed for recreational riding and private-property off-road use.
The MID XRS features a compact, maneuverable design with sporty styling, bucket-style seating, a protective roll cage, safety restraints, and off-road tires. Its automatic drivetrain provides easy operation without the need for manual shifting.
As a display model, this unit may have minor cosmetic marks or signs of showroom handling. It has been assembled and tested to verify functionality before sale.
- Engine & Drivetrain
- Engine Type: 4-Stroke, Single Cylinder, Air-Cooled
- Displacement: 200cc
- Max Power: 6.3 HP @ 3600 RPM
- Max Torque: 9.6 lb-ft @ 2500 RPM
- Bore x Stroke: 2.6 x 2.1 inches
- Max Speed: 31 mph
- Climbing Ability: 12 degrees
- Ignition: C.D.I
- Starting System: Manual Pull Start
- Battery: 12V 9Ah (Only by Electric Start)
- Carburetor: JF (RX)
- Clutch: Automatic CVT
- Driveline / Driving Wheel: Chain / Dual Wheel Drive
- Brake System
- Front Brake: None
- Rear Brake: Hydraulic Disc Brake
- Wheels & Tires
- Front Tire: 145/70-6
- Rear Tire: 16x6-8
- Fuel & Capacity
- Fuel Capacity: 1 Gallon
- Max Load: 400 lbs
- Suspension
- Front Suspension: Double Oil Damped Shock
- Rear Suspension: Double Oil Damped Shock
- Size & Weight
- Wheelbase: 48.4 inches
- Seat Height: 10.2 inches
- Minimum Ground Clearance: 2.8 inches
- Overall Dimensions (L × W × H): 67 x 43.3 x 51.2 inches
- Gross Weight: 386 lbs
- Net Weight: 330 lbs
- Pedal to Seat Back Distance: 31.5 to 34.5 inches
