Auto with Rev, 7" Tires
Foot Shifter

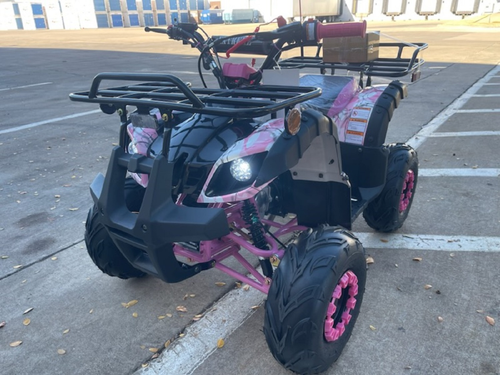

Vitacci RIDER-7 125cc ATV, Single Cylinder, 4 Stroke (Led Lights) - Fully Assembled and Tested
Technical Specs
MODEL NO.Rider 7'' Tire 125cc
CONFIGURE.
Decals : N
Tool kit : Y
Remote start : Y
Remote engine stop : Y
Remote alarm : Y :
Speed limiter : Y
Assembly required : *
ENGINE INFO. :
Engine type : Four Stroke ,single cylinder,
Engine brand : Tianzong
Displacement : 110 cc, 125 cc
Cooling : Air cooled
Max horsepower : 5.2kW/8000(r/min);
Max torque : 7.0N.m/5000(r/min) :
Bore*stroke : 52.4×49.5 mm
Max speed : 55km/h
Climbing ability : ≥11°
Ignition : C.D.I
Starting system : Electric start
Battery : 12V 4AH
Carburetor brand : Pz19
Engine oil : 15W/40-SE
Gear oil : *
CHASSIS ETC.
Clutch : automatic
Transmission : 1-forward,1-neutral,1-reverse
Driveline : Chain drive
Driving wheel : *
Suspension,front/rear : FR:DOUBLE / RR:SINGLE
Brakes,front/rear : FR:DRUM RR:DISC
Brake operation : HAND+foot
Tires; Front/Rear : 16 x 8.0-7 / 16 x 8.0-7
Fuel capacity/type : 2.3L
Weight,G.W./N.W. : *
Max load : 90kg
DIMENSIONS :
Wheelbase : 35 Inch
OA L*W*H : 52×33×37 Inch
Height to seat : 26.5 Inch
Min ground clearance : 3.5 Inch
Carton size : 51×29×25 Inch
