FREE WINDSHIELD FOR PURCHASE OF ANY TAURUS MODELS
FREE WINDSHIELD WITH THIS GOLF CART PURCHASE!

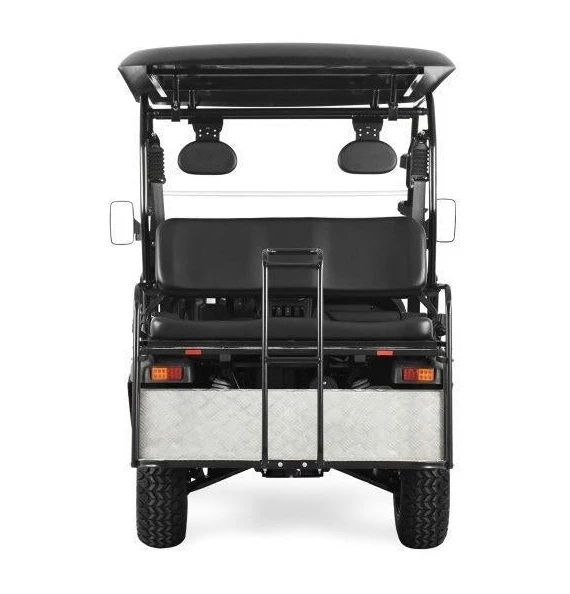

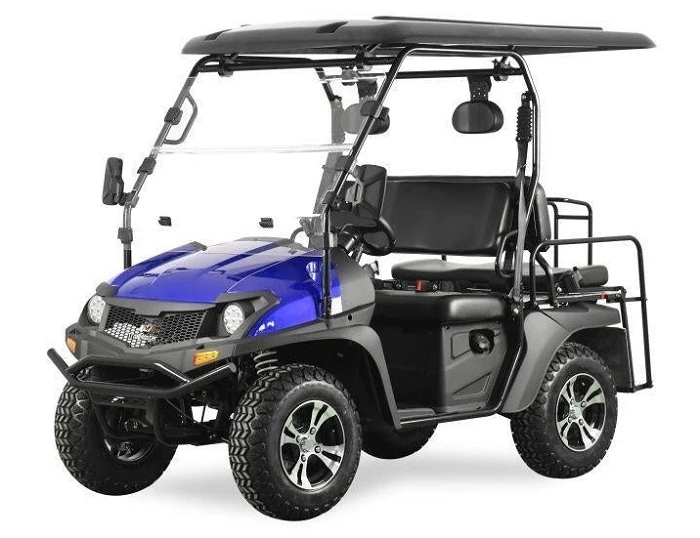

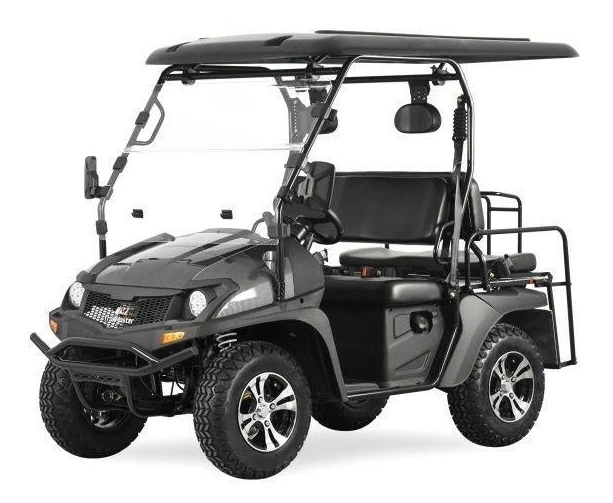

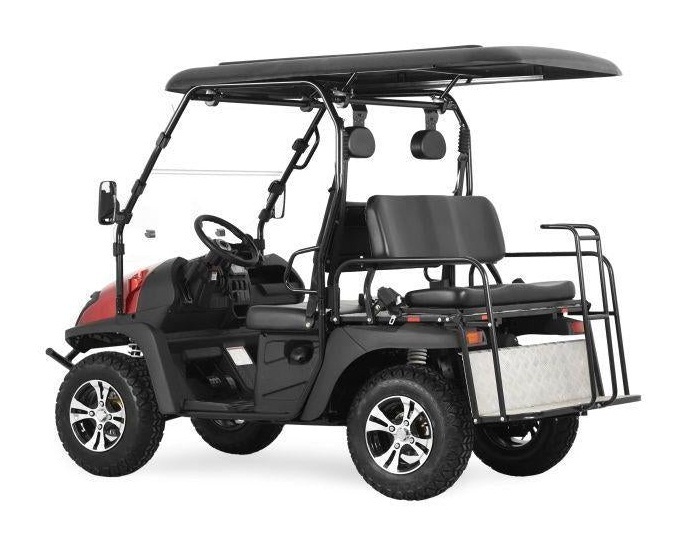

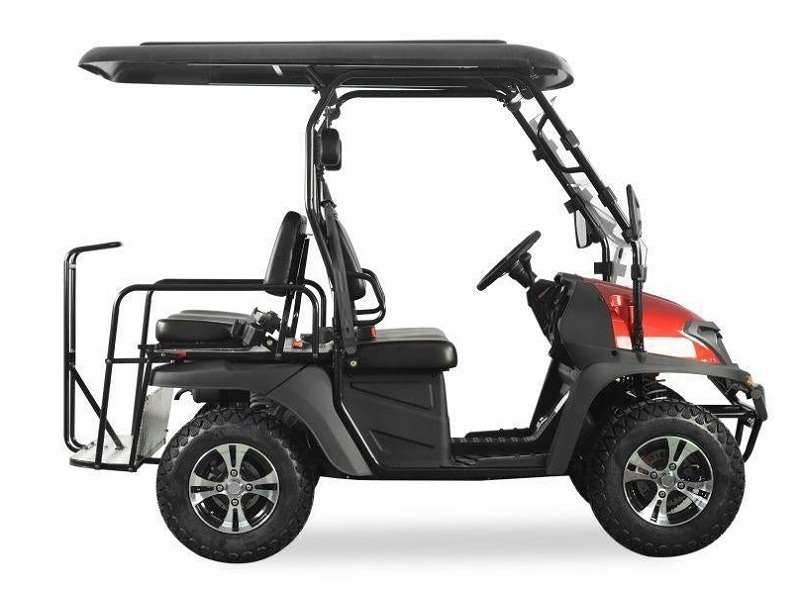

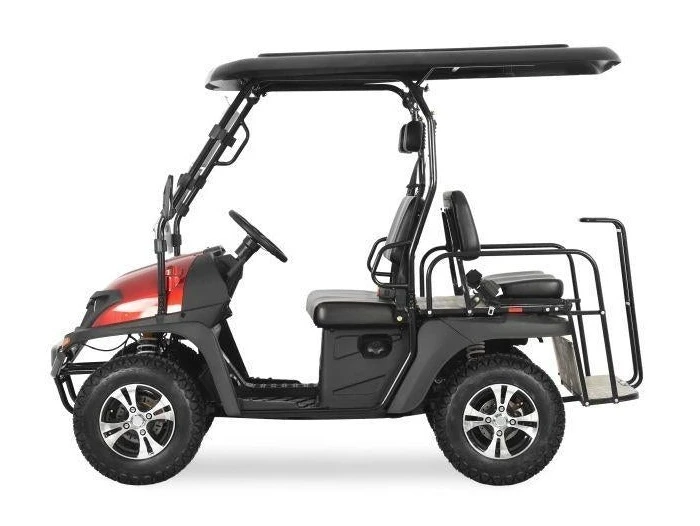

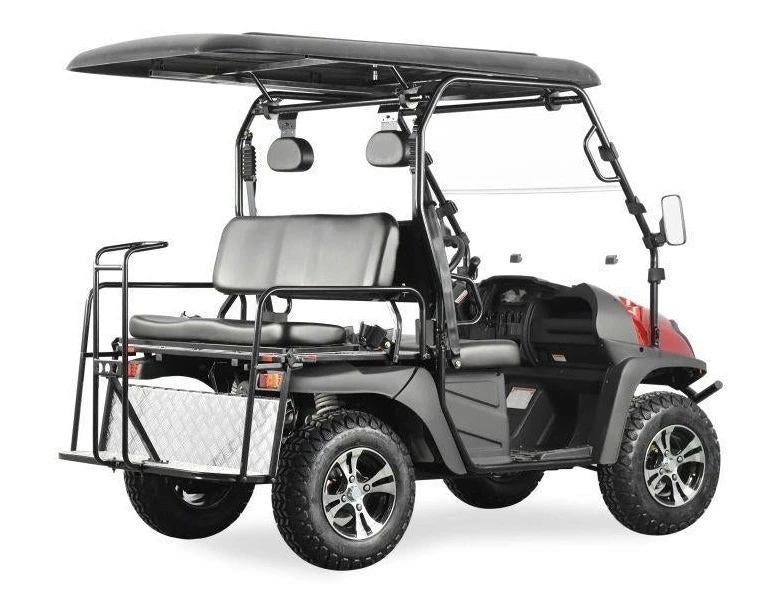

TrailMaster Taurus 200GX EFI UTV Golf cart extended roof long roof, 4 seat with optional dump bed
Equipped with rear flip seat and a full-length roof covering both front and rear seats can be used as a neighborhood golf cart to carry up to 4 persons; Can also add utility dump bed as a utility vehicle interchangeable within a few minutes; Equipped with H/L gear, low gear mode has 40% better climbing ability than the non H/L version & can climb up to 30 degree slopes with ease. It is perfect for a long weekend of hunting and tough jobs all week long.
Four passenger models available.
Foldable 4-seater/rear-flatbed model; Add a dump bed which takes 15 minutes to install in place of the back seat for only $249 more.
Air and oil cooled high performance 177.3 cc GY6 engine with internal reverse set up, with rear shaft direct drive, more reliable power transmission, higher transmission efficiency;
Four-wheel independent suspension for much better driving experience Heavy duty frame, net weight 880 lbs, max load 800 lbs for 4 adult with flip seat Digital speedometer/odometer LED Hi/Lo beam head light Big dual purpose tires: F / R: 24 x 8-12 / 24 x 8-12 Polished aluminum wheels Double A-Arm Fully Independent Suspension Lots of Underseat Storage
EPA approved Digital Gage Set with Speedometer and Tach Head Lights, Tail Lights, and Brake Lights. Turn Signals Optional CVT Transmission Integral Manual Shift Gear Box for Forward Neutral and Reverse Direct Drive from gearbox to rear wheels via half shafts Live Axle Rear Wheel Drive 4 Wheel Hydraulic Disc Brakes Hand Actuated Mechanical Parking Brake McPherson Strut Front Suspension.
➤ TAURUS 200 EFI SERVICE MANUAL CLICK HERE
Technical Specs
Parts breakdown set up manuel
TAURUS 200 UTV | Parts Breakdown | |
TAURUS 200 OWNER'S MANUAL | Owner's Manual |
EPA Certificated | Yes |
Engine Type | 4-stroke, cylinder, air and oil cooled |
Displacement | 177.3cc |
Compression Ratio | 8.8 |
Max HP | 9.5HP |
Bore & Stroke | 62.5X57.8 mm |
Max Torque and Crankshaft Speed | 11.0/4500 N.m/(RPM) |
Nominal Power and Crankshaft Speed | 6.5/6500 kw/(RPM) |
Max speed | 25mph |
Climbing Ability | 30 degrees |
Ignition | C.D.I |
Starting System | Electric |
Battery | 12V 9Ah |
Carburetor Brand | Deli |
Engine Oil | SAE 15W/40 |
General Information | |
Transmission | Auto, L-H-N-R |
Drive Train | Shaft Drive; 2 WD |
Drive Mode | Rear Shaft Drive, Rear differential |
Suspension, F/R | Front MacPherson, Rear Dual A-ARM |
Brakes, F / R | Both hydraulic brakes, Disc |
Tires, F / R | 24 x 8-12 / 24 x 8-12 |
Fuel Tank Capacity | 4.8 gallons |
Wheels | Aluminum |
Weight, G.W. / N.W. | 1136 lbs/ 880 lbs - 515 / 399 Kg |
Max Load | 800 lbs |
Dimension Information | |
Wheelbase | 63’½ |
Length×Width×Height | (Inches) 108x54x75 2743x1371x1905 (mm) |
Seat Height | 33’½ |
MinGround clearance | 11’½ |
Notes | Configurations And Specifications Subject To Change Without Notice. BV POWERSPORTS, LLC’½ |
