What is not assembled if buying fully assembled: Roll cages

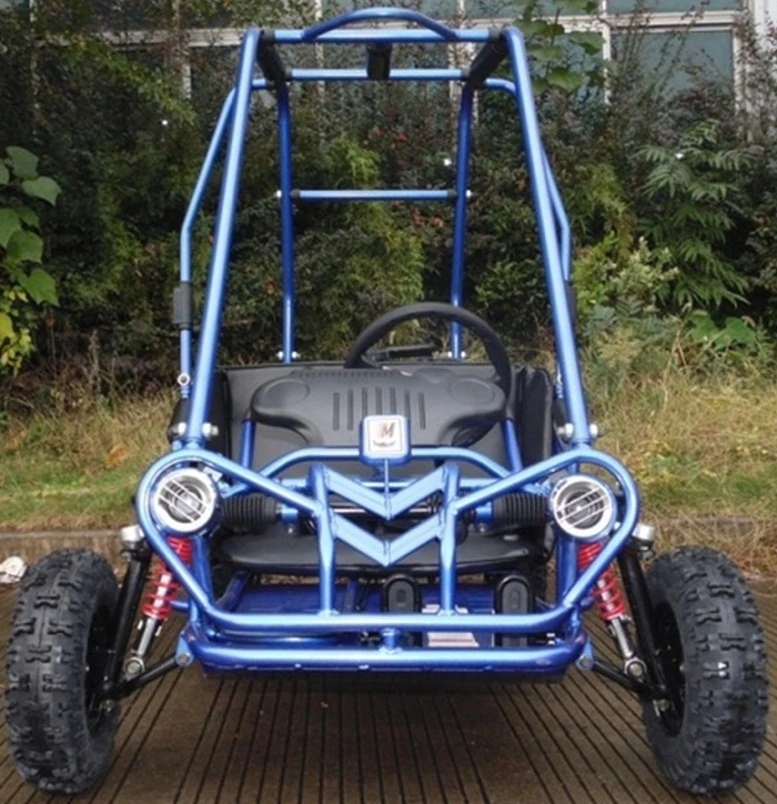

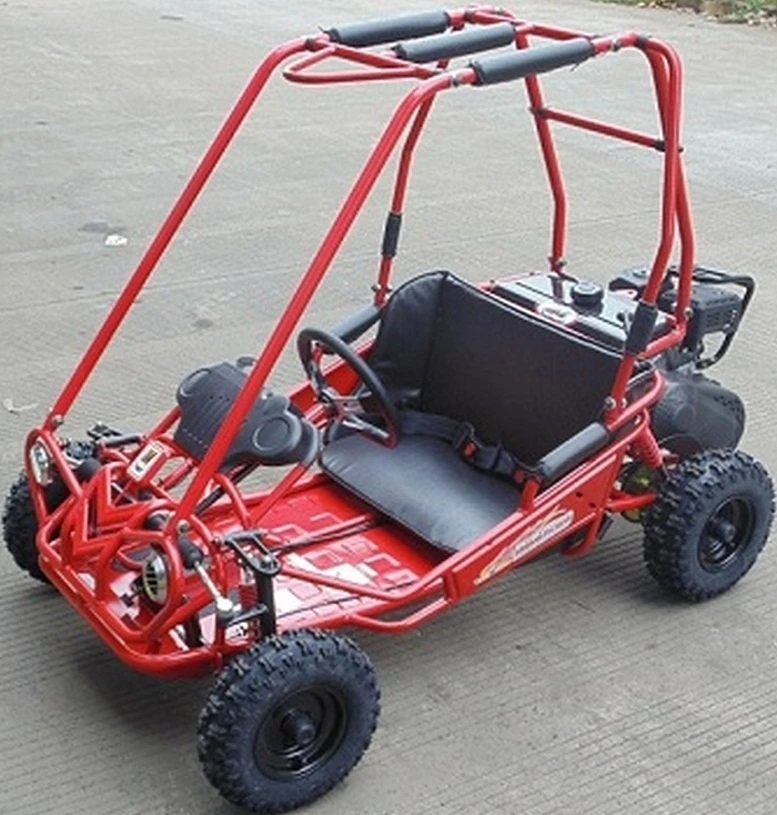

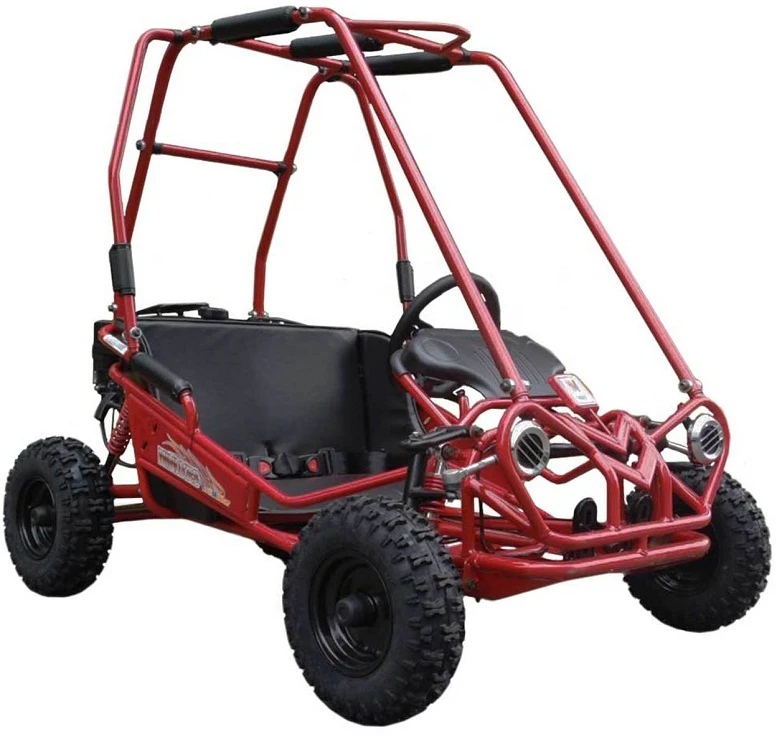

This 163cc 4-stroke, single-cylinder, air-cooled engine delivers 5.5HP at 3600 RPM, providing powerful and reliable performance. The automatic clutch ensures smooth operation, while the chain-driven dual-wheel drive offers enhanced stability and control. With a top speed of 12.4 mph and a 12-degree climbing ability, this vehicle is built for exciting off-road adventures. The dual A-arm front suspension and double oil-damped rear shock absorb bumps, delivering a comfortable ride. It features a rack and pinion steering system for precise control, along with a rear disc brake for strong stopping power. A 1.2-gallon fuel capacity ensures longer rides, while the adjustable pedal system accommodates different rider heights. With a 300 lbs max load capacity, safety belt, and speed governor, it is designed for both safety and fun. The compact yet sturdy frame (58.7" x 38.2" x 48.8") ensures durability for various terrains.
Key Features
✔ 163cc 4-stroke OHV engine – Delivers 5.5HP for strong performance
✔ Automatic clutch – Smooth and easy operation
✔ Top speed of 12.4 mph – Perfect balance of speed and control
✔ Dual-wheel drive, live axle system – Enhanced stability on rough terrains
✔ Fully suspended front & rear system – Absorbs shocks for a smooth ride
✔ Rack and pinion steering – Precise and easy maneuverability
✔ Rear disc brake – Strong and reliable stopping power
✔ Adjustable pedal system – Can be shortened by 3” or 6” for comfort
✔ Safety belt & speed governor – Ensures a secure and controlled ride
✔ Max load of 300 lbs – Suitable for various riders
Technical Specs
Parts breakdown set up manuel
MINI XRS Parts | Set Up |
Engine Information
• EPA certified and CARB approved;
• Engine type: 4-stroke, single cylinder, air cooled
• Displacement: 163cc
• Max HP: 5.5hp/3600rpm
• Max torque: 8 lb ft/3600rpm
• Bore x stroke: 2.6 x 1.8 inches
• Max speed: 12.4mph
• Climbing ability: 12 degrees
• Starting system: Manual Pull Start
• Battery: No
• Carburetor brand: JF (RX)
• Engine oil: SAE 15W-40
General Information
• Clutch: Automatic
• Driveline / Driving wheel: Chain / Dual wheel drive
• Suspension, F / R: Dual A-arm / Double Oil Damped Shock
• Brakes, F / R: No / Disc
• Tires, F / R: 4.10-6 / 13 x 5-6
• Fuel capacity: 1.2 gal
• Weight, G.W. / N.W.: 209 / 176 lbs - 94 / 79 kg
• Max load: 300 lbs
Dimension Information
• Wheelbase: 42.6 inches
• OA Length×Width×Height(Inches): 58.7x38.2x48.8 / (mm):1490x970x1239
• Height to seat: 7.5 inches
• Min ground clearance: 3.5 inches
• Pedal to seat back: standard: 30”; Pedal can also adjusted to 3” or 6” shorter.
Key features:
• Powerful and reliable 4 stroke 5.5HP OHV engine
• Rack and pinion steering
• Two wheel drive, live axle
• Fully suspension front and rear
• Safety belt
• Adjustable pedal
• Speed governor
