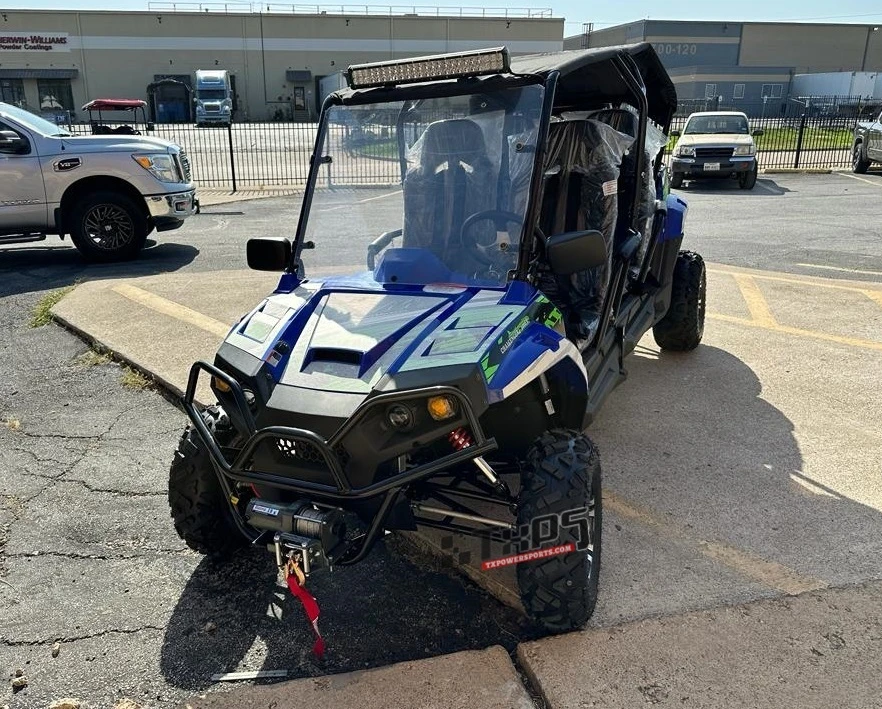

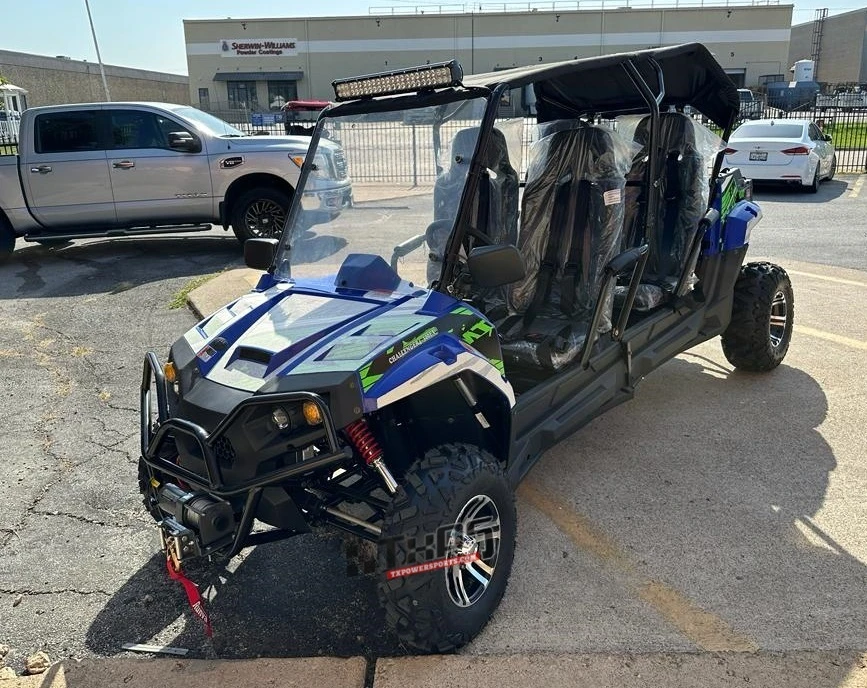

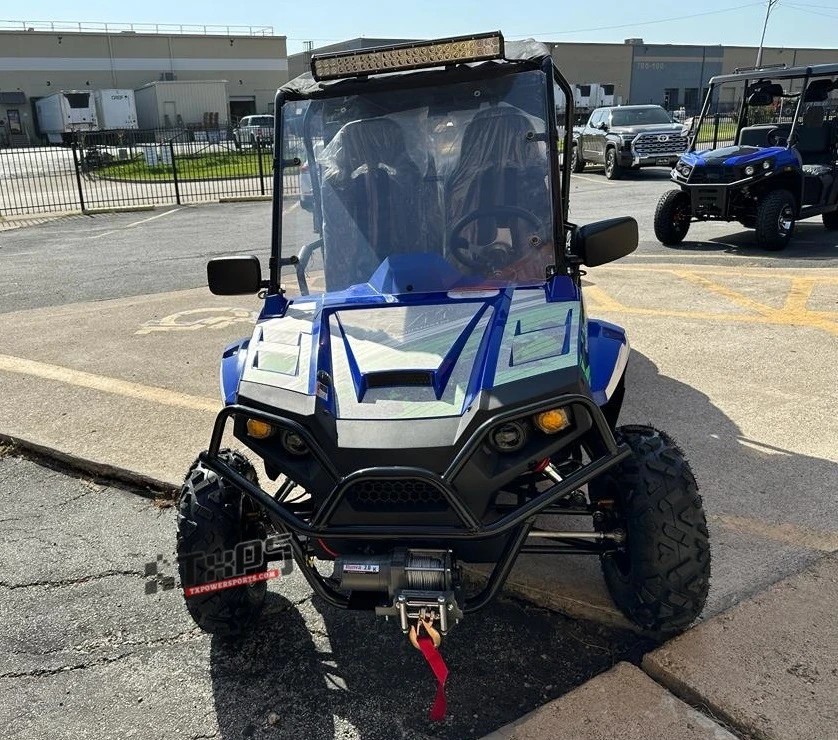

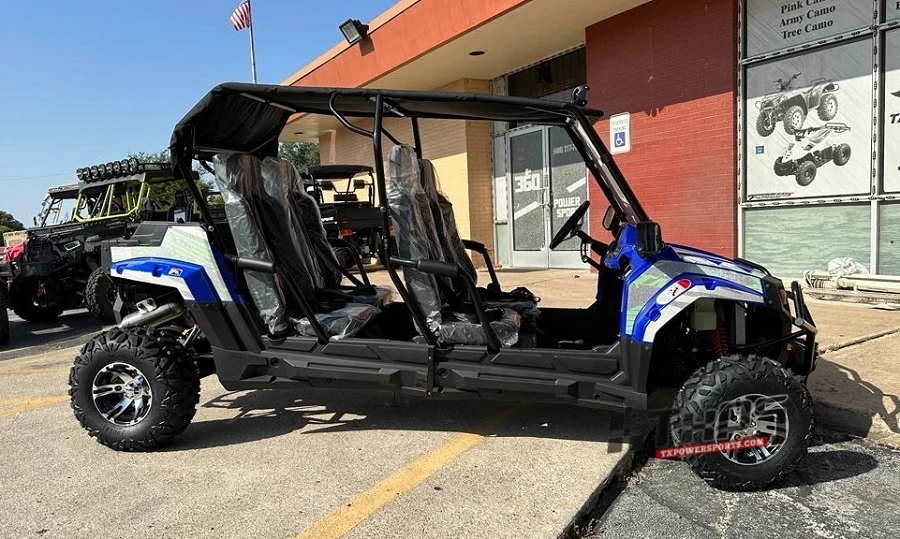

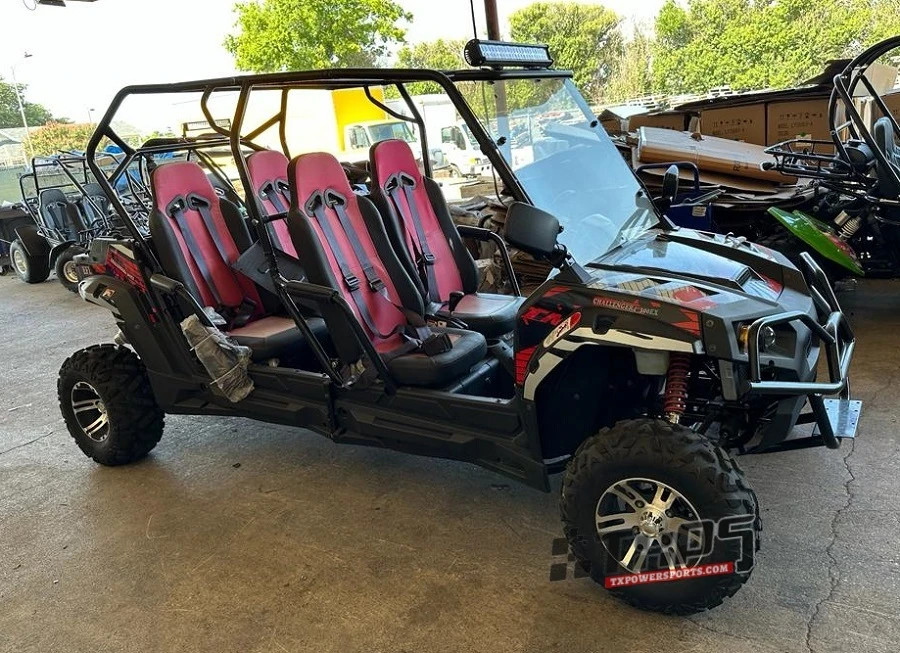

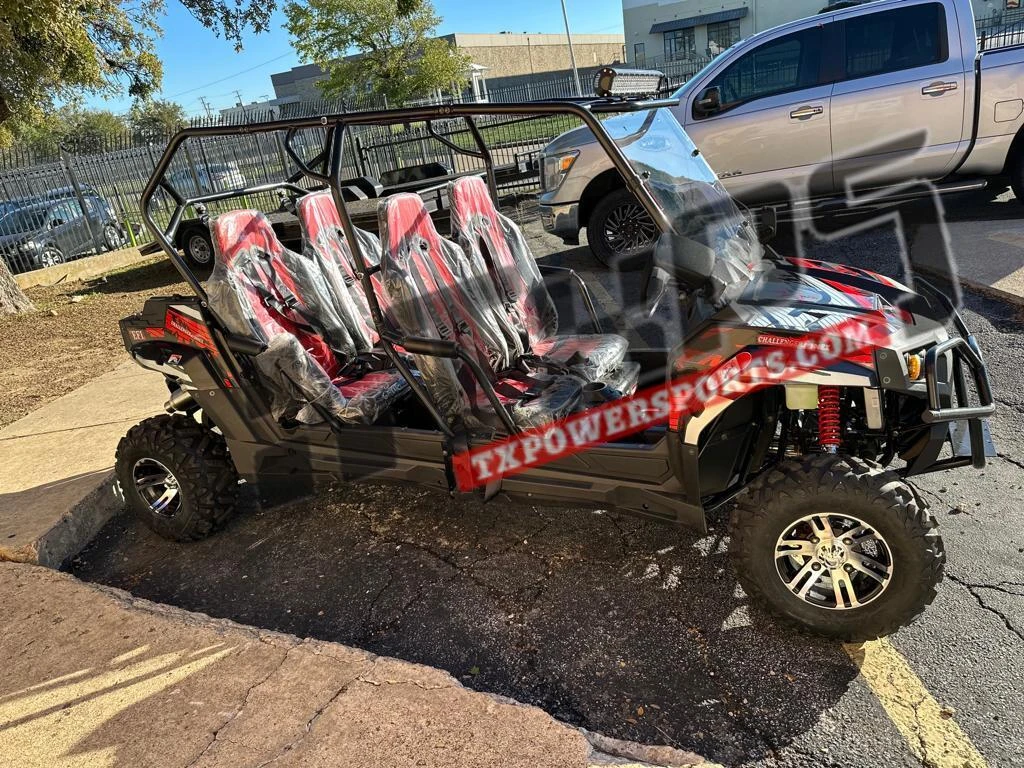

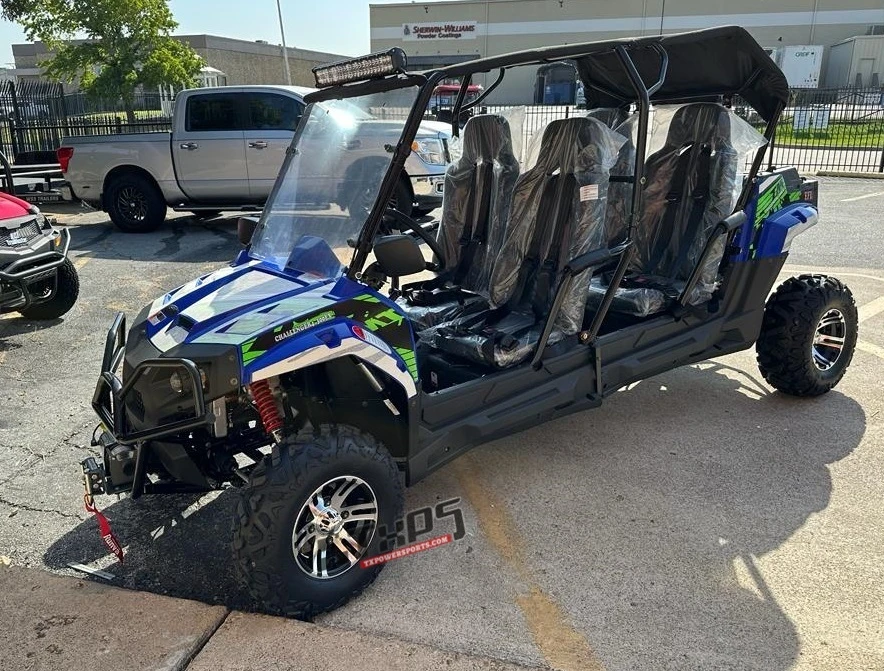

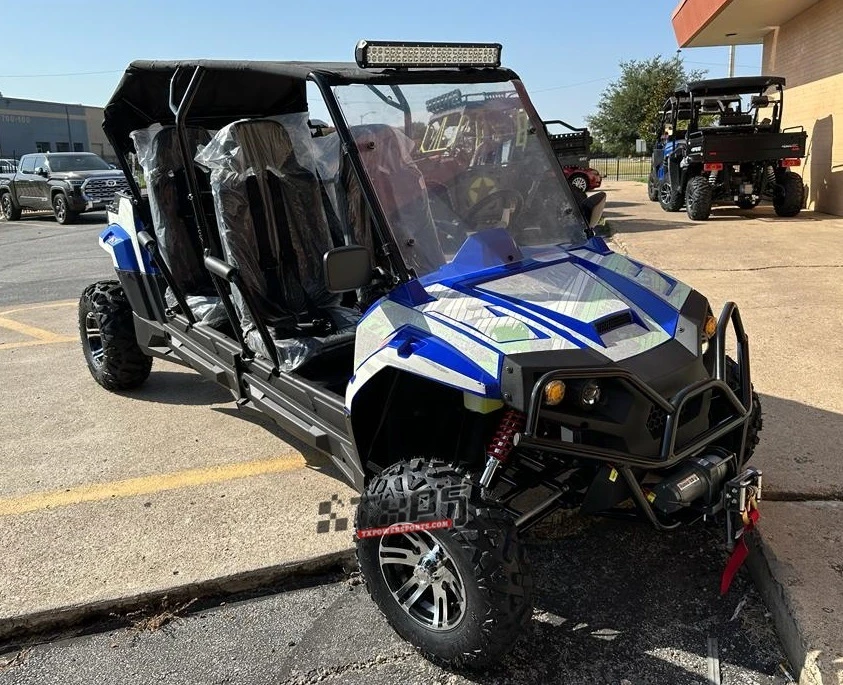

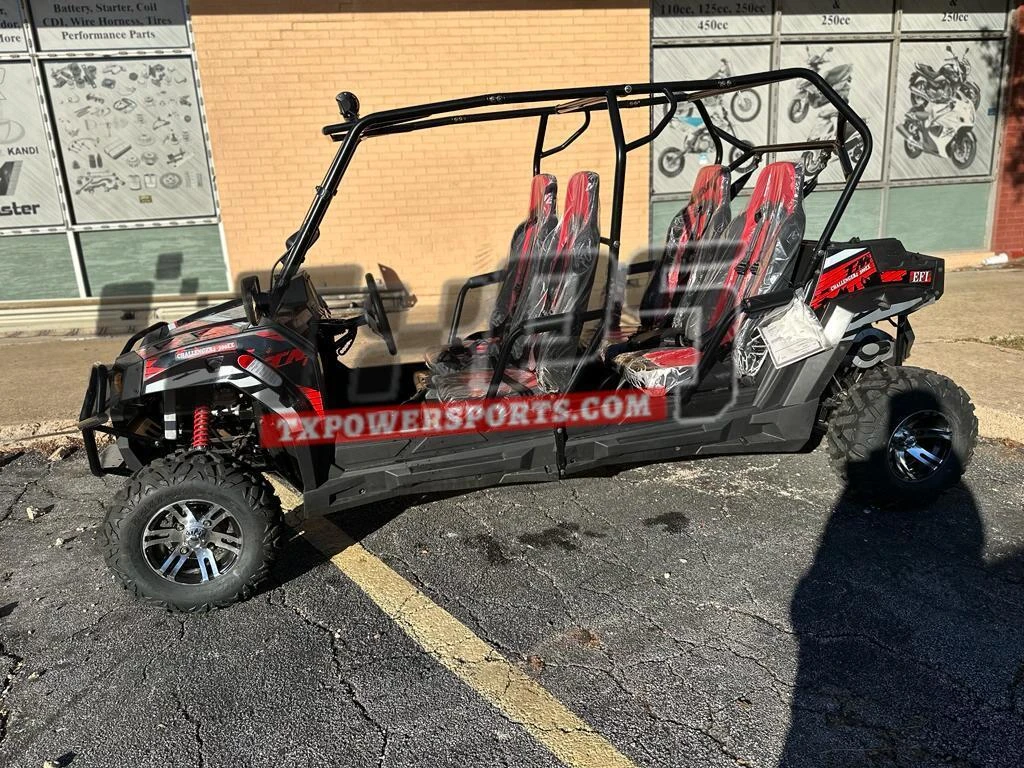

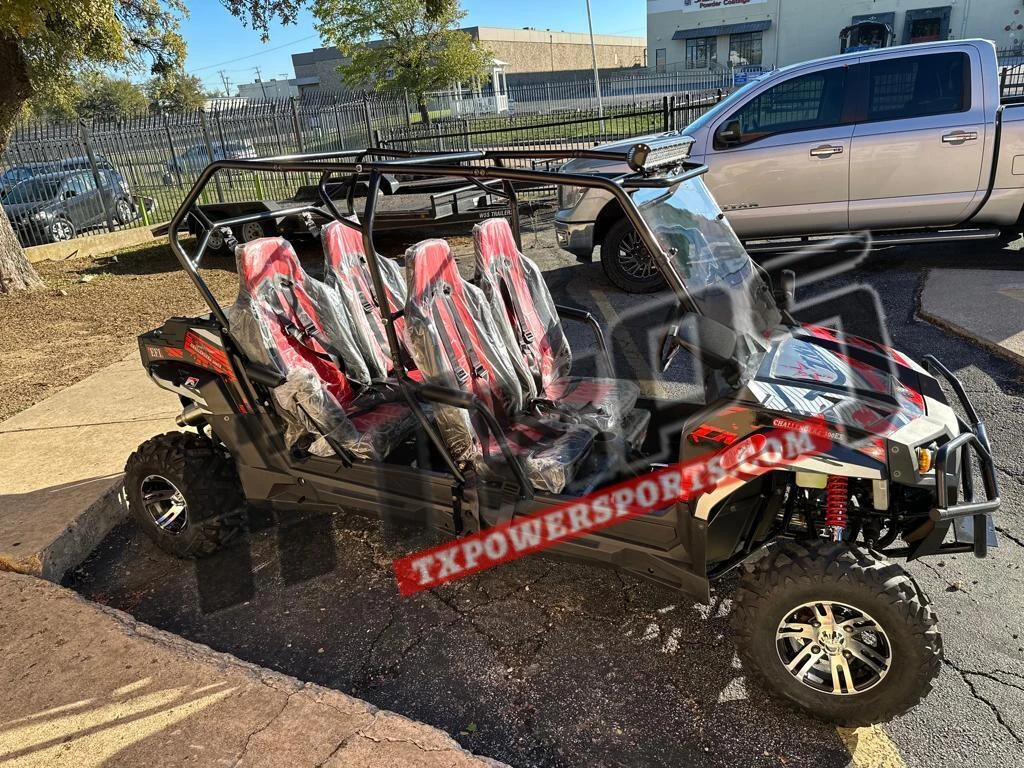

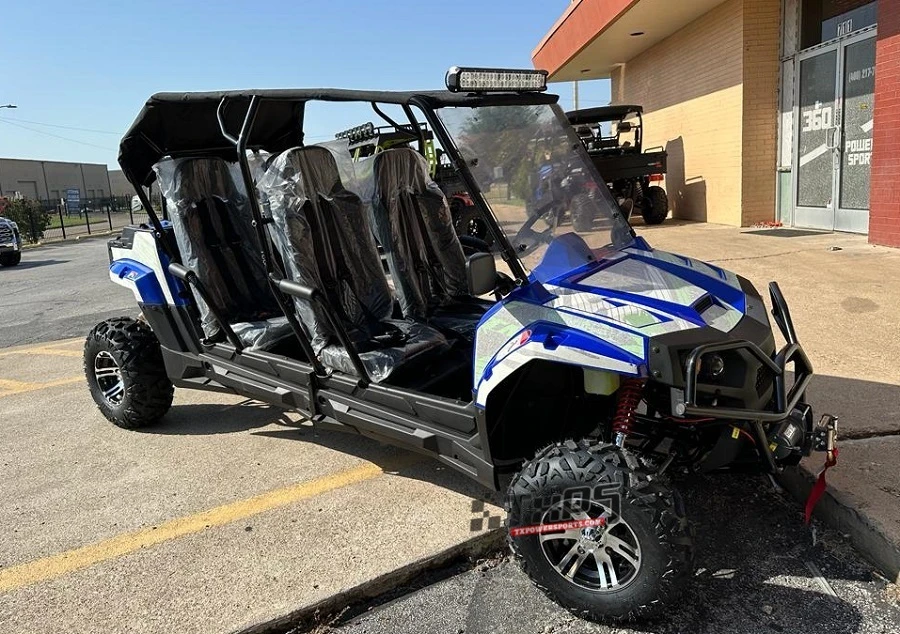

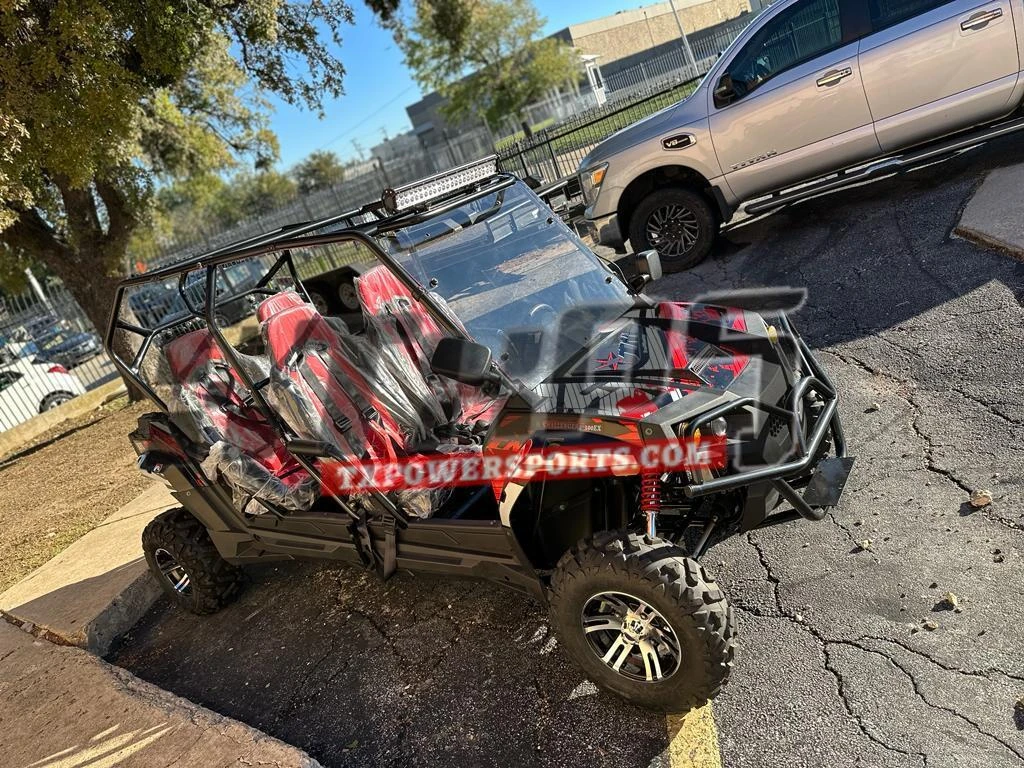

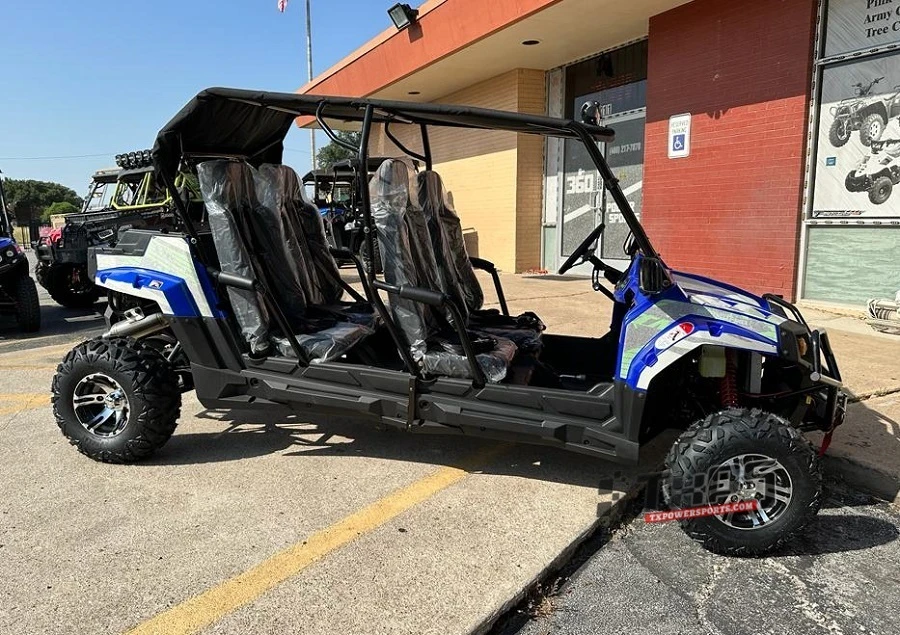

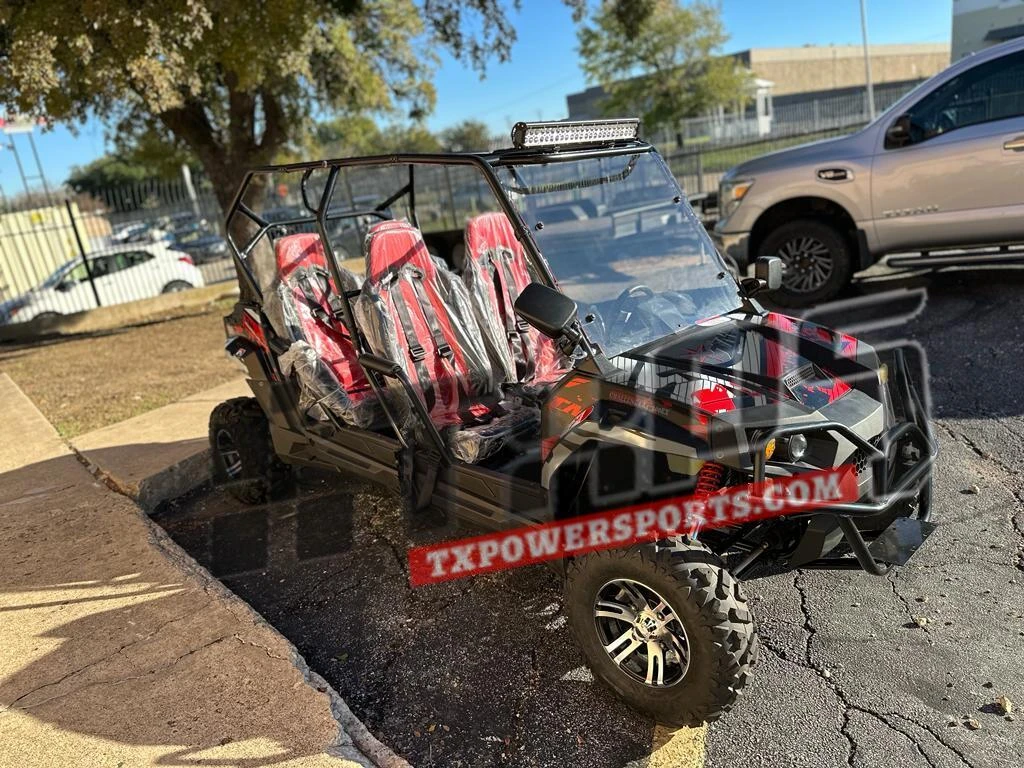

TrailMaster Challenger4 300X EFI UTV, 4-Stroke, Single Cylinder, Water- Cooled
Dear All,
We are very proud to announce that the long waited TrailMaster Challenger4 300X 4-seater UTV has arrived!
The Challenger4 300X, now EFI with a 18HP powerful fully automatic engine, is a full size UTV that fits up to 4 adults. With a different gear ratio set up than our carbureted version, the EFI Challenger4 300X offers a lot more low end torque that you will surprise by the take-off power! This 4-wheel independent suspension beast goes over any tough terrain with ease. The alloy wheel, LED light bar, windshield, front steel bumper and etc. adds a lot more perceived value to the already nice looking UTV with the exciting graphic. Not to mention the features that always come standard on our Challenger series which includes but not limited to: digital speedometer/odometer, horn, adjustable steering wheel, 12v outlet, turn signals, bikini sunshade top, trailer hitch, front and rear disc brakes.
Features
18HP powerful water-Cooled 300cc CVT fully automatic with reverse engine
EFI operates under any weather and at any altitude
Full size UTV fits up to 4 adults
New gear ratio set up offers maximum low-end torque
Aluminum wheels
4-wheel independent suspension
Windshield
Front steel bumper
Top LED light bar
Side rearview mirrors

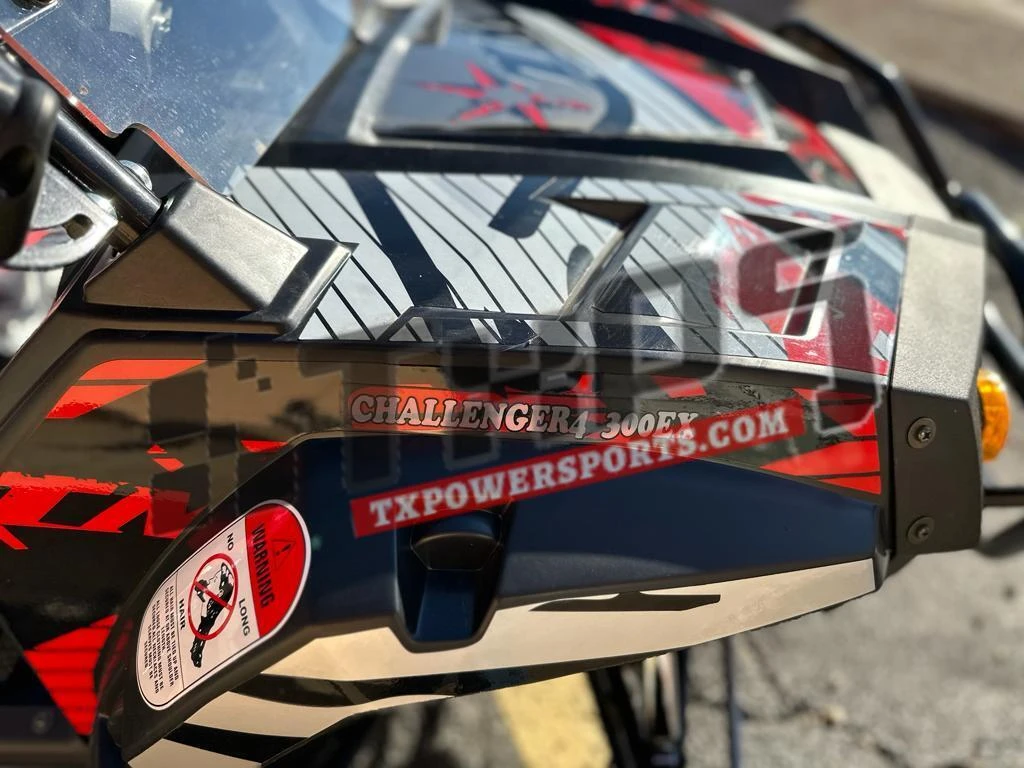

Exciting graphics
Large tires with 22X7-10 in the front and 22X10-10 in the back
Speedometer and odometer
Bikini sunshade top
Turn signals
Horn
Trailer Hitch
12V outlet
Top speed 35M/H
Adjustable steering wheel
Age group: 16 & older
Large driving cabin fits person up to 62
Electric start with kill switch
Four-point safety seatbelt
Individual sporting seats
Adjustable driver seat: pedal to seat back adjustable from 38 to 43
Adjustable heavy duty front and rear shock absorber
Rack and pinion steering wheel
Front and rear hydraulic disc brake
Parking brake
Large rear utility rack
Optional winch
Technical Specs
Parts breakdown set up manuel
| Challenger4 300E UTV |
Parts |
|
EPA certificated
Engine type: 4-stroke, single cylinder, water- cooled
Displacement: 275.6cc
Fuel system: EFI
Max HP: 18hp/6500rpm
Max torque: 16 lbft/5000rpm
Bore x stroke: 2.85x2.63 inches
Max speed: 35 mph
EFI Ignition module: RM1A1
Starting system: Electric
Battery: 12V 10Ah
Engine oil: SAE 10W-40
General Information
Clutch: Automatic CVT with reverse
Driveline / Driving wheel: Chain / Dual wheel drive
Suspension F / R: Independent Dual A-arm / Independent Swing-arm
Brakes, F / R: Both hydraulic brakes, Disc
Tires, F / R: 22x7-10 / 22x10-10
Fuel capacity: 1.75 gal
Weight, G.W. / N.W.:920 /770 lbs - 417/349 kg
Max load: 700 lbs
Dimension Information
Wheelbase: 101.6 inches
Length×Width×Height : 132x50x63 inches / 3352x1270x1600 mm
Height to seat: 21 inches
Min ground clearance: 6.3 inches
Crate dimension: 120X53X35
Configurations And Specifications Subject To Change Without Notice. BV POWERSPORTS, LLC
Product Dimensions
• Length×Width×Height:(Inches) 125x54x40 / 3175x1371.6x1016 (mm)
• Weight : 1000 lbs / 453 kg
