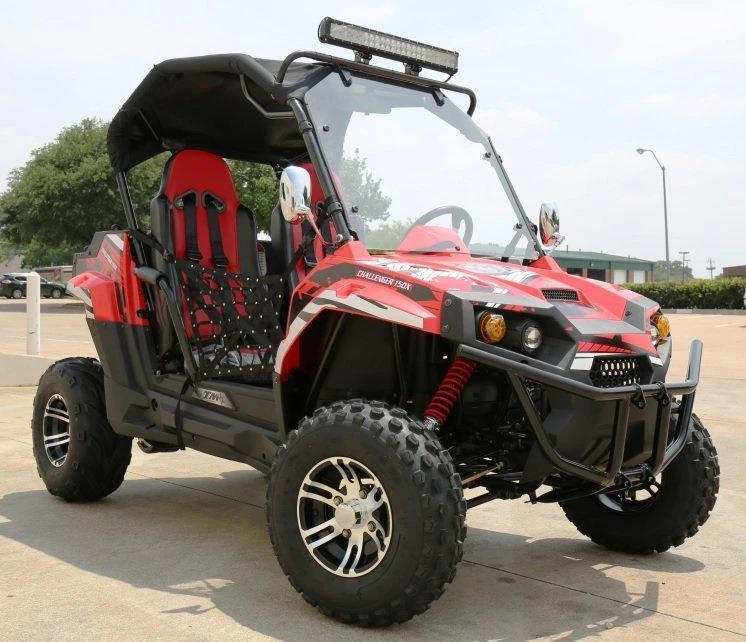

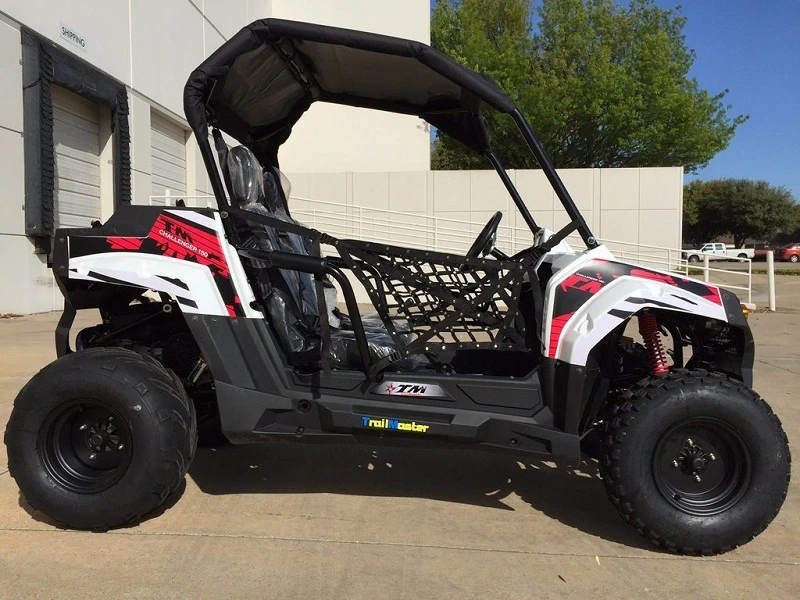

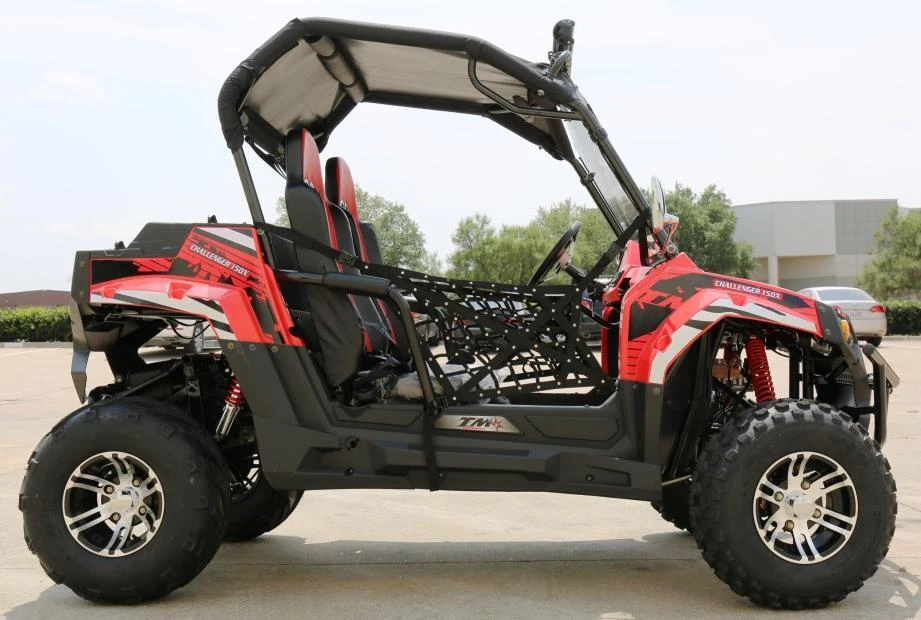

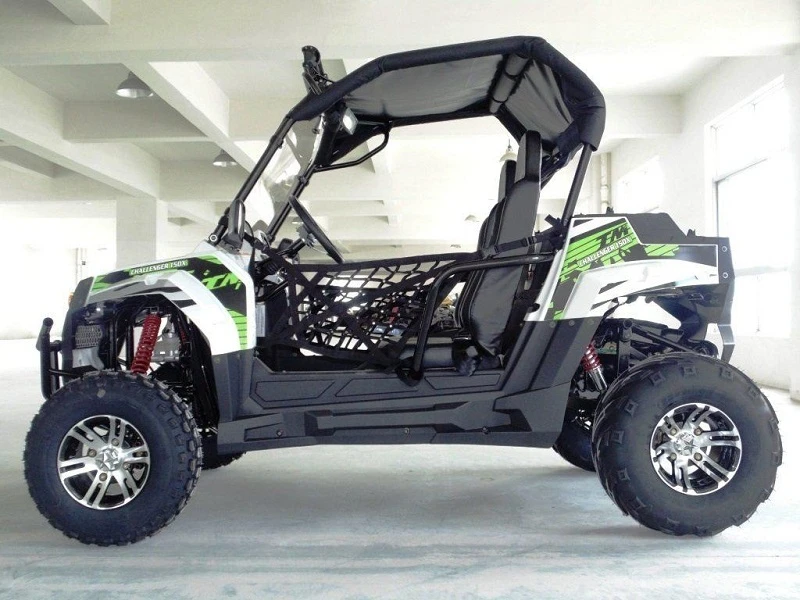

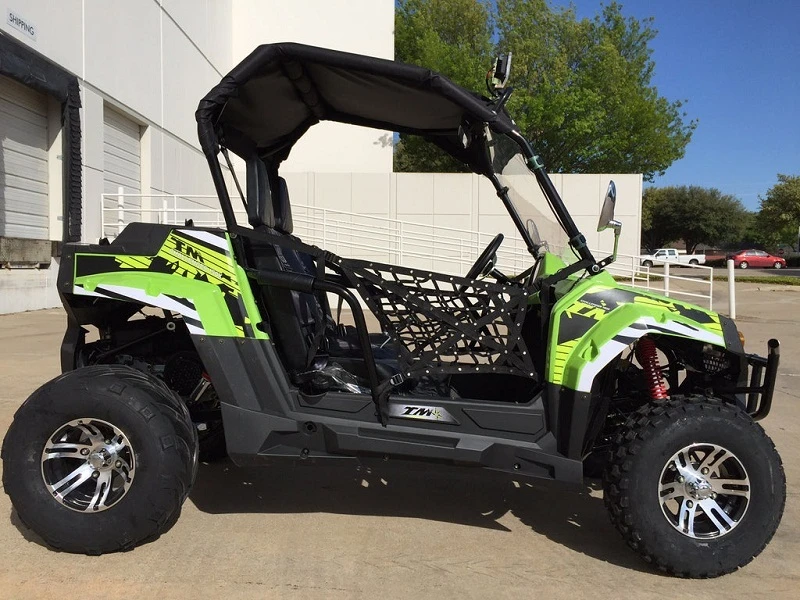

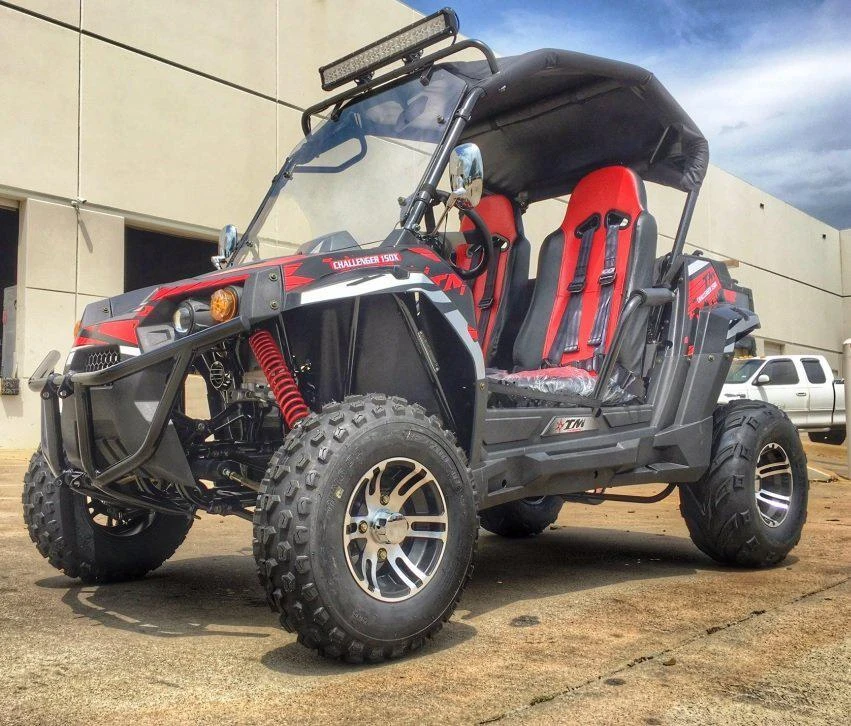

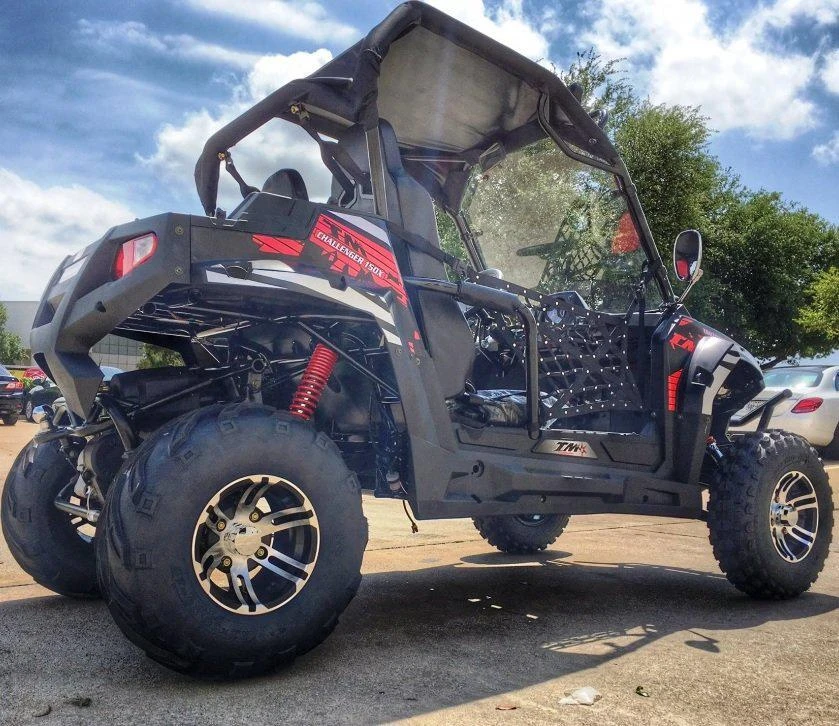

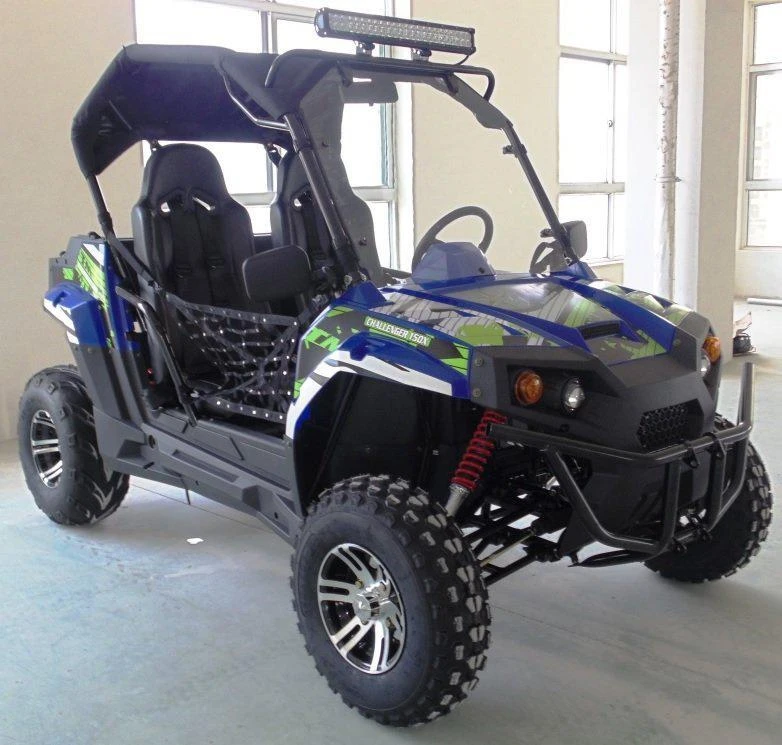

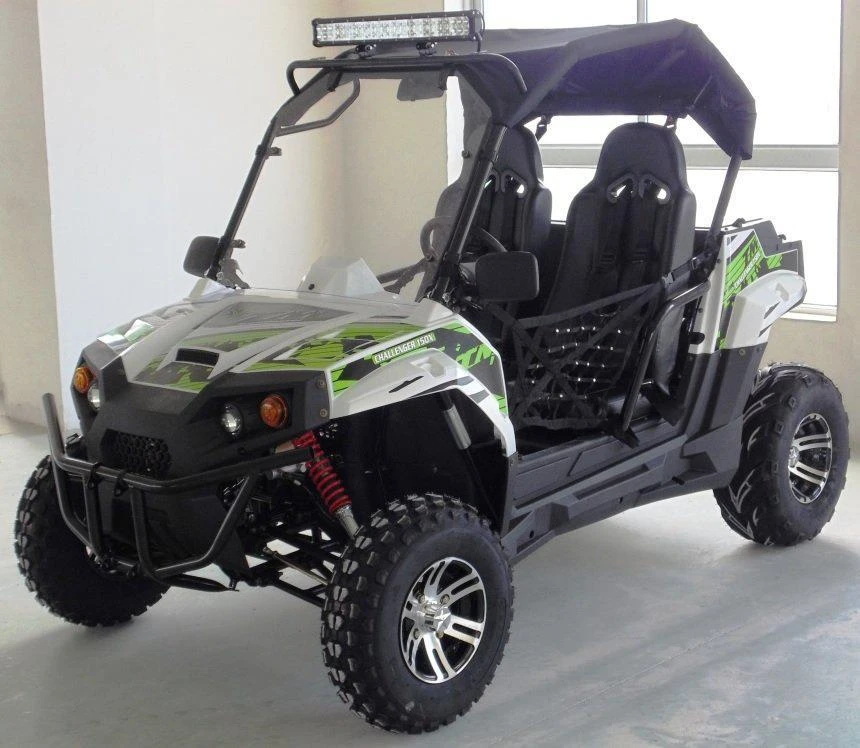

TrailMaster Challenger 300X IRS Upgrades UTV Side-by-Side, Water-Cooled Single-Cylinder Four-Stroke
The TrailMaster Challenger 300X IRS UTV Extended Cab! It climbs hills. It crosses streams. It conquers sand dunes. The 300X IRS UTV side-by-sides are engineered to corner, cross, accelerate, climb, and take you any place you want to go.
Our fully loaded Challenger 300X UTV has more major improvements!
We upgraded our Challenger 300X to independent rear suspension! With the new improvement, users can drive a lot more aggressively! We redesigned the front end and rear end, which makes it a lot less vibratory and much better for turning and handling!
The long-awaited TrailMaster Challenger 300X IRS is finally here! Much more power than the Challenger 150. Suitable for rough terrain. High quality. Graphics Package Included.
Features
Top Features:
- Powerful water-Cooled 300cc CVT fully automatic with reverse engine
- Aluminum wheels
- 4-wheel independent suspension
- Windshield

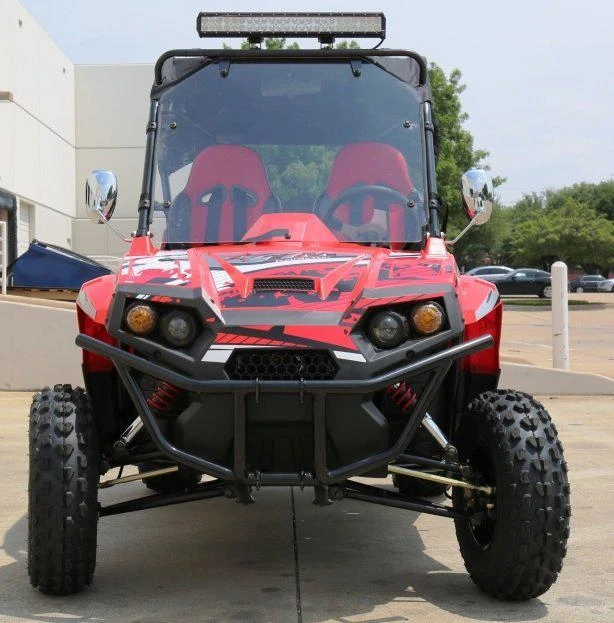

- Front steel bumper
- Top LED light bar
- Side rearview mirrors
- Exciting graphics
- Large tires with 22X7-10 in the front and 22X10-10 in the back
- Speedometer and odometer
- Bikini sunshade top
- Side nets
- Turn signals
- Horn
- Trailer Hitch
- 12V outlet
- Top speed M/H
- Adjustable steering wheel
- Age group: 16 & older
- The large driving cabin fits person up to 6'2".
- Electric start with kill switch
- Four-point safety seatbelt
- Individual sporting seats
- Adjustable driver seat: pedal to seat back adjustable from 38 to 43

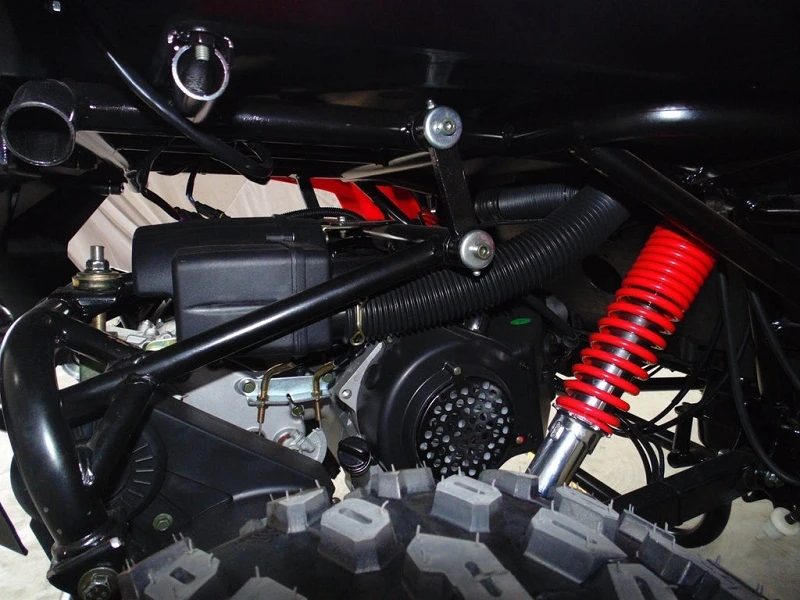

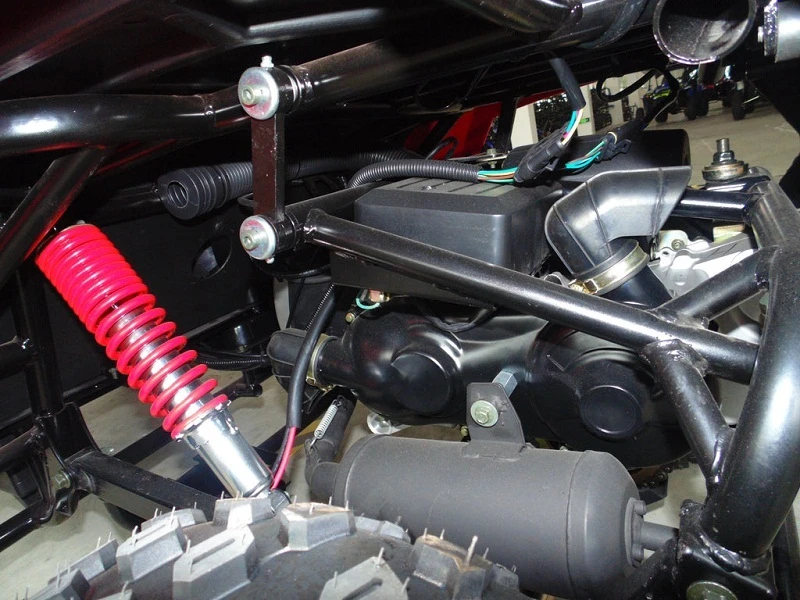

- Adjustable heavy-duty front and rear shock absorber
- Rack and pinion steering wheel
- Front and rear hydraulic disc brakes
- Parking brake
- Large rear utility rack
- Optional winch
Technical Specs
Parts breakdown set manual
| Challenger 300X UTV | Parts |
Engine Information
- EPA certified and CARB approved
- Engine type: 4-stroke, single-cylinder, water-cooled
- Displacement: 276 cc
- Max HP: 17.4 hp/6500 rpm
- Max torque: 16 lb rpm
- Bore x stroke: 2.85 x 2.63 inches
- Max speed: 45 mph
- Ignition: C.D.I
- Starting system: Electric
- Battery: 12V 10Ah
- Engine oil: SAE 15W-40
General Information
- Clutch: Automatic CVT with reverse
- Driveline / Driving wheel: Chain / Dual wheel drive
- Suspension F/R: Independent Dual A-arm / Independent Swing-arm
- Brakes, F/R: Both hydraulic brakes, Disc
- Tires, F/R: 22x7-10 / 22x10-10
- Fuel capacity: 1.75 gal
- Weight, G.W. / N.W.: 705 / 617 lbs - 319 / 279 Kg
- Max load: 500 lbs
Dimension Information
- Wheelbase: 72 inches
- Length×Width×Height: 98x50x60 (inches) 2489x1270x1524 (mm)
- Height to seat: 21 inches
- Min ground clearance: 6.3 inches
Product Dimensions
• L x W x H: 2290 x 1320 x 840 mm
• L x W x H: 90.16 x 51.97 x 33.07 inches
• Volume: 2.54/89.7
• Weight: 850 Lbs / 385 Kg
